SpeedyBee Goggles BEC 20W MAX Fast Charging 3-6S Balance Power Adapter With Cable Low Voltage Alarm for DJI Goggles 2 FPV Goggles V2
Specifications:

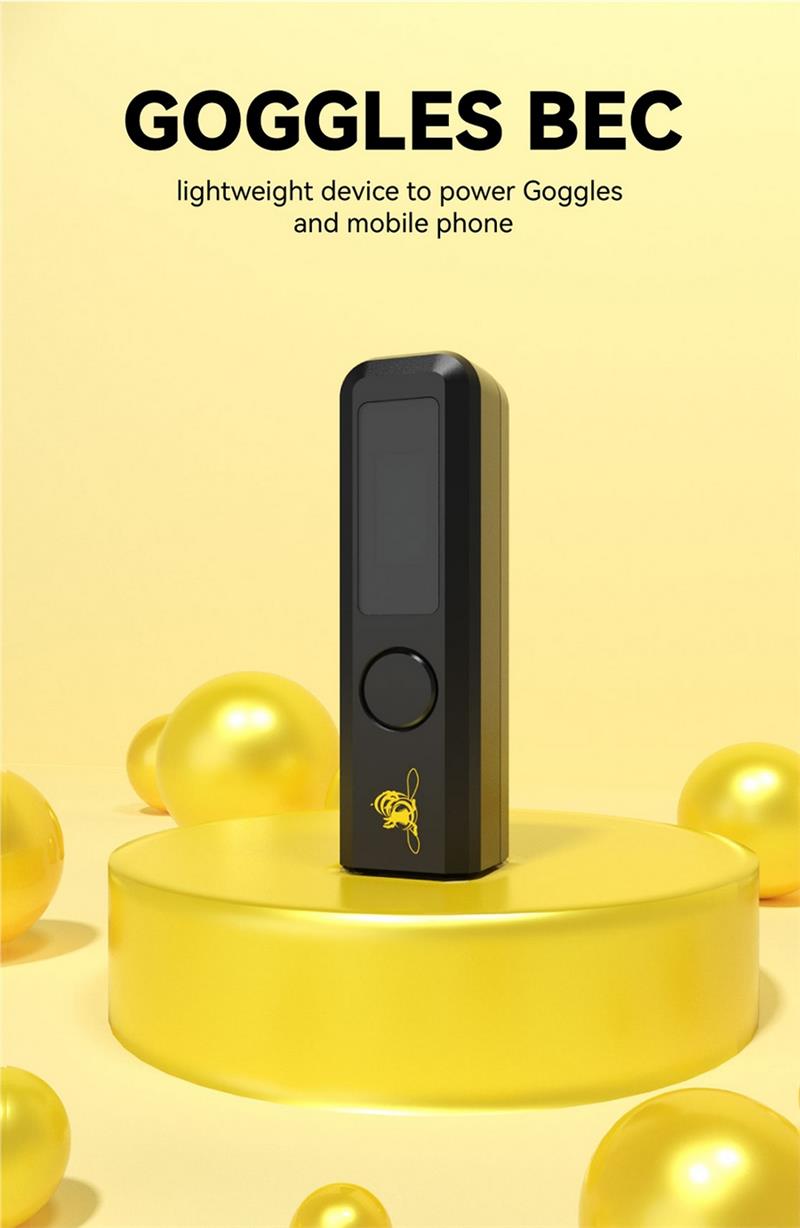

Product Name:SpeedyBee Goggles BEC
Power Input Voltage Range:3-6S
Power Input Connector:XT60-Male

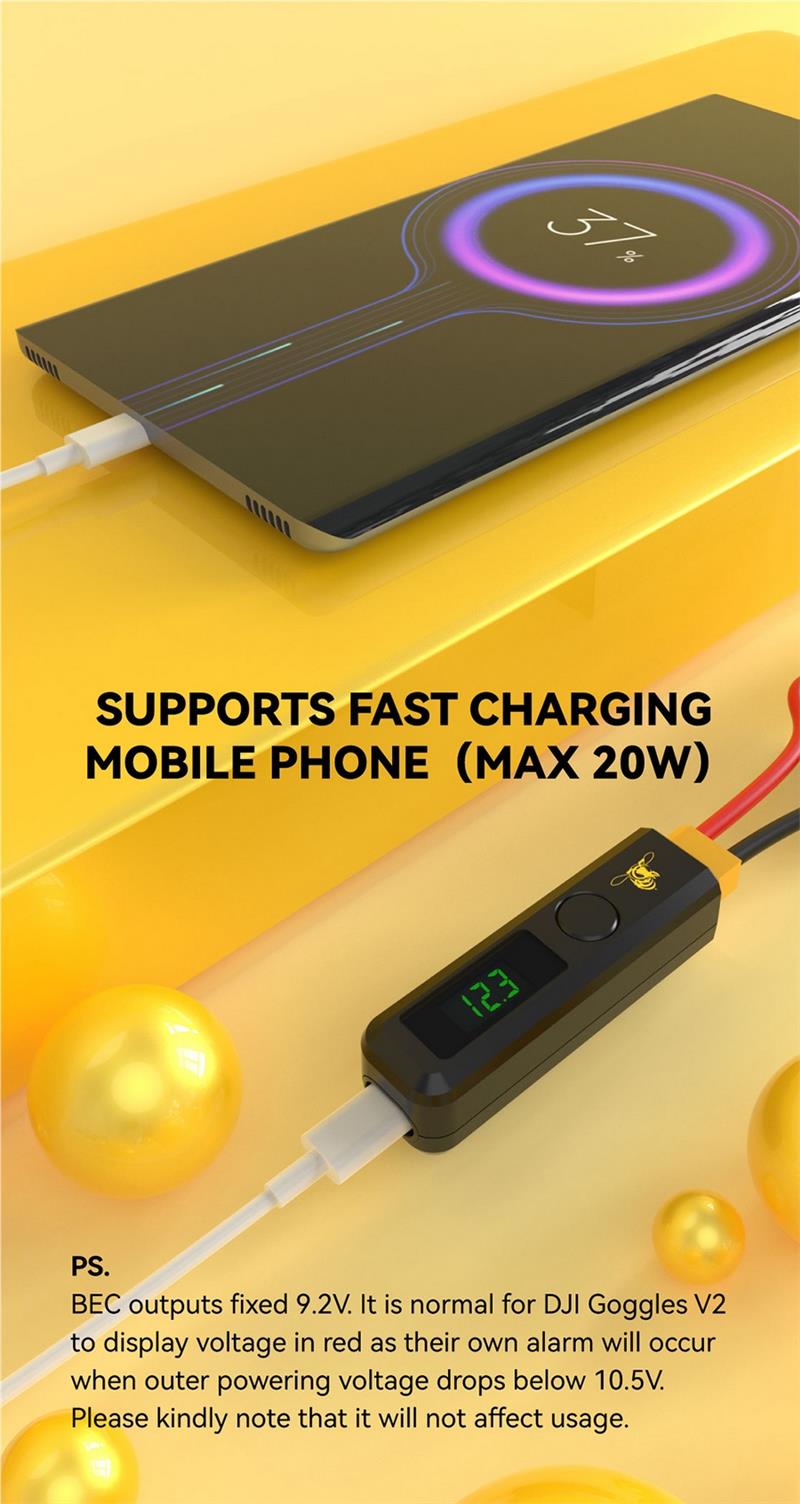

Fast Charging Output interface:USB-C Port
Supported Fast Charging Protocol:
PD3.0/QC4+/PPS/AFC/FCP/SCP/PE2.0/SFCP
Max Fast Charging Power:20W
Dimension(Main Body):21*21*72mm
Net Weight:25g
Error Notification:
Er1 Short circuit, power off
Er2 Overheated,power off
Er3 Overheated
Er4 Overvoltage, power off (>26V)
Er5 Low power voltage,power off(<10.5V)

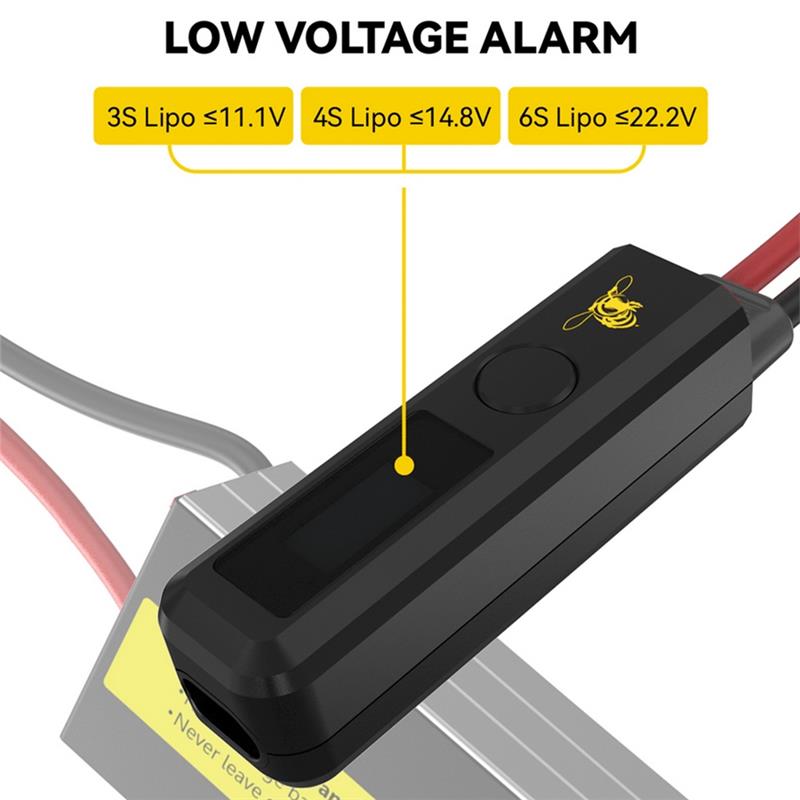

Low voltage alarm (blinking screen):
3S Lipo 1.1V
4S Lipo 4.8V
6S Lipo 2.2V
Features:
Advanced Power Input: The XT60-Male connector allows for a power input voltage range of 3-6S, ensuring flexibility for various devices.
Fast Charging Output: Equipped with a USB-C Port and supports multiple fast-charging protocols like PD3.0/QC4+/PPS/AFC/FCP/SCP/PE2.0/SFCP, offering quick and efficient power supply.
Compact and Lightweight: With dimensions of 212172mm and a weight of 25g, the SpeedyBee Goggles BEC is perfect for the mobile user.
Innovative Error Notification System: Alerts users with distinct error codes for issues like short circuit, overheating, and voltage levels, promoting safe and reliable operation.
Low Voltage Alarm: Built-in alarm for low voltage conditions, ensuring battery safety and longevity.

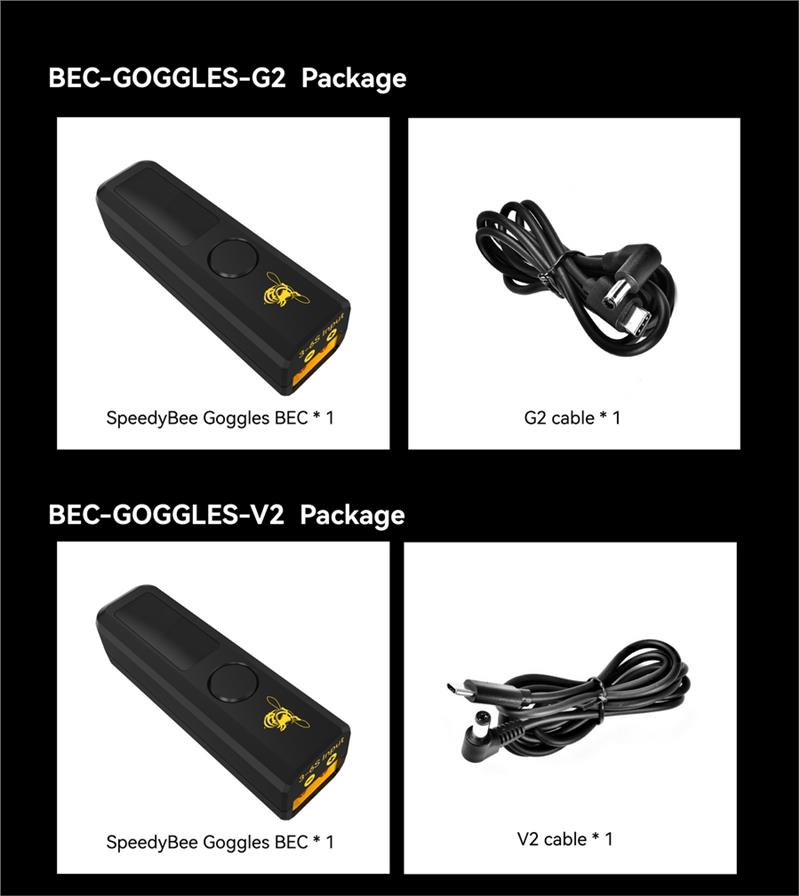

Package List:
Option 1:
1x SpeedyBee Goggles BEC
1x Goggles 2 Cable
Option 2:
1x SpeedyBee Goggles BEC
1x Goggles V2 Cable

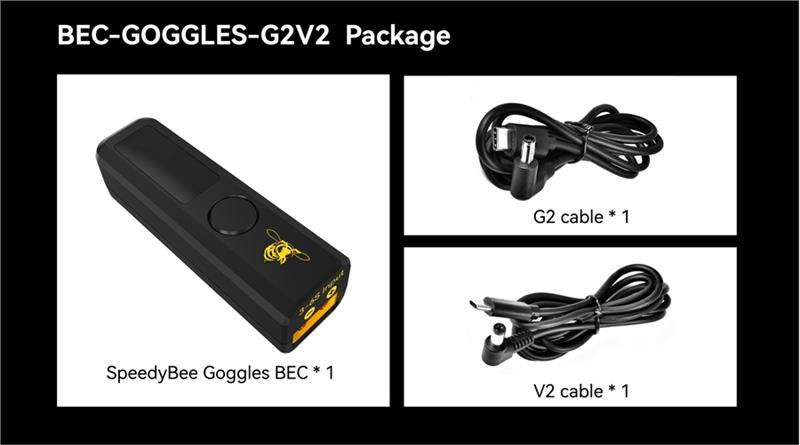

Option 2:
1x SpeedyBee Goggles BEC
1x Goggles 2 Cable
1x Goggles V2 Cable
Please Note:
Ensure to adhere to the specifications for optimal performance. Misuse may lead to product failure or potential safety risks.
