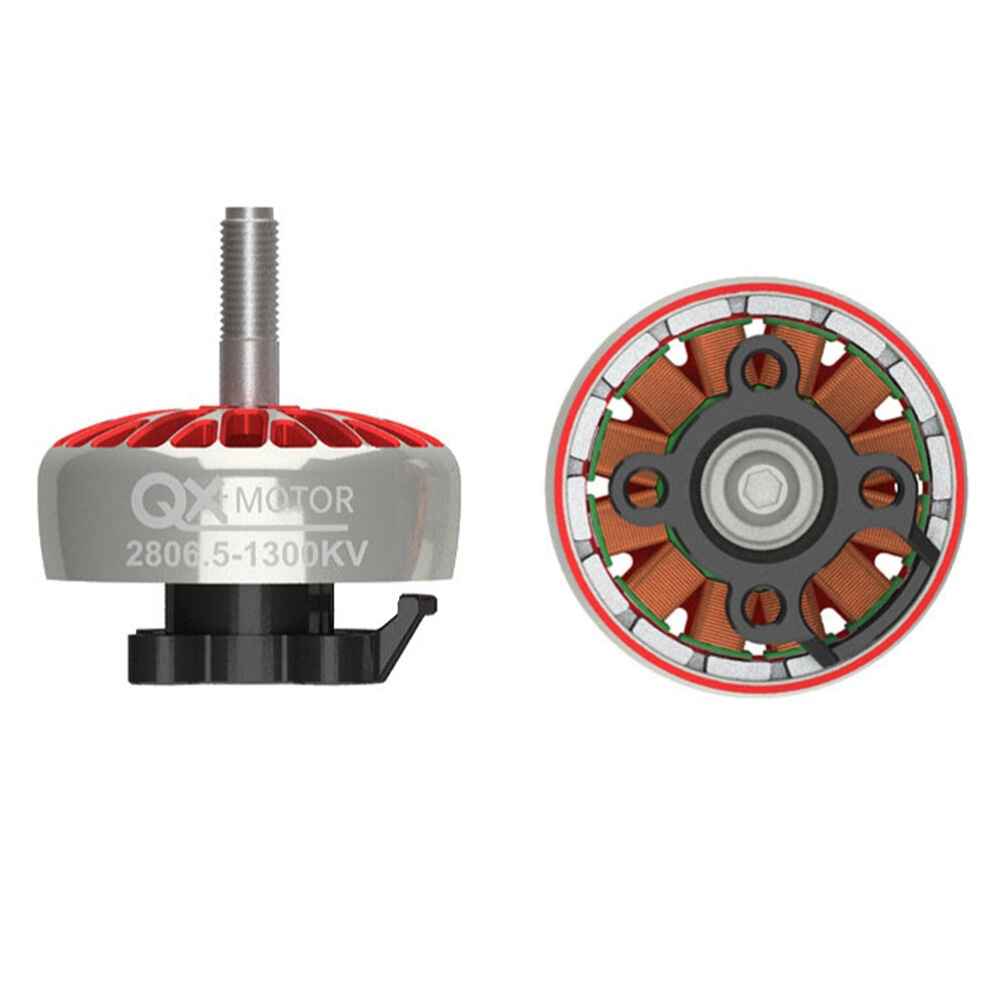

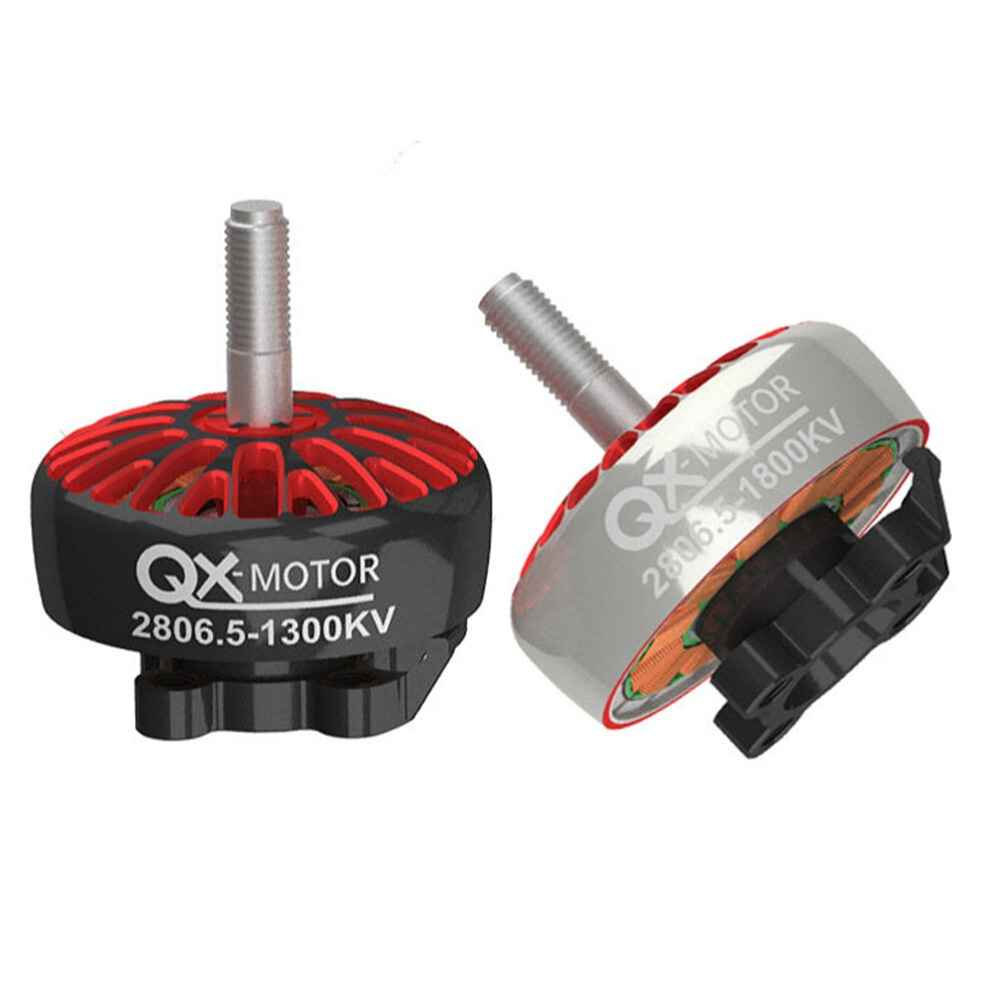

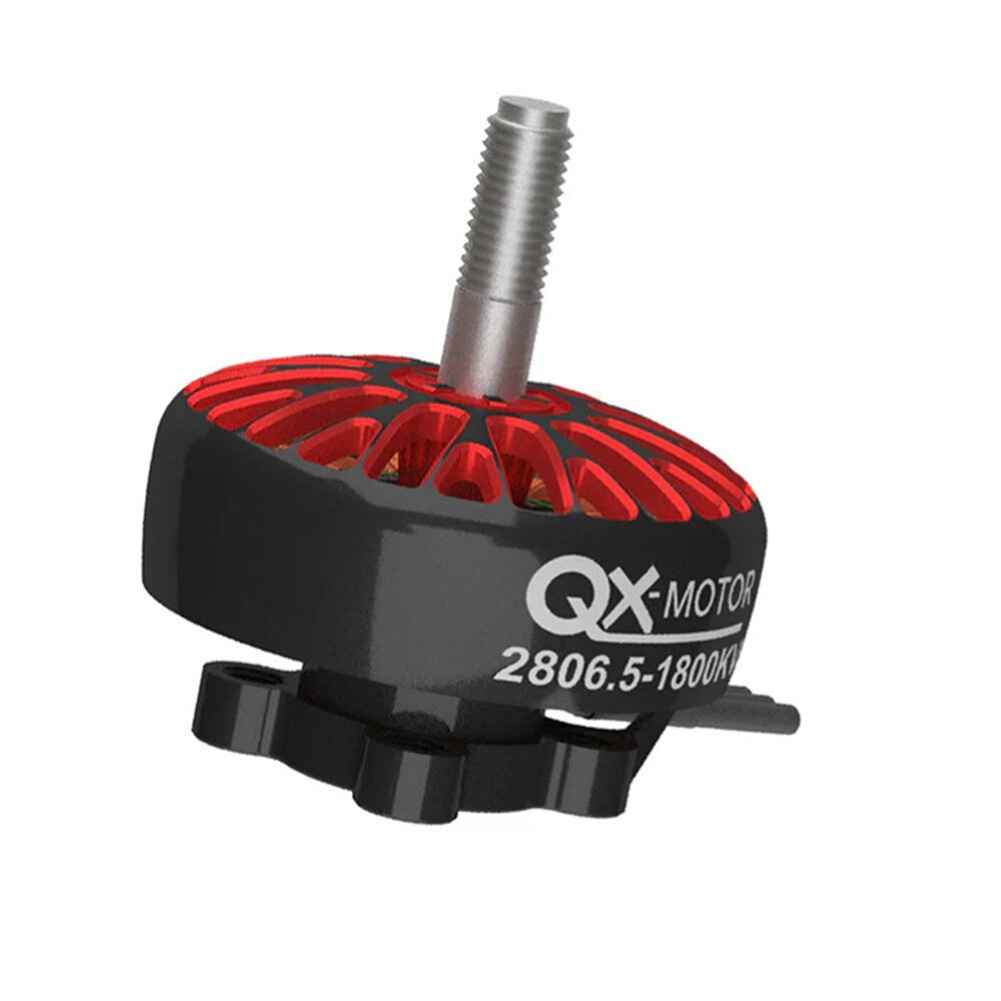

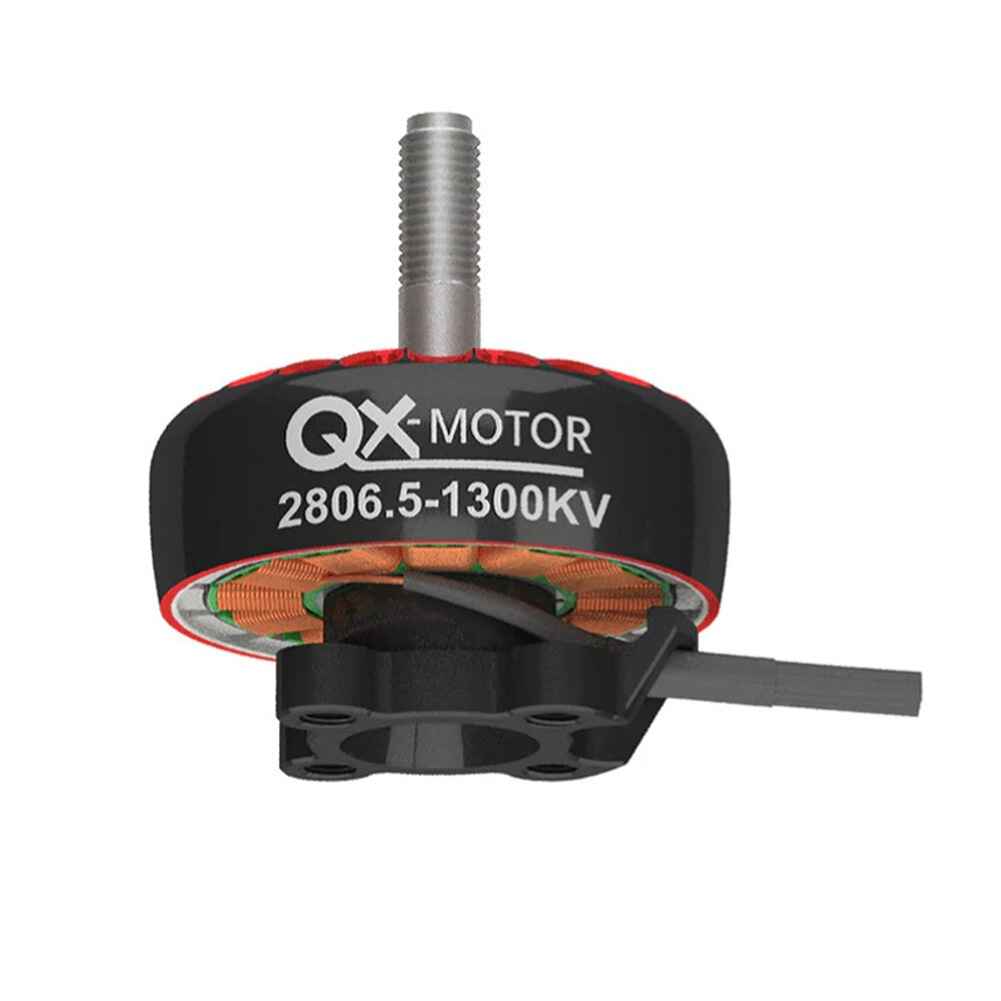

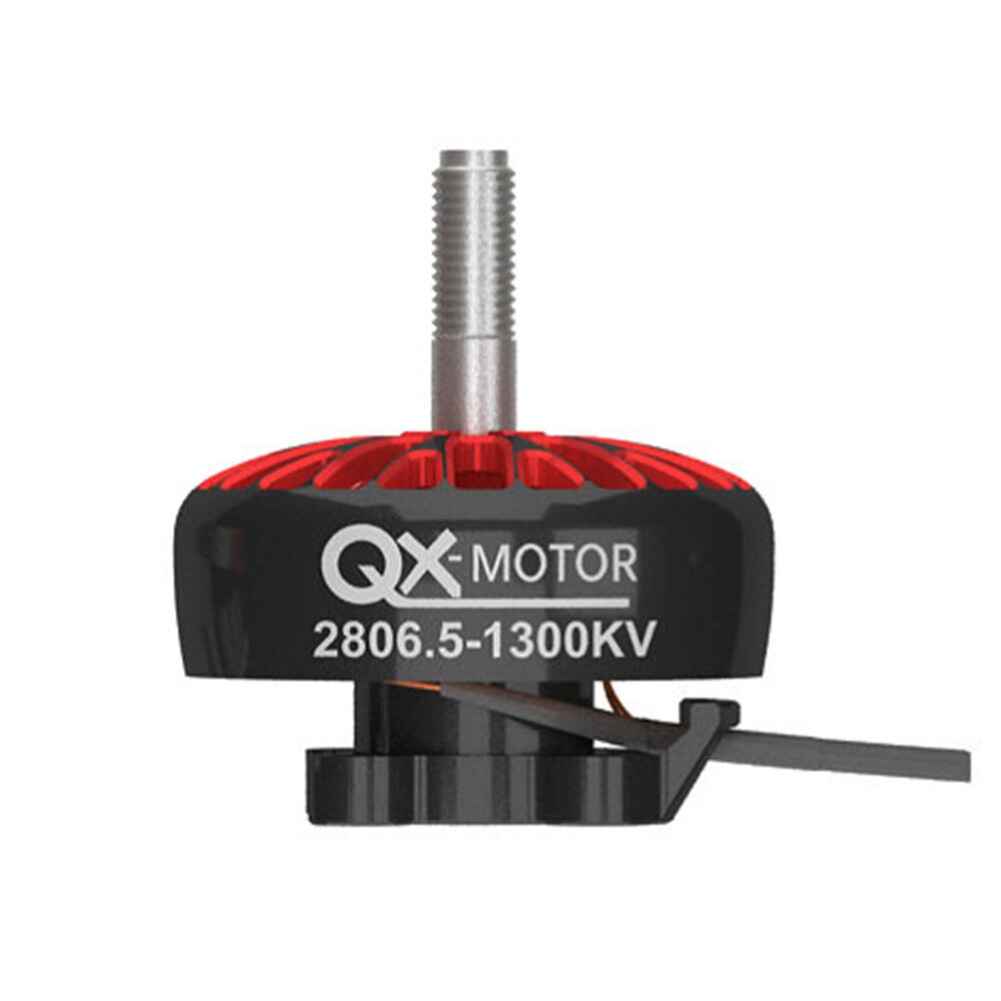

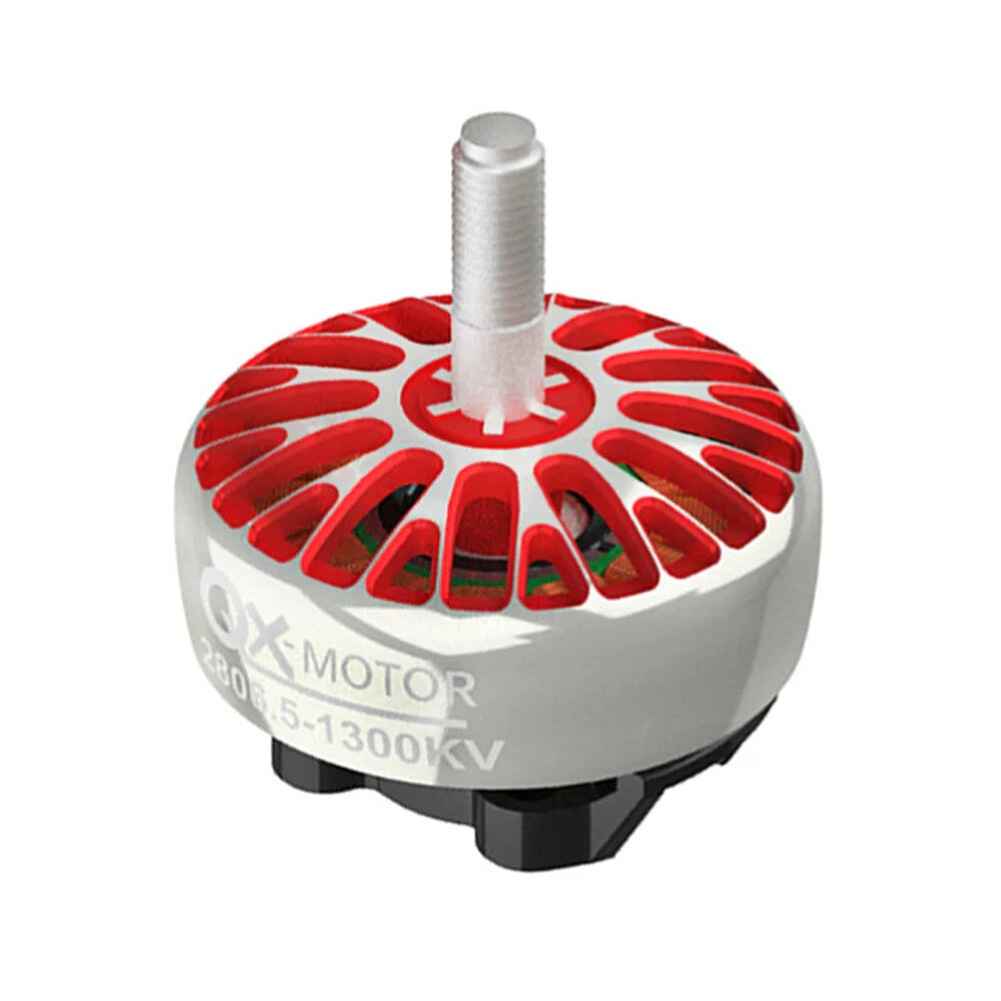

QX-MOTOR 2806.5 Brushless Motor 1300KV/1800KV 3-6S for 6-7 Inch Long Range FPV Racing Drone

Description

QX-MOTOR 2806.5 1300KV 1800KV 3-6S Brushless Motor 5mm Shaft for DIY 6 / 7 Inch Long Range RC Drone FPV Racing

The QX-MOTOR 2806.5 Brushless Motor is designed for FPV racing drones, offering two KV options: 1300KV and 1800KV. This high-quality motor supports 3-6S LiPo cells, making it ideal for long-range flights and high-speed maneuvers. With a compact and lightweight design, it is easy to install and replace, ensuring smooth and efficient power delivery for enhanced drone performance. The motor features a 5mm shaft diameter and a 12N14P configuration, with a maximum power output of 960W for the 1300KV version and 1250W for the 1800KV version. It is built to provide reliable performance for RC enthusiasts.

Specification:
Brand: QX-MOTOR
Model: 2806.5
Item Name: 2806.5 1300KV 1800KV 3-6S Brushless Motor
Type: CW Screw Thread

1300KV Version

KV: 1300KV
Configu-ration: 12N14P
Shaft Diameter: 嫉5MM
No.of cells: 3-6S(lipo)
Weight: 58.5g
Hole position: M3(19x19MM)
Motor size: 嫉35MM*H38.5MM
Wire size: 18AWG 20CM
Max. current: 40A
Max. power: 960W

1800KV Version

KV: 1800KV
No.of cells: 3-6S(lipo)
Configu-ration: 12N14P
Shaft Diameter: 嫉5MM
Weight: 58.5g
Wire size: 18AWG 20CM
Hole position: M3(19x19MM)
Motor size: 嫉35MM*H38.5MM
Max current: 55A
Max power: 1250W

Features:
-High quality brushless motor for FPV drones.
-Available in two options: 800KV and 1300KV.
-Suitable for long-range flights and high-speed maneuvers.
-Compact and lightweight design, easy to install and replace.
-Provides smooth and efficient power for enhanced performance.

Package Included:
1 x 2806.5 Brushless Motor
1 x Motor Nut
1 x bag of Screws
