SpeedyBee TX ULTRA 5.8GHz 48CH VTX Module, 1.6W FPV Transmitter with IRC Tramp Protocol & Pit Mode, MMCX Antenna for FPV Racing Drones

Description

SpeedyBee TX ULTRA 1.6W 5.8GHz 48CH VTX Module 7-28V FPV Transmitter Support IRC Tramp Protocol & Pit Mode with MMCX Antenna Analog Video Transmission for FPV Racing Drone

The SpeedyBee TX ULTRA VTX Module offers a powerful and versatile solution for FPV racing drones. Operating on a 5.8GHz frequency with 48 channels, it provides adjustable power output ranging from PIT mode to 800mW. Compatible with the IRC Tramp Protocol, this transmitter allows parameter modifications via remote control or the SpeedyBee App. The pit mode feature ensures seamless adjustments without affecting other players. Weighing just 7g without the antenna, it is compact yet efficient, featuring side LED indicators for easy status monitoring. The module’s simple installation is facilitated by a 20 x 20mm mounting hole distance, perfect for stacking with other electronics.

Specification:

Model

SpeedyBee TX ULTRA

Frequency Channel:

5.8GHz 48CH

Output Power:

PIT / 25mW / 200mW / 800mW / Max mW

Working Current:

12V @ 90~560mA

Voltage Out:

5V @ Max 300mA

Voltage In:

7-28V (6S)

Video Input Impedance:

75 Ohm

Antenna Connector:

MMCX

Weight:

7g (without antenna)

PCB Size:

29mm*28mm*6mm @ 20*20mm M2 holes

Feature:
– Adjustable Power Output and High-efficiency Heat Sink: 5.8GHz 48CH, PIT/ 25mW/ 200mW/ 400mW/ 800Mw switchable
– IRC Tramp Protocol Support: Support to modify the image transmitter parameters through the remote control. You can also modify the parameters of image transmitter through SpeedyBee App.
– Pit Mode Support: When you are flying in the same field with other players, PitMode can make you more calm to power up the aircraft for parameter adjustment without disturbing other players,
– Side LED Indicators: 3 kind of color LED indicators help you know the intuitive status of the channel, band and the power.
– Simple Installation:Mounting hole distance of 20 x20mm makes convenient stacking with your other electronics.

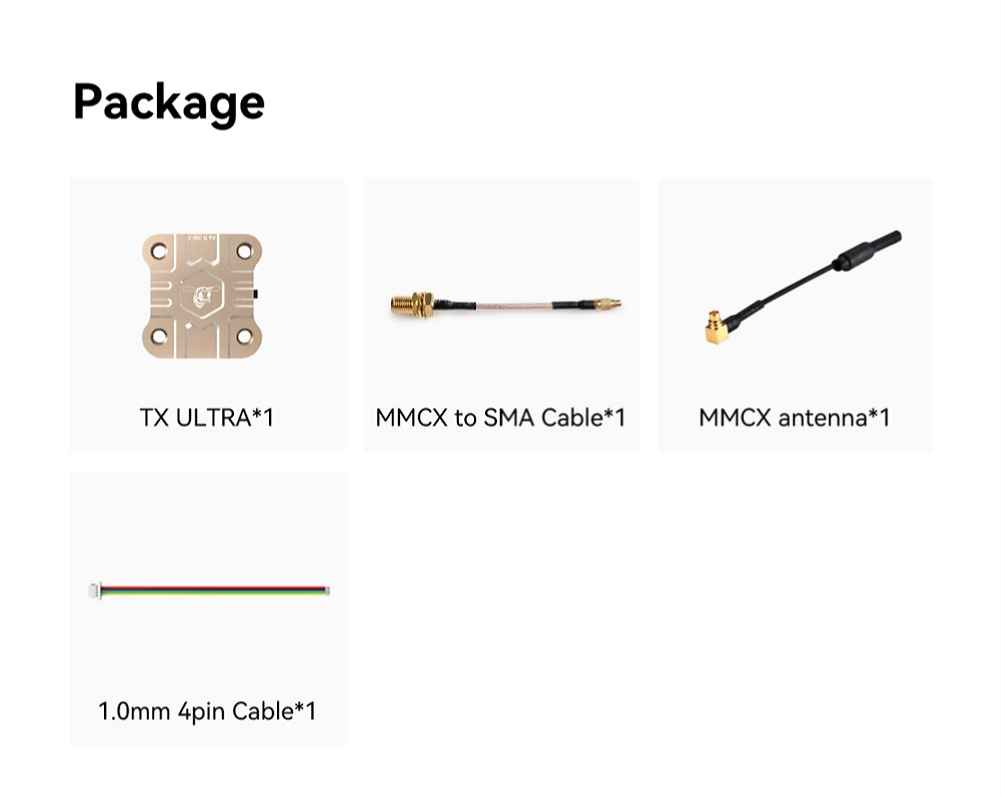

Package Included:
1 x TX ULTRA
1 x MMCX to SMA Cable
1 x MMCX Antenna
1 x 1.0mm 4pin Cable
