STEELE 5 220mm Wheelbase Carbon Fiber X Type Frame Kit, 5mm Arms, Supports Caddx Vista HD, 5 Inch Freestyle for FPV Racing Drones
Original price was: $34.21.$28.99Current price is: $28.99.
- 220mm wheelbase for optimal performance
- 5mm thick carbon fiber arms for durability
- Compatible with Caddx Vista HD system
- Supports up to 5.1-inch propellers
- Lightweight design at 110g
You May Also Like
Description

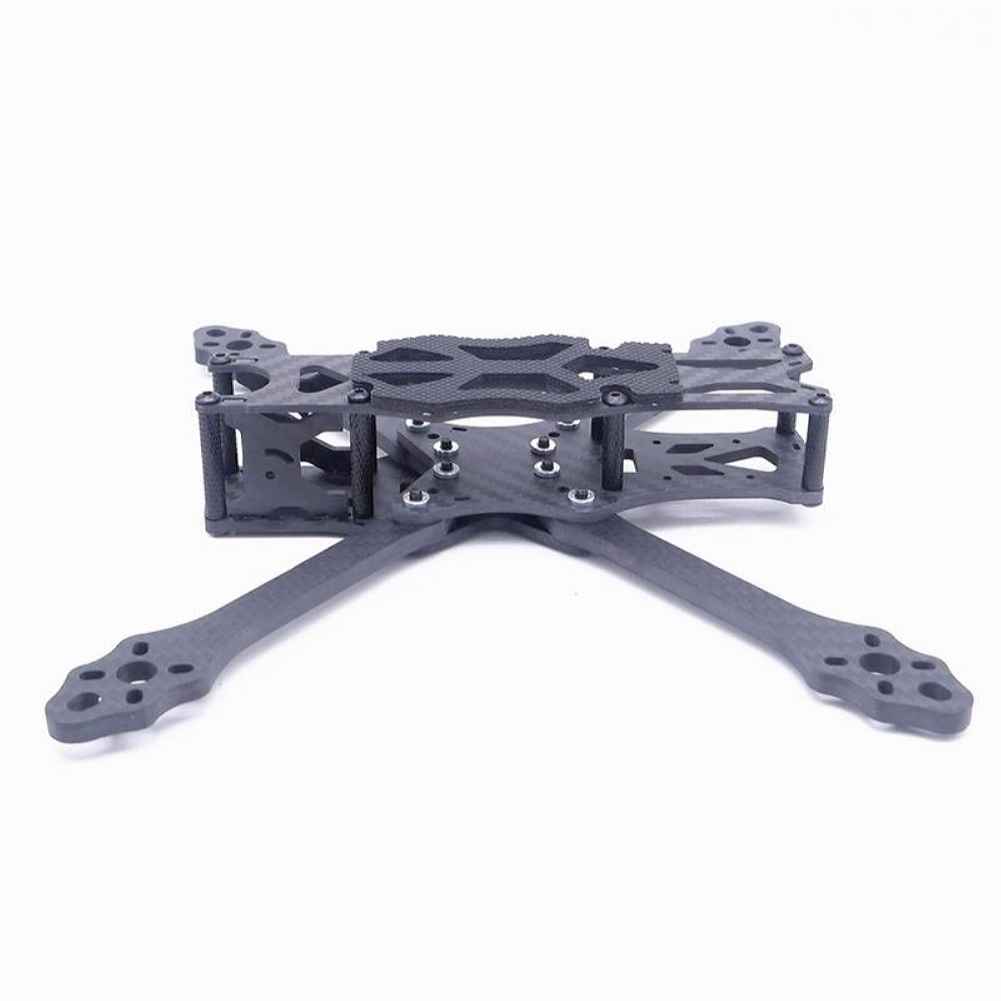

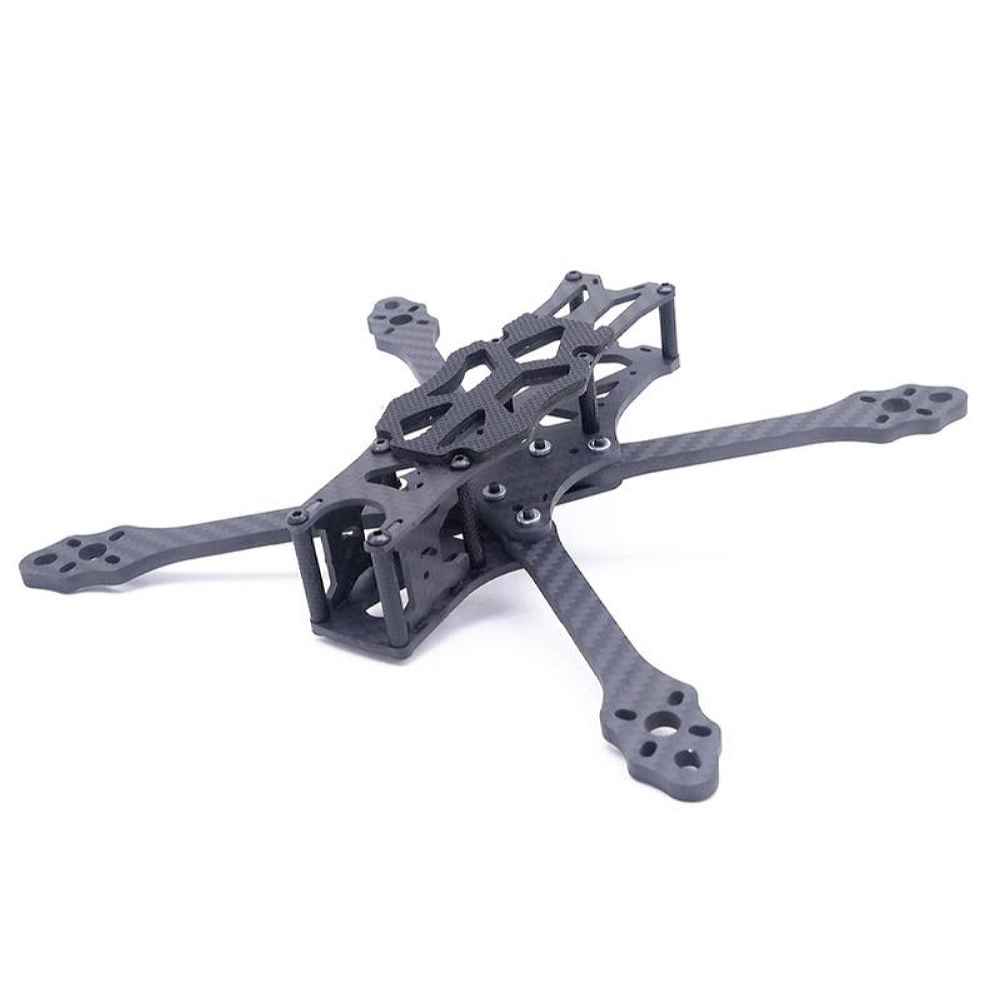

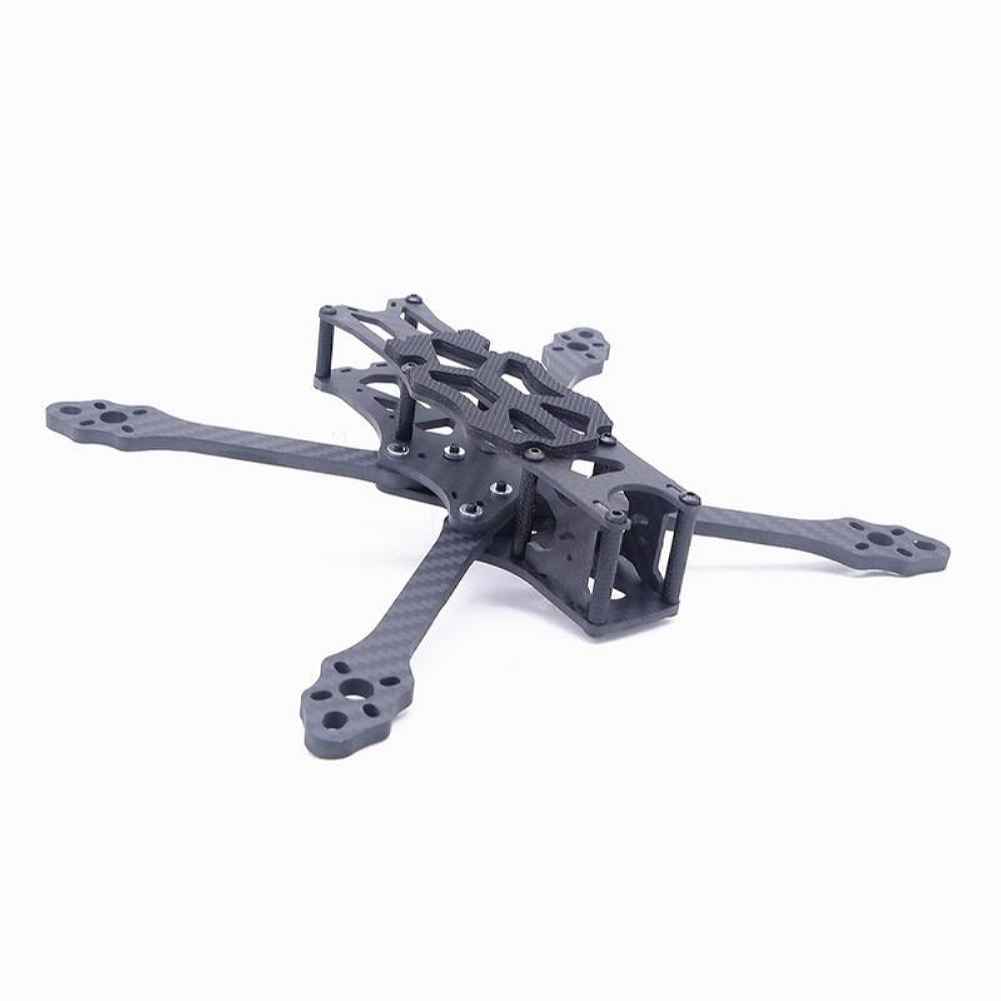

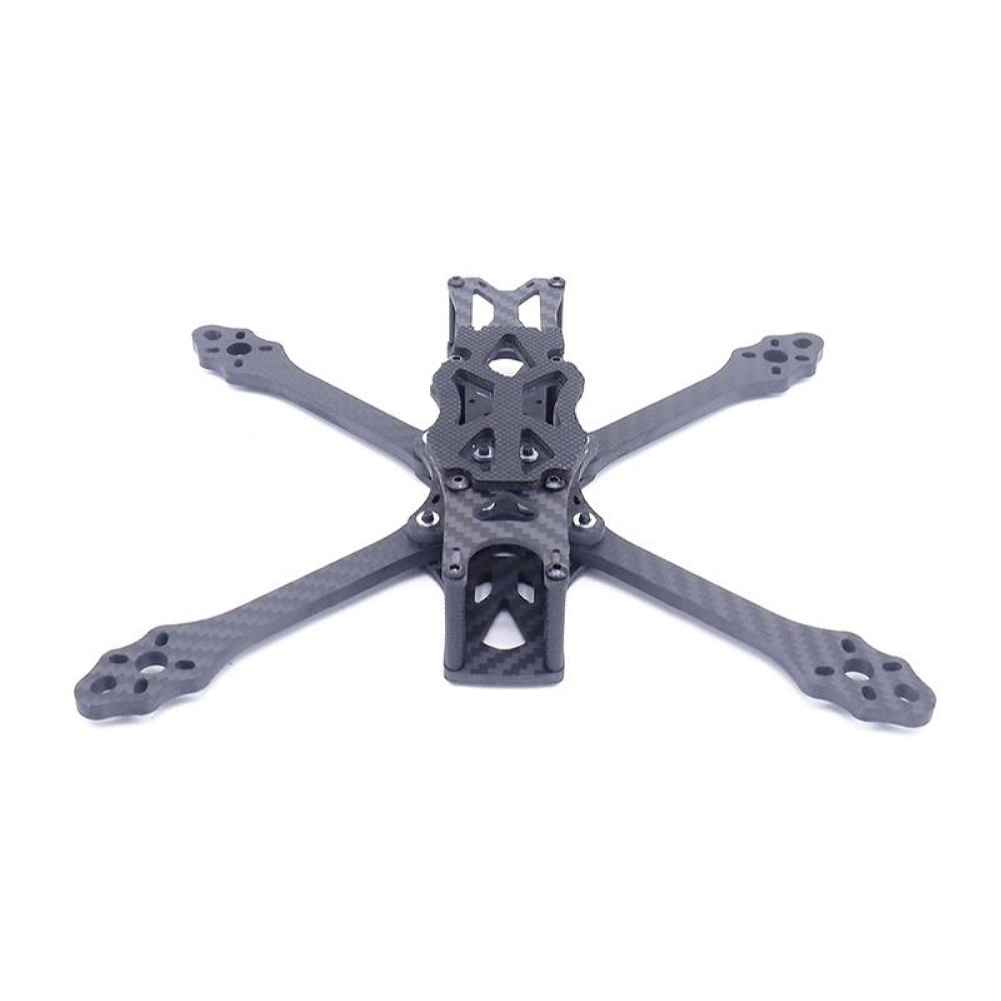

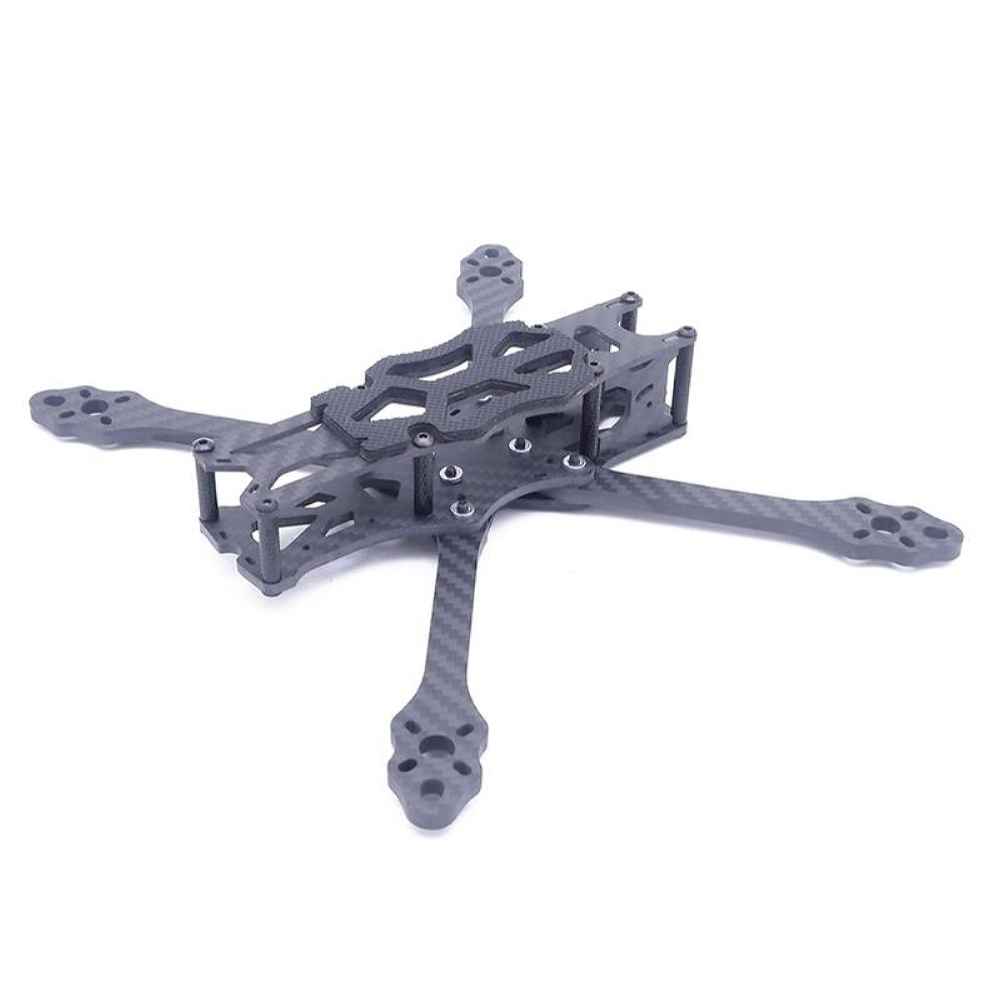

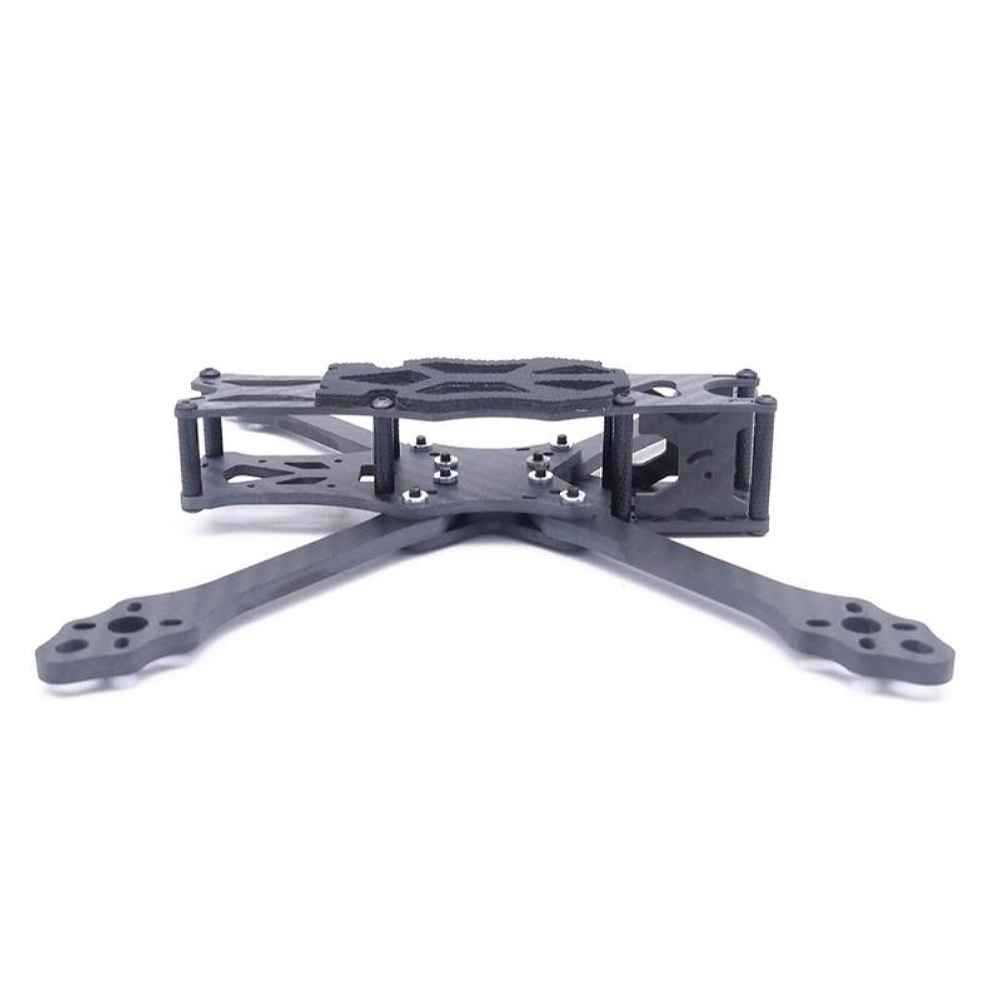

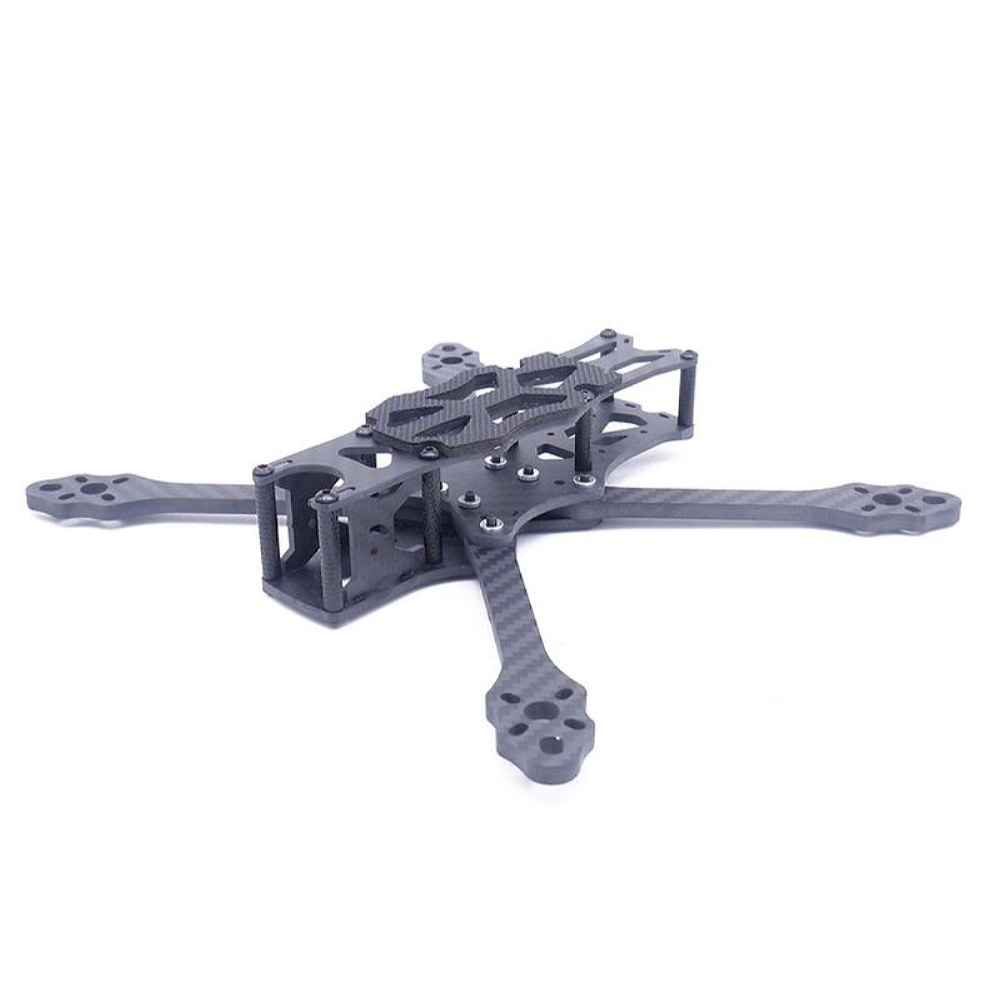

STEELE 5 220mm Wheelbase 5mm Arm Thickness Carbon Fiber X Type 5 Inch Freestyle Frame Kit Support Caddx Vista HD System for RC Drone FPV Racing
The STEELE 5 Frame Kit is designed for FPV racing enthusiasts, featuring a robust 220mm wheelbase and durable carbon fiber construction. Its X-type structure provides stability and agility, making it ideal for freestyle flying. With 5mm thick arms, this frame ensures strength and durability during intense races. It supports a maximum 5.1-inch propeller and is compatible with a range of components, including 30.5×30.5mm F4/F7 flight controllers, various brushless motors, and 4-6S LiPo batteries. The frame is also designed to accommodate the Caddx Vista HD system, enhancing your drone’s video capabilities. Weighing just 110g, it’s lightweight yet sturdy, perfect for competitive racing.
Click here to buy Replace Arm together.
Specification:
Model: Steele 5
Item Name: 220mm Wheelbase 5 Inch Frame Kit
Wheelbase: 220mm
Structure: X type
Material: Carbon Fiber
Arm Plate Thickness: 5mm
Bottom Plate Thickness: 3mm
Upper Plate Thickness: 2mm
Side Plate Thickness: 2mm
Center Plate Thickness: 3mm
Internal Standoff Height: 20mm

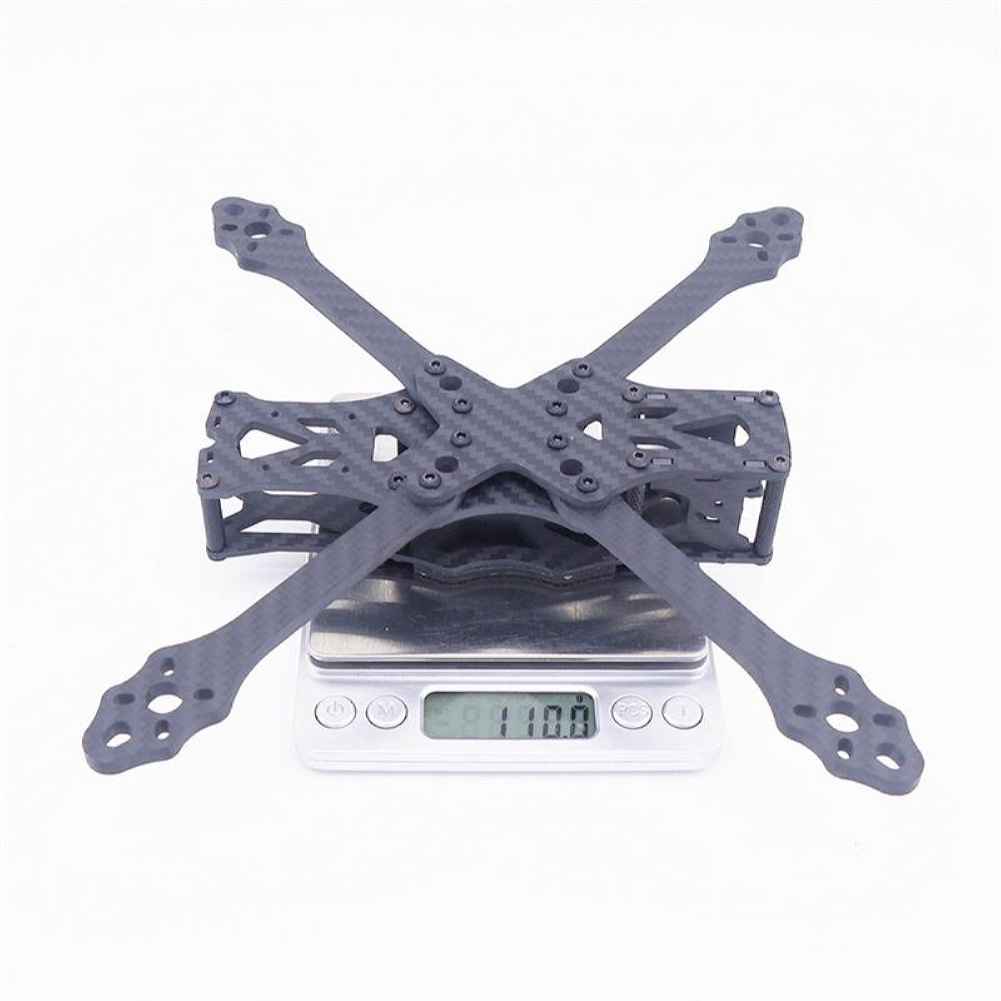

Weight: 110g
Support Max. 5.1 Inch Propeller
Recommend Parts:
Flight Controller: 30.5×30.5mm F4/F7 Flight Controller
Brushless Motor: 2204/2205/2207/2306/2405/2307/2308/2506 etc. Motor ( 16x19mm Mounting Hole)
Brushless ESC: 35-50A ESC
Propeller: Max. 5 Inch Propeller
Camera: 22mm Width
Lipo Battery: 4-6S 1300-1550mAh Lipo
The following Parts are Compatible: ( Not Included)
FC & ESC Stack: 30.5×30.5mm HGLRC Zeus F748 Stack F722 F7 OSD 3-6S FC w/ 5V 9V BEC & 48A BL_S 4in1 ESC
Brushless Motor: Racerstar 2306 BR2306S Fire Edition 1722KV Brushless Motor 4-6S
Propeller: 2 Pairs HQProp Ethix S5 5040 5×4 5 Inch 3-blade Propeller
VTX & Camera: Caddx Vista HD Digital System 5.8G FPV Transmitter VTX 1080P Recording Camera
Package Included:
1 x Steele 5 220mm Frame Kit
