SURPASS Hobby C3542 Outrunner Brushless Motor, 1000KV/1250KV/1450KV, for RC Airplane Fixed-wing EDF Ducted Fan

Description

SURPASS Hobby C3542 1000KV/1250KV/1450KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit

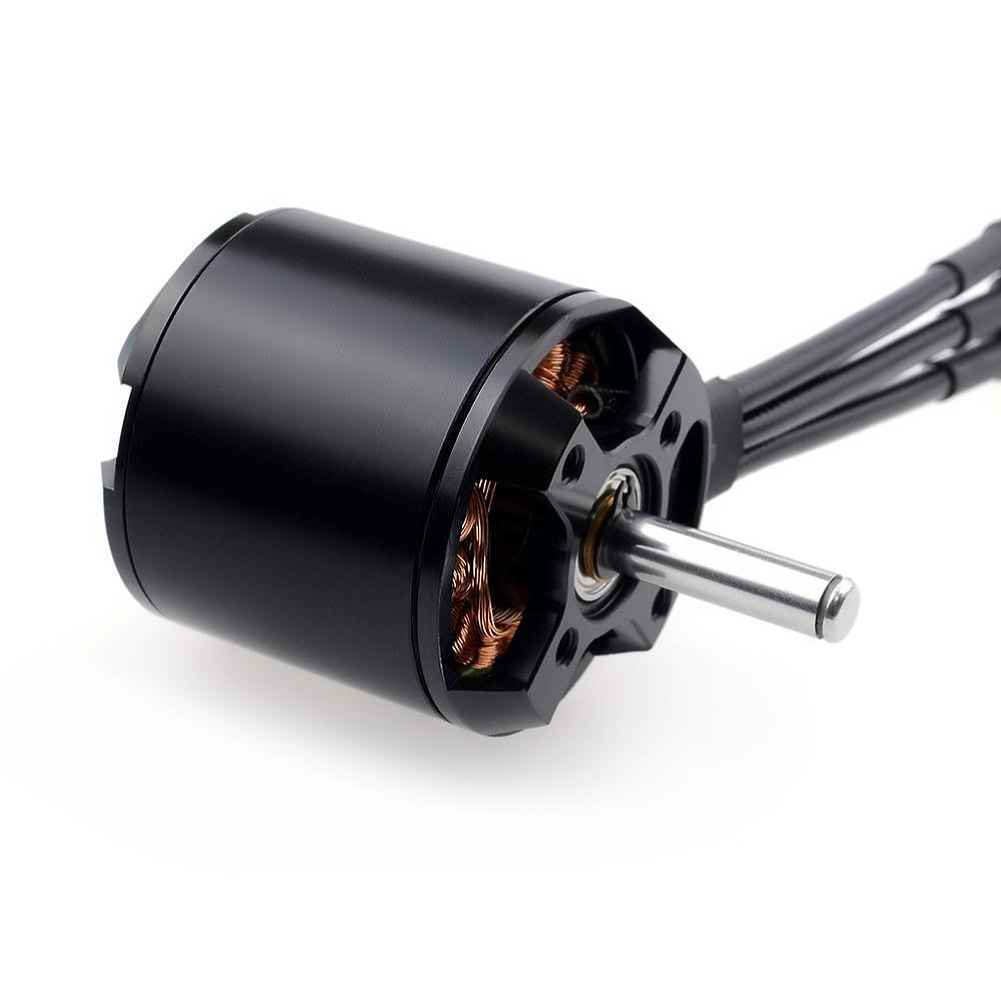

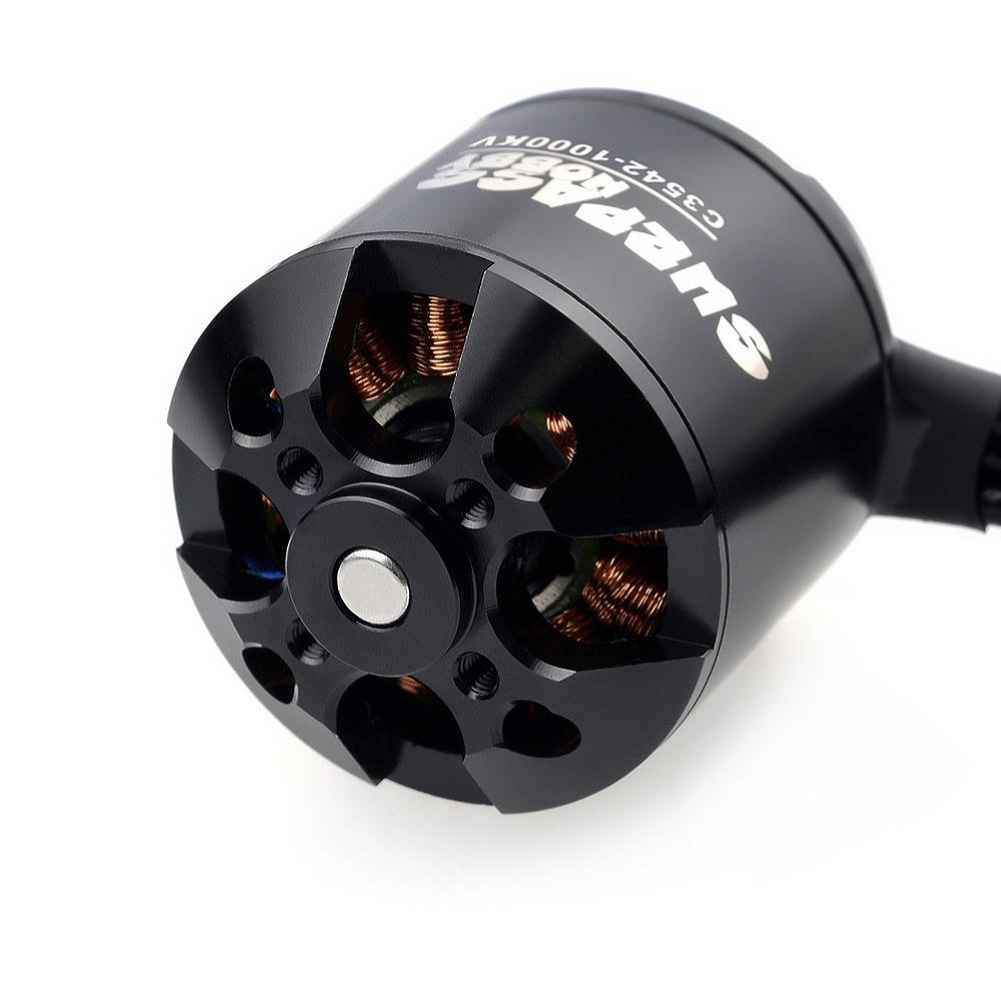

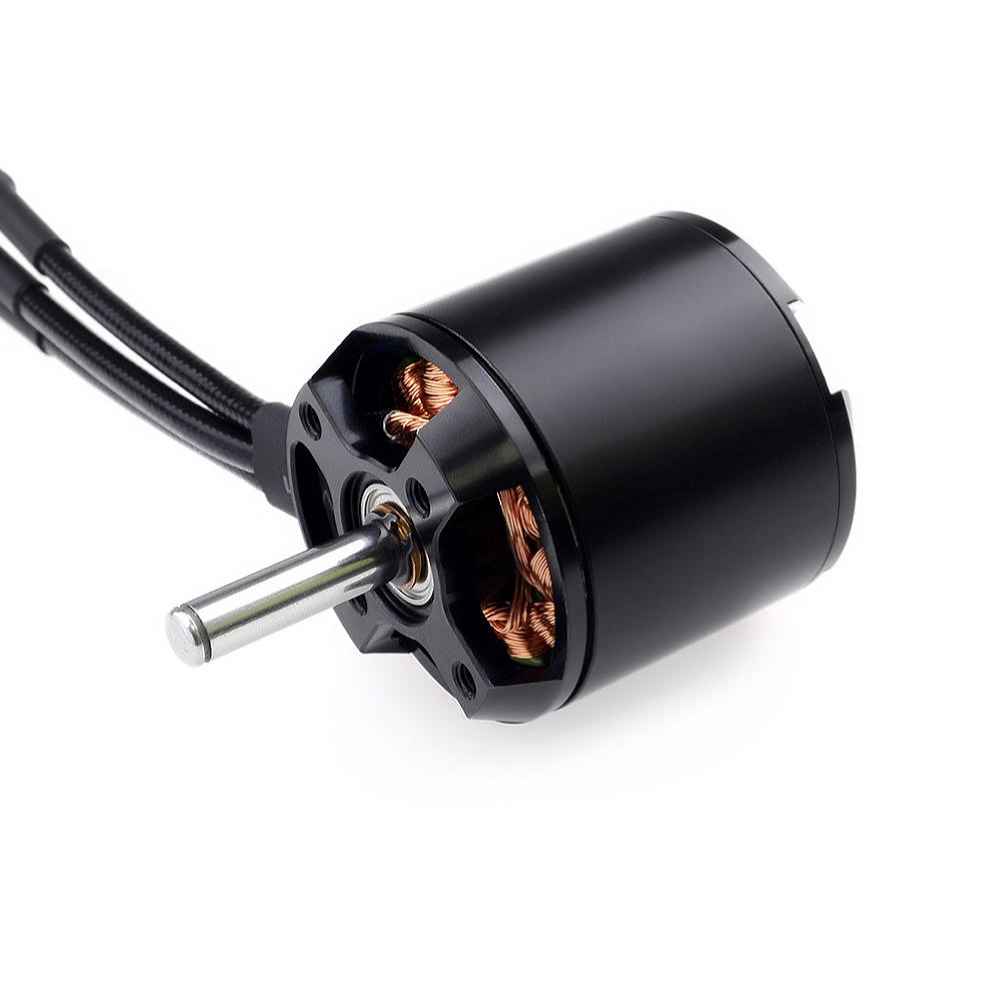

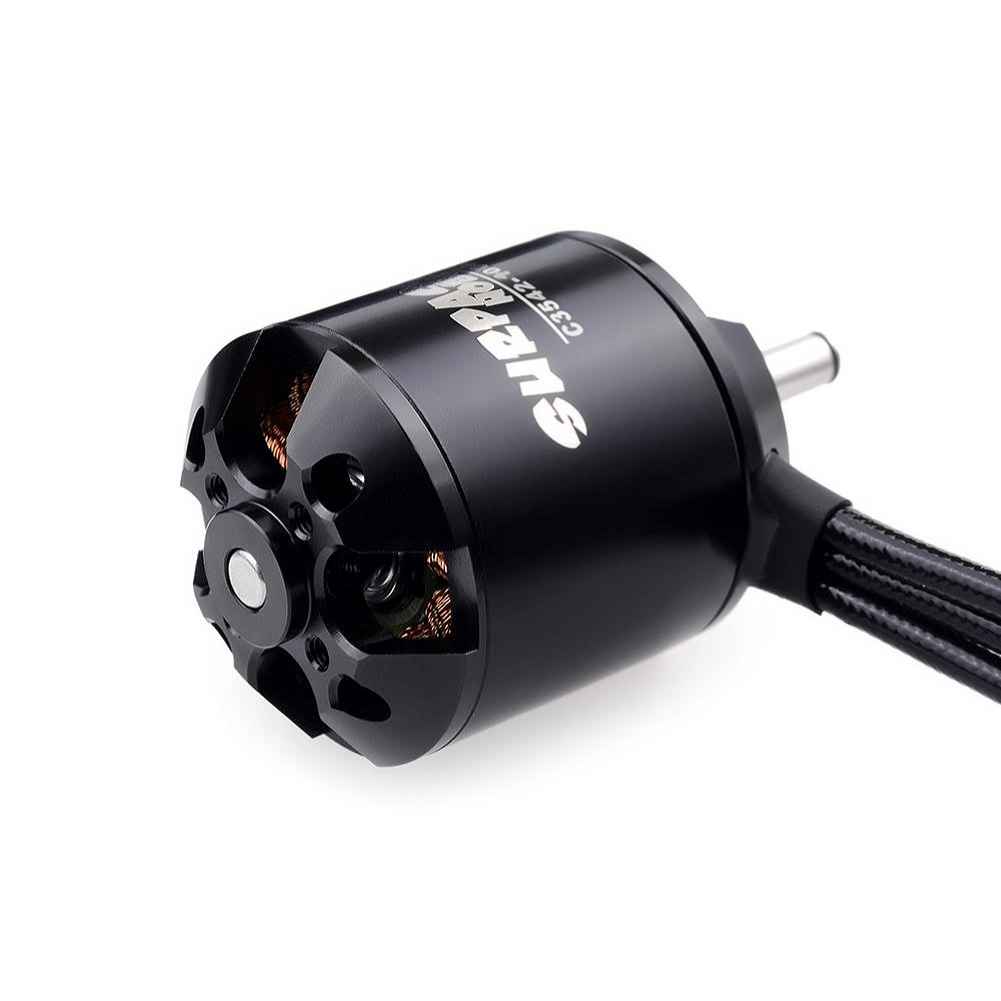

The SURPASS Hobby C3542 Outrunner Brushless Motor is designed for RC airplane enthusiasts, offering three KV options: 1000KV, 1250KV, and 1450KV. This motor features a robust 14-pole, 12-slot high-torque design, and is constructed with CNC machined 6061 T6 billet aluminum for enhanced durability. High purity copper windings ensure maximum efficiency, while high RPM ABEC5 oversized bearings provide smooth, reliable operation. The motor is precision engineered for optimal energy conversion and includes a waterproof design for added protection against corrosion. Its precision-balanced rotor minimizes noise and vibration, making it ideal for fixed-wing EDF ducted fan units.

Description:

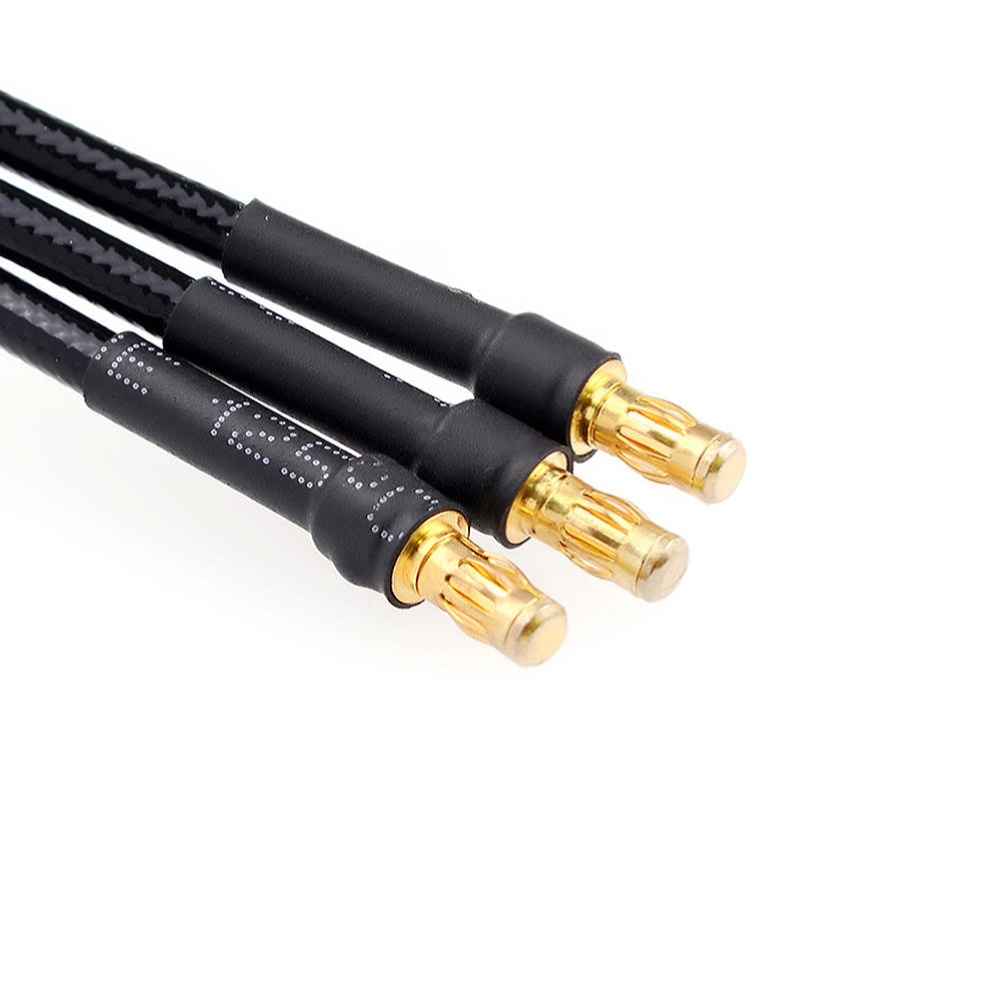

Brand Name: SURPASS Hobby Item Name: C3542 MotorKV: 1000KV, 1250KV, 1450KV (optional)Color: BlackShaft: 5.0mmConnector: 3.5mm
Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit
Specifications:

Model

KV

Max Watts(W)

Voltage Range(V)

Max Current(A)

Rotor
Poles

No load Current(A)

Resistance(棒)

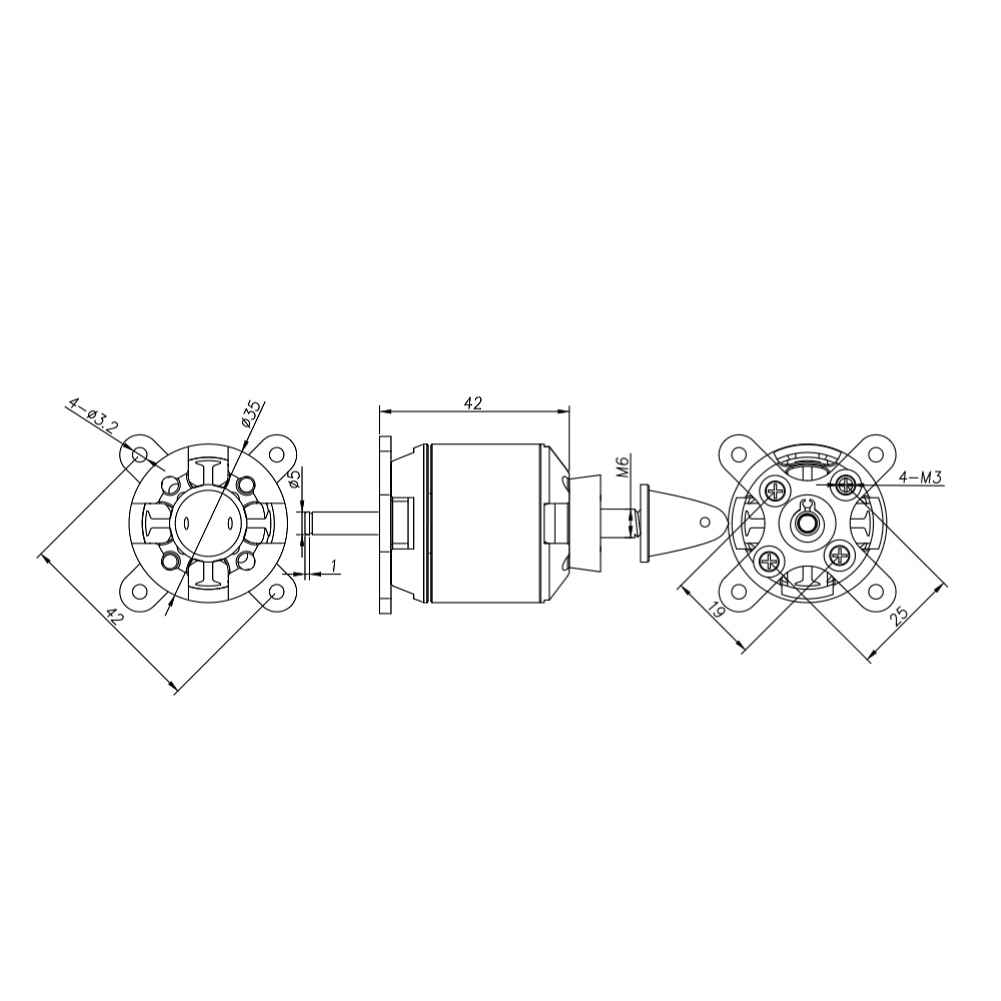

Motor Size(mm)

Stator Size(mm)

Weight(g)

Prop(Inch)

C3542-04

1450

1050

7~15

78

14

2.3

0.021

æ²’35×42

æ²’28×20

132

12*5/11*7/13*8

C3542-05

1250

850

7~15

65

14

2.1

0.026

æ²’35×42

æ²’28×20

132

8*7/9*5/10*4

C3542-06

1000

750

7~15

55

14

2

0.039

æ²’35×42

æ²’28×20

132

10*6/12*6.5/13*8

Features:
– 14Pole 12Slot Hi-torque Motor Design.
– CNC Machined 6061 for T6 Billet Aluminum Heatsink Can.
– High Purity Copper Windings Maximizes Efficiency.

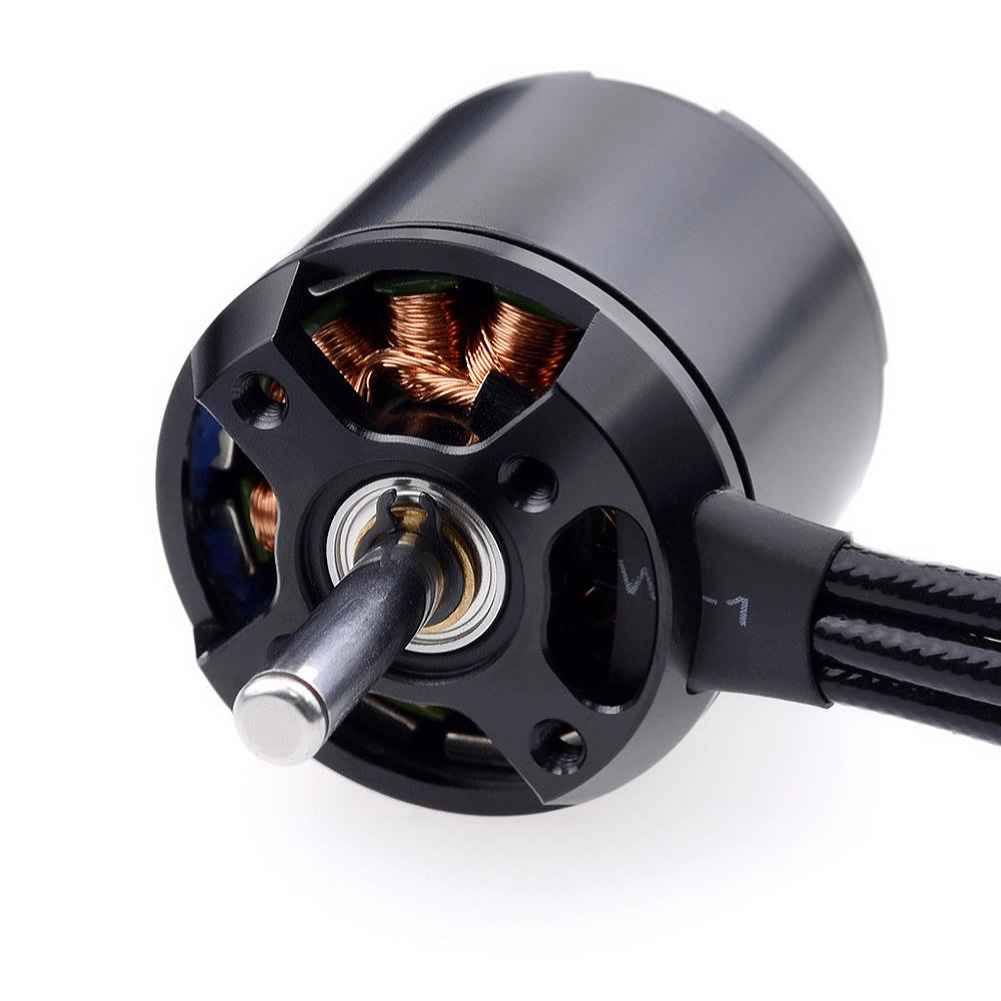

– High RPM ABEC5 Oversized Bearings.
– Precision balanced rotor, smoothness for best reliability and maximum RPM.
– Stator – Super Thin (0.2mm) Laminations.
– Precision Engineered for Maximum Energy Conversion.
– The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
– The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.

Package Included:
1 x SURPASS Hobby C3542 Outrunner Brushless Motor

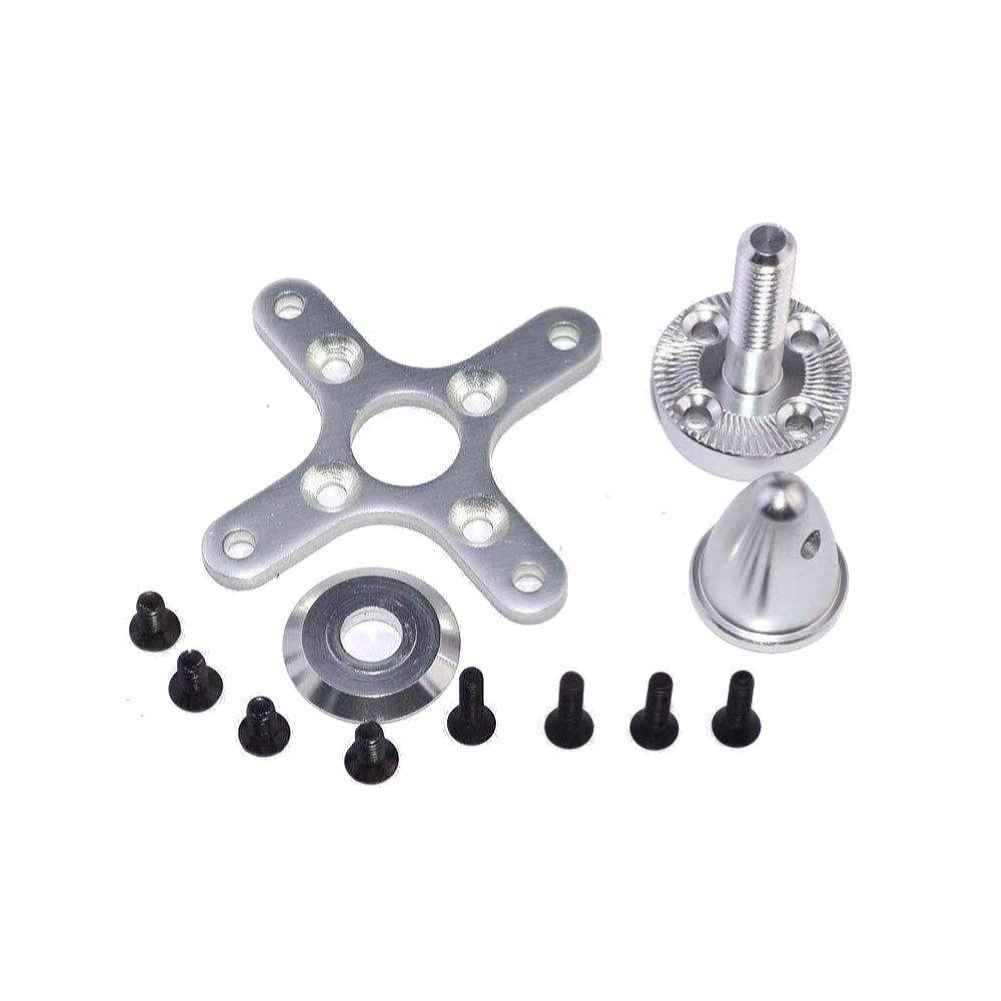

1 x Accessories
