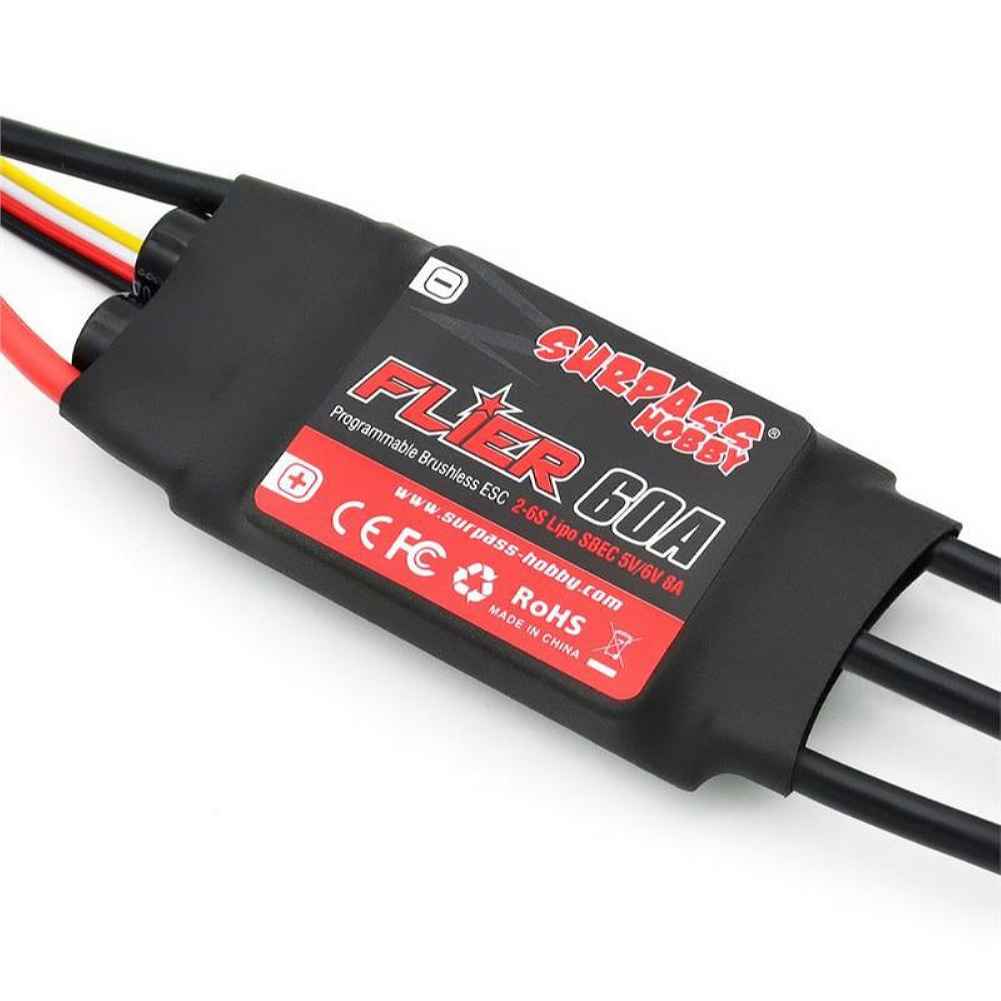

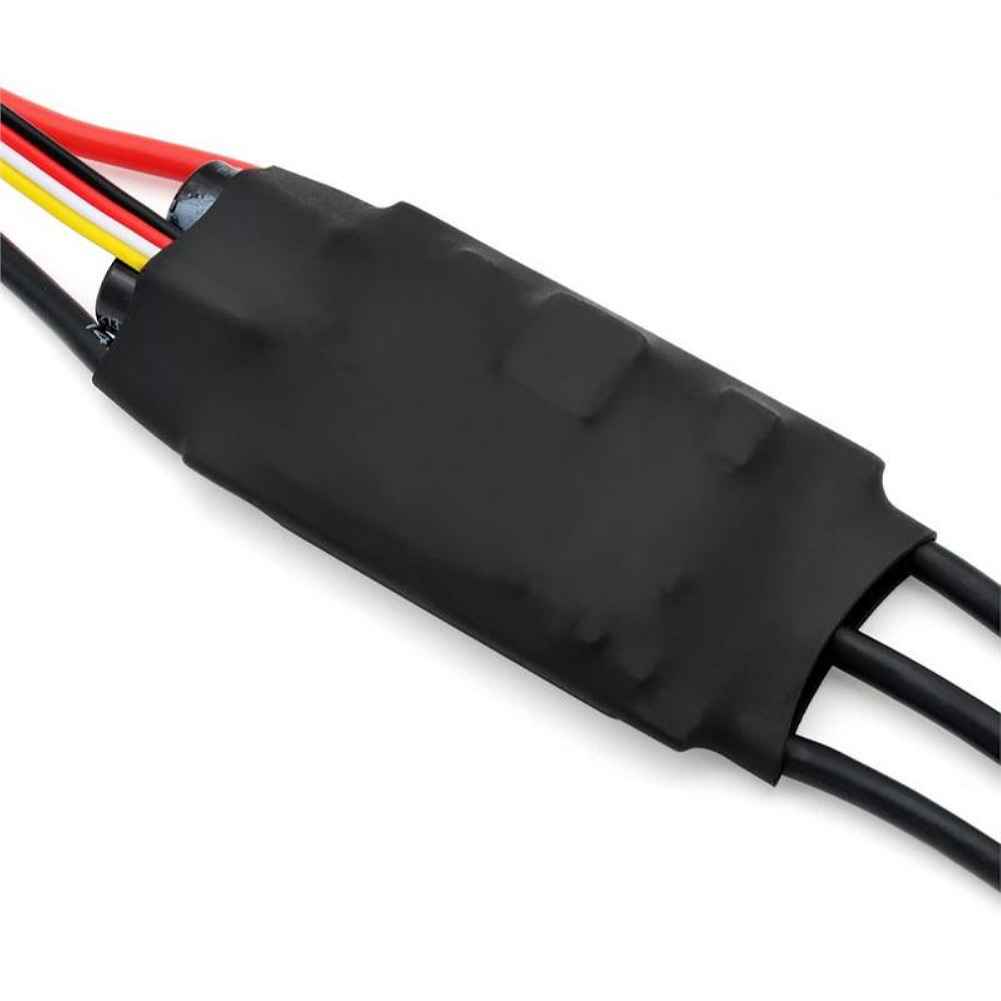

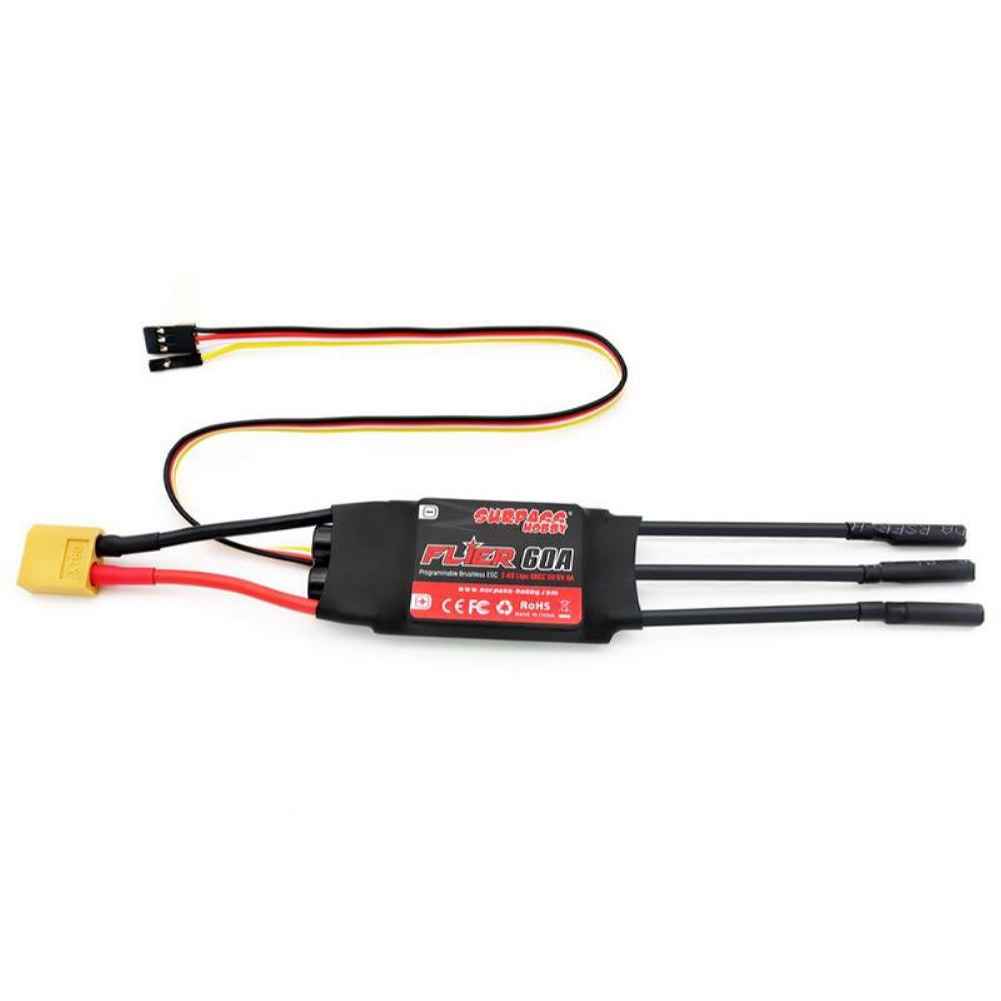

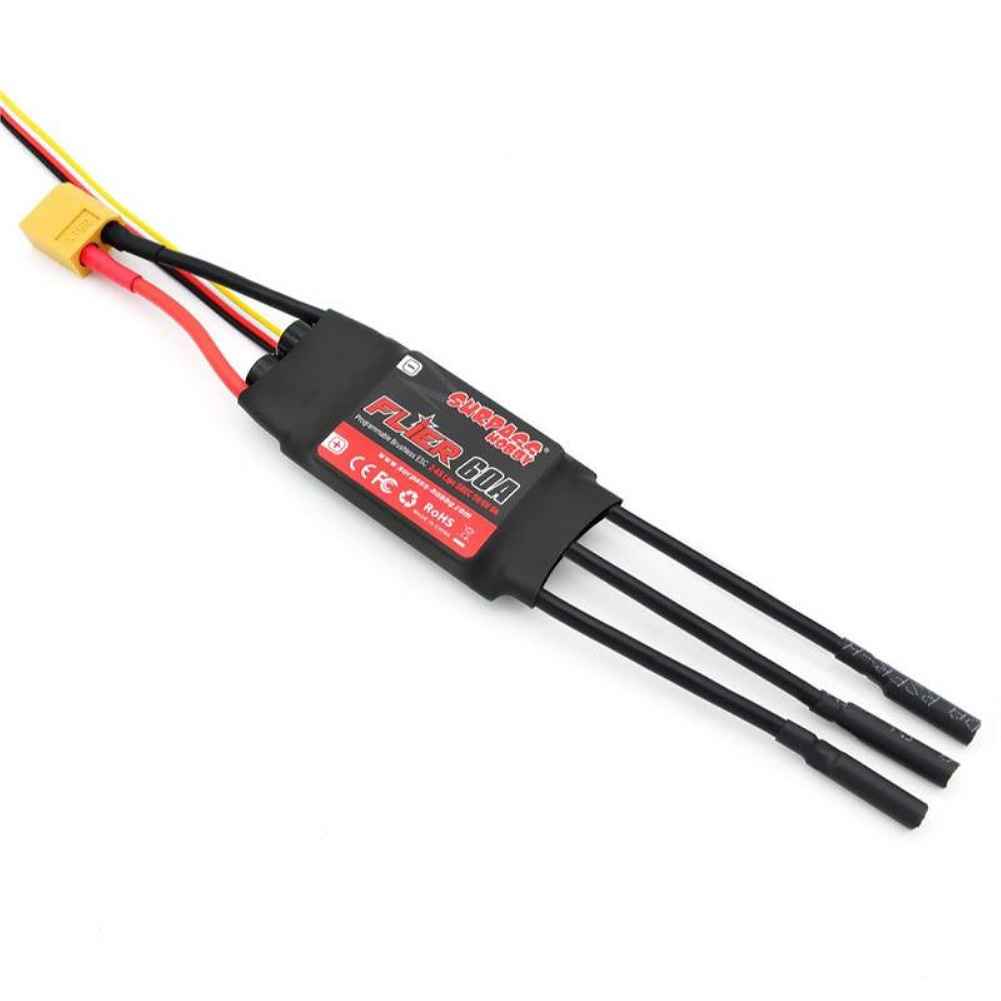

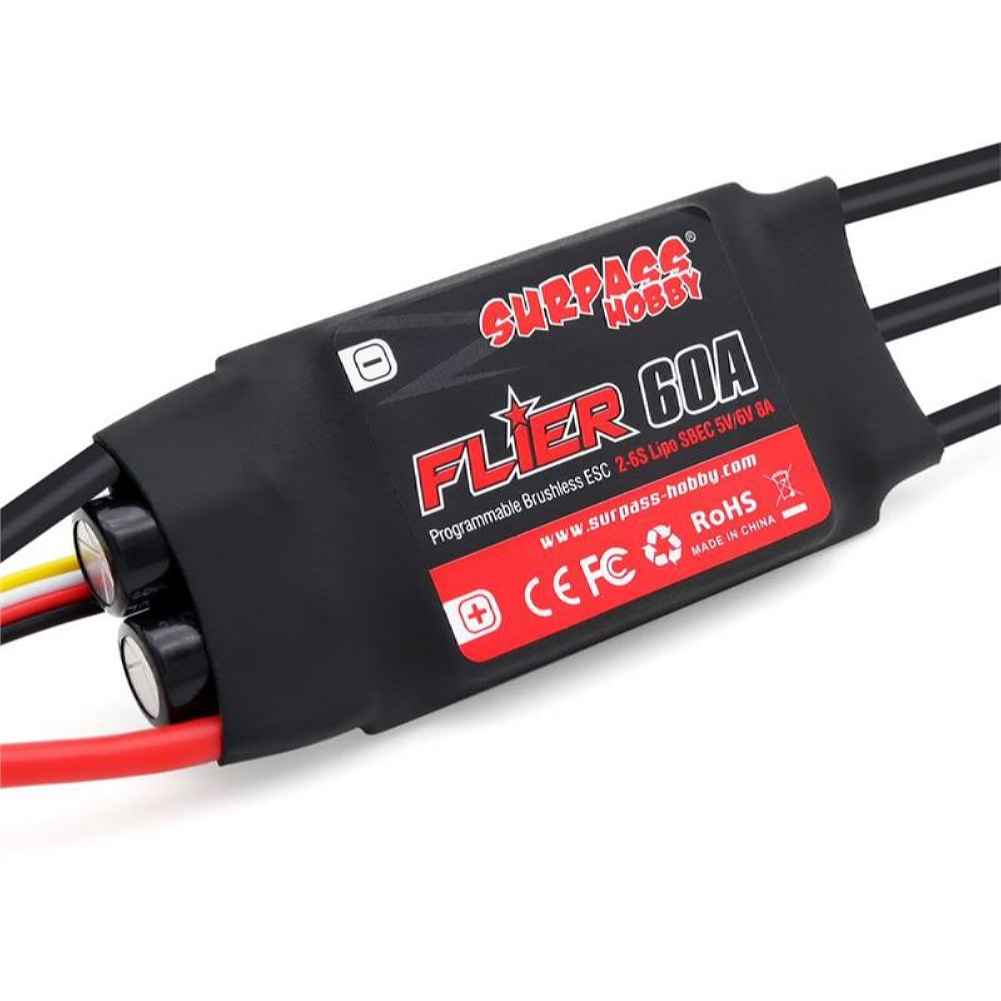

SURPASS-HOBBY FLIER 60A Brushless ESC with 5V/6V SBEC, 32-bit, for RC Airplane, 2-6S Compatible

Description

SURPASS-HOBBY FLIER Series New 32-bit 60A Brushless ESC With 5V/6V 8A SBEC 2-6S Support Programming for RC Airplane

The SURPASS-HOBBY FLIER Series 60A Brushless ESC is designed for RC airplane enthusiasts, featuring a high-performance 32-bit microprocessor for enhanced computing power and speed. This ESC supports a continuous current of 60A and a burst current of 80A, suitable for 2-6S Lipo batteries. It includes an adjustable SBEC output voltage of 5V/6V, providing robust power to the servo. With advanced MOSFET technology, it ensures low heat generation and high reliability. Enjoy super smooth start-up and precise throttle linearity. This ESC also supports high RPM motors and offers multiple protections including start-up, overheat, low-voltage cutoff, and more. Programming is supported via an LCD program card for convenient operation.

Specifications:
Brand Name: SURPASS-HOBBY
Type: FLIER 60A
Item: SP-300005-03
Continuous/Burst Current: 60A/80A
Battery Cell NiXX/Lipo: 5-18NC/2-6S Lipo
Weight: 50g
BEC Output: 5V/6V 8A

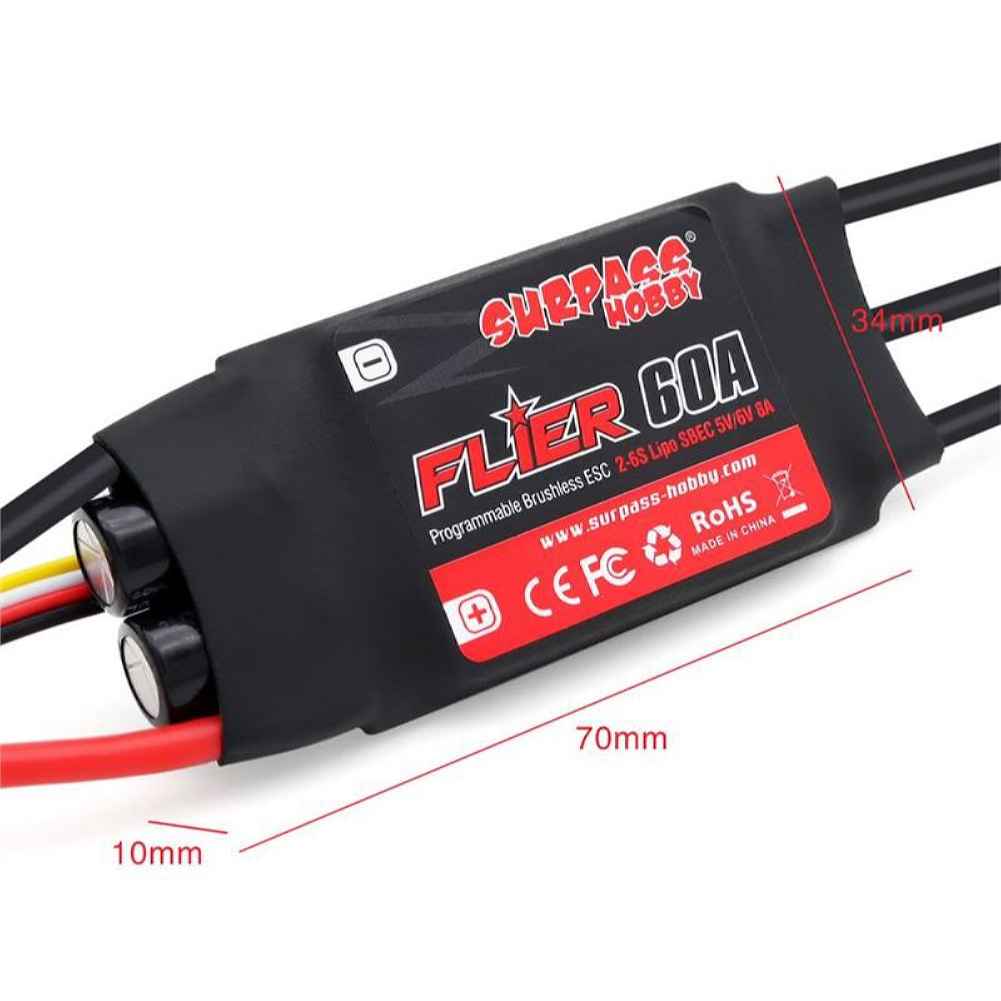

Size(LxWxH): 70x34x10mm

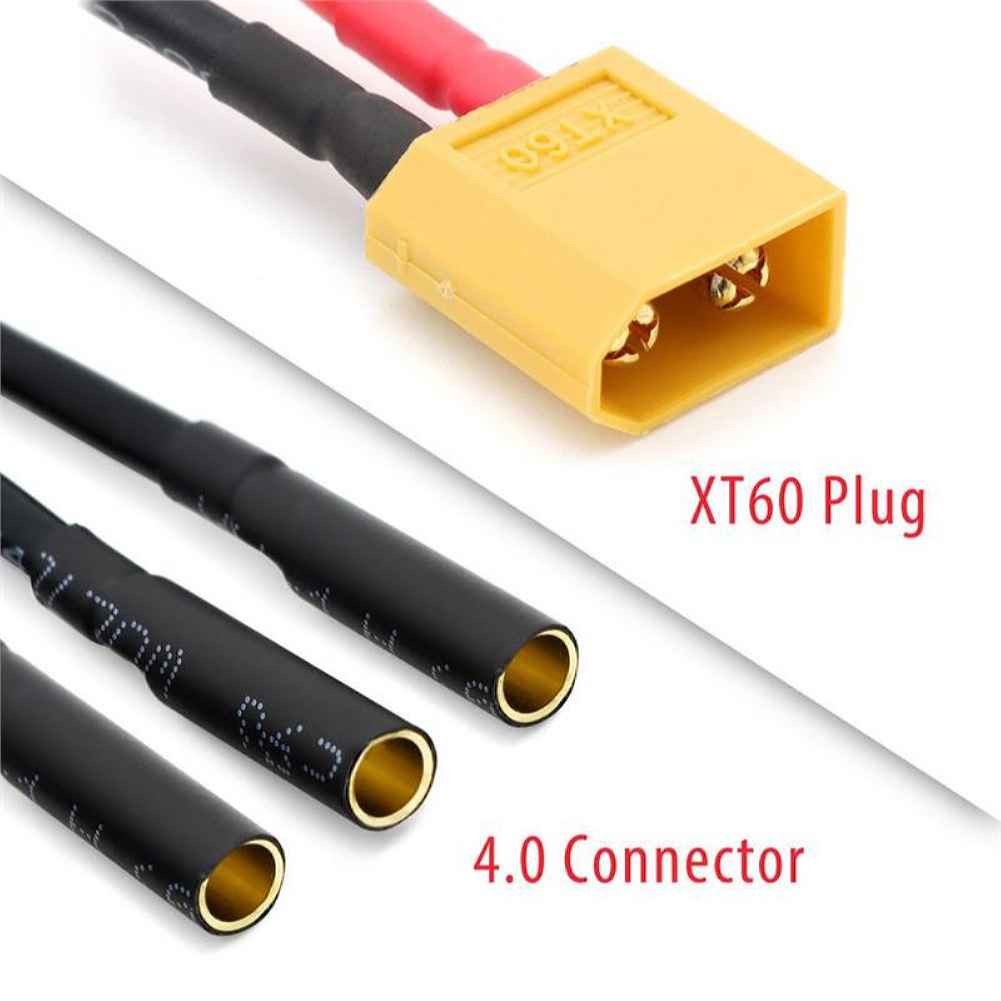

Connector: 4.0mm
User Program: Yes
Features:

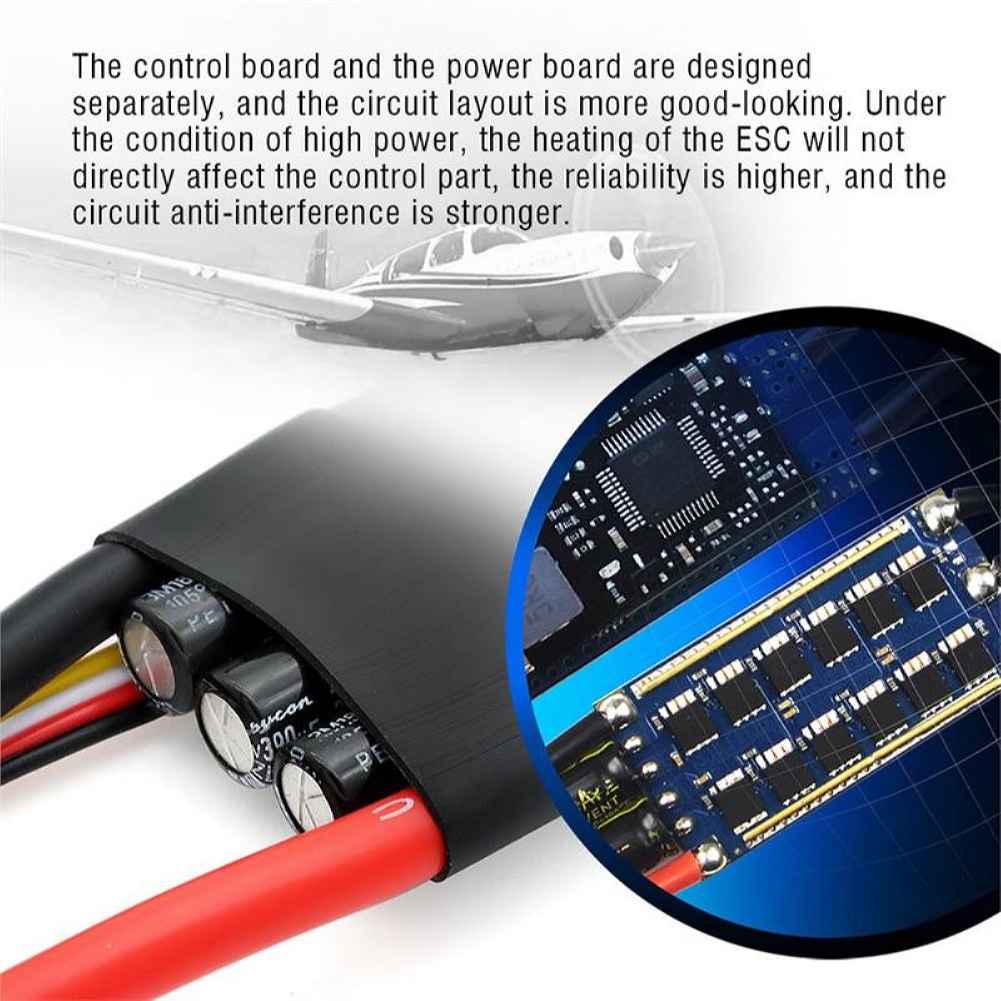

1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.

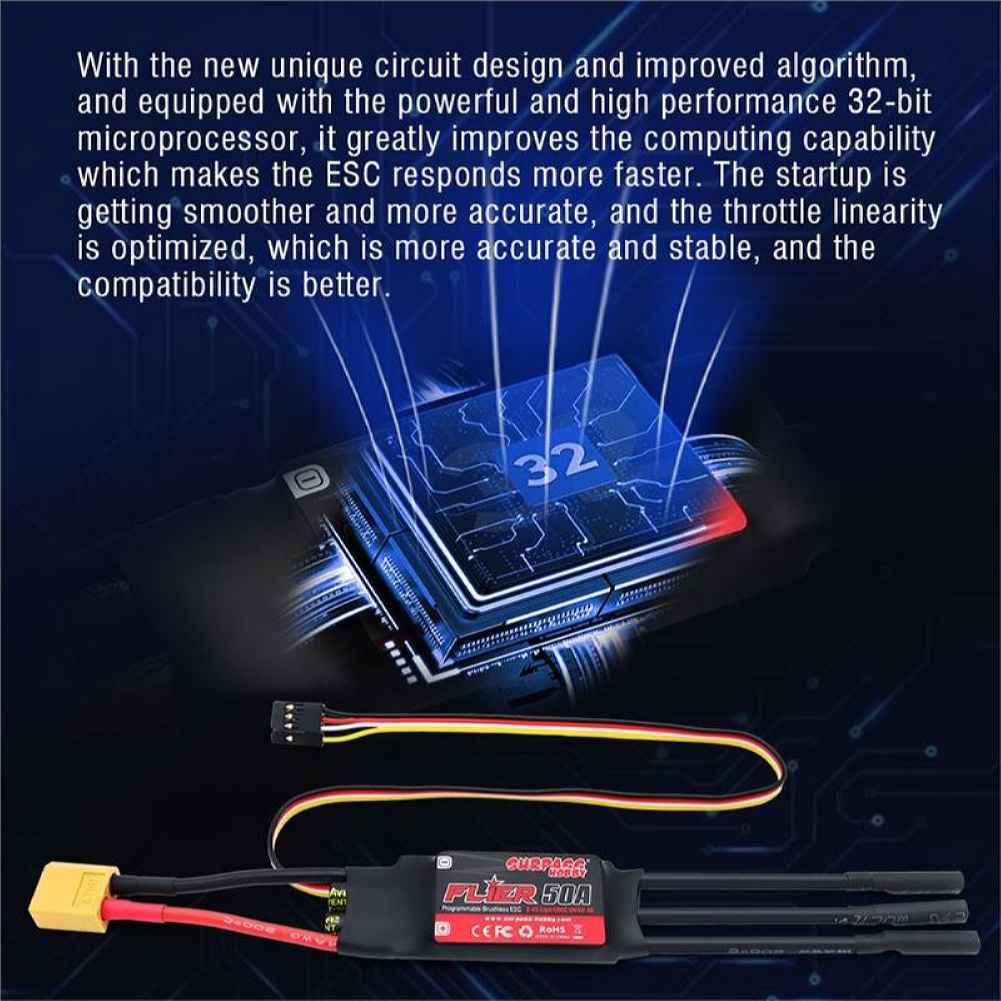

2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
3. Super smooth start-up and accurate throttle linearity.
4. Higher driving efficiency and more energy-saving.

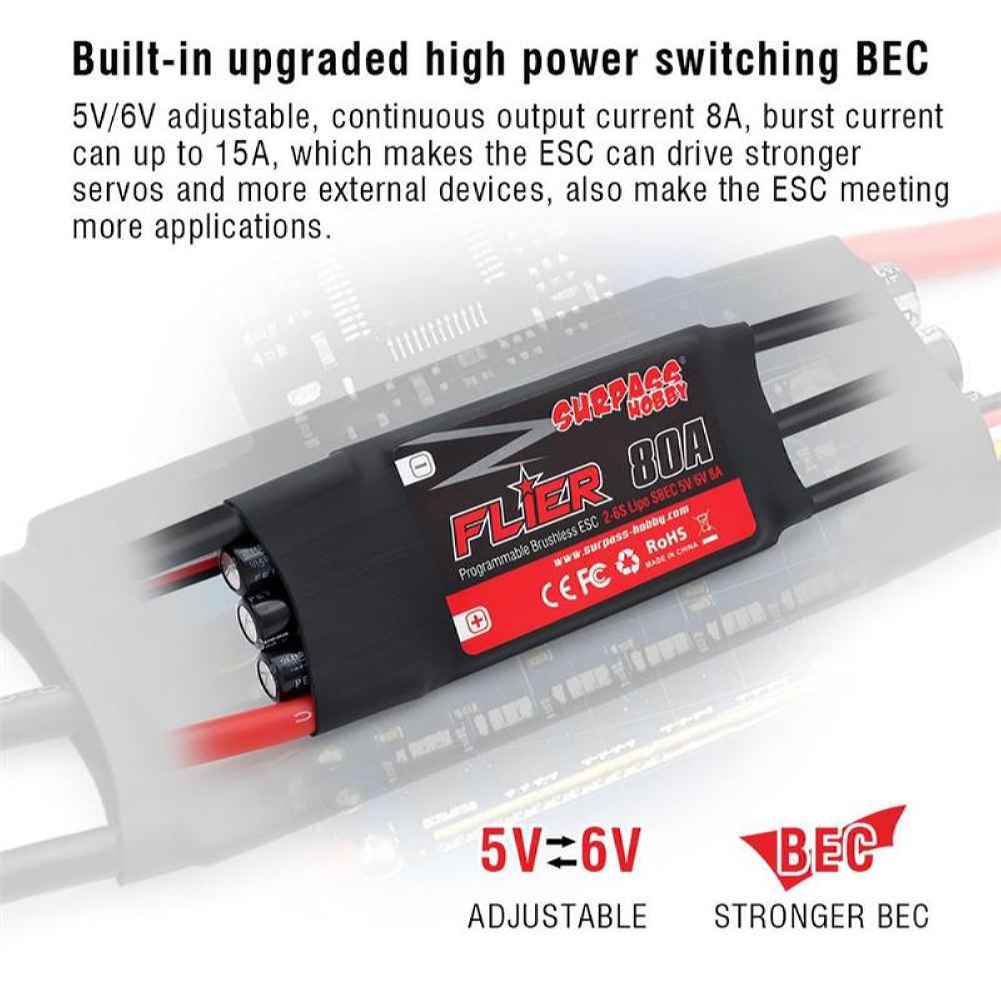

5. Adjustable SBEC 5V/6V output voltage 5V/6V provides more powerful to the servo. (40A/50A/60A/80A/100A have SBEC adjustable)
6. Multiple protections: Start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
7. Support high RPM motors, and compatible with most motors in the market.
8. Support programming via LCD program card, easier and more convenient operation (Extra LCD program card needed, Click Here)
English Manual, Click Here

Package Included:
1 x SURPASS-HOBBY FLIER Series New 32-bit 60A Brushless ESC
