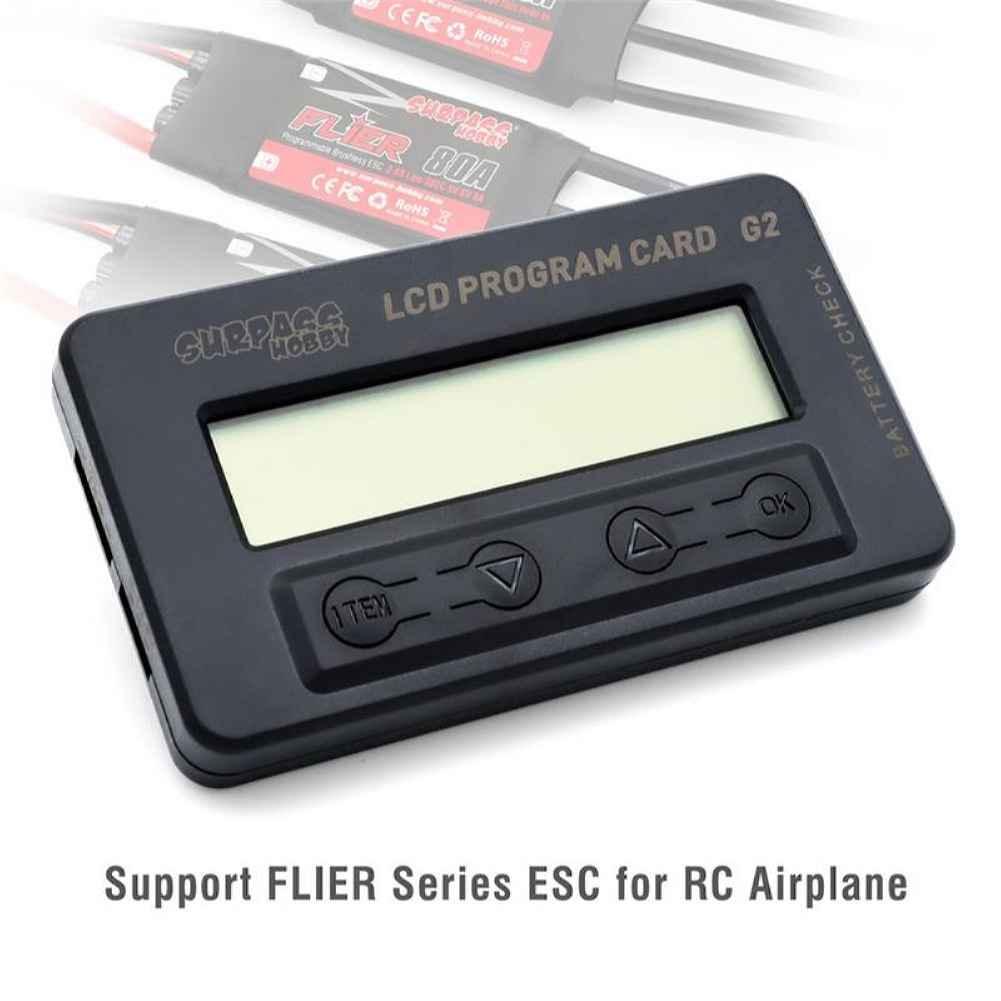

SURPASS-HOBBY G2 LCD Program Box for FLIER Series Brushless ESC, RC Airplane Parts, Multifunctional with Data Display

Description

SURPASS-HOBBY G2 Multifunction LCD Program Box for FLIER Series Brushless ESC RC Airplane Parts

The SURPASS-HOBBY G2 LCD Program Box is a versatile tool designed for FLIER Series Brushless ESCs in RC airplanes. With dimensions of 84 x 49 x 11.5 mm and weighing only 40g, this lightweight device is powered by a DC supply ranging from 5 to 12.6V. It functions as a standalone device to set ESC parameters and serves as a LiPo battery voltmeter, measuring both the entire battery pack and individual cells. Additionally, it displays real-time data such as voltage, current, throttle inputs, RPM, and temperature for compatible ESCs. The program box also reads data logs, including maximum RPM and temperature metrics, and can detect PWM throttle signals. It doubles as an ESC/Servo tester, allowing speed adjustments through its intuitive interface.

Specifications:
Brand: SURPASS-HOBBY
Item Name: LCD Program Box G2

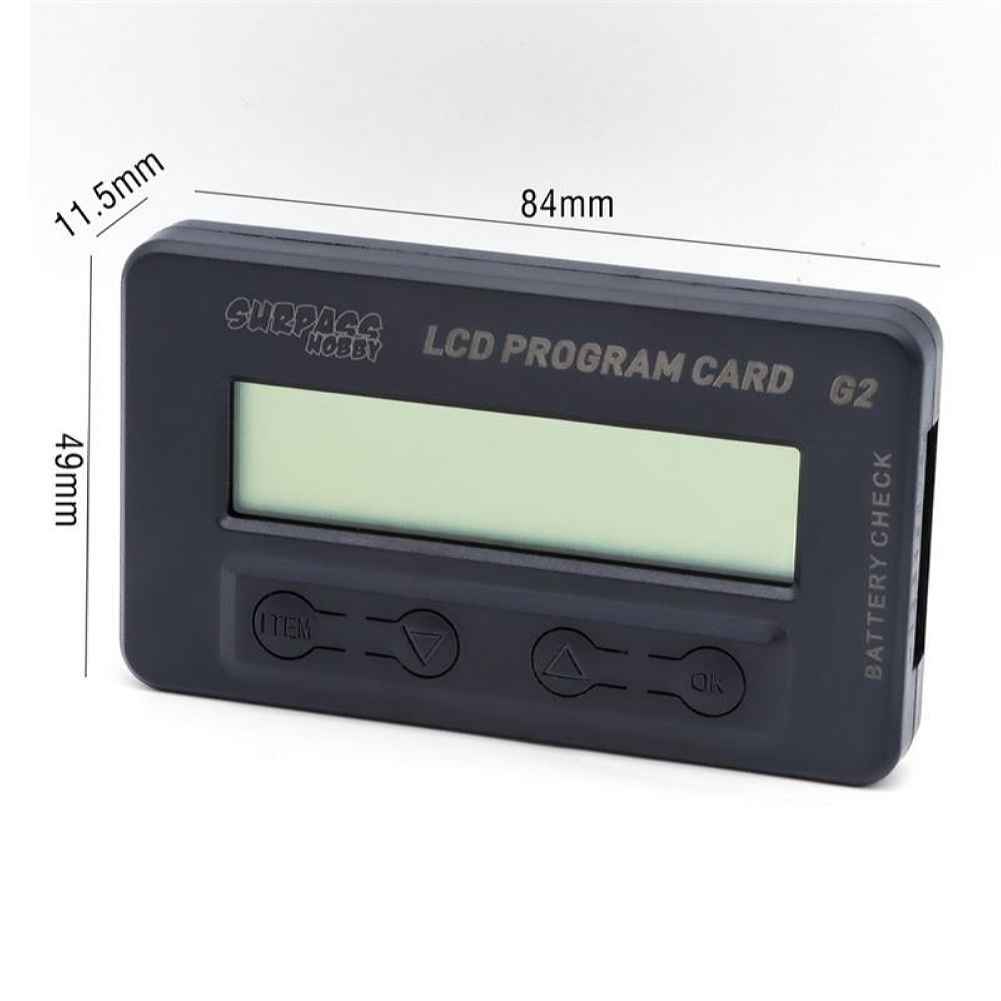

Dimensions: 84 x 49 x 11.5 mm
Weight: 40g
Power Supply: DC 5~12.6V
Application: Support FLIER Series ESC for RC Airplane
Features:
1. Working as an individual device to set the parameters for the ESC.

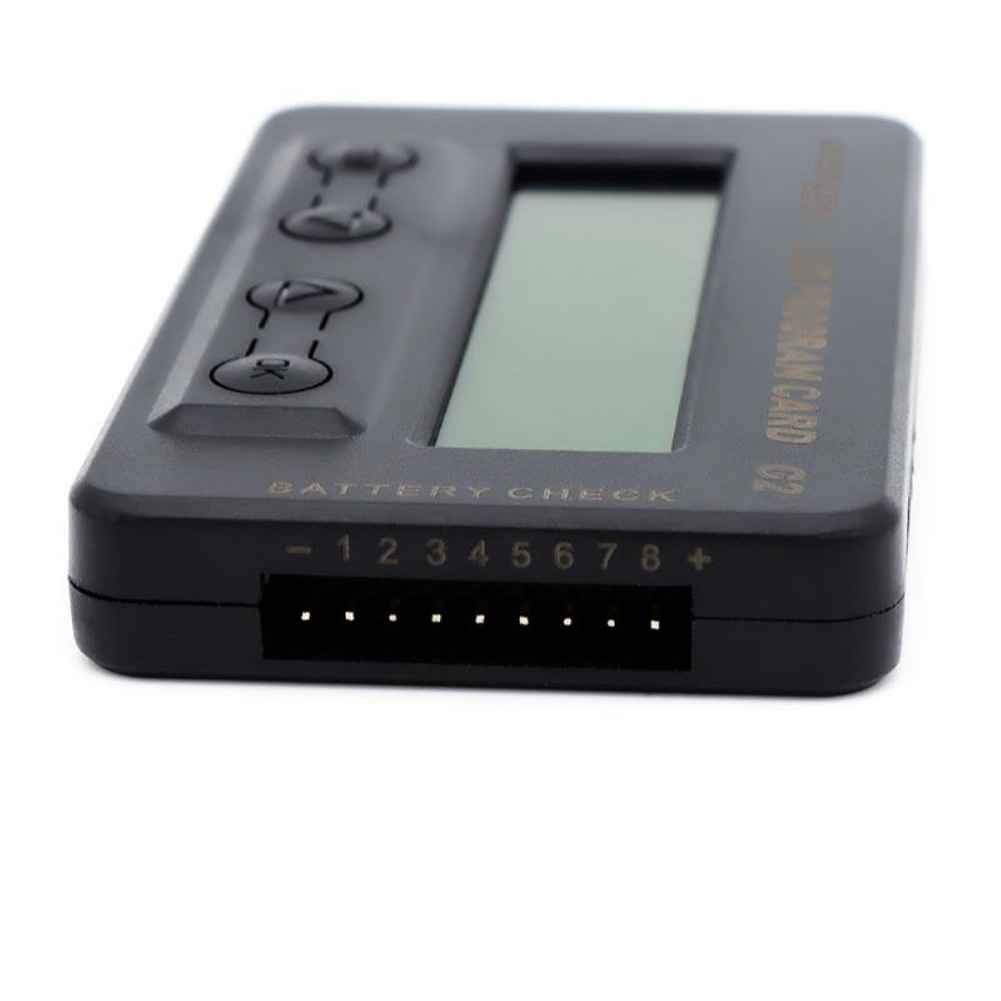

2. Working as a LiPo battery voltmeter to measure the voltage of the whole battery pack and each cell.
3. For the SURPASS-HOBBY ESC with data returning feature, it can display real-time data including: voltage, current, input throttle, output throttle, RPM, battery power, MOS temperature and motor temperature.
4. For the SURPASS-HOBBY ESC with data logging feature, it can read the data including: maximum RPM, minimum voltage, maximum current, external temperature, and maximum temperature.
5. PWM throttle signal detection: Identify and display the input throttle pulse width and frequency.
6. ESC/Servo Tester: It works like remote control to adjust the speed for ESC/servo by press the program box’s button.
English Manual, Click Here

Package Included:
1 x SURPASS-HOBBY LCD Program Box G2
