TEOSAW 533 SE 5 Inch Frame Kit for DJI O4 Air Unit, 192mm Wheelbase, DIY RC Drone FPV Racing

Description

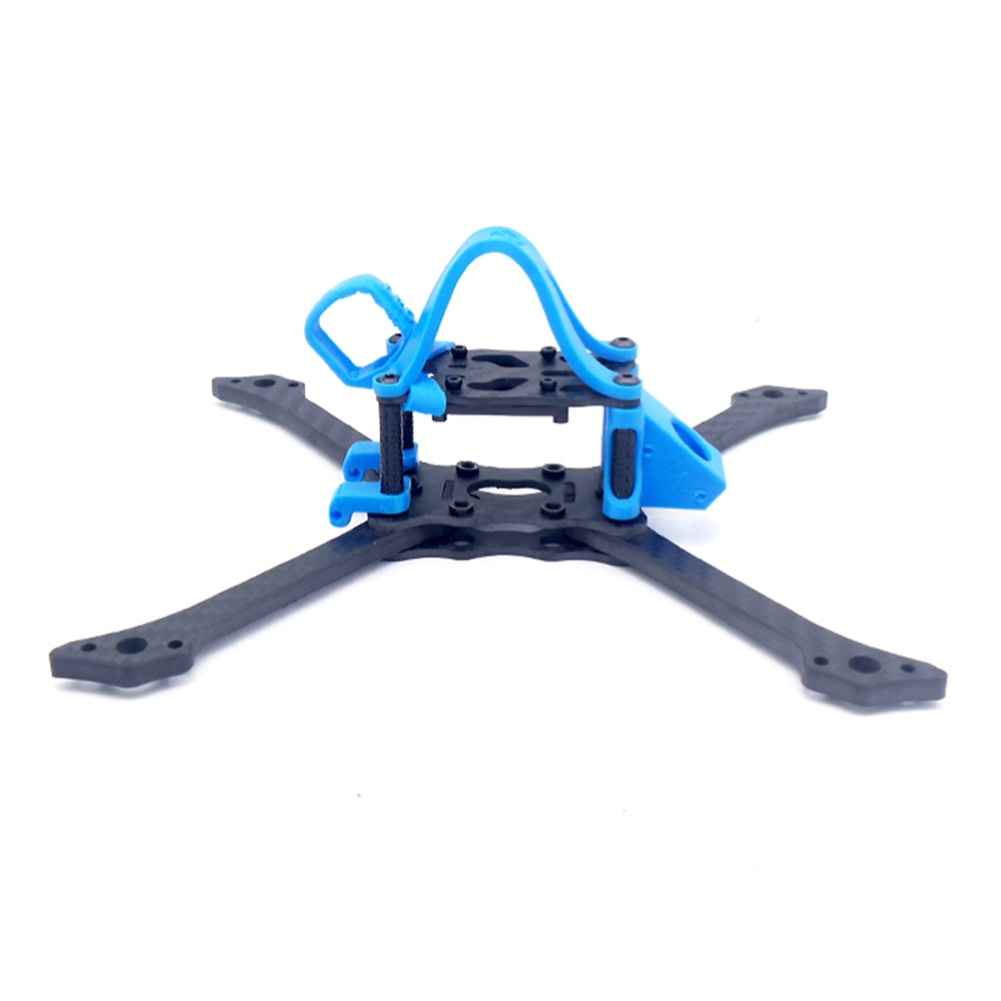

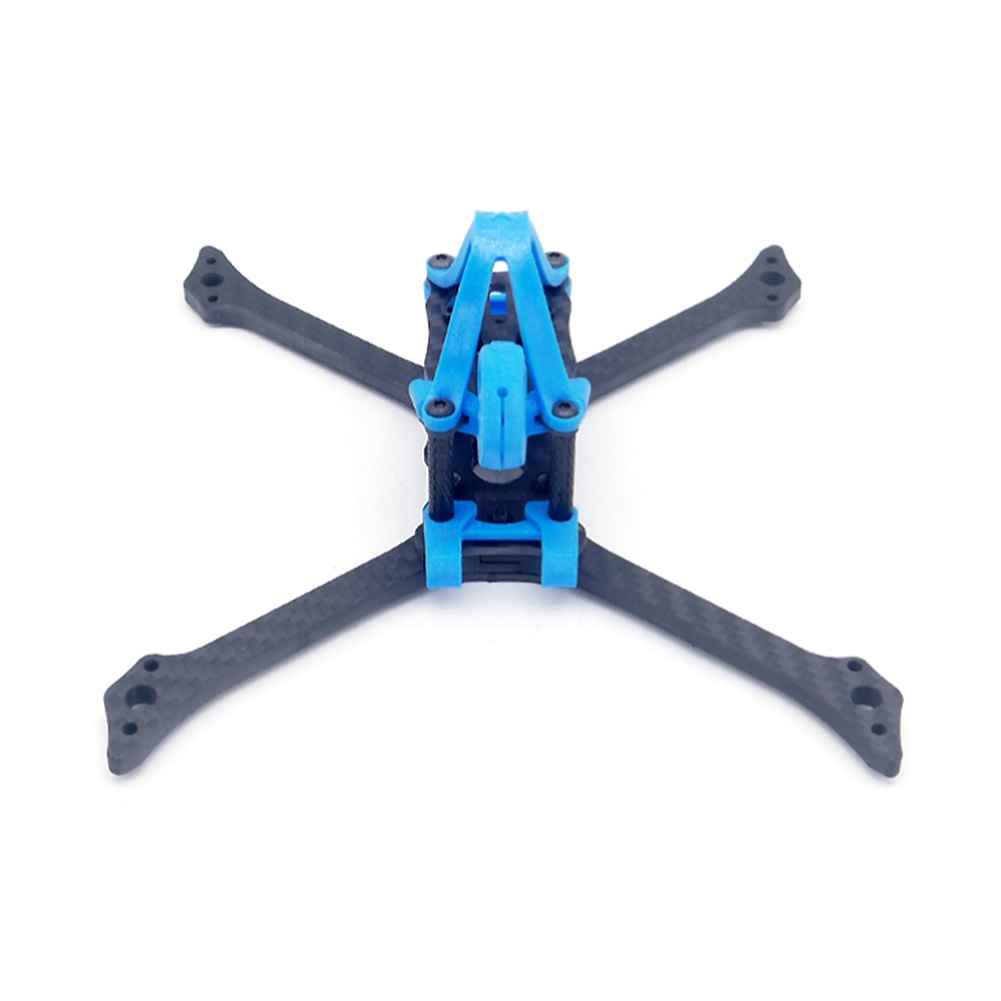

TEOSAW 533 SE 192mm Wheelbase 5 Inch Frame Kit Compatible with DJI O4 Air Unit for DIY RC Drone FPV Racing

The TEOSAW 533 SE 5 Inch Frame Kit is designed for DIY RC drone FPV racing enthusiasts. This frame kit, compatible with the DJI O4 Air Unit, features a 192mm wheelbase and an X-shaped split structure. It offers robust construction with 5.0mm thick arms and 2.0mm plates for durability. The frame supports a 5.0-inch propeller and is equipped with specific installation hole spacings for flight controllers and image transmission. The camera installation width is 14mm, and it accommodates a camera angle of approximately 51 degrees. Please note, electronic accessories, rubber bands, and machine screws are not included.

Note: The product does not include any electronic accessories, rubber band surrounds, and accessories such as machine screws.
Specifciation:
Brand: TEOSAW
Model: 533 SE
Item Name: 5 Inch Frame Kit for DJI O4

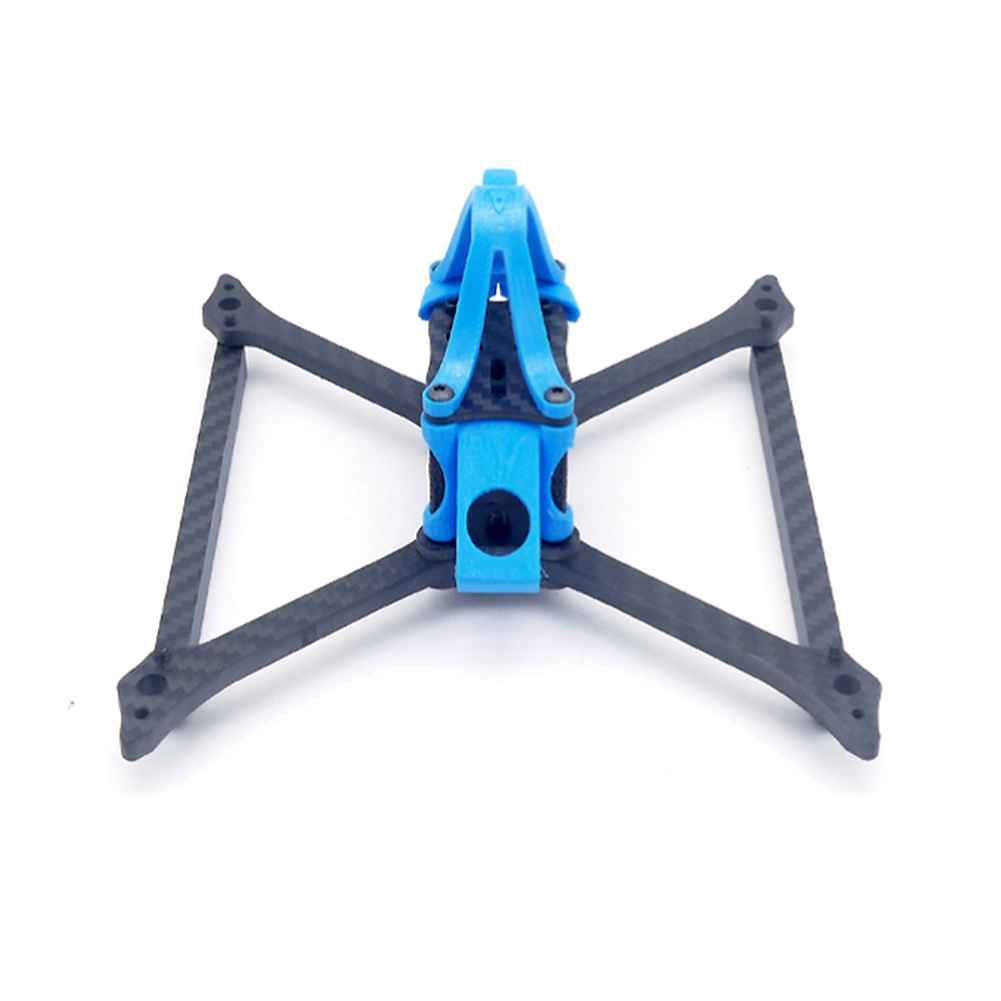

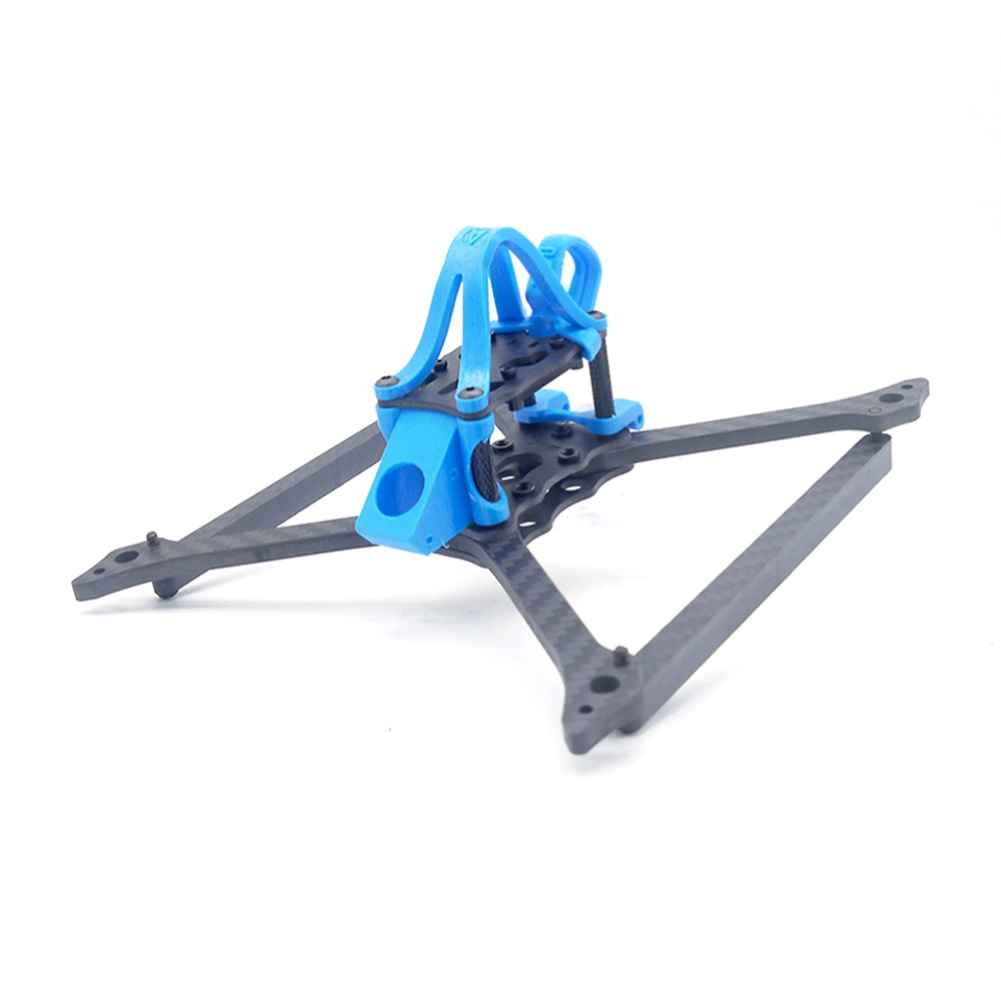

Version: with / without reinforcement bar (Optional)

192mm

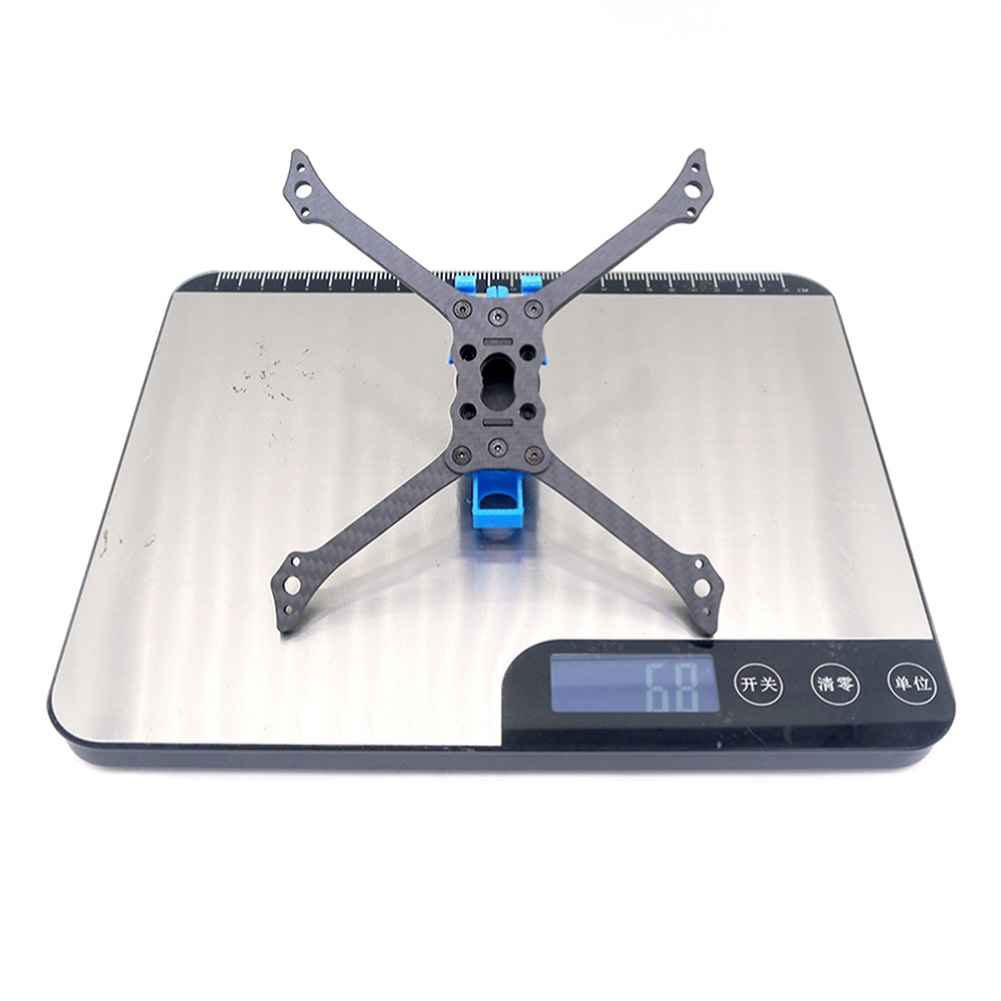

Weight (with printout):

About 68g / 91g

Thickness:

5.0mm for arm, 2.0mm for bottom plate, 2.0mm for middle plate, 2.0mm for top plate, 2.0mm for stopper

Propeller:

5.0 Inch propeller

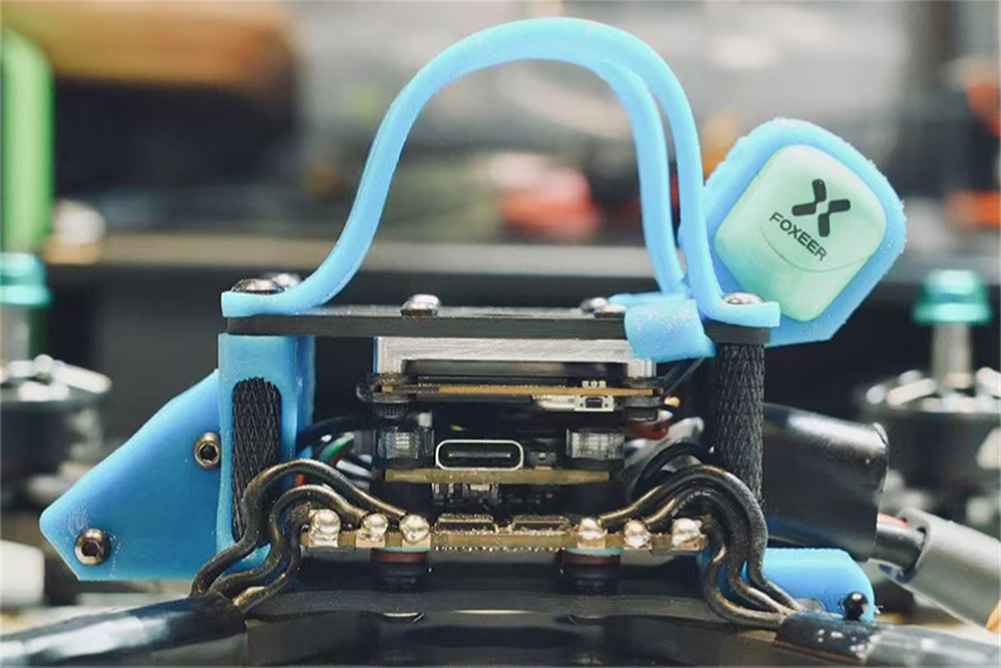

Flight Controller Hole Spacing:

20*20mm (M3)

Image Transmission Installation Hole Spacing (on top plate):

25.5*25.5mm (M2) Aluminum conversion heat sink needs to be installed; 20*20mm (M2)

Camera Installation Width:

14mm (adapt to DJI O4 Air Unit, camera angle is about 51‵)

Motor Installation Hole Position:

16*16mm (M3)

Structure:

X-shaped split

Aluminum Column Height:

M3*25mm (If the length of the aluminum column and screw is not suitable, please replace the appropriate aluminum column and screw by yourself)

Distance Between the Front and Rear Aluminum Columns:

About 44mm

Compatible VTX

Compatible with DJI O4 Air Unit (aluminum conversion heat sink needs to be installed on the top plate)

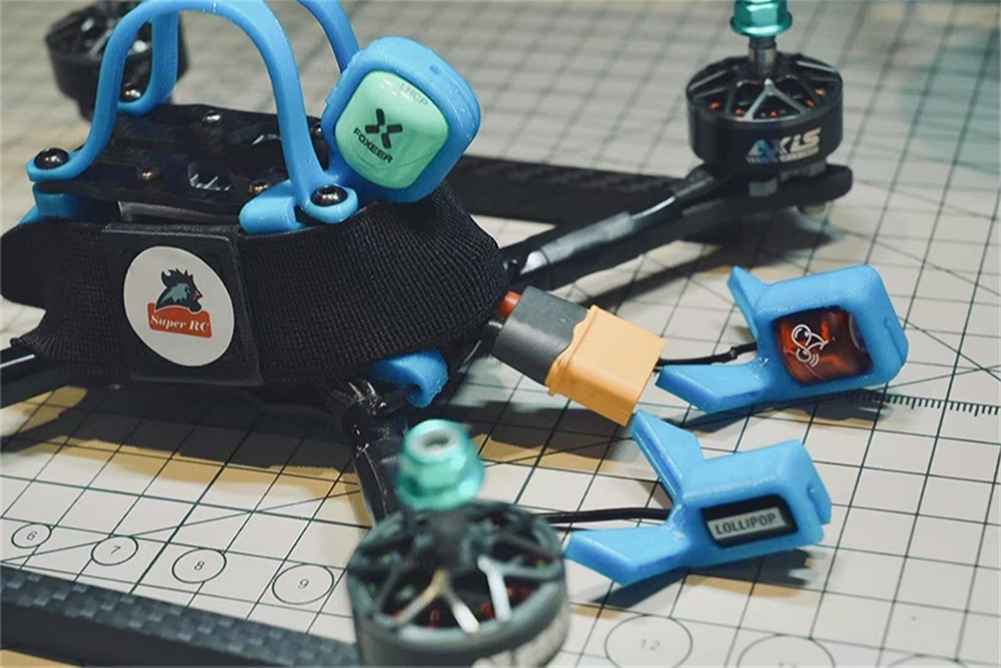

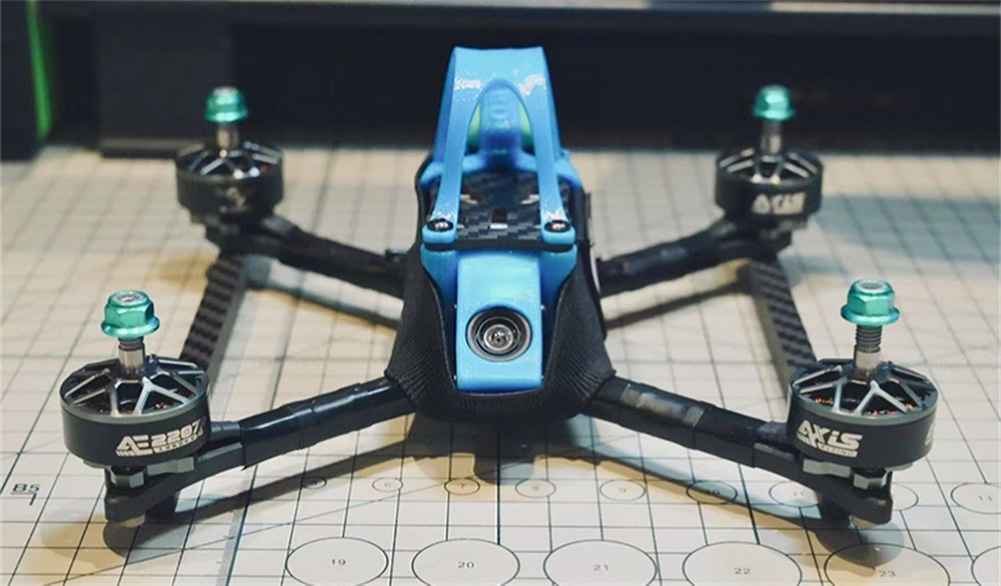

Recommend Parts: ( NOT Included)
FC & ESC: 25.5*25.5mm SpeedyBee F405 AIOVTX & Camera: DJI O4 Air Unit
Brushless Motor: iFlight XING2 2306 1755KV 6S Brushless MotorPropeller: iFlight Nazgul 5030 5 Inch 5x3x3 3-Blade Propeller

Package Included:
1 x Frame Kit
