Description

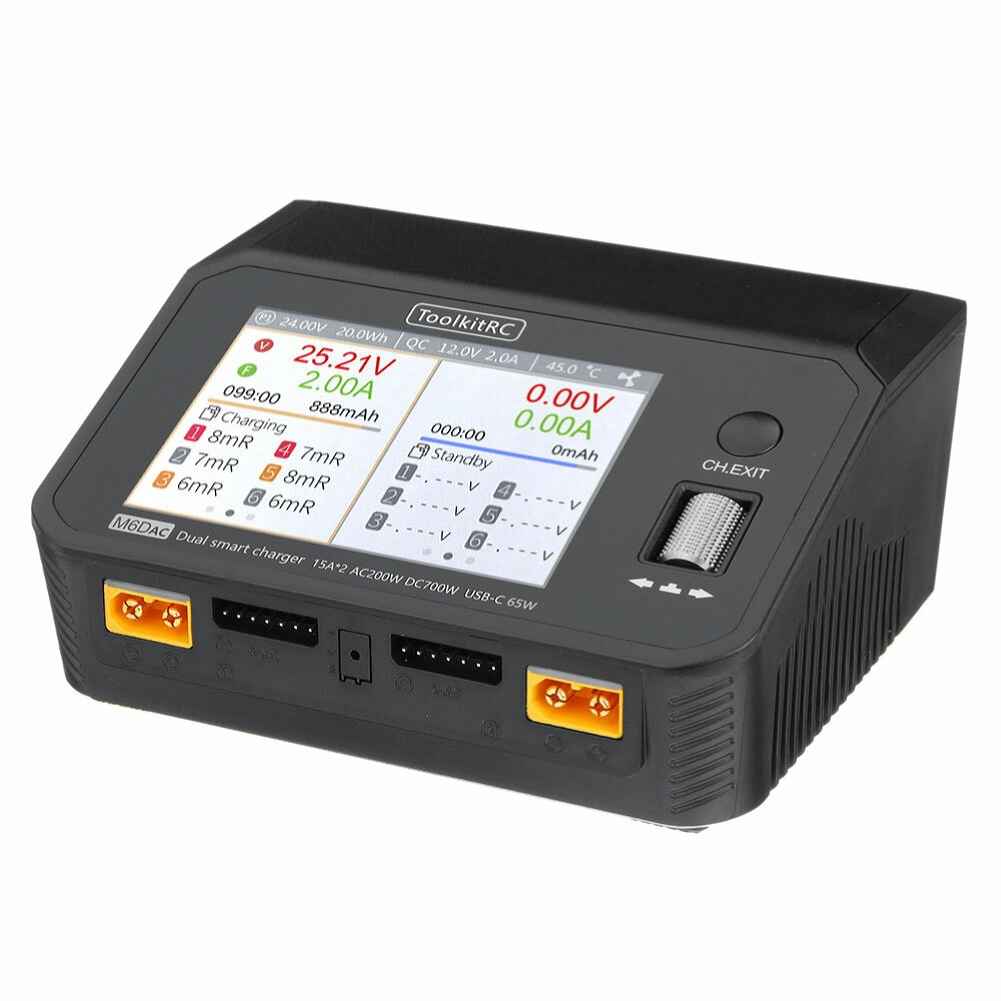

ToolkitRC M6DAC AC 200W DC 700W 15A*2 USB-C 65W QC3.0 Dual Channel Smart Lipo Battery Charger Discharger for 1-6S Lipo Battery
The ToolkitRC M6DAC is a versatile dual-channel smart charger designed for various battery types, including Lipo, LiHV, LiFe, and Lion for 1-6S, as well as NiMh and Pb batteries. It features both AC and DC input capabilities, with a maximum charger power of 700W in synchronous mode and 350W in asynchronous mode. The charger supports a balance current of 1000mA for 2-6S batteries, ensuring optimal charging performance. It also includes a 3.5-inch IPS LCD screen for clear and easy operation. The USB-C port provides a maximum power output of 65W, compatible with multiple upgraded protocols. Compact yet powerful, the M6DAC is an essential tool for hobbyists and professionals alike.
Specification:
Input voltage: DC 7.0-28.0V @MAX 30A
AC 100-240V @ MAX 2.5A
Type of battery: Lipo LiHV LiFe Lion@1-6S
NiMh @1-16S Pb @1-10S
Balance current: 1000mA @2-6S
Balance accuracy: <0.005V
Charger power: 0.1-15A @350W *2 (Asynchronous mode)
0.1-25A @700W (Synchronous mode)
Discharge power: 350W @MAX 15A *2渚圧ecycle mode)
15W@3A *2 (Normal mode)
USBC power: MAX 65W 3.25A @20.0V or Upgraded
USBC protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC
Battery voltage: 1.0V-5.0V@1-6S
Internal resistance: 1-100mR@1-6S
Product size: 127*106*57 mm
Product weight:520g
Pack size: 158*134*63 mm
Pack weight: 700g

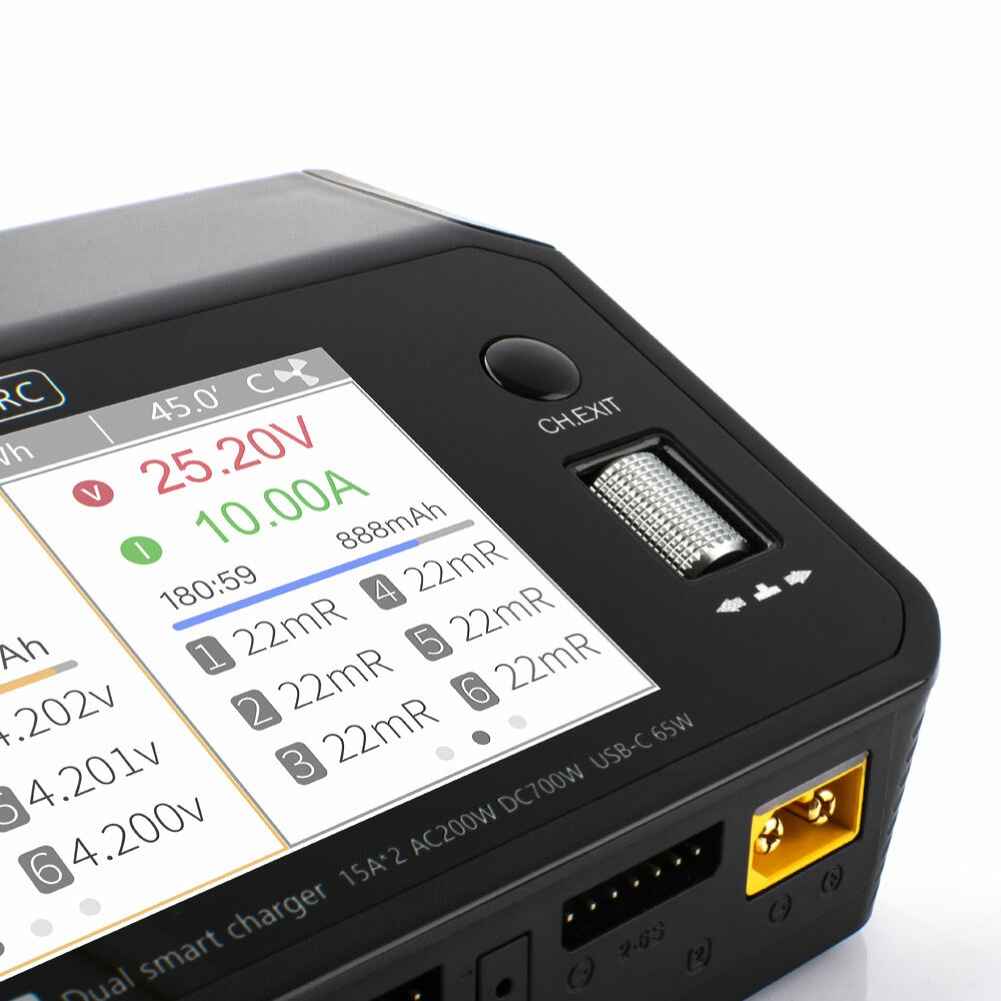

LCD: IPS 3.5 inch LCD 480*320 Pixel

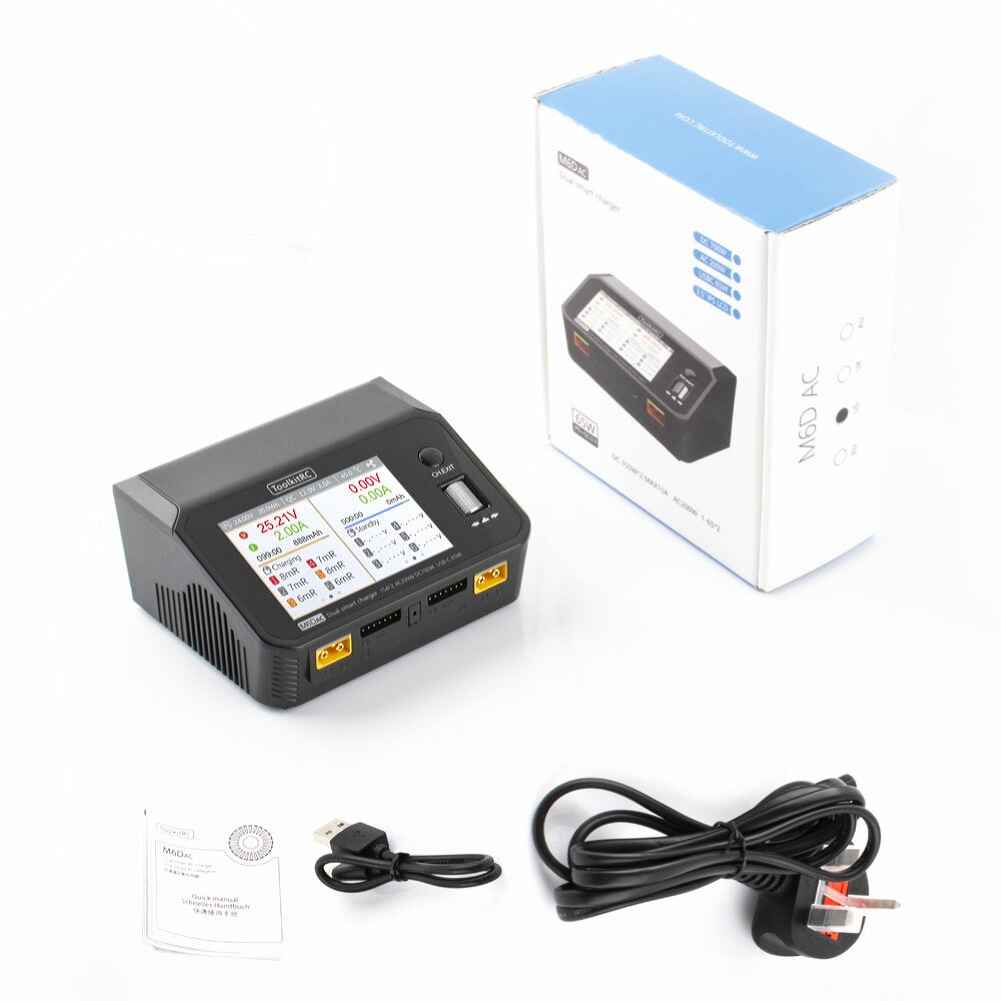

Packaging included:
1XToolkitRC M6DAC Charger
Package Included:
1 x ToolkitRC M6DAC Charger
