ToolkitRC M9 Multi Function 600W 20A DC Smart Charger with Audio, USB A+C Output, LiPo LiHV NiMh Compatibility

Description

ToolkitRC M9 Multi Function 600W 20A DC Smart Charger with Audio Function

The ToolkitRC M9 Multi Function Smart Charger is a versatile and powerful charging solution designed for RC enthusiasts. With an impressive charging power of up to 600W and a current range of 0.1-20A, it supports various battery types including LiPo, LiHV, LiFe, Lion, LTO, NiMh, and Pb. The device features a 2.4-inch IPS LCD display for easy monitoring and an audio function for user convenience. It offers a wide voltage input range of 7-35V and includes USB A+C outputs, supporting fast charging protocols like PD, QC, PPS, AFC, and SCP. The M9 also provides PWM, PPM, and SBUS measurement capabilities, making it an ideal choice for diverse RC applications.

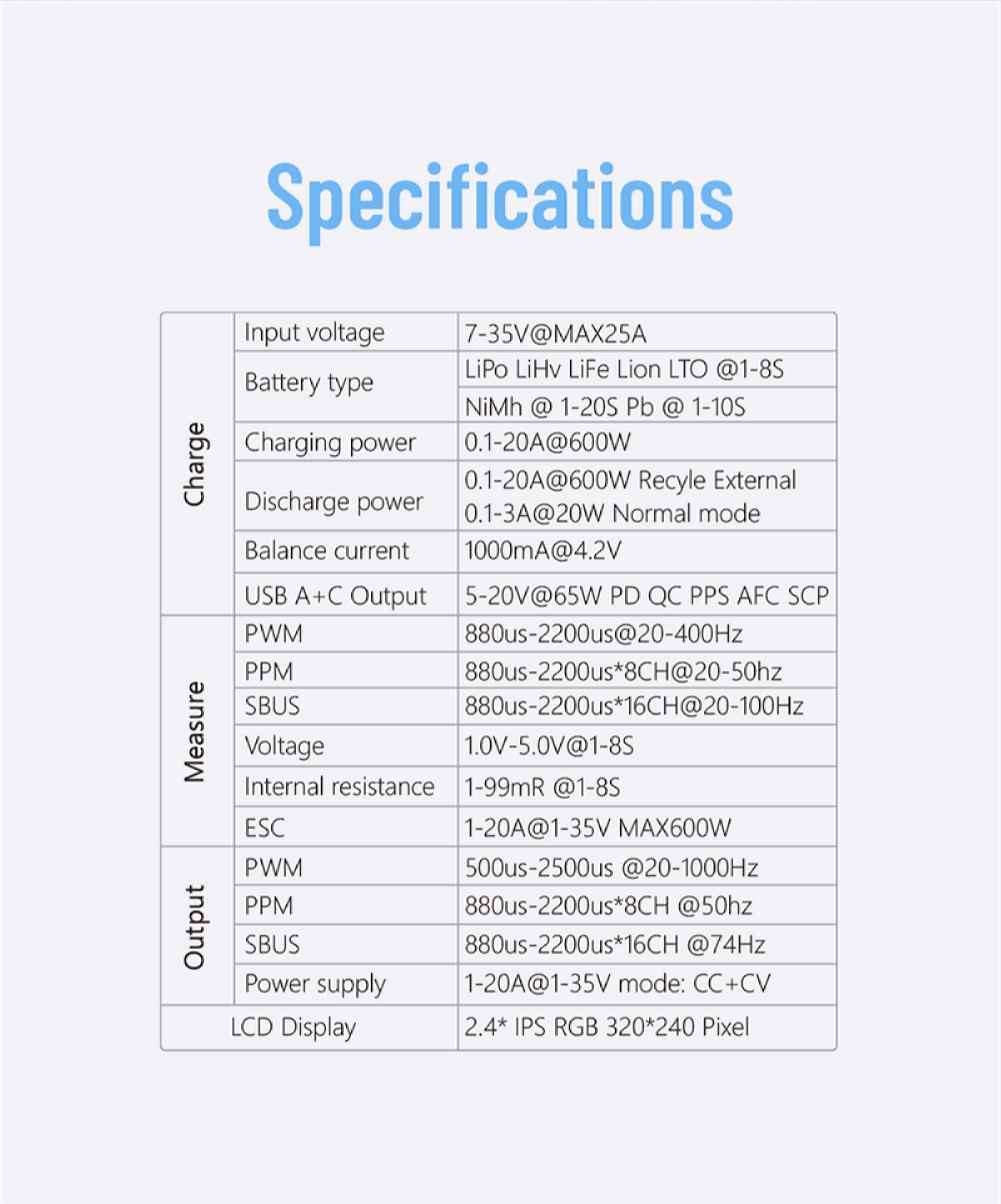

Specification:
Input: 7-35V@MAX35A
Battery Type: LiPo LiHV LiFe Lion LTO@1-8S
NiMh @1-20S Pb @1-10S
Charging Power: 0.1-20A@600W
Discharging Power: 0.1-20A@600W Recycle External
0.1-3A@20W Normal Mode
Balance Current: 1000mA@4.2V

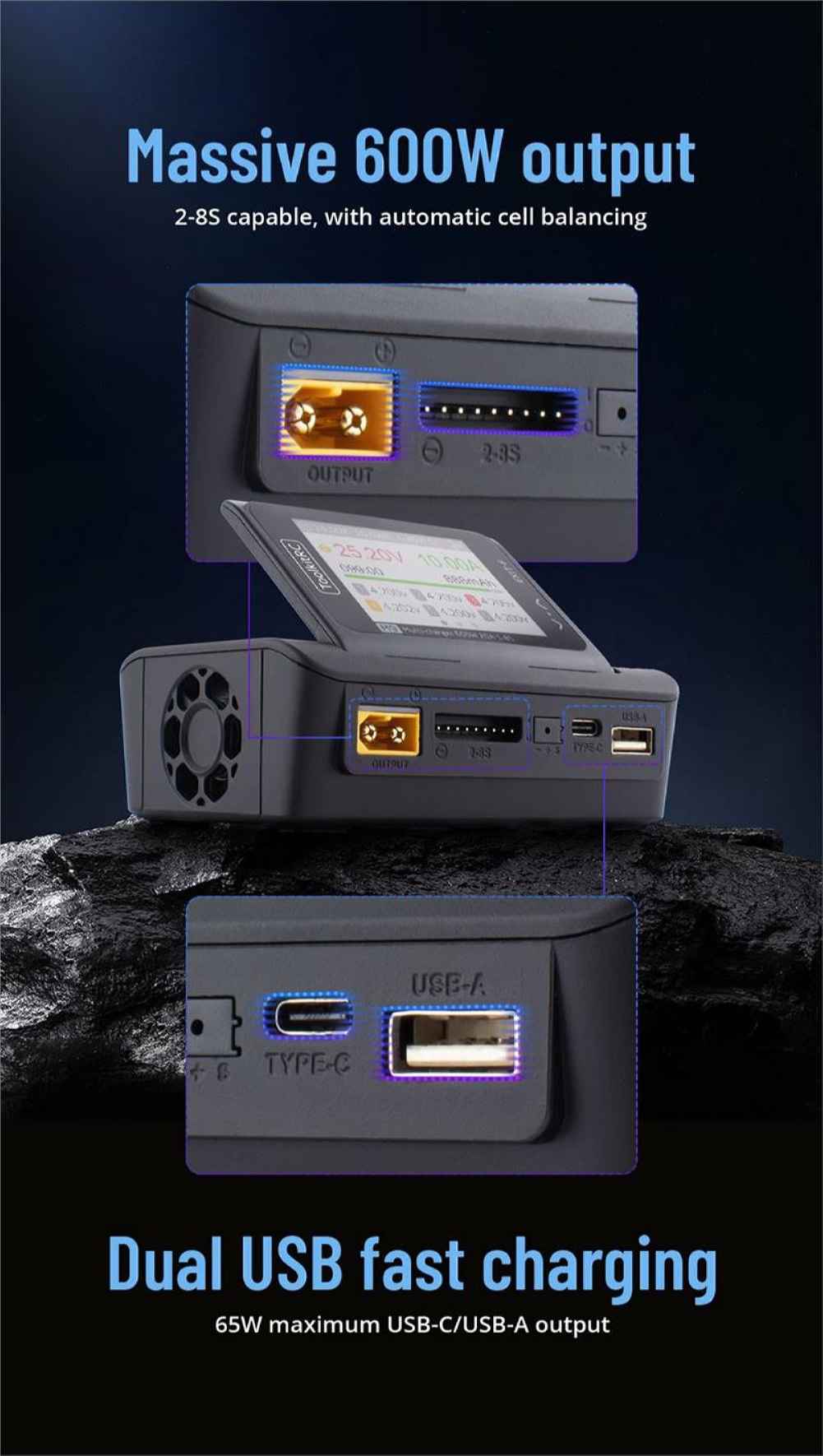

USB A+C Output: 5-20V@65W PD QC PPS AFC SCP
Measure:
PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0V-5.0V@1-6S
ESC: 1-20A@1-35V MAX 600W
Output:
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @50Hz
SBUS: 880-2200us*16CH @74Hz
Power supply: 1.0-20A@1-35V mode:CC+CV

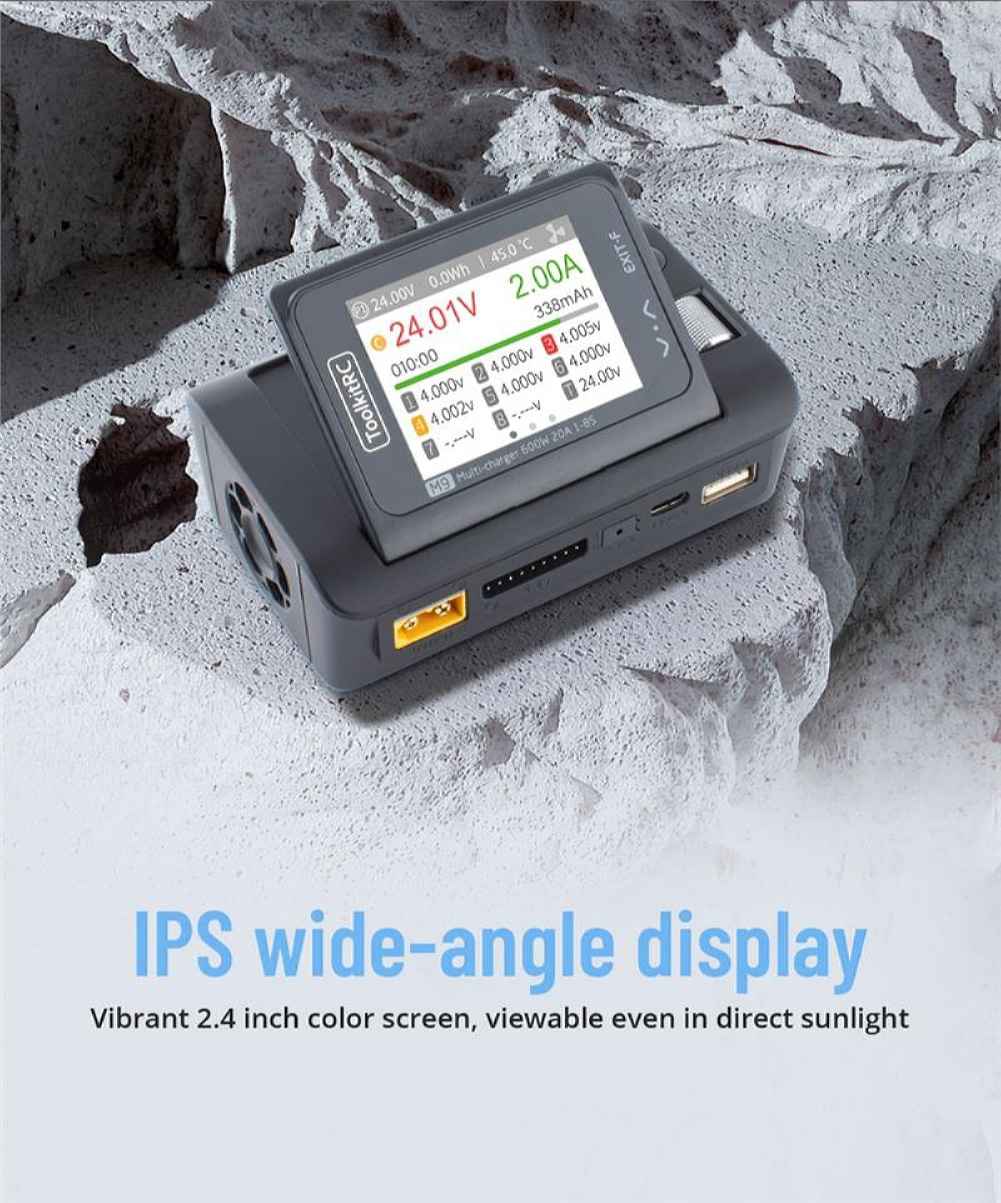

LCD: 2.4*IPS RGB 320*240 Pixel
Packaging included:
1X ToolkitRC M9 Charger

Package Included:
1 x ToolkitRC M9 Charger
