Walkera Devo Transmitter 4 In 1 RF Module – CC2500, NRF24L01, A7105, CYRF6936

Description

CC2500 NRF24L01 A7105 CYRF6936 4 In 1 RF Module For Walkera Devo Transmitter

Enhance your Walkera Devo transmitter with the 4 In 1 RF Module, featuring integrated RF chips: CC2500, NRF24L01, A7105, and CYRF6936. This module supports multiple protocols, including Frsky, Spektrum DSM2/DSMX, Walkera Devo, FUTABAS SFHSS, Flysky, MJX, Esky, and Wltoys. With a 160mW output PA, LNA, and high-frequency signal switching circuit, it extends the control range and improves the power supply of your transmitter. The module is plug-and-play compatible with Walkera transmitters, eliminating the need for soldering or firmware updates. For advanced users, it supports additional welding for 3 chip select signals and DEVIATION open source firmware, making it versatile across various open source protocols.

CC2500 NRF24L01 A7105 CYRF6936 4 In 1 RF Module For Walkera D7E D10 Transmitter
Description:
Item Name: RF module
4 In 1 Chip: CC2500, NRF24L01, A7105, CYRF6936
Compatibility: Supports dozens of protocols,such as Frsky,Spektrum DSM2/DSMX,Walkera Devo,FUTABAS SFHSS,Flysky,MJX,Esky,Wltoys,and etc.
Features:

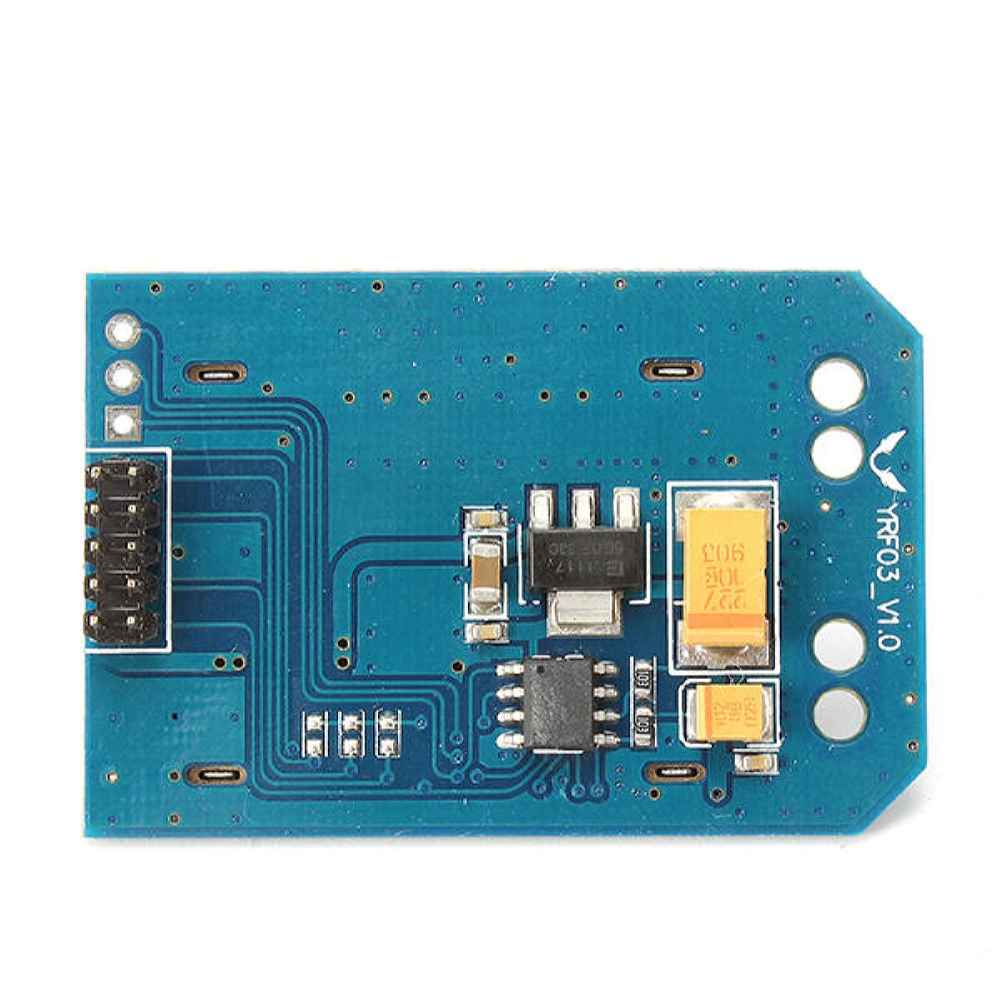

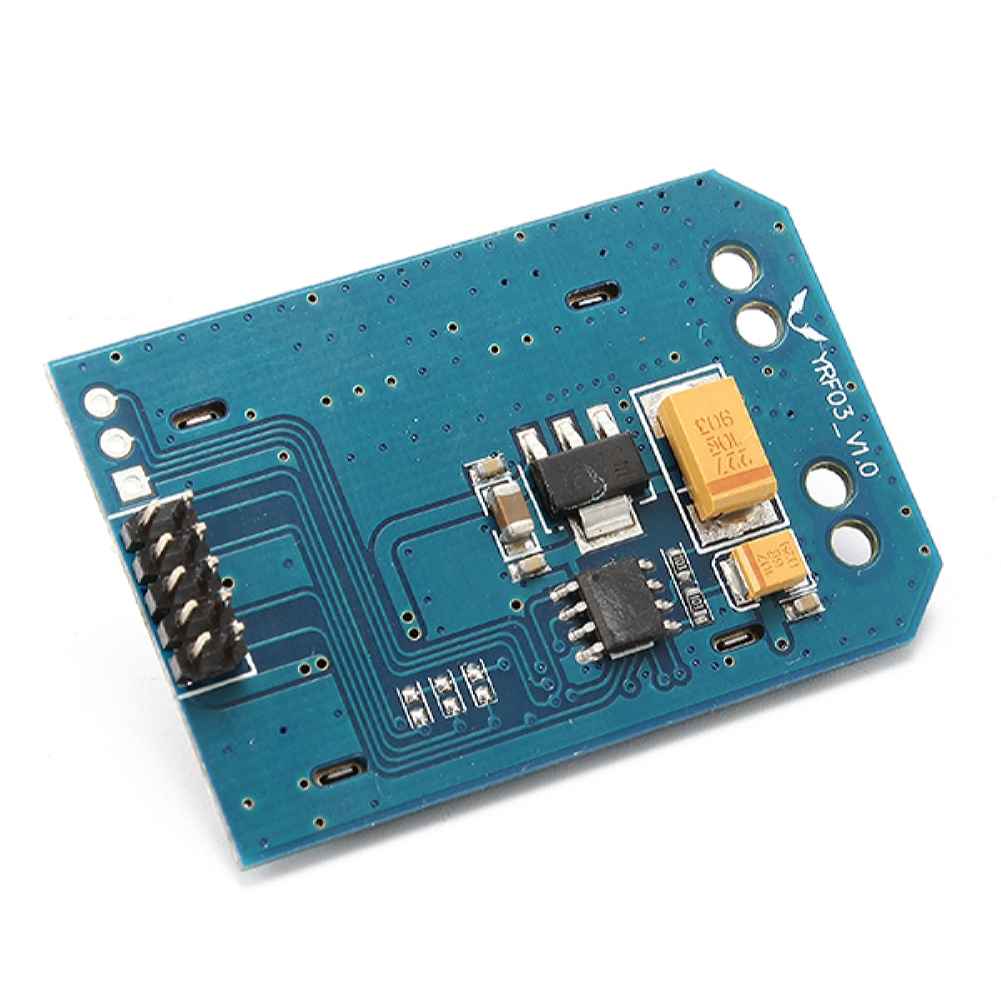

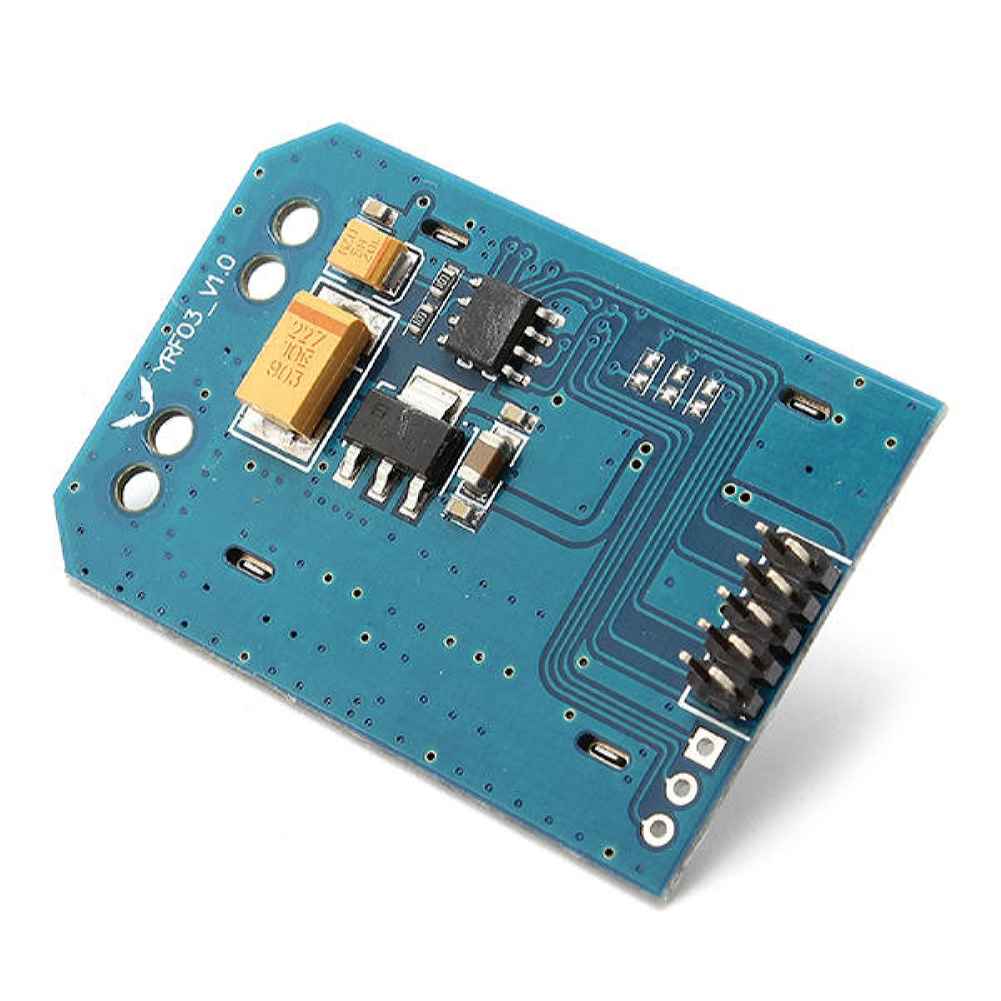

4 IN 1 RF module integrates four RF chips( CC2500, NRF24L01, A7105, CYRF6936 ) in one single PCB board.
4 IN 1 RF module came with 160mW ouput PA, LNA and high frequency signal switching circuit.
Plug and use,can directly compatible with Walkera transmitter, no need to solder or update the transmitter firmware, and make the transmitter has longer control range and Improve power supply of transmitter.
If additional welding 3 chip select signal and with DEVIATION open source firmware,this module can work with almost all the transmitter open source protocol.

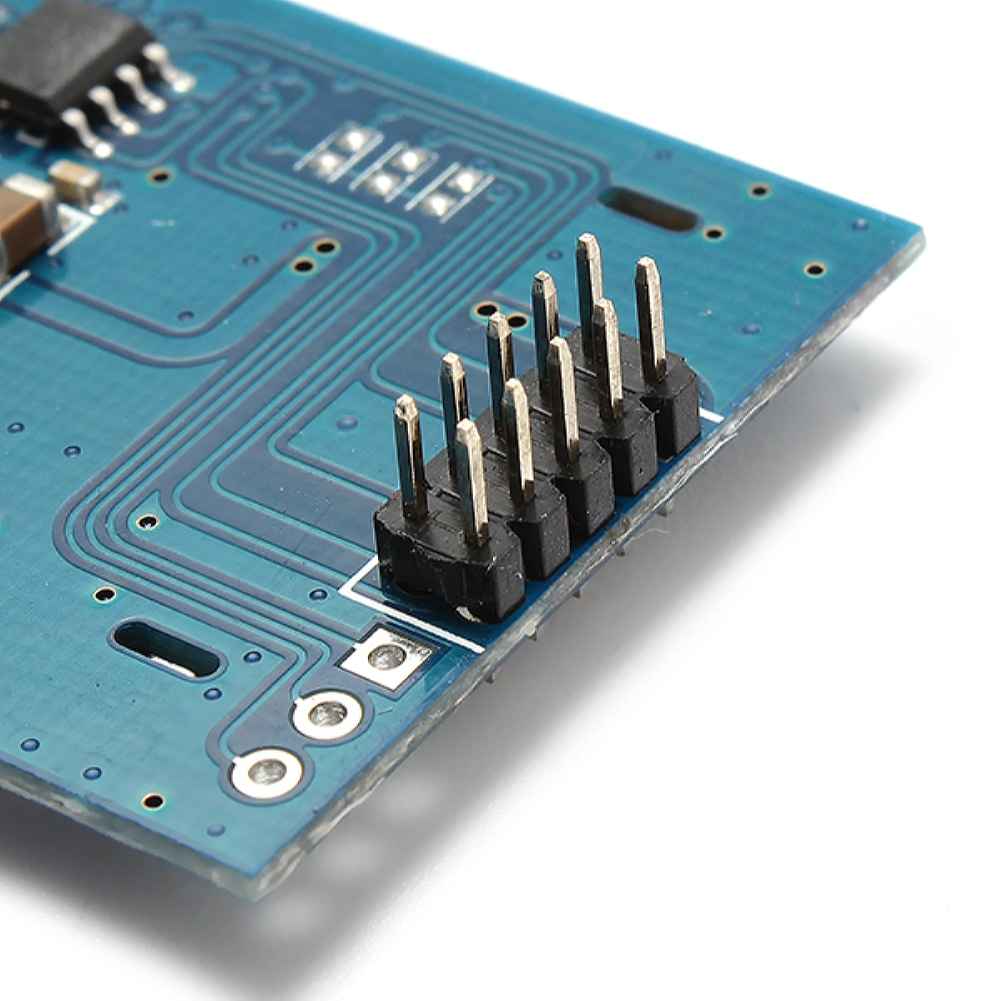

Pin Definition:
Pin Function:

Name

Attributes

Function

CSN2500

Input

CC2500 chip select signal

CSN2401

Input

NRF24L01 chip select signal

CSN7105

Input

A7105 chip select signal

CSN6936

Input

CYRF6936 chip select signal

SCK

Input

SPI Interface clock signal

MOSI

Input

SPI Interface input from the device

MISO

Output

SPI Interface output from the device

VIN

Power Source

4.5V-8V Input

GND

Power Source

Ground

RST6936

Input

CYRF6936 chip select signal

RF Module Table, Click Here
Supported Protocols and Models, Click Here
Related Firmware,Configuration file and Tools,Click Here
Note:
Open source protocol is mostly cracked,protocol version is constantly updated,inevitably there are omissions. Including but not limited to the following issues:
– Part program version DSM2 have protocol compatibility problems.
– Some receiver (original AR600) need to rebind per use,some receiver (Spektrum integrated receiver) frame rate is a bit slow. This issue basically determine the problem is on the program itself.

Package Included:

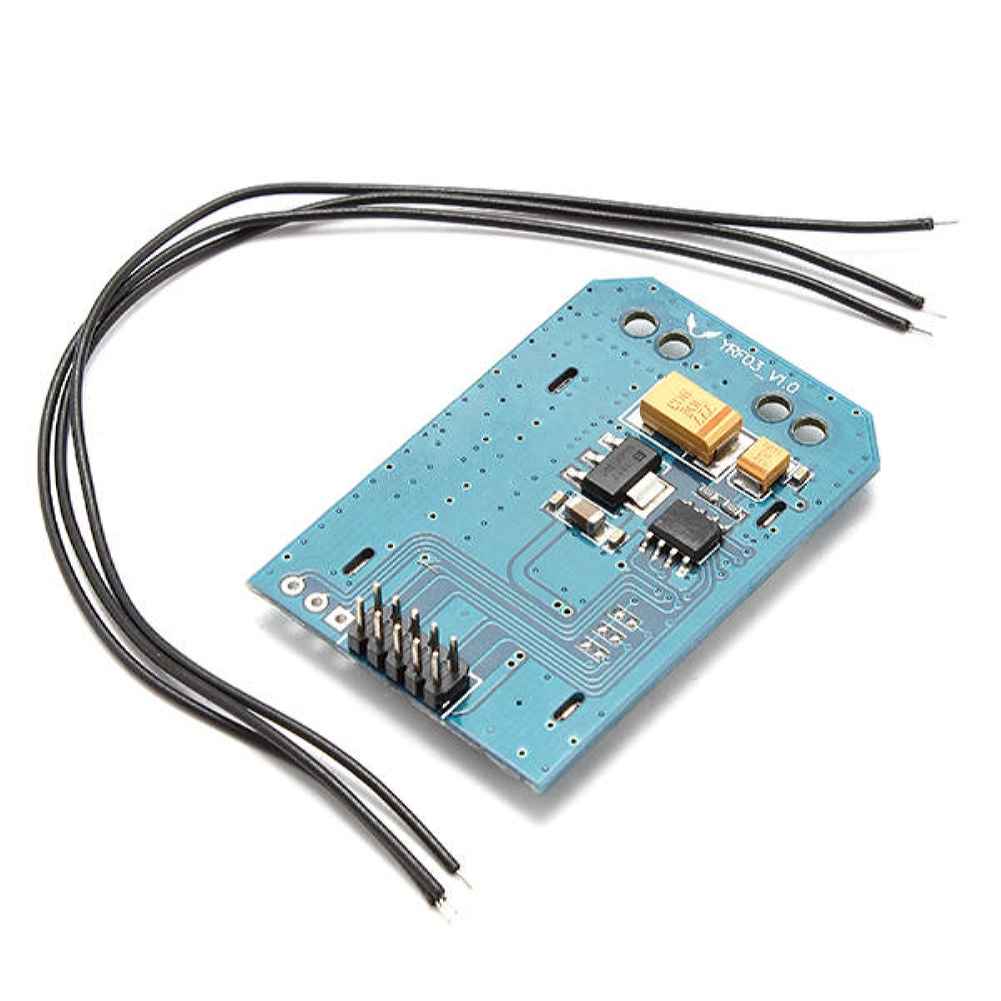

1 x 4 In 1 RF Module
