XXD A2217 Outrunner Brushless Motor for RC Airplane, 950KV to 2700KV Options, Fixed Wing Compatible

Description

XXD A2217 950KV 1100KV 1250KV 1500KV 2300KV 2700KV Outrunner Brushless Motor for RC Airplane Fixed Wing

The XXD A2217 Outrunner Brushless Motor is engineered for RC airplane enthusiasts, offering a range of KV options from 950KV to 2700KV to suit various performance needs. Each motor is lightweight at 68g and features dimensions of 27.8 x 32mm, with a 4.0mm output shaft diameter. The motor is designed for optimal efficiency, with the 2300KV model achieving a peak current of 30A/60S and a maximum efficiency of 78%. This versatile motor provides reliable thrust and RPM across different voltages, making it an excellent choice for fixed-wing RC aircraft.

Specification:
Brand: XXD
Model: A2217 2217
KV: 950KV, 1100KV, 1250KV, 1500KV, 2300KV, 2700KV (optional)

Parameters

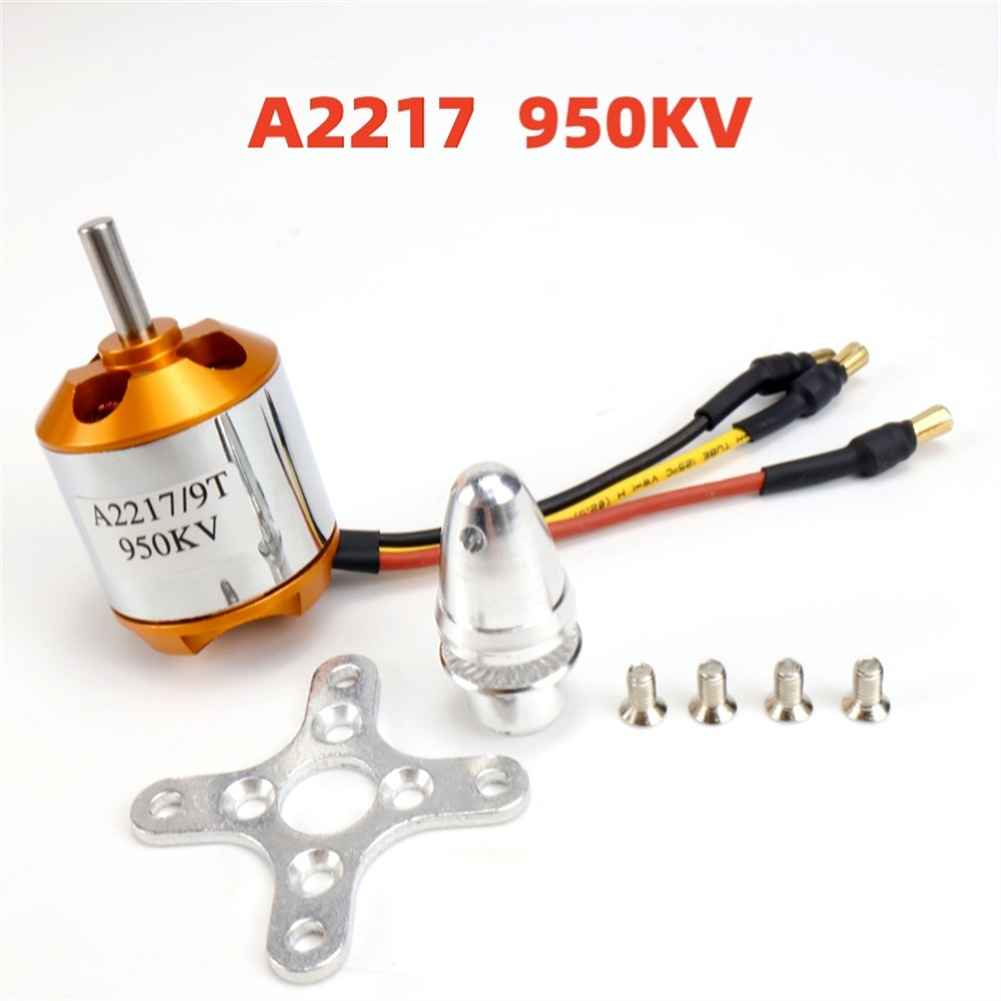

950KV

Product Name: A2217KV950 Brushless Motor
Product Weight: 68g
Dimensions: 27.8*32mm
Output Shaft Diameter: 4.0mm
KV Value: 950KV
Test Data:
11V 16.9A 7130 RPM, Thrust 955g
10.5V 15.8A 6980 RPM, Thrust 897g
10V 14.9A 6760 RPM, Thrust 853g
9.5V 13.9A 6580 RPM, Thrust 792g

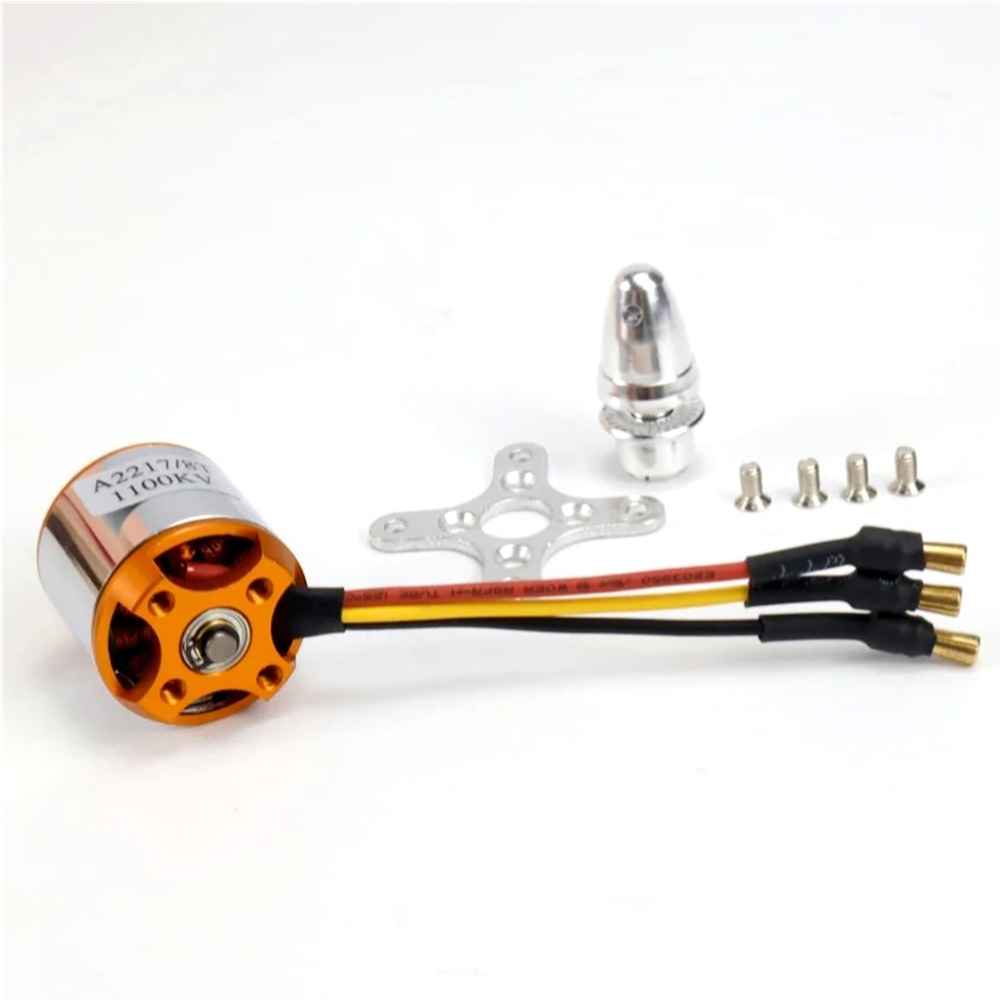

1100KV

Product Name: A2217KV1100 Brushless Motor
Product Weight: 68g
Dimensions: 27.8*32mm
Output Shaft Diameter: 4.0mm
KV Value: 1100KV
Test Data:
11V 19.5A 8450 RPM, Thrust 1012g
10.5V 17.4A 8220 RPM, Thrust 953g
10V 17.2A 8030 RPM, Thrust 903g
9.5V 15.9A 7730 RPM, Thrust 830g

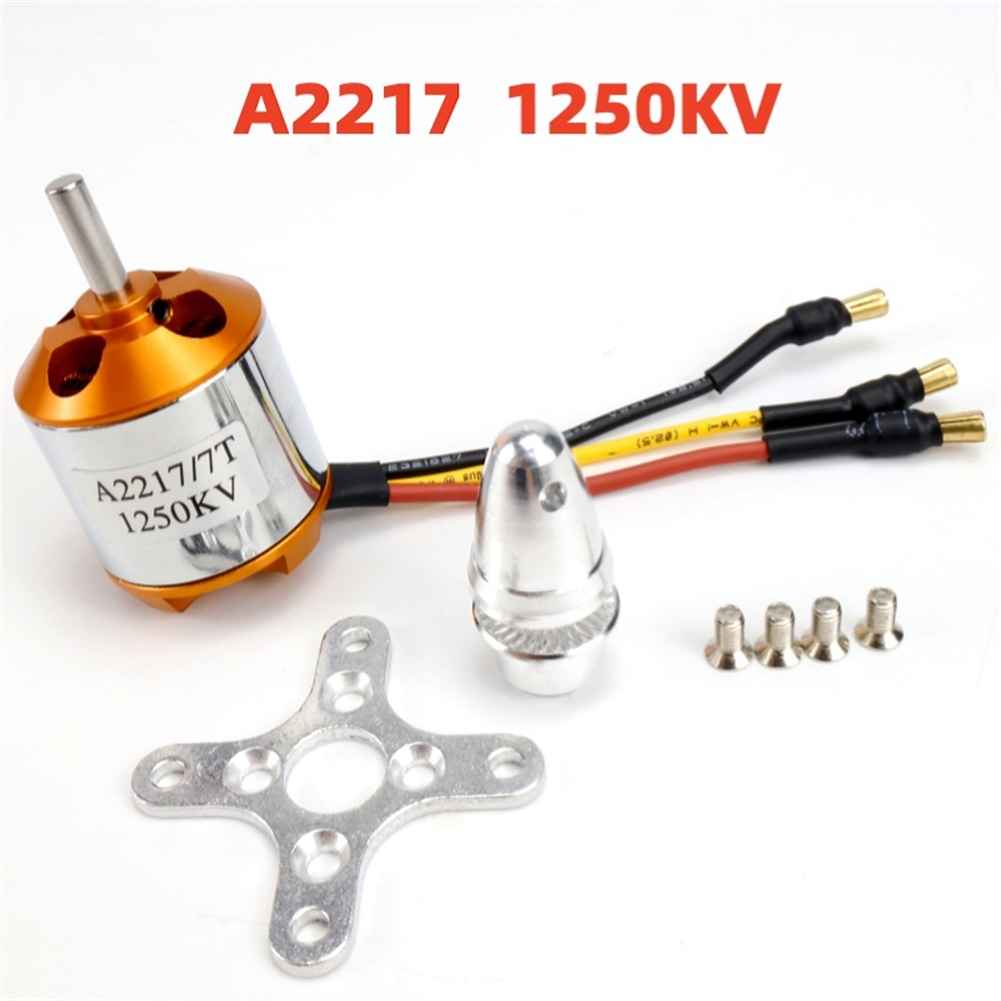

1250KV

Product Name: A2217KV1250 Brushless Motor
Product Weight: 68g
Dimensions: 27.8*32mm
Output Shaft Diameter: 4.0mm
KV Value: 1250KV
Test Data:
11V 20.4A 10280 RPM, Thrust 1075g
10.5V 18.9A 9990 RPM, Thrust 995g
10V 17.8A 9620 RPM, Thrust 933g
9.5V 16.1A 9320 RPM, Thrust 855g

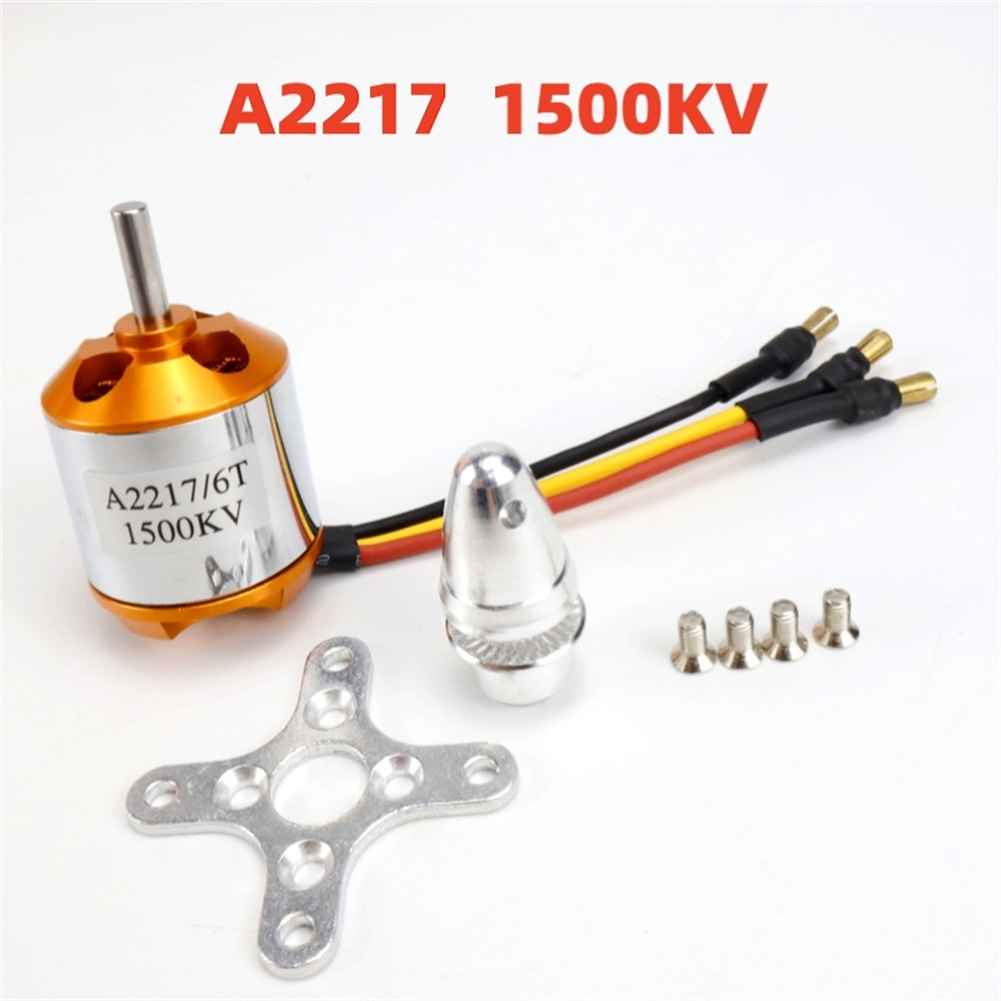

1500KV

Product Name: A2217KV1500 Brushless Motor
Product Weight: 68g
Dimensions: 27.8*32mm
Output Shaft Diameter: 4.0mm
KV Value: 1500KV
Test Data:
GWS8040HD:
11V 19.5A 13210 RPM, Thrust 963g
10.5V 17.9A 12730 RPM, Thrust 894g
10V 16.6A 12280 RPM, Thrust 816g
9.5V 15.2A 11820 RPM, Thrust 748g
GWS9050HD:
8V 18.6A 9030 RPM, Thrust 816g
7.5V 16.9A 8560 RPM, Thrust 739g
7V 15.1A 8080 RPM, Thrust 653g
6.5V 13.6A 7680 RPM, Thrust 578g

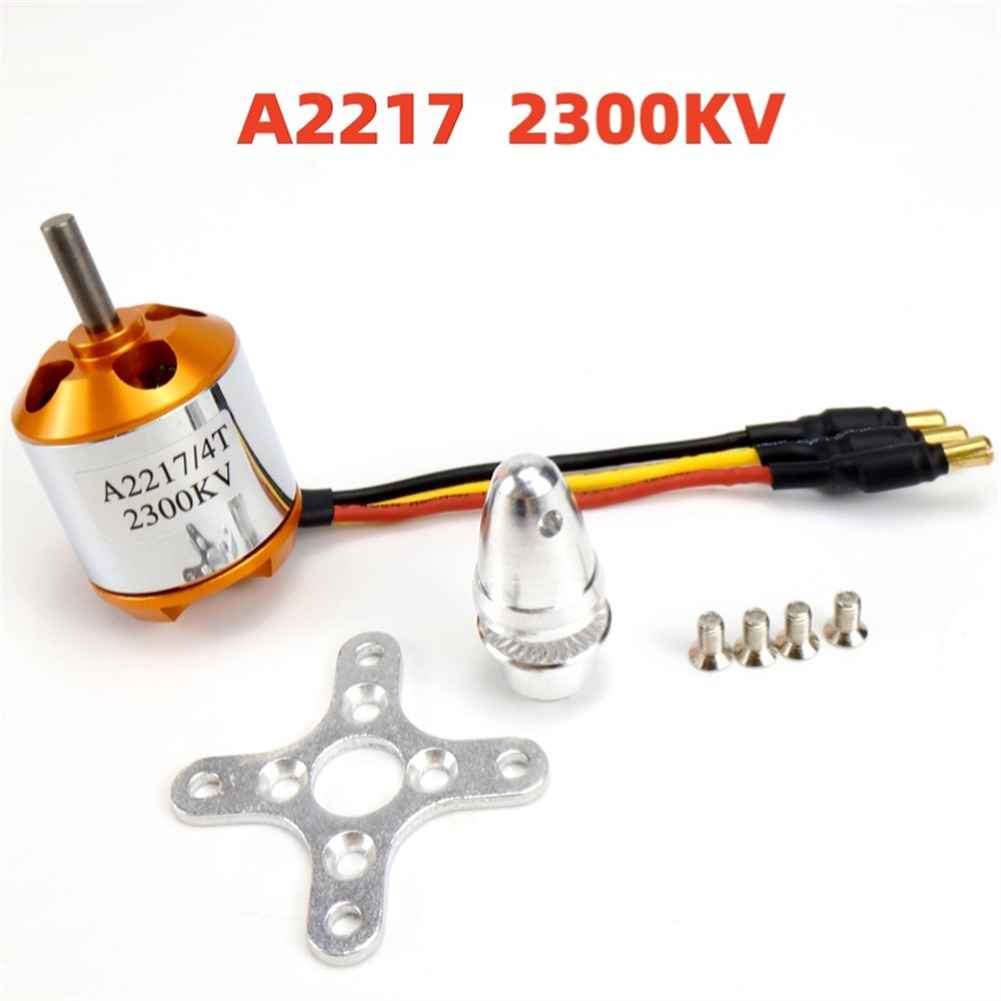

2300KV

Product Name: A2217KV2300 Brushless Motor
Product Weight: 68g
Dimensions: 27.8*32mm
Output Shaft Diameter: 4.0mm
KV Value: 2300KV
Maximum Efficiency: 78%
No-Load Current: 10V: 1.7A
Peak Current: 30A/60S
Optimal Efficiency Current: 8-28A (>70%)

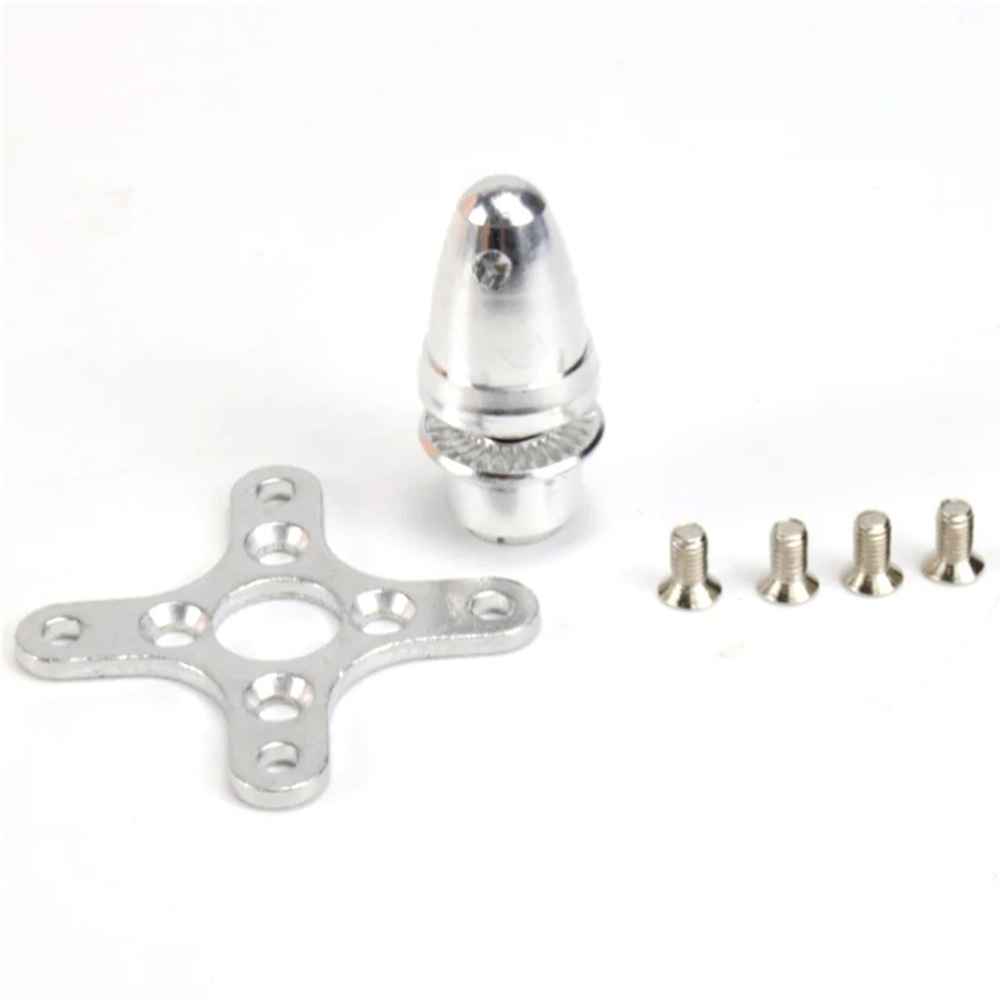

Package Included:
1 x A2217 Brushless Motor
1 x 4mm Collet
1 x 22 Series Metal Mount
4 x Screws
