XXD HW30A 30A Brushless ESC, 6-Pack for RC Airplane Quadcopter, Safe Power & Throttle Calibration

Description

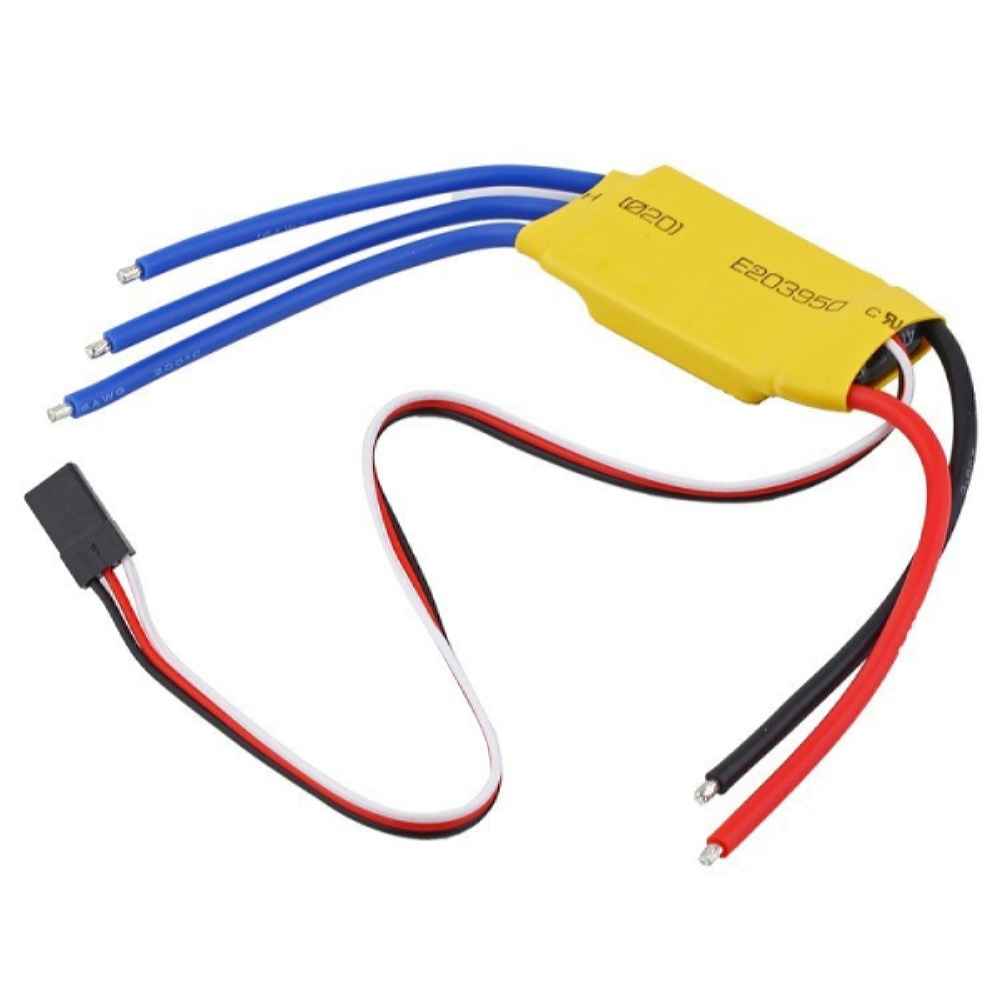

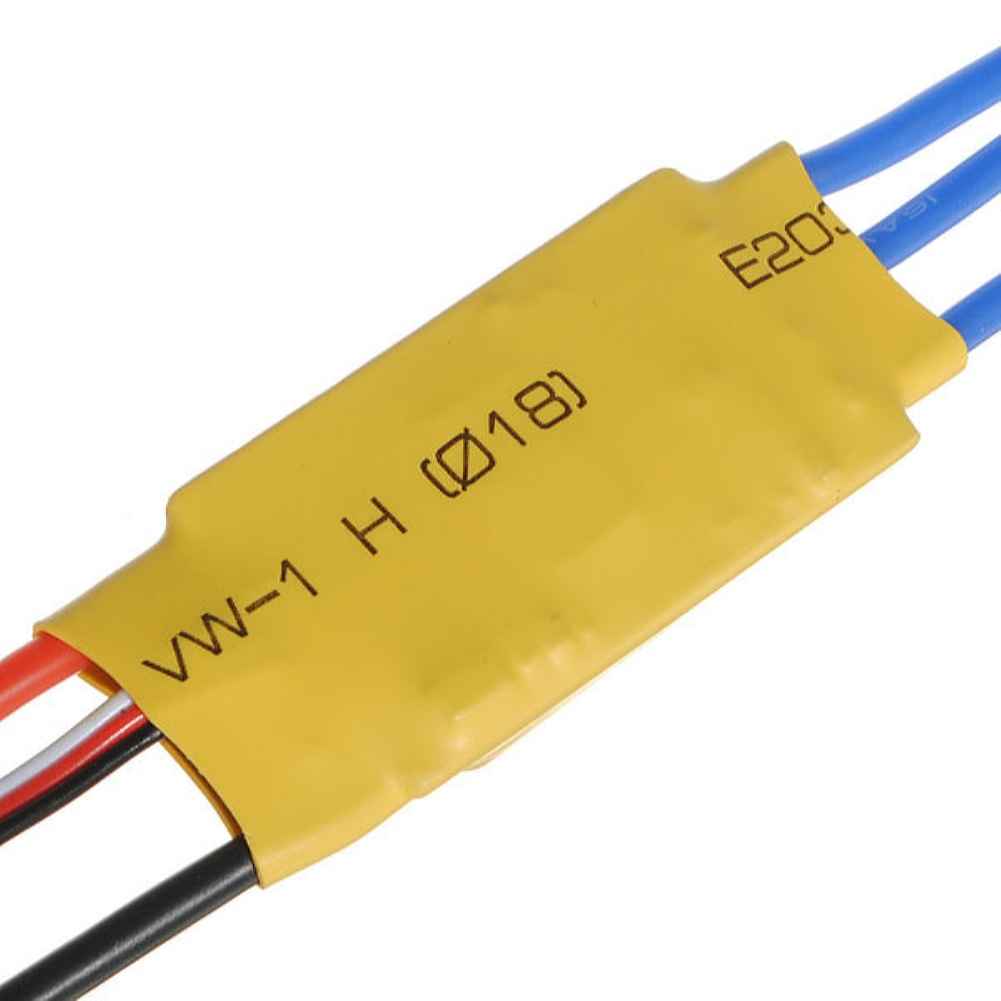

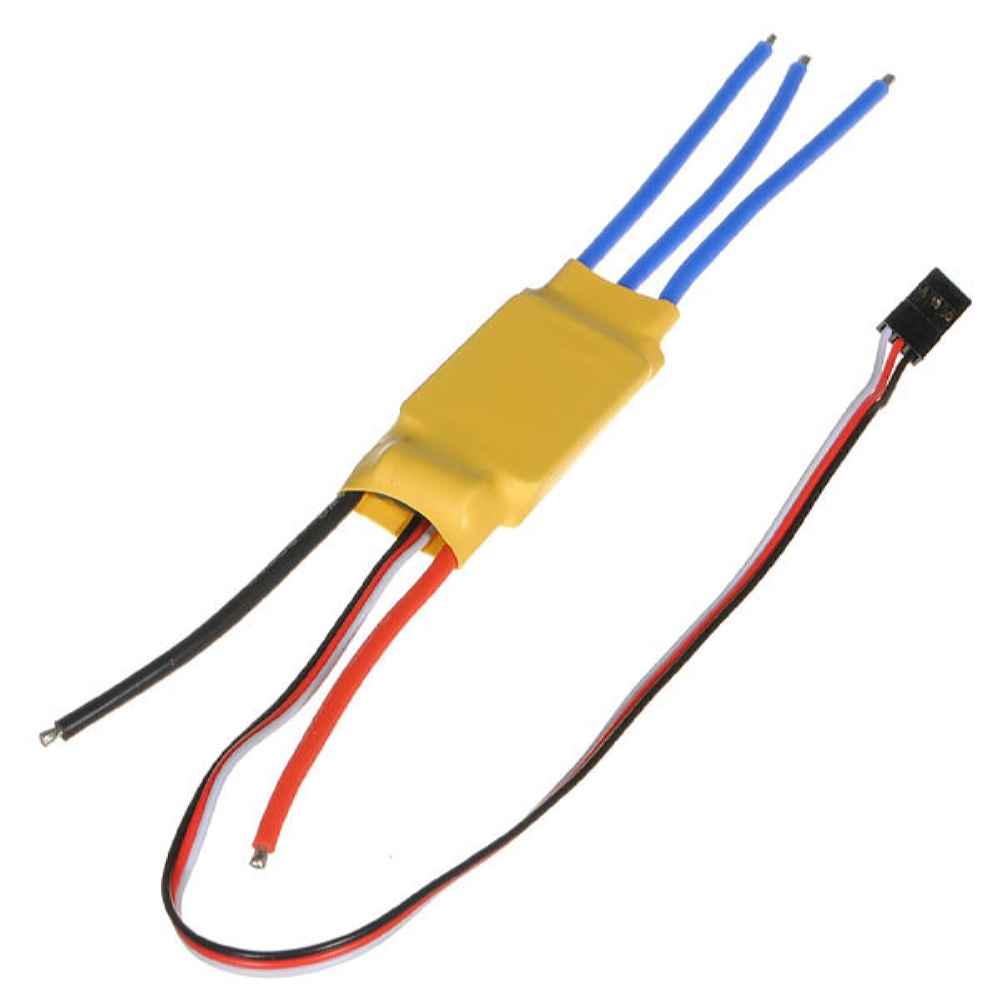

6PCS XXD HW30A 30A Brushless ESC For RC Airplane Quadcopter

The XXD HW30A 30A Brushless ESC is designed for RC airplane and quadcopter enthusiasts. With a power input range of 5.6V to 16.8V, this ESC supports 2-3 cell Li-Poly or 5-12 cell Ni-MH/Ni-Cd batteries. It features a constant current of 30A, with a maximum of 40A for less than 10 seconds, ensuring reliable performance. The ESC includes a safe power function, preventing the motor from starting immediately regardless of throttle position, and a throttle calibration function for improved response and linearity. It also incorporates a low voltage protection mode. Note that 4S LiPo batteries are not compatible with the BEC, and this ESC should not be used with high current or voltage aircraft to prevent damage.

Description:Brand Name: XXDItem Name: HW30A ESCPower input: 5.6V – 16.8V (2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery)BEC: 2AConstant current: 30A (Max 40A less than 10 seconds)Weight: 25gDimensions: 45 x 24 x 11mmQuantity: 6
Features:Safe power function:regardless of the throttle stick in any position the motor will not start immediatelyThrottle Calibration function:Adapt to different remote throttle travel difference, improve throttle response linearity, with a smooth, delicate feel and excellent speed linear speedLow Voltage Protection Mode ,Low-voltage protection threshold
Note:4S lipo not allows to use the BEC.Please don’t use this ESC on any airplane with big current or big voltage,otherwise it will burn the ESC.
Pakacge Included:6 x HW30A Brushless ESC

Package Included:
6 x HW30A Brushless ESC
