XXD HW30A 30A Brushless Motor ESC for Airplane Quadcopter, 4-Pack

SKU: RC961966Brand: XXD

Original price was: $32.00.Current price is: $24.16.

  • Supports 5.6V to 16.8V input for versatile use
  • Constant current of 30A, max 40A for short bursts
  • Safe power function prevents immediate motor start
  • Throttle calibration for smooth response
  • Compact design: 45 x 24 x 11mm, 25g weight

You May Also Like

Description

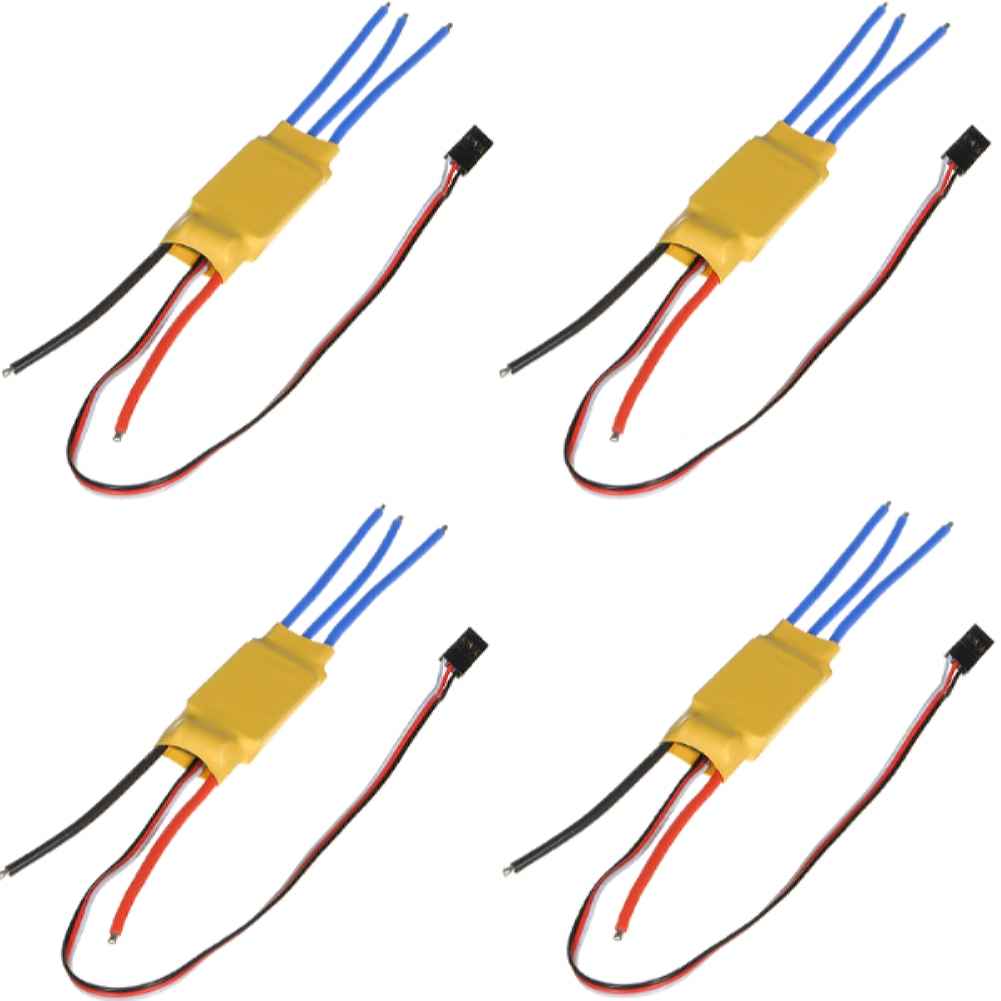

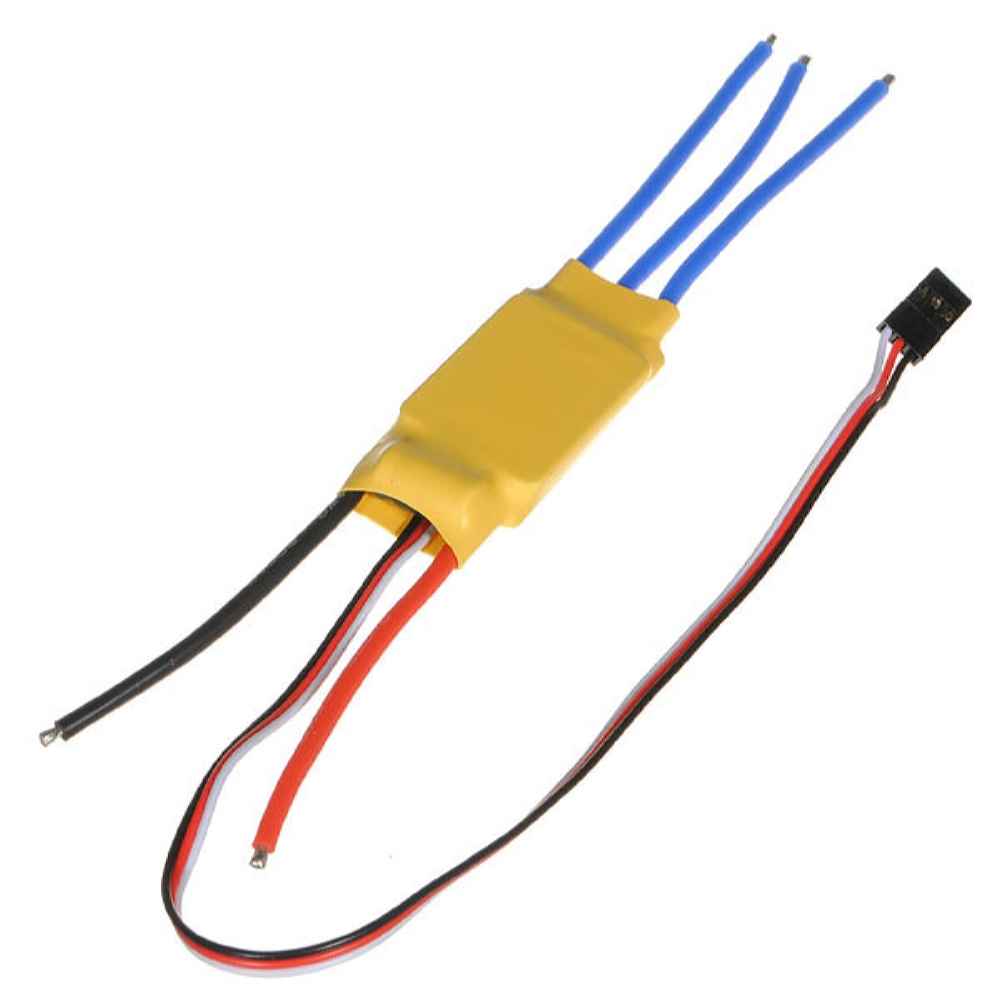

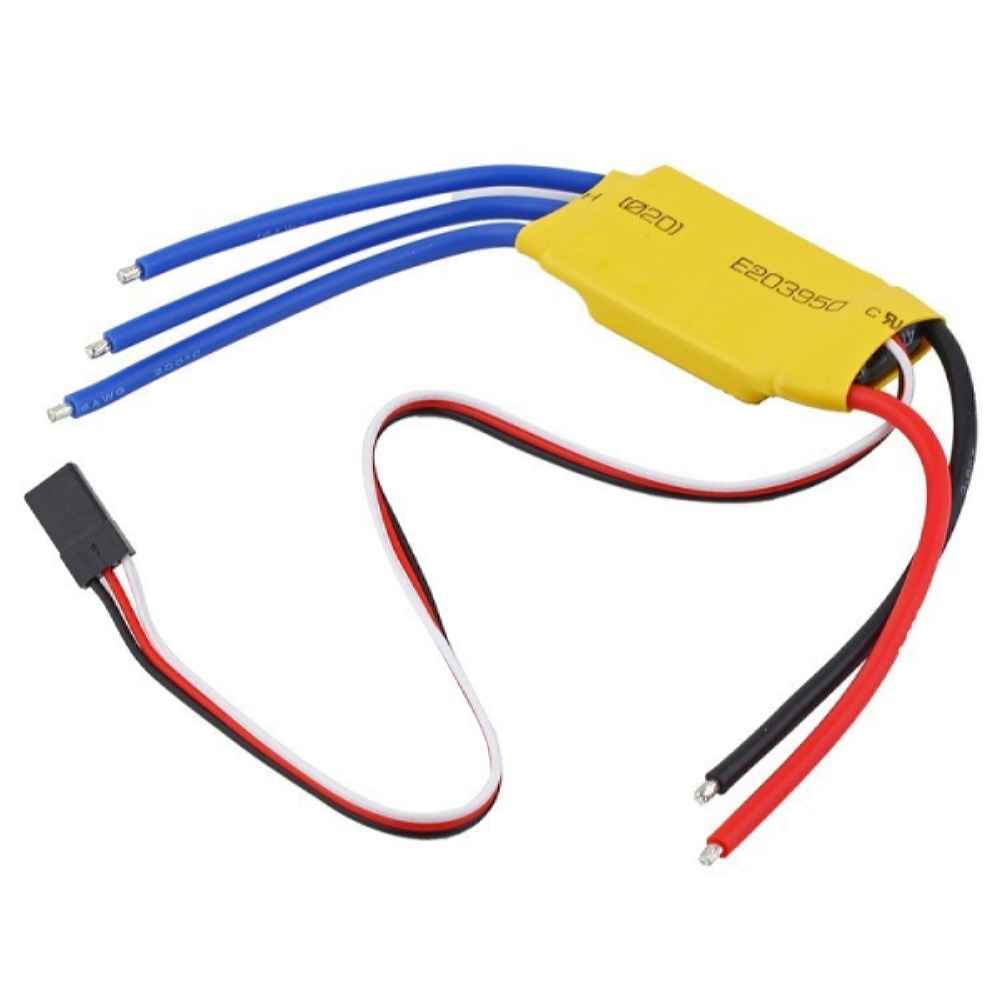

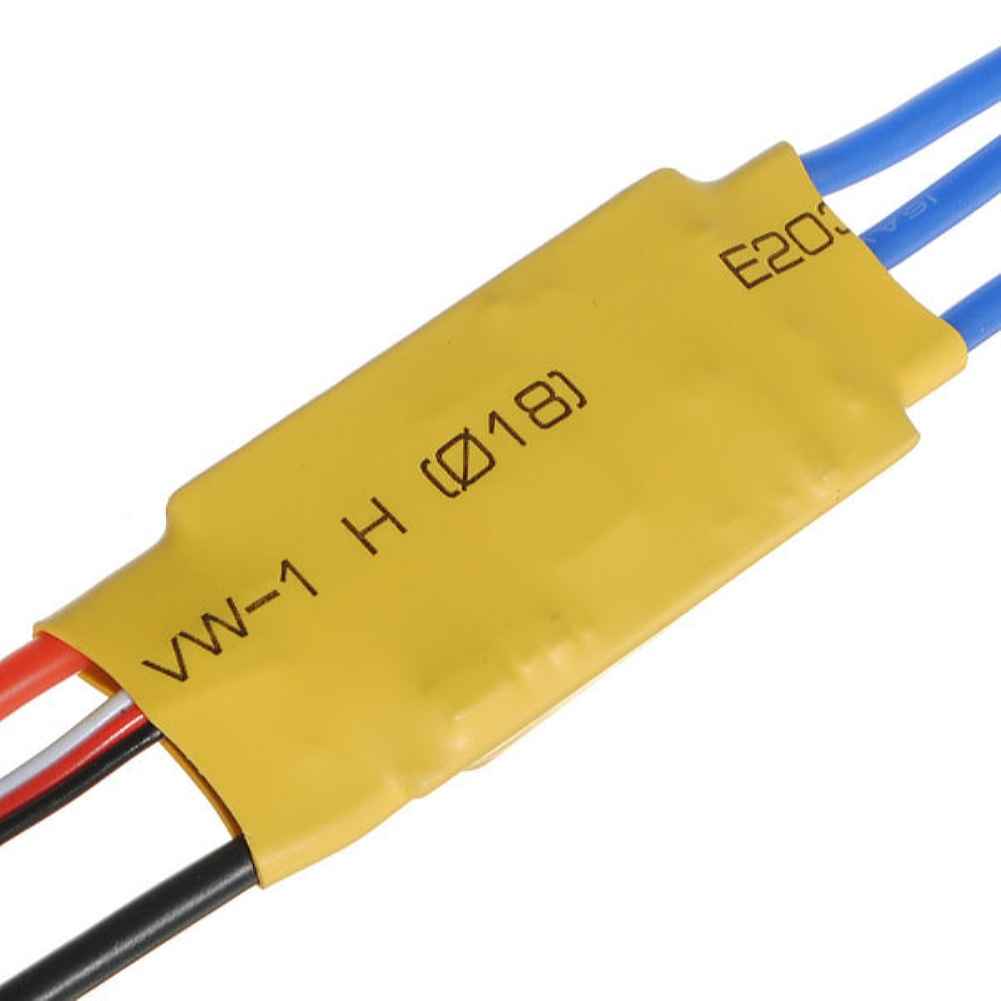

4X XXD HW30A 30A Brushless Motor ESC For Airplane Quadcopter

The XXD HW30A Brushless ESC is designed for use with airplanes and quadcopters, offering a reliable power input range of 5.6V to 16.8V. It supports 2-3 cell Li-Poly or 5-12 cell Ni-MH/Ni-Cd batteries. With a constant current of 30A and a maximum of 40A for less than 10 seconds, this ESC ensures efficient performance. Weighing just 25g and measuring 45 x 24 x 11mm, it is compact and lightweight. The ESC features a safe power function, preventing immediate motor start regardless of throttle stick position, and a throttle calibration function for improved throttle response linearity. Note: Do not use the BEC with 4S LiPo batteries, and avoid using this ESC on aircraft with high current or voltage to prevent damage.

Description:Brand Name: XXDItem Name: HW30A ESCPower input: 5.6V – 16.8V (2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery)BEC: 2AConstant current: 30A (Max 40A less than 10 seconds)Weight: 25gDimensions: 45 x 24 x 11mmQuantity: 4
Features:Safe power function:regardless of the throttle stick in any position the motor will not start immediatelyThrottle Calibration function:Adapt to different remote throttle travel difference, improve throttle response linearity, with a smooth, delicate feel and excellent speed linear speedLow Voltage Protection Mode ,Low-voltage protection threshold
Note:4S lipo not allows to use the BEC.Please don’t use this ESC on any airplane with big current or big voltage,otherwise it will burn the ESC.
Pakacge Included:4 x HW30A Brushless ESC
,,,

Package Included:
4 x HW30A Brushless ESC
