YIPINSERVO G25 25kg Waterproof Coreless Servo, 7.4V High Speed, Steel Gears, Low Profile for RC Cars, Robots

Description

YIPINSERVO G25 25kg 7.4V High Speed Voltage Steel Gears Waterproof Coreless Low Profile Servo for 1/8 1/10 RC Car Drift Arduinos Robot Industry

The YIPINSERVO G25 is a robust and high-speed coreless servo designed for 1/8 and 1/10 RC cars, drift vehicles, and industrial robots. It features a powerful coreless motor with a rotation angle of 180 degrees, customizable up to 270 degrees, and operates at a frequency of 1520μs / 330Hz. The servo offers impressive speed variations with 0.08sec/60° at 6V, 0.07sec/60° at 7.4V, and 0.06sec/60° at 8.4V, while providing stalled rotor torque ranging from 22kg.cm to 27kg.cm. Built with a CNC aviation aluminum alloy shell and all-steel gears, it ensures durability and precision. The high-performance potentiometer enhances control, and its waterproof design makes it suitable for various challenging environments.

Specifications:
Number of teeth: 25T
Rotation angle: 180～ or customized within 270 degrees
Dead zone: 2ç±³s
Operating frequency: 1520ç±³s / 330hz
Motor: High performance coreless motor
Speed (6V): 0.08sec/60～
Speed (7.4V): 0.07sec/60～
Speed(8.4V): 0.06 sec/60～
﹞ Stalled rotor torque (6V): 22kg.cm
﹞ Stalled rotor torque (7.4V): 25kg.cm
﹞ Stalled rotor torque (8.4V):27kg.cm
Size:41X20X28.5mm/1.614X0.79X1.22in
Weight: 68g
Connecting cable: JR 300 mm
Bearing: Imported 2BB
﹞ CNC aviation aluminum alloy shell

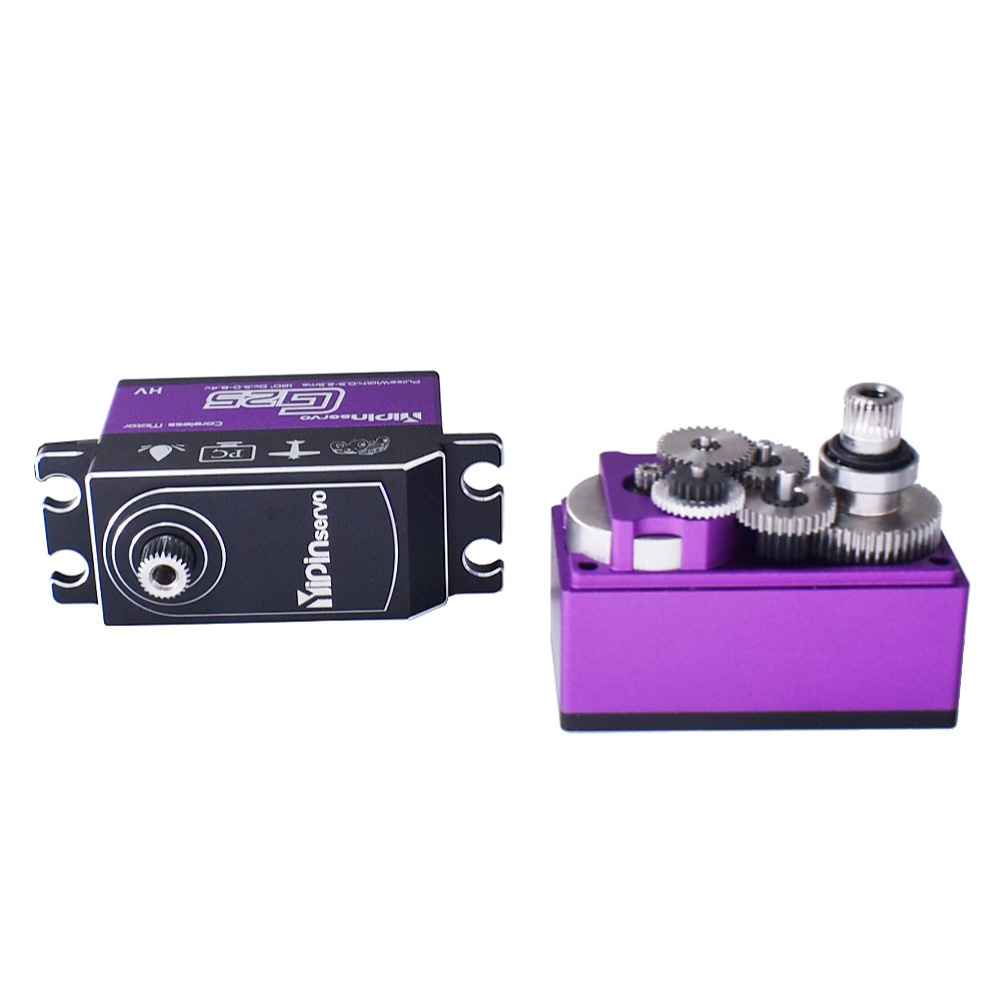

﹞ Gear: all steel teeth
﹞Potentiometer: high performance potentiometer
Features:
Functional: The servo features anti-block and burn-out protection.
High Quality: Imported 7*11*3 and 6*10*3 bearings increase longevity and accuracy.
Durable: It comes with a CNC aviation aluminum alloy shell and full steel gears, resist wear and tear, and prevent teeth shredding.
Advanced Potentiometer: Includes a high-performance potentiometer for precise control.
Waterproof: It offers excellent waterproofing to withstand harsh conditions.

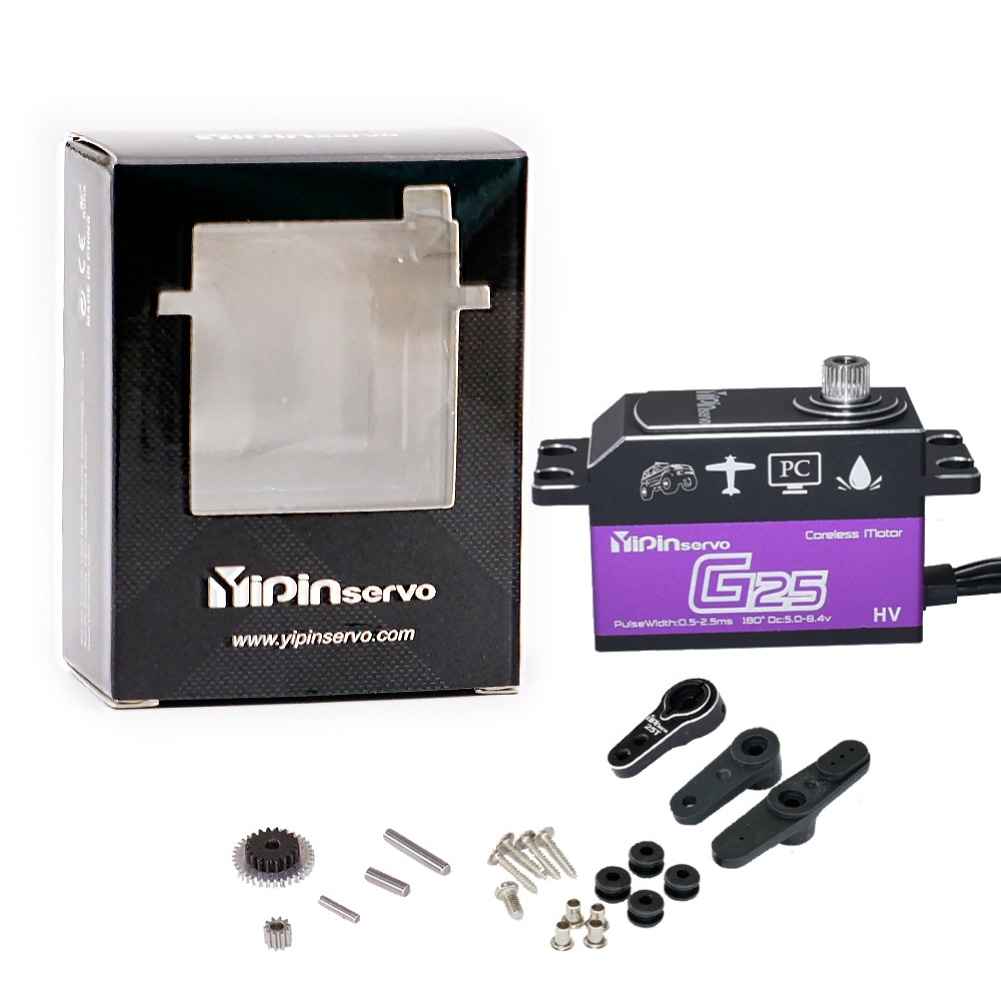

Package Included:
1 x YIPINSERVO G25 Coreless Servo

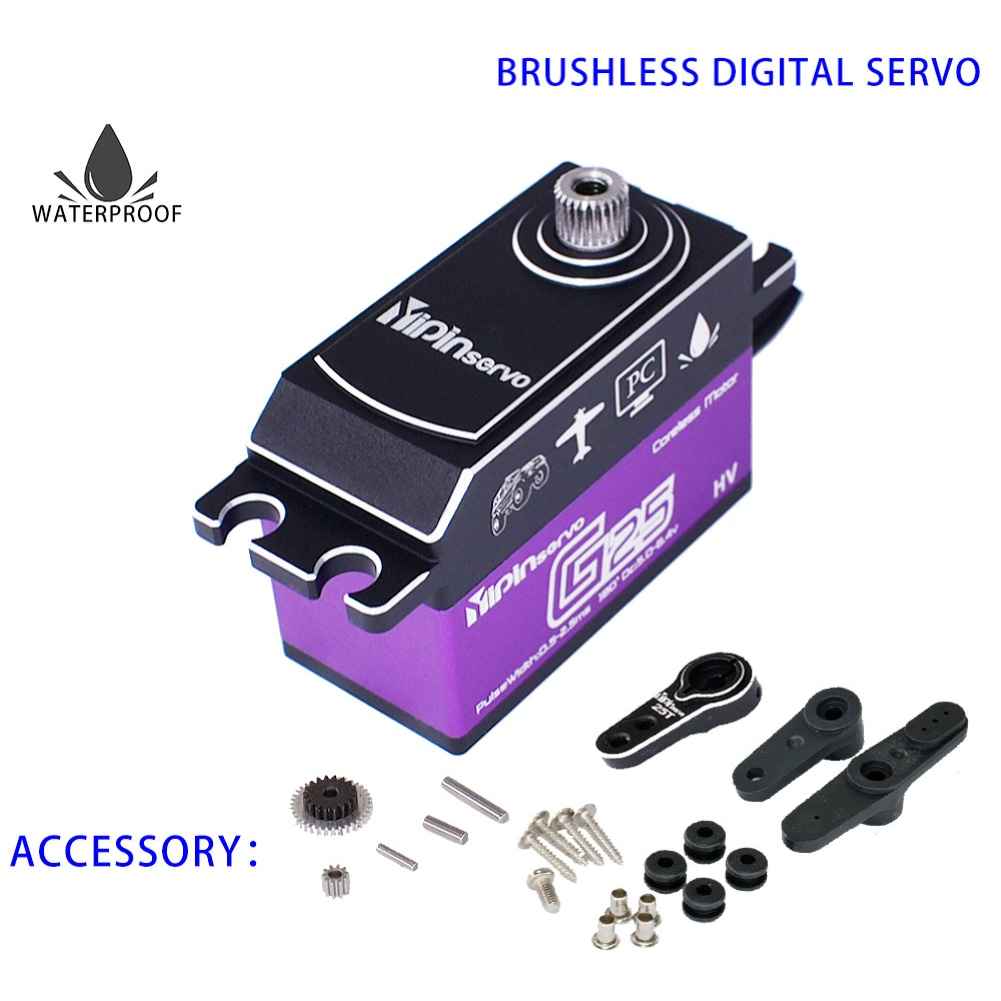

1 x Set of Servo Accessories (includes spare gears and shaft pin)
1 x 25T Metal Servo Arm
