Description

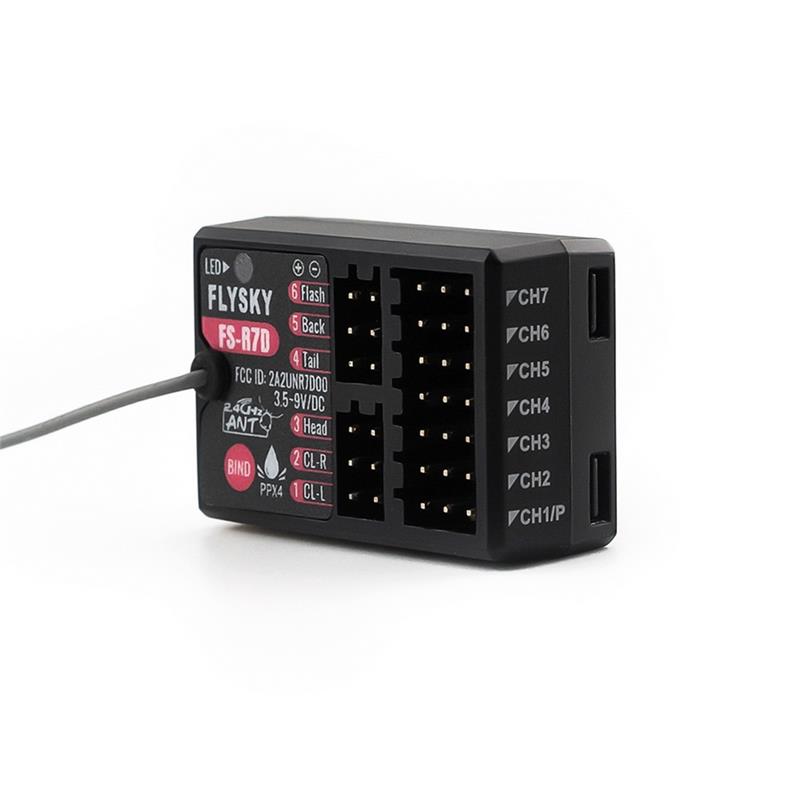

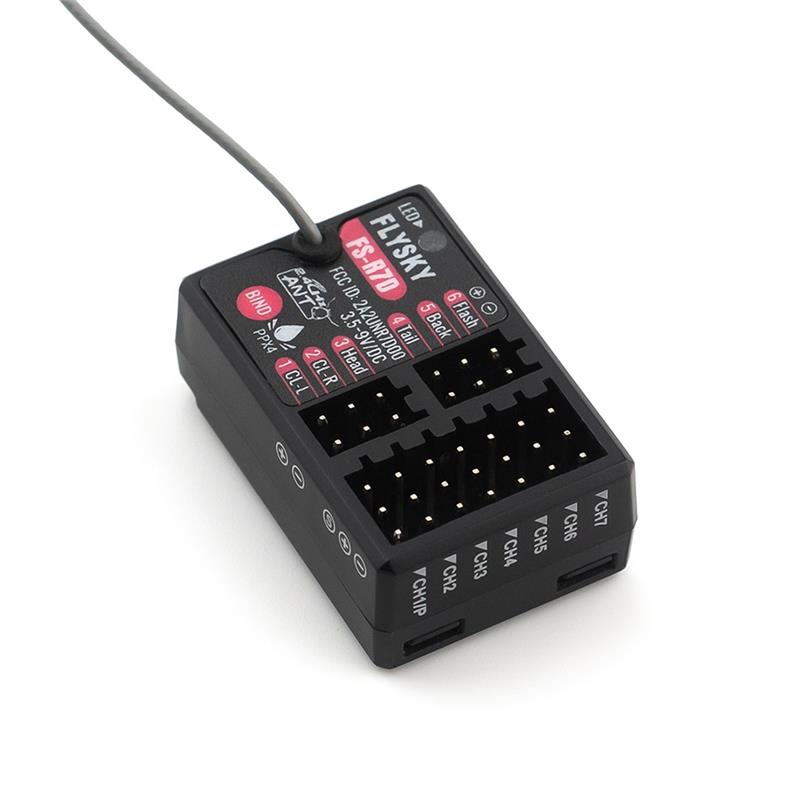

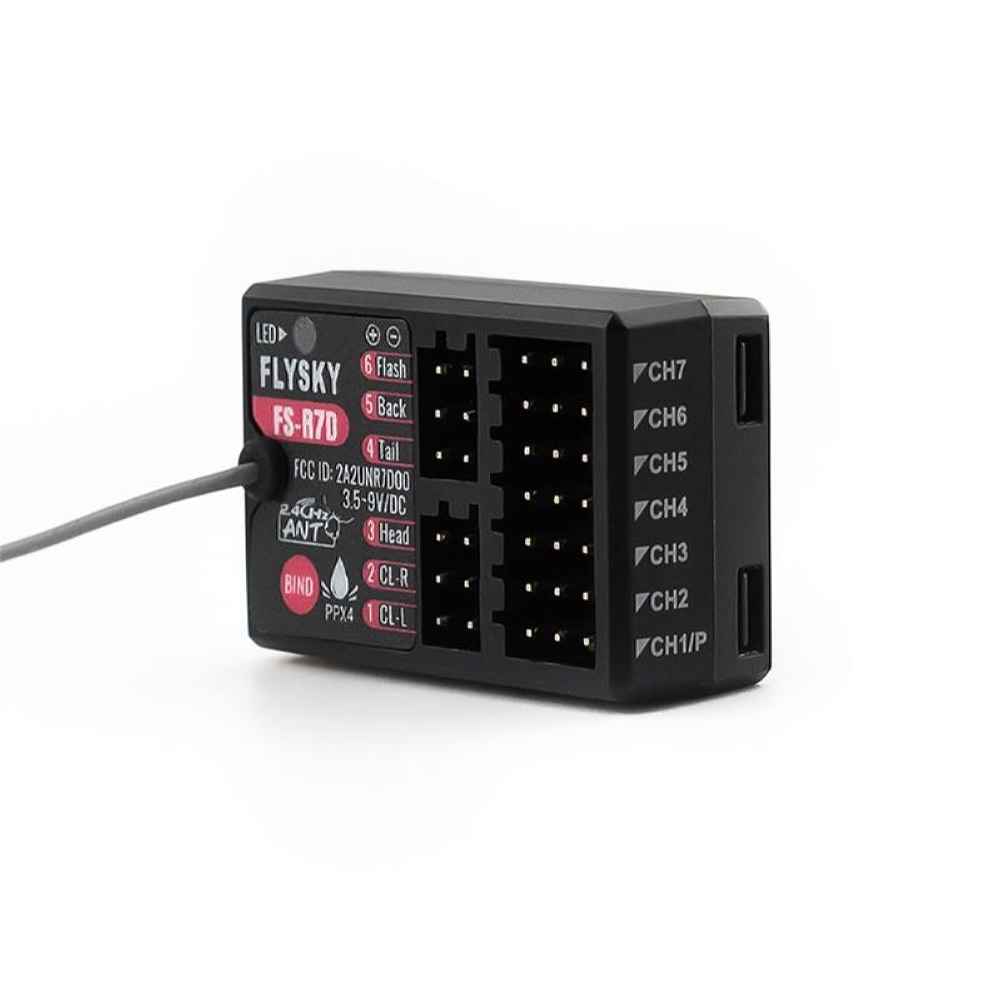

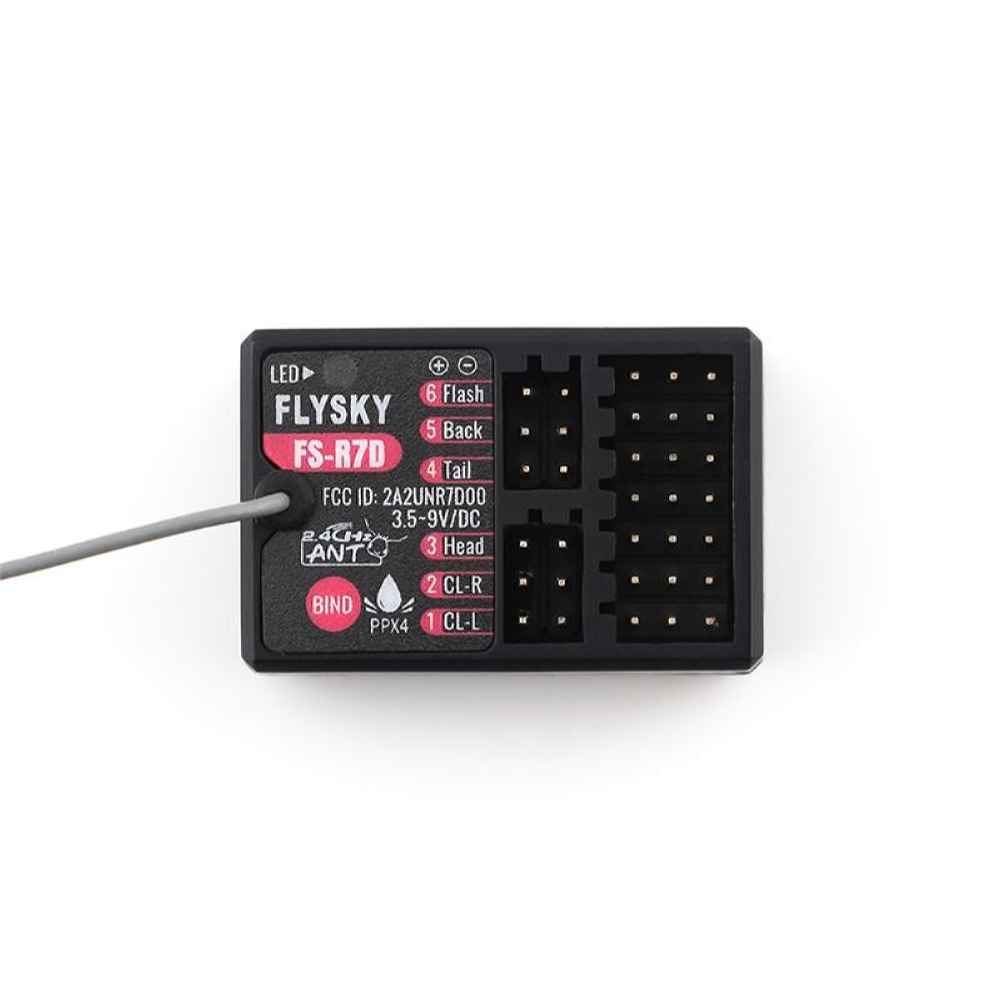

Flysky FS-R7D 2.4GHz 7CH ANT Protocol PWM/PPM Output Light Group Receiver for FS-G7P Transmitter
The Flysky FS-R7D is a 2.4GHz 7-channel receiver designed for use with the FS-G7P transmitter. Utilizing the ANT protocol, it offers reliable PWM and PPM output, along with light control signals. This receiver features a compact design and a single external antenna, ensuring a strong connection with a range of over 300 meters in optimal conditions. It is compatible with a variety of vehicle models, making it a versatile choice for RC enthusiasts. With a working current of less than 90mA at 5V and a wide input power range of 3.5 to 9V DC, the FS-R7D is both efficient and powerful. Certified by CE and FCC, this receiver is built to meet high standards of quality and performance.
Flysky FS-R7D 2.4GHz 7CH ANT Protocol PWM/PPM Output Light Group Receiver for FS-G7P Transmitter
FS-R7D is a light group receiver in compliance with the ANT protocol, providing 7 channels. It is equipped with a single antenna externally, supporting the 2-way transfer-back function. It can output PWM signals and light control signals, featuring the compact design. FS-R7D can be adapted to a variety of vehicle models.
Specification:
Brand: Flysky
Product Model: FS-R7D
Compatible Transmitters: FS-G7P(Surface transmitters with ANT protocol)
Model Type: Cars
PWM Channels: 7
Numbers of Light Interface: 6
RF: 2.4GHz ISM
2.4G Protocol: ANT
Antenna: Single external antenna(Coaxial)
Input Power: 3.5 鈥?9V /DC
Working Current: < 90mA (5V)
Data Output: PWM/PPM
Maximum Power: < 20dBm (e.i.r.p.) (EU)
Distance: >300m(Ground distance without interfence)
Online Update: Yes
Water Proof: PPX4
Color: Black
Temperature Range: -10鈯?~ +60鈯?br/>Humidity Range: 20%~95%
Dimensions: 35*23.3*13.3mm
Weight: 8g

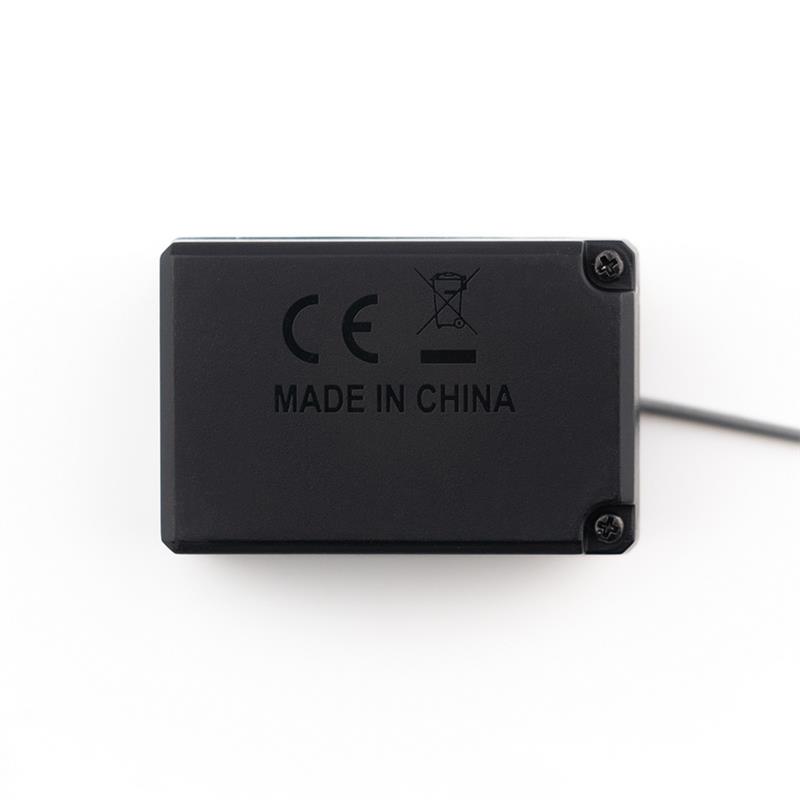

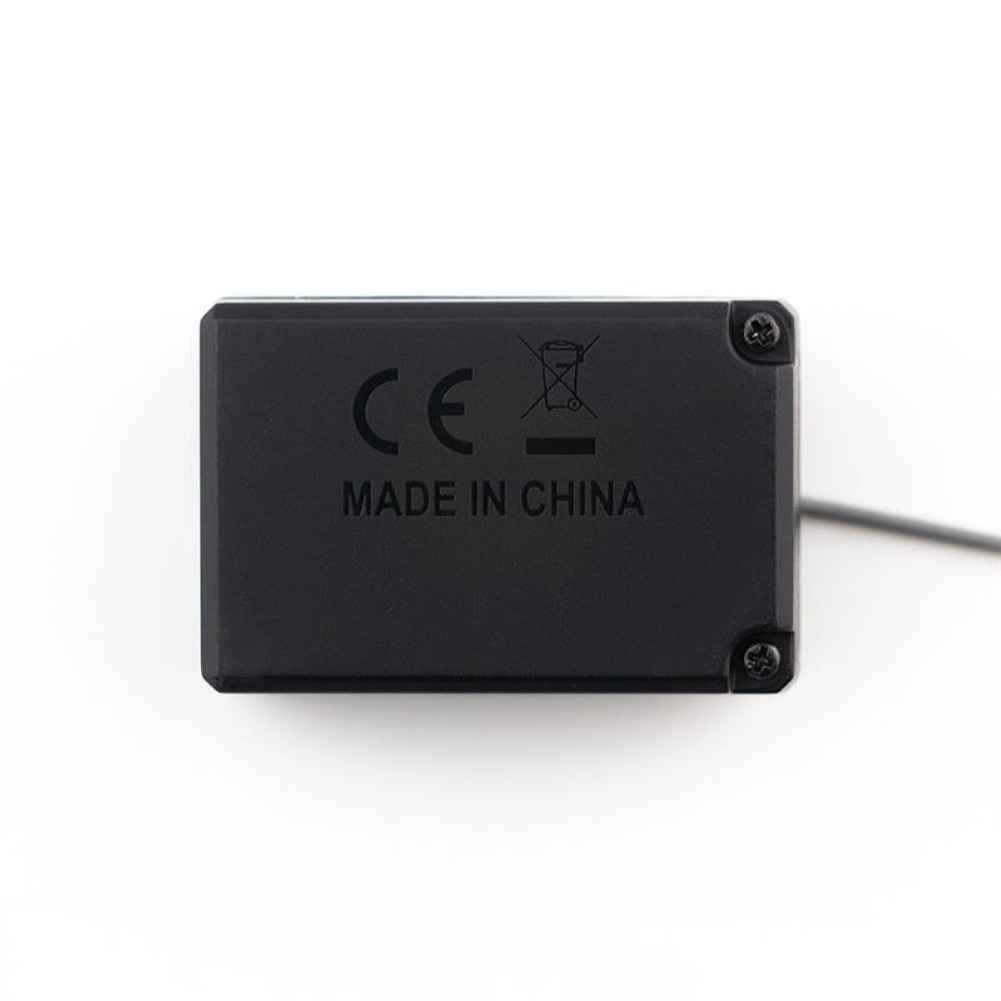

Certifications: CE, FCC ID銊?A2UNR7D00

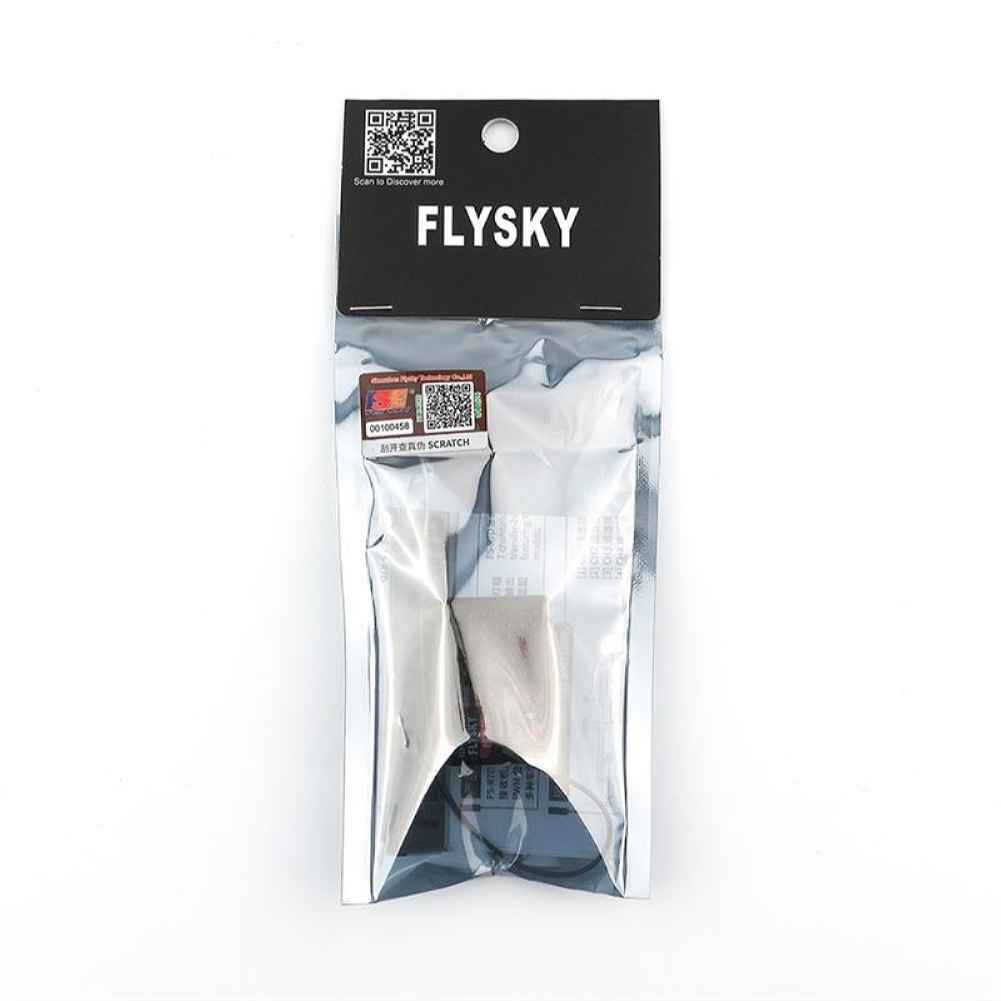

Pacakge Included:

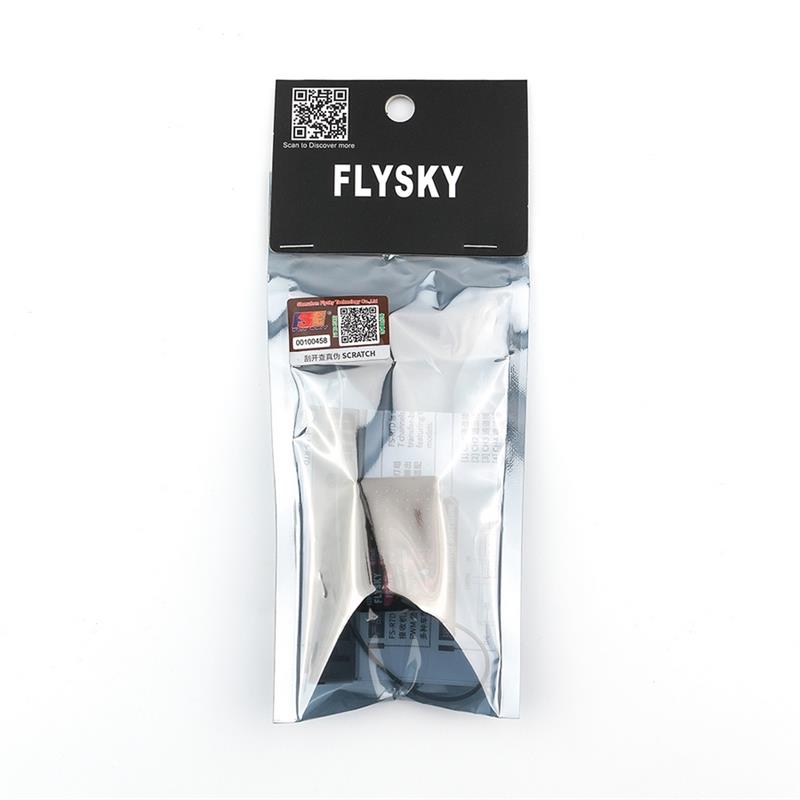

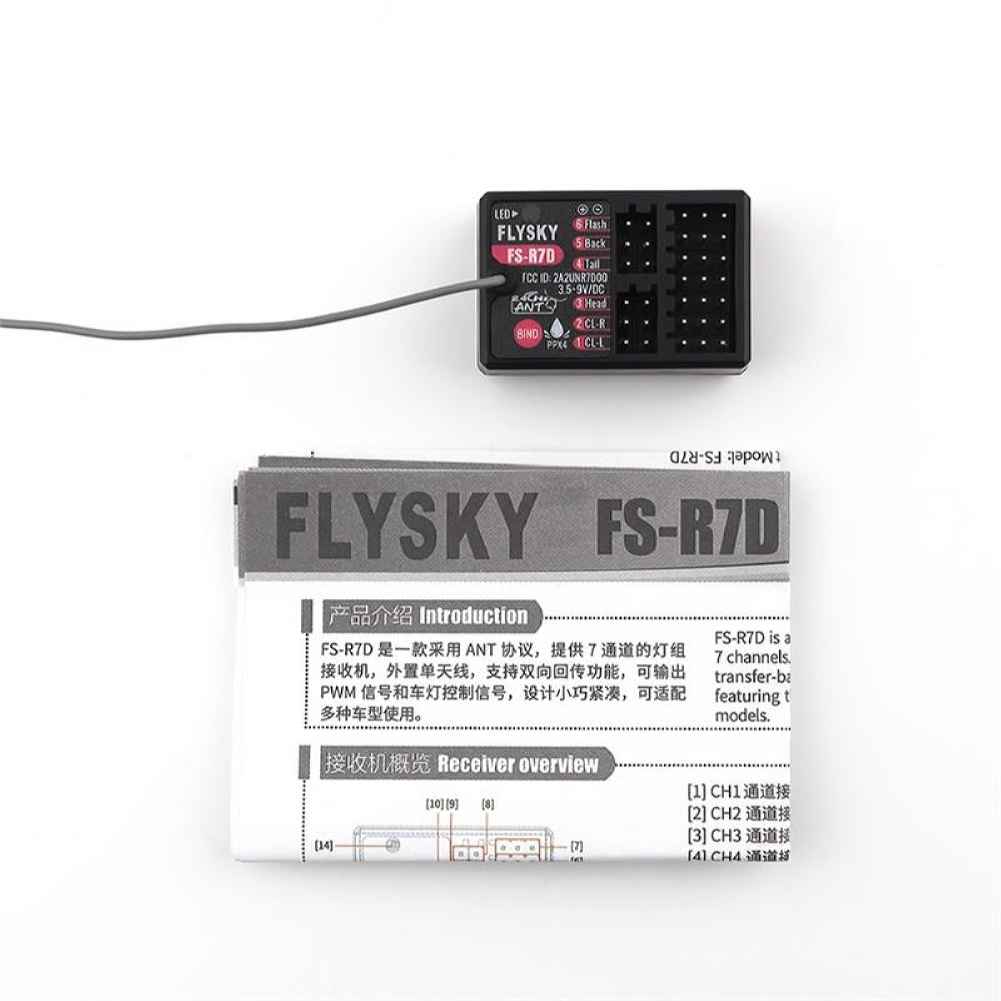

1x Flysky FS-R7D Receiver
Package Included:
1 x Flysky FS-R7D Receiver
