RadioMaster Ranger 2.4GHz ELRS RF Module Starter Combo with OLED Display for Futaba RC Transmitter

Description

Radiomaster Ranger 2.4GHZ ExpressLRS ELRS RF Module Starter Combo OLED Display for Futaba RC Transmitter FPV RC Racing Drone

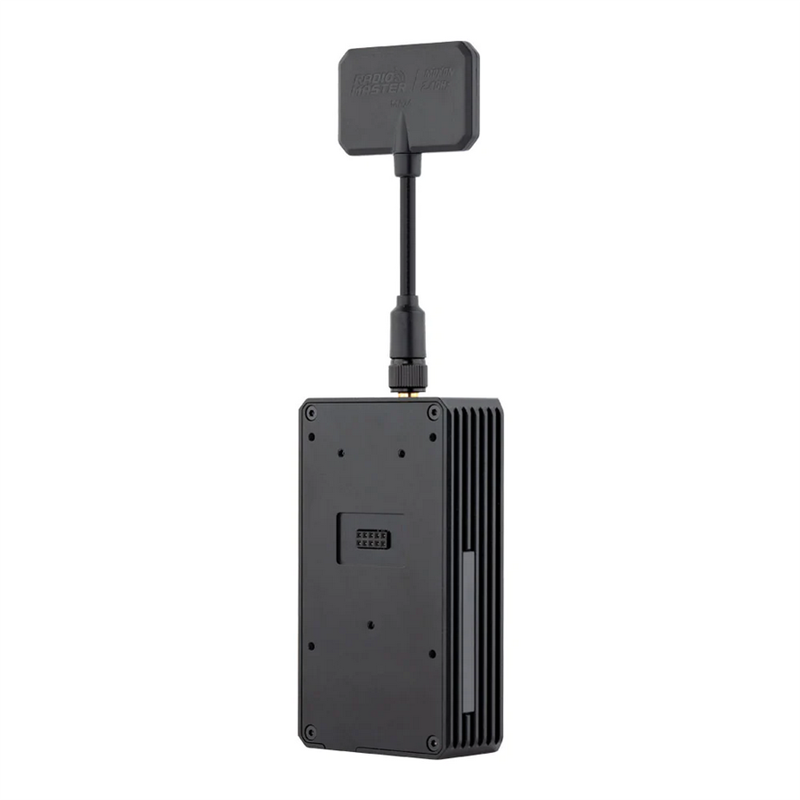

The RadioMaster Ranger 2.4GHz ExpressLRS ELRS RF Module is designed for FPV RC Racing Drones, offering superior performance and versatility. Housed in a rugged CNC machined aluminum case, it doubles as a heat sink for the high-efficiency cooling system. The module features an OLED display, a directional menu key, and two customizable shortcut keys, allowing for easy on-the-fly adjustments. It includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range applications. With micro and nano module adapters, it is compatible with most radios, and a CRSF cable is included for Futaba radios. The Ranger supports WiFi and Bluetooth, features a 3-axis accelerometer, and offers adjustable RF output power.

Radiomaster Ranger 2.4GHZ ExpressLRS ELRS RF Module Starter Combo OLED Display for Futaba RC Transmitter FPV RC Racing Drone
The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.

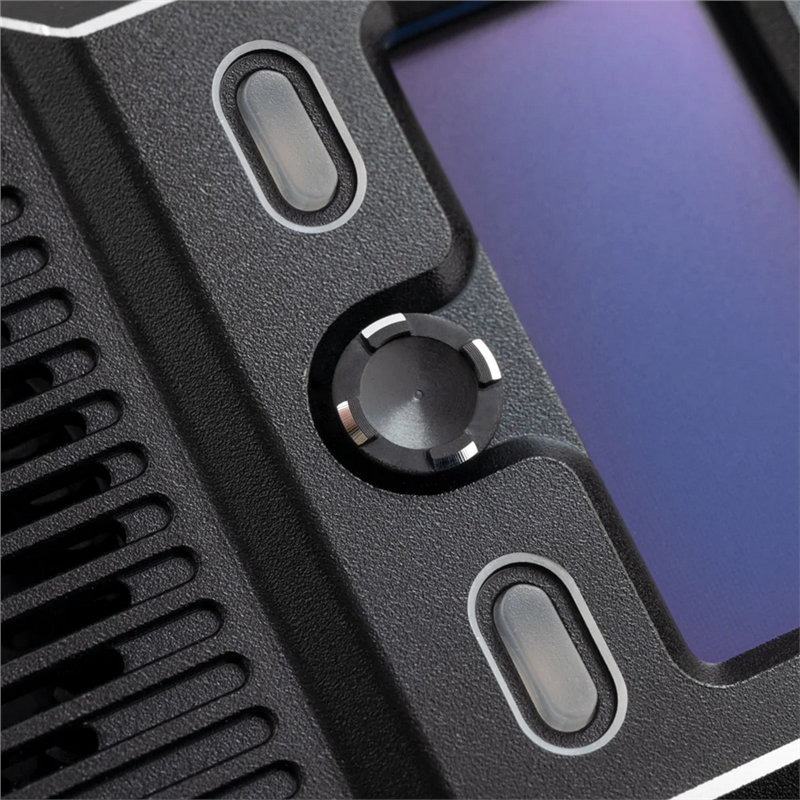

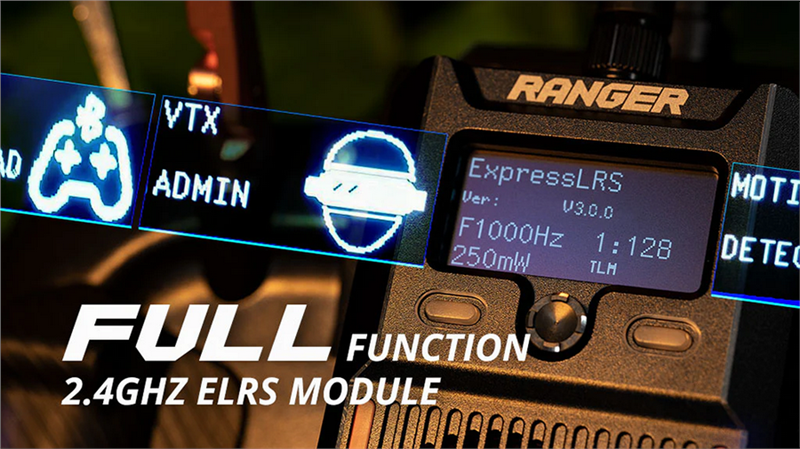

Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.

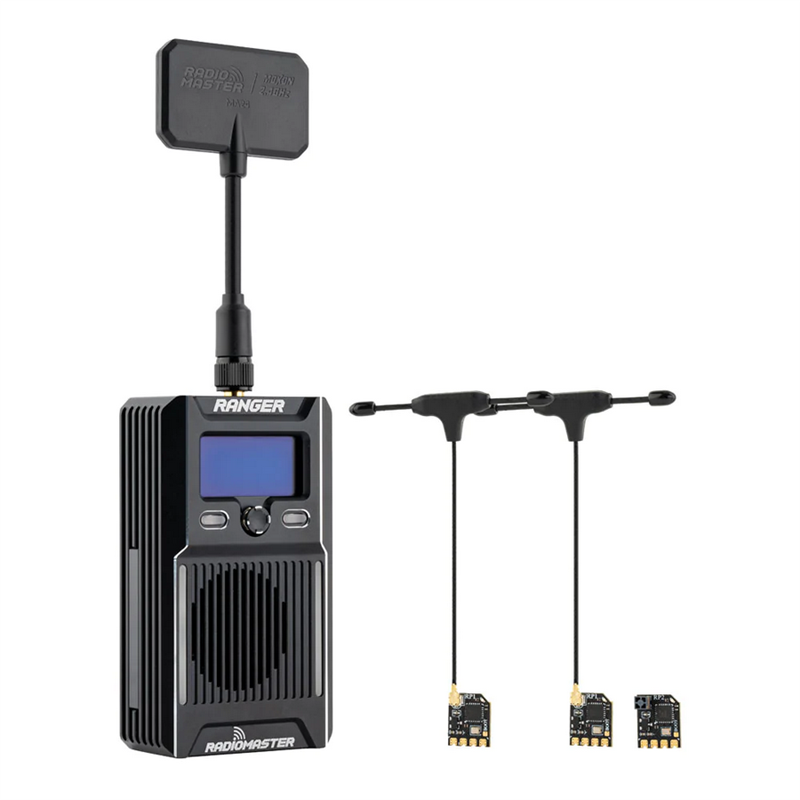

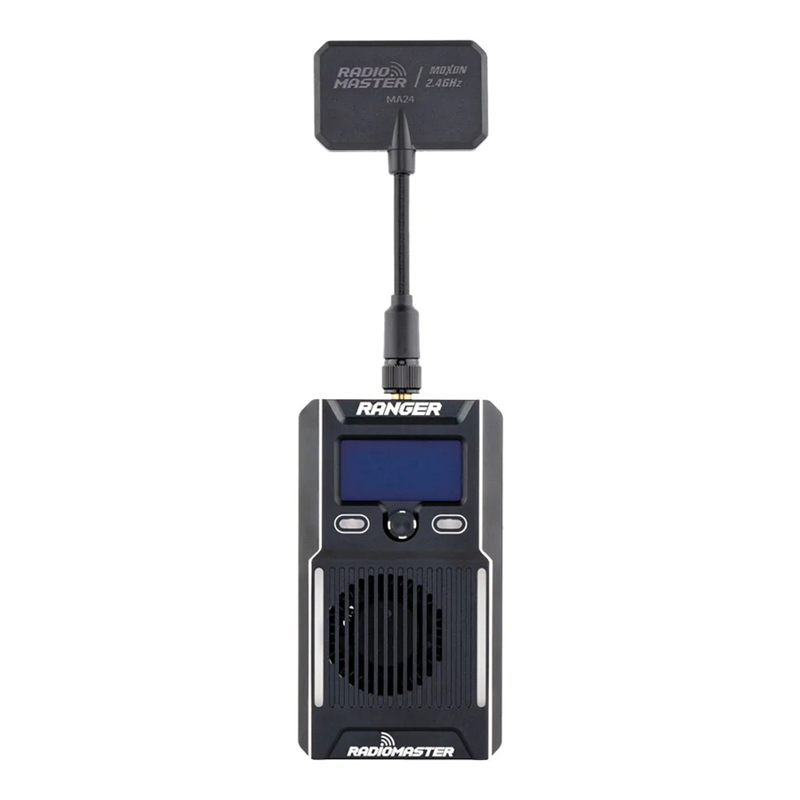

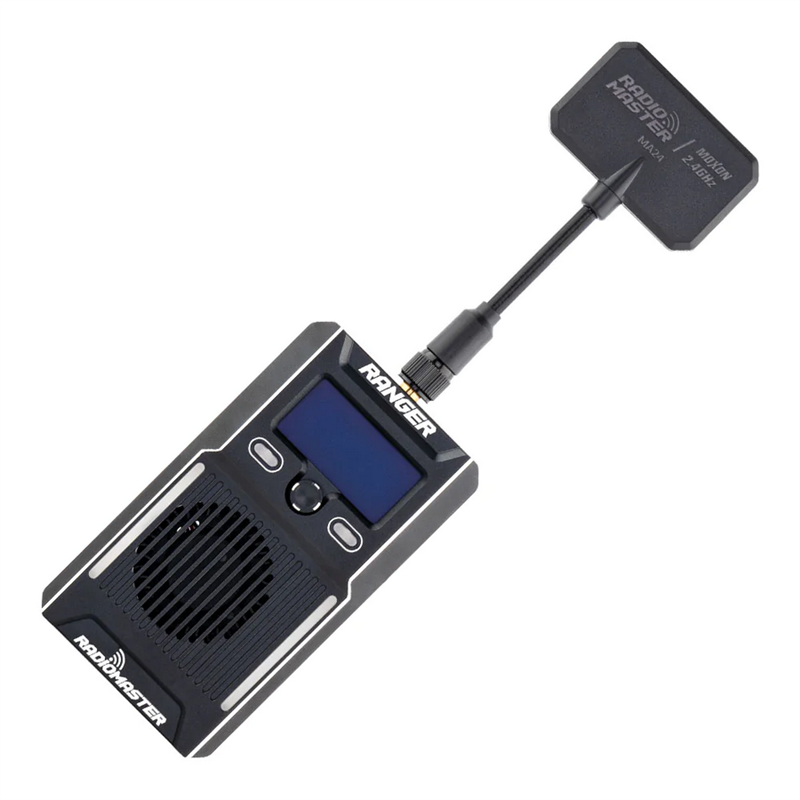

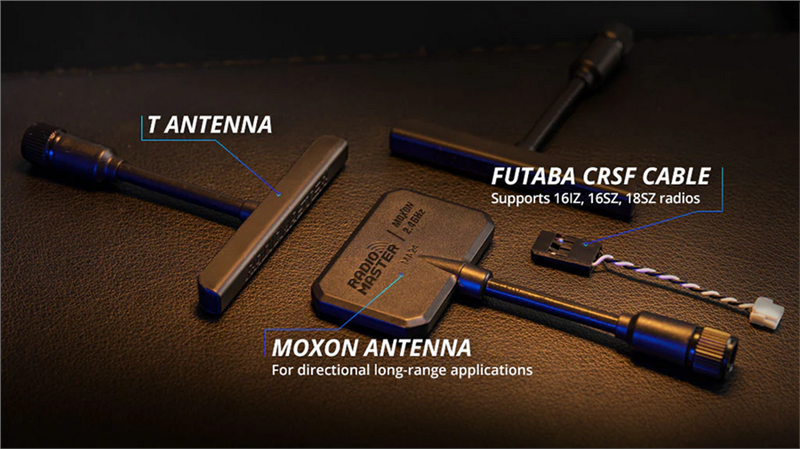

The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.
Specification:
Brand: RadioMaster
Item: Ranger 2.4GHz ELRS Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz – 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen: 64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip

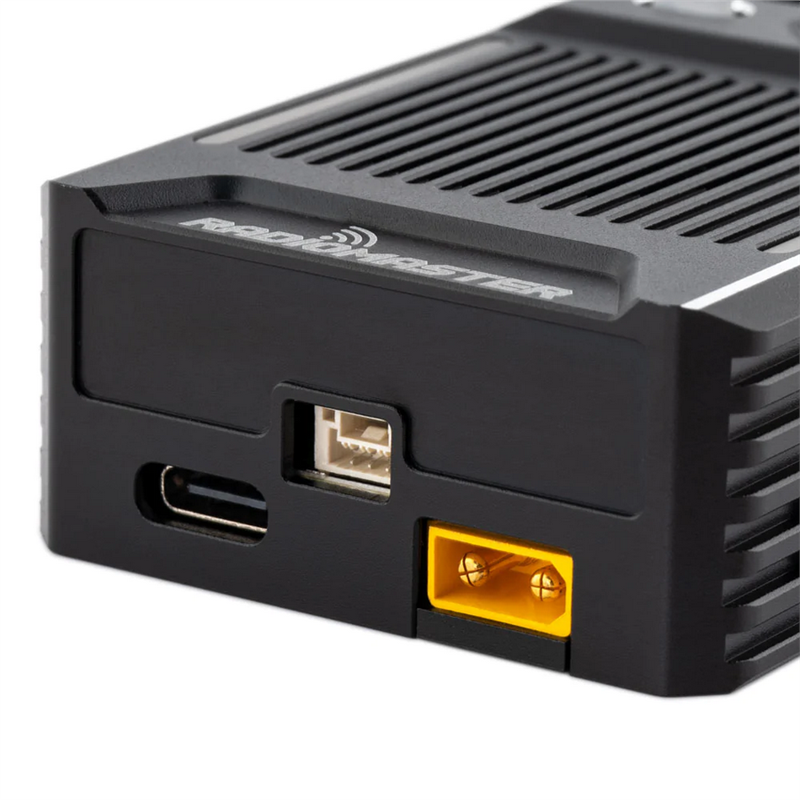

XT30 Power supply voltage: DC 6V – 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)

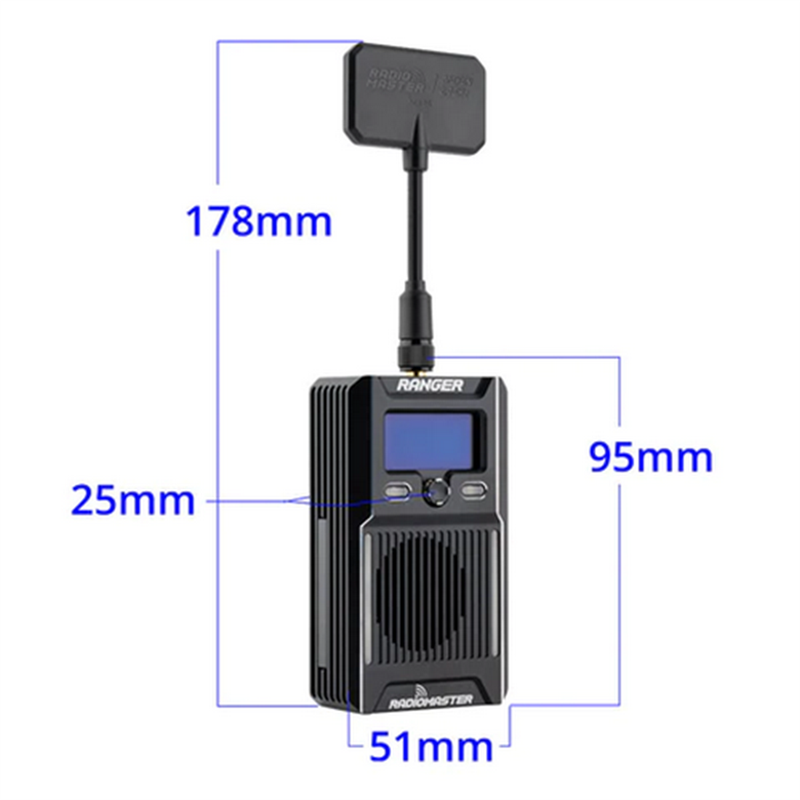

Dimension: 95*51*25mm (without antenna)
Features:

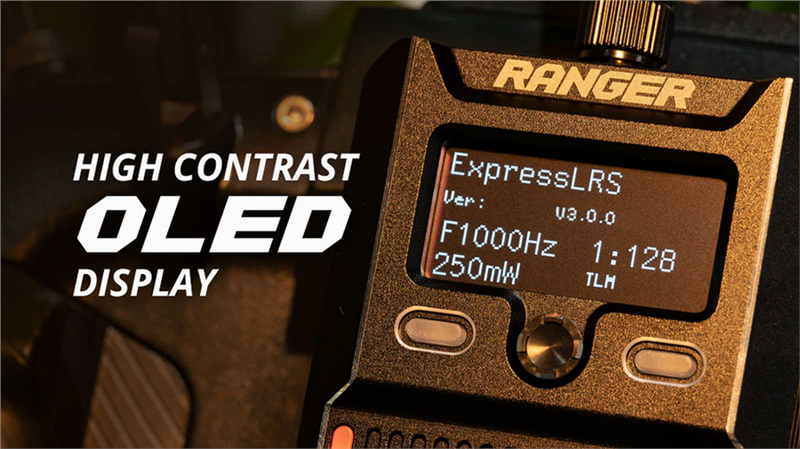

* OLED Display.
* Rugged CNC Case.
* Built-in Accelerometer.
* Packet rates up to F-1000Hz.
* Up to 1 Watt Power output.
* Wifi and Bluetooth support.

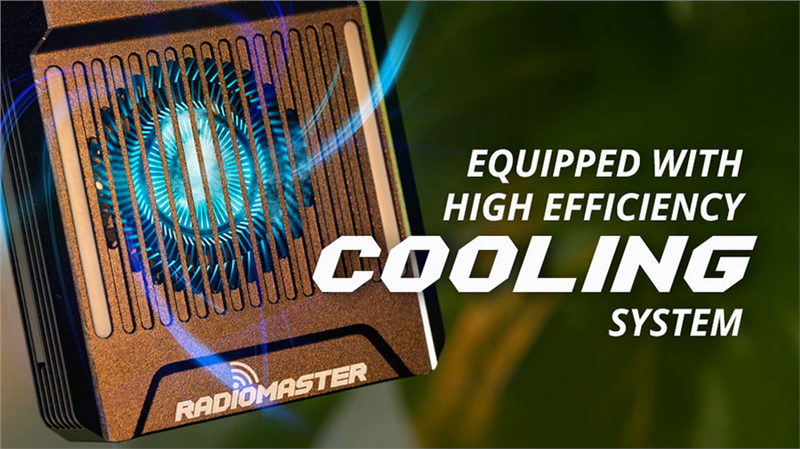

* High-efficiency cooling system.

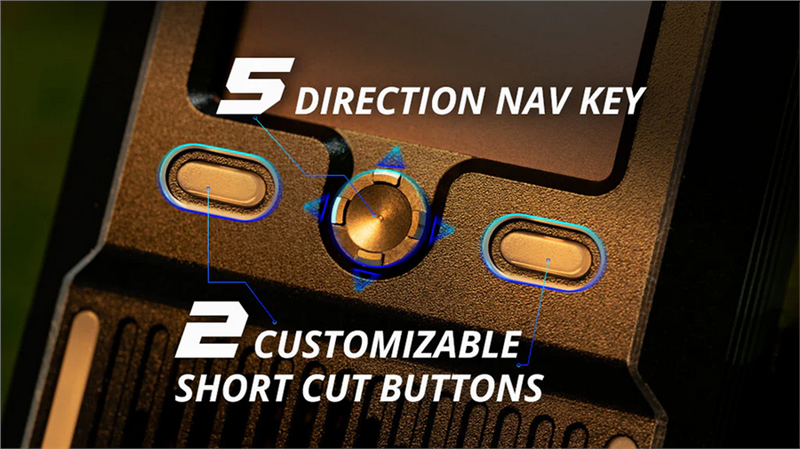

* 5 Direction Nav key and customizable shortcut buttons.
* Micro and Nano adapters included.
* Moxon and T-antenna included.
* CRSF cable for compatible Futaba radios included.
Size:

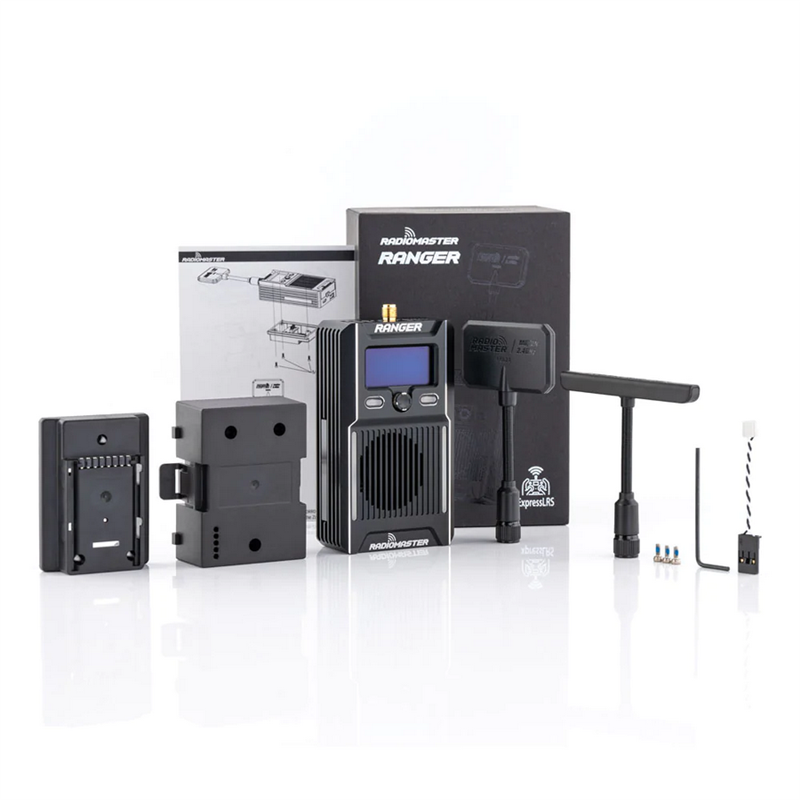

Package Included:
1 x RANGER Module
1 x Futaba CRSF socket cable
1 x JR Adapter
1 x Nano Adapter
1 x T Antenna
1 x Moxon Antenna
1 x Hexagon socket screwdriver
3 x M2 5 Screws
1 x Assembly Manual
