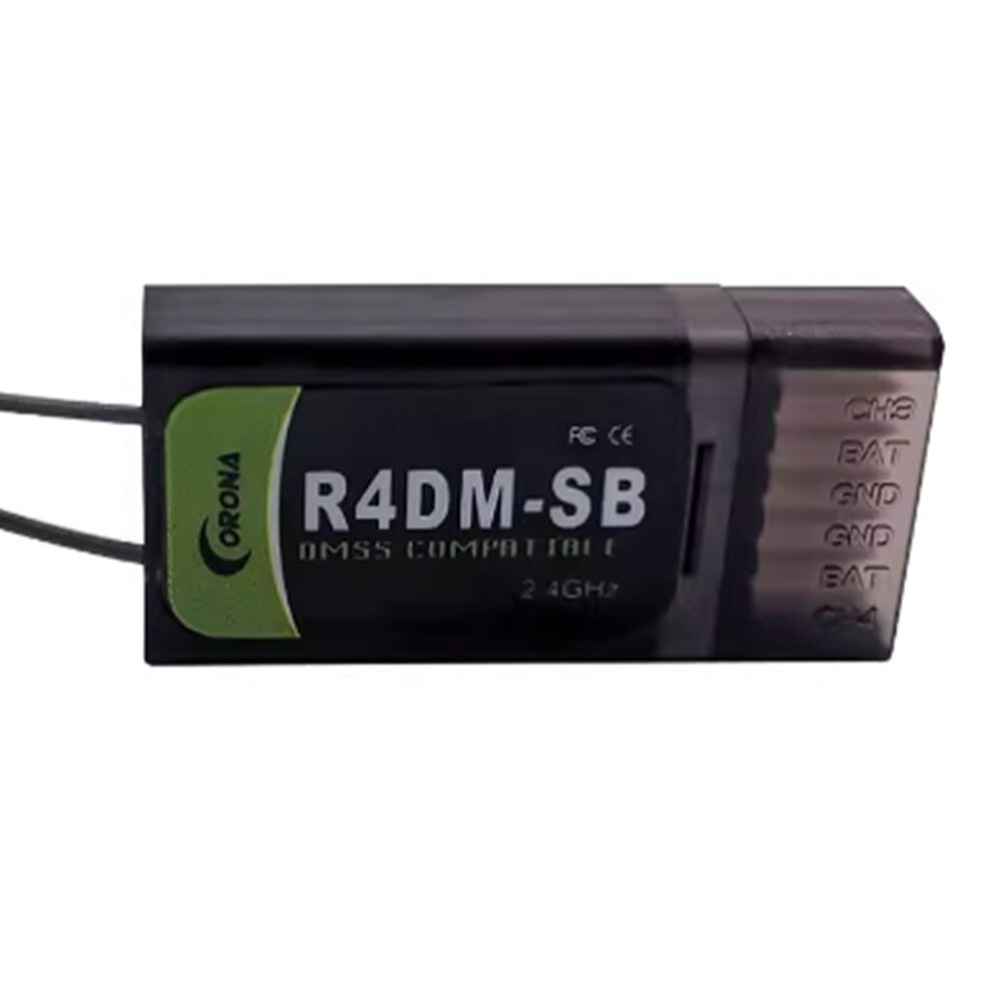

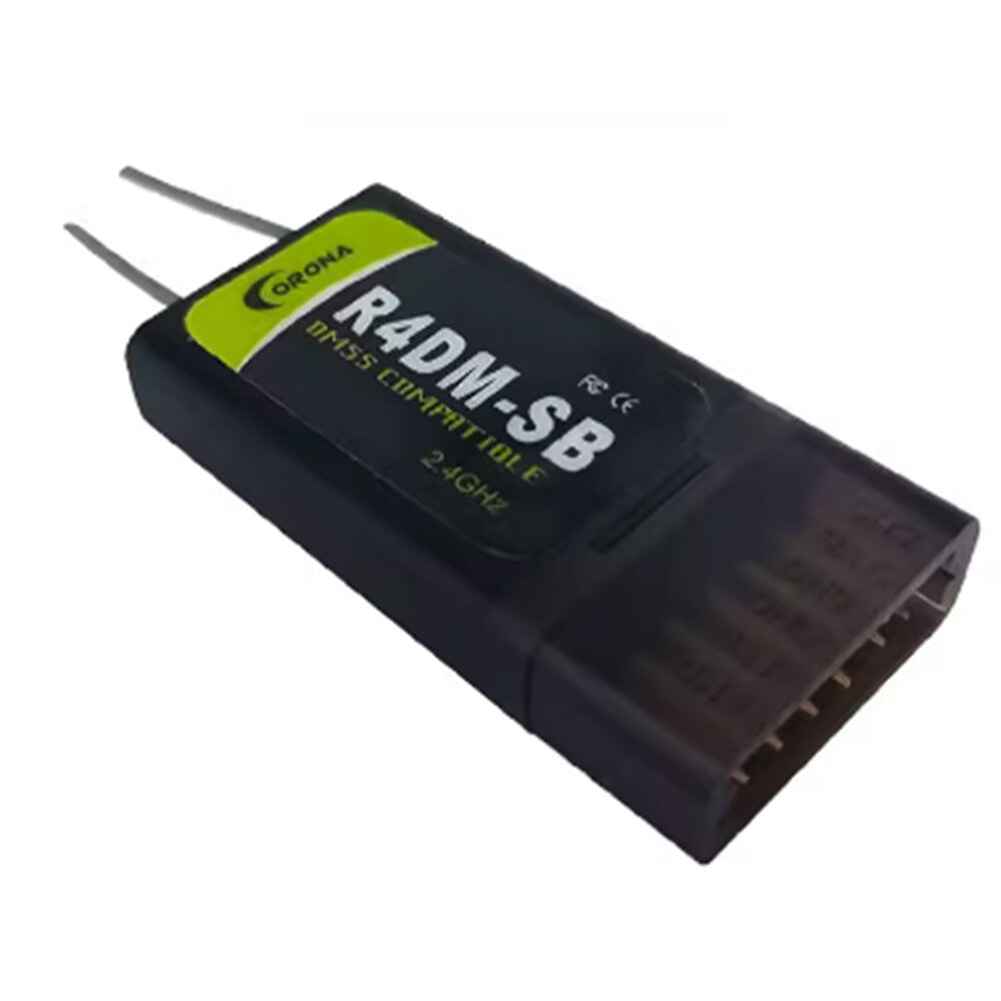

CORONA R4DM 2.4GHz 4CH DMSS Compatible Receiver for JR XG Series Transmitters

-23%

CORONA R4DM 2.4GHz 4CH DMSS Compatible Receiver for JR XG Series Transmitters

Original price was: 35.98$.Current price is: 27.70$.

Compatible with JR XG6, XG7, XG8, XG11, XG14 transmitters
4-channel servo support with S.BUS output
Low latency operation at 13mS or 14mS
Failsafe feature for enhanced safety
Lightweight design at 11g

SKU: RC2014309 Category: Radios & Receiver Tags: 2.4GHz DMSS receiver, 4-channel RC receiver, CORONA R4DM receiver, JR transmitter compatible, JR XG series receiver, low latency RC receiver, RC model failsafe receiver, S.BUS output receiver Brand: CORONA

Description

CORONA R4DM 2.4GHz 4CH DMSS Compatible Receiver for JR XG6 XG7 XG8 XG11 XG14 Radio Transmitter

The CORONA R4DM 2.4GHz 4CH DMSS Compatible Receiver is designed for seamless integration with JR DMSS 2.4GHz transmitters, including models XG6, XG7, XG8, XG11, and XG14. This receiver features four servo channels and supports S.BUS output for expanded channels on the fourth channel under special mode. It operates with a latency of 13mS when linked with the XG7 and 14mS with other transmitters. The receiver is equipped with a failsafe setting to ensure safety during operation. It operates within a voltage range of 3.6 to 8.5V and has an operating current of up to 60mA. The lightweight design at 11g makes it ideal for various remote control applications.

CORONA R4DM 2.4GHz 4CH DMSS Compatible Receiver for JR XG6 XG7 XG8 XG11 XG14 Radio Transmitter
Compatibility:
CORONA 2.4GHz DMSS Compatible Receiver is designed to use with JR DMSS 2.4GHz transmitters, such as XG6,XG7,XG8 ,XG11 and XG14 under DMSS protocol mode.
Feature:
1. 4ch servo channels under normal status.
2. S.BUS output support expanding servo channels on the 4th channel under special status.
3. 13mS latency under linked with XG7, and 14mS latency under linked with other transmitters.
Specifications:
Brand: Corona
Model: R4DM
Channels: 4
Voltage Range: 3.6~8.5V
Operating Current: 60mA max and 35mA under linked
Operation temperature: -10~70 degC
Latency: 13mS or 14mS
Sensitivity: about -100dBm
Weight: 11g
Bind procedure:
– Turn on the DMSS transmitter, leave it 0.5M~1M away the receiver.
– Connect a shorter on CH2 (signal and GND) when bind with XG7; and connect a shorter on CH3 when bind with other transmitters.
– Connect the battery to the receiver while pressing down receiver’s button.
– Red LED light on and Green LED off when searching signals, and turn to Green LED light on and Red LED off indicate bind is succeeded.
Fail-safe setting:
R4DM set failsafe on the DMSS transmitter just like the operation of the JR’s DMSS receivers. We highly recommend you set failsafe feature while flying your models. An example of a useful Failsafe setting would be to shut down the model’s throttle, so that it does not fly or drive away uncontrolled.
Special/Normal mode switch guide:
If your receiver has been linked with your transmitter, please power off your transmitter. When your receiver＊s LED light red, push down and hold the button on your receiver for more than 6 seconds and not more than 10 seconds, release the button to see the green led flash, push down the button again right now, receiver get back to light red. Now the MODE status has changed between Special mode and Normal mode. When green led flash low indicate normal mode to special mode, and green led flash fast indicate special mode to normal mode.
Under the special mode status, you can get S.BUS output feature on the last servo channel, other channels not changed.
NOTE: if you want to reset the receiver to normal mode, you can rebind the receiver to your transmitter.
LED status indicated under normal working status:
