Description
AKK X5 16*16mm 25mW/50mW/100mW/200mW 5.8GHz 37CH AV FPV Transmitter VTX with Smart Audio PIT Mode

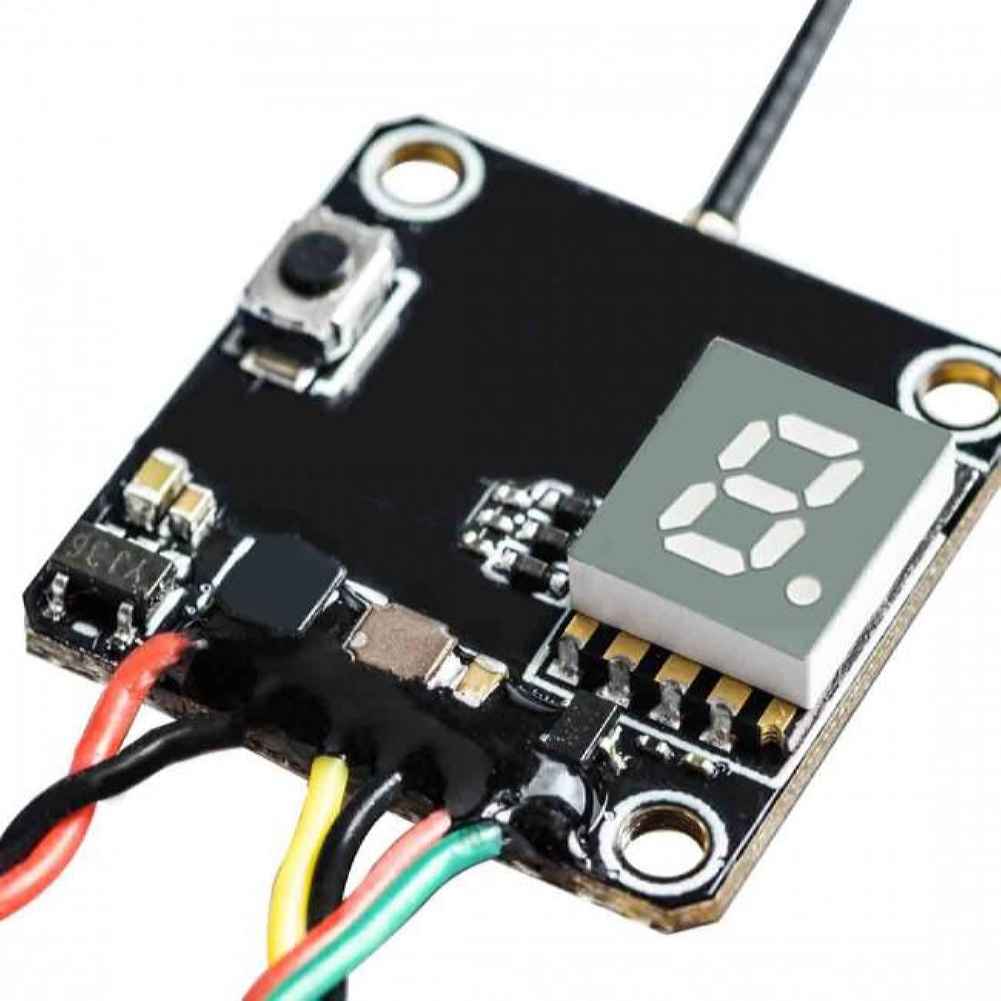

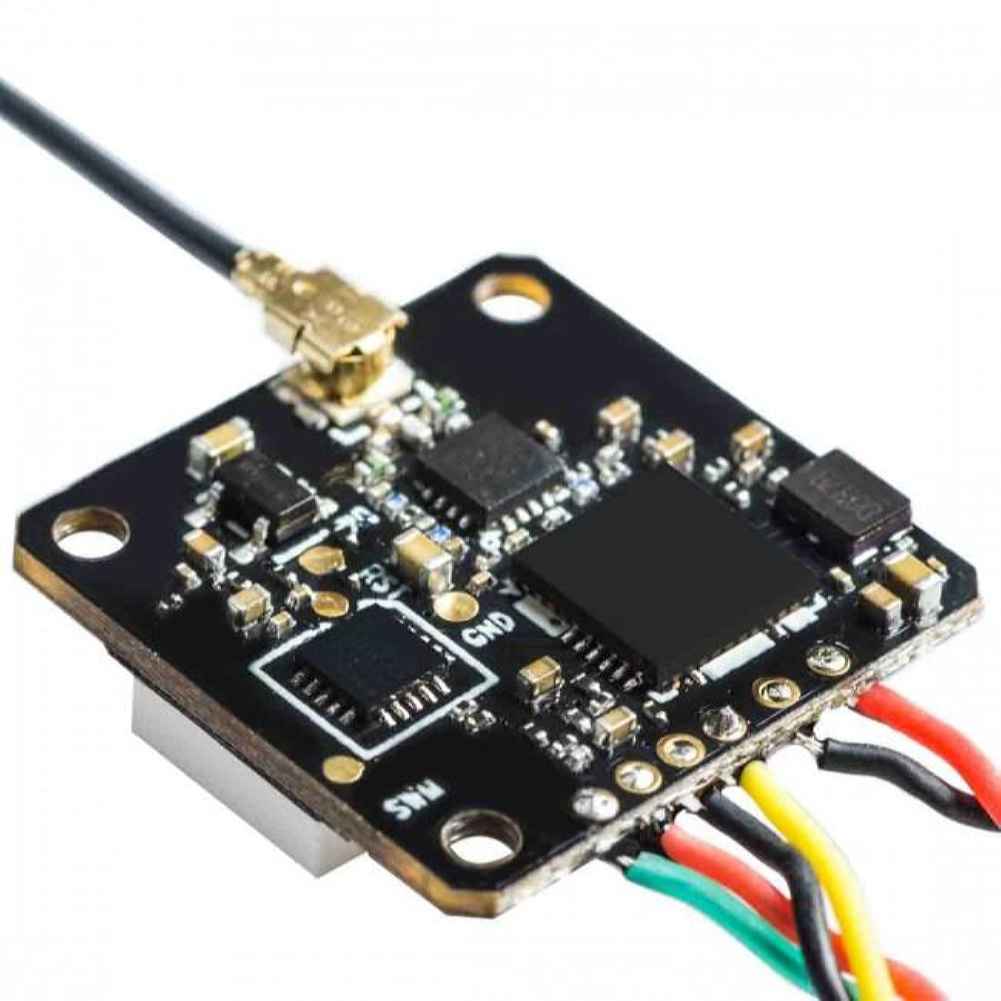

The AKK X5 FPV Transmitter is a compact and versatile VTX, perfect for mini quad enthusiasts. It offers power switchability between 25mW, 50mW, 100mW, and 200mW, allowing for flexible performance. With its Smart Audio PIT Mode, you can easily configure settings via OSD on compatible F3, F4, or F7 boards. The transmitter features a convenient one-button frequency and power setup and supports a 5V input and output. Weighing only 2.5g, excluding the antenna, and measuring 16x16mm, it’s ideal for tight builds. The AKK X5 also includes an IPEX antenna connector and a JST 6P cable connector, making it a reliable choice for FPV systems.
AKK X5 25mW/50mW/100mW/200mW 5.8GHz 37CH AV FPV Transmitter VTX with Smart Audio PIT Mode 16*16mm
AKK X5 is among the smallest vtx with smart audio function on the market now, and AKK Nano 2 has a smaller profile, exceptional good tidings for those mini quad players.
Features
Support 0.01mW PIT-Mode
25mW, 50mW, 100mW and 200mW power switchable
One button frequency and power setup
OSD configuration using Smart audio (F3/F4/F7 with OSD)

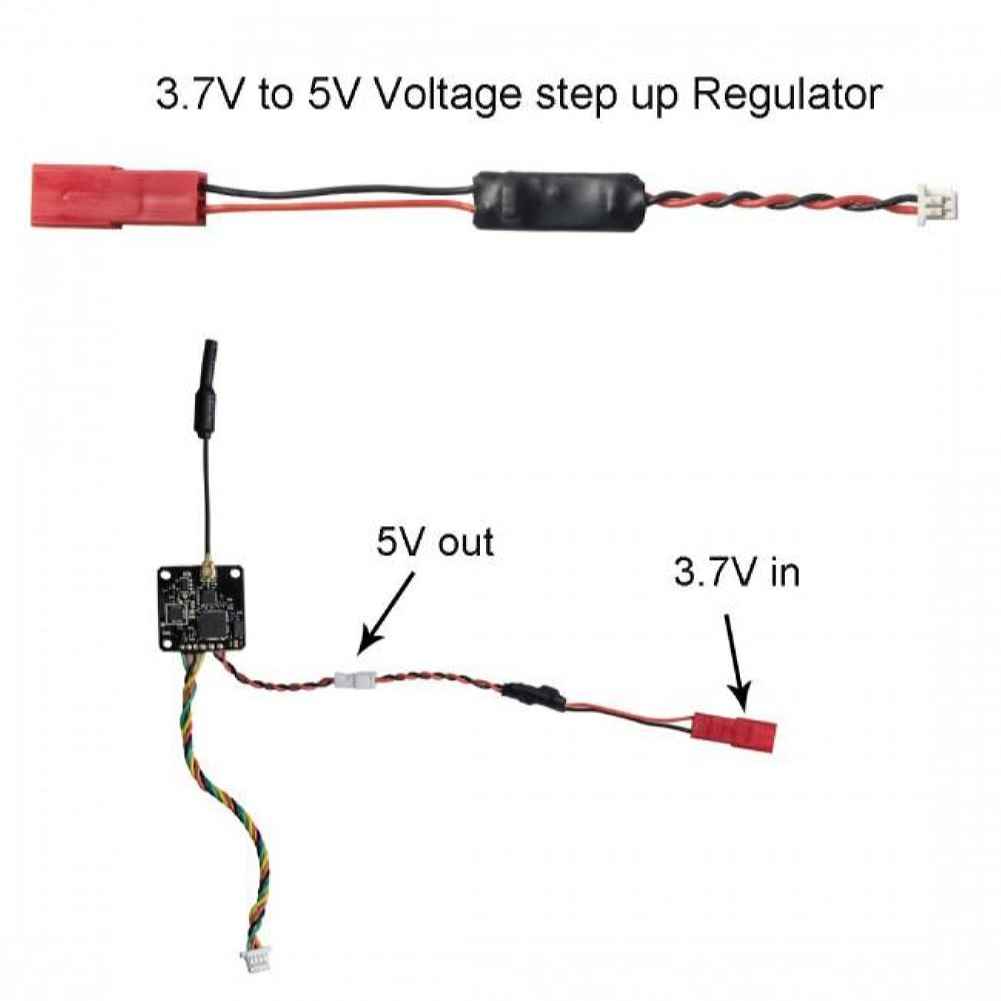

5V input with 5V output
Specification
Input Voltage : 5V
Extra Features : Smart audio/ Smart audio
Power Supply : 5V Camera @ under 0.3mA max.
Output Power : 25mW@100mA/50mW@120mA/100mW@180mA/200mW@220mA
Antenna Connector : IPEX
Cable Connector : JST 6P
Dimension : 20 x 20mm,16 x 16mm(hole)
Weight : 2.5g(excluding antenna)

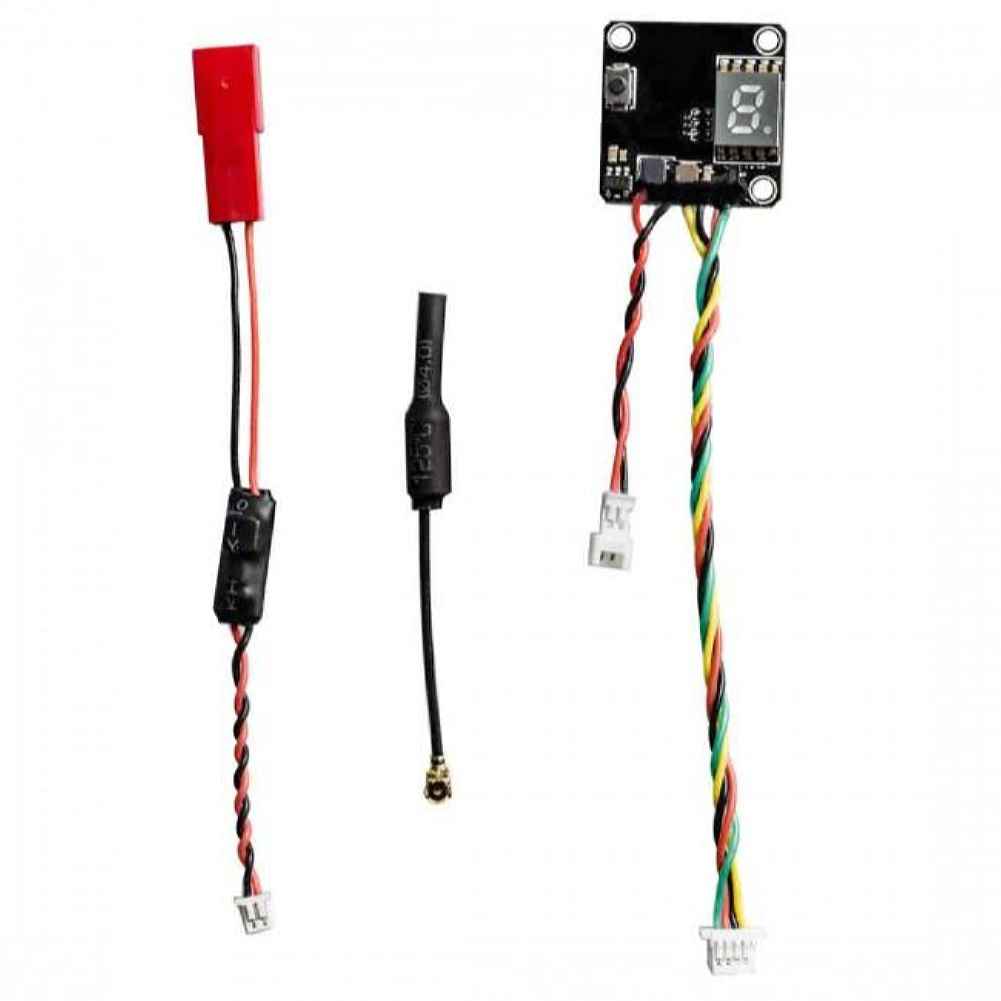

Package Included:
1 x 5.8Ghz 25mW/50mW/100mW/200mW Switchable FPV Transmitter
1 x Antenna and cable set
1 x Product manual
