Radiomaster RP3-H ExpressLRS 2.4GHz Nano Receiver with TCXO for Pocket Boxer Zorro TX16S Mark Transmitter

Description

Radiomaster RP3-H ExpressLRS ELRS 2.4GHz Nano Receiver with Built-in TCXO for Pocket Boxer Zorro TX16S Mark Radio Transmitter

The Radiomaster RP3-H ExpressLRS 2.4GHz Nano Receiver is expertly designed for the Pocket Boxer Zorro TX16S Mark Radio Transmitter and Nexus Helicopter Flybarless control unit. Compatible with all CRSF/S.BUS enabled flight controllers, this receiver features a robust integrated housing for easy mounting in modern helicopter frames. It offers reliable signal reception, enhancing flight performance even in challenging conditions. The RP3-H includes an Ext-V telemetry input for older ESCs and utilizes a Skyworks SKY66112 power amplifier for superior telemetry performance. Developed with the ESP8285 MCU and SX1281IMLTRT RF Chip, it supports Lora and FLRC 2.4GHz RF links, providing exceptional range and low latency. Built-in WiFi allows for convenient firmware updates.

Radiomaster RP3-H ExpressLRS ELRS 2.4GHz Nano Receiver with Built-in TCXO for Pocket Boxer Zorro TX16S Mark Radio Transmitter
Designed specifically for use with our Nexus Helicopter Flybarless control unit and compatible with all CRSF/S.BUS enabled flight controllers the RP3-H ExpressLRS receiver comes with a built-in TCXO and an integrated housing design that makes the receiver tougher and ready to mount in modern helicopter frames. With the RP3-H receiver, you can get reliable, stable, and accurate signal reception, which enhances your flight experience and allows for superior performance even in demanding environments. The RP3-H also features an Ext-V telemetry input for compatibility with older ESCs that do not provide battery voltage telemetry via the control unit.
The RP3-H receiver uses the Skyworks SKY66112 power amplifier to increase telemetry performance, the PA provides up to 100mw of telemetry power, and antenna switching for antenna diversity. It is developed around the ESP8285 MCU and SX1281IMLTRT RF Chip, offering Lora and FLRC 2.4GHz RF links that provide incredible range and low latency. With Wifi built-in, firmware updates can be done on your craft without the need to remove the receiver.
Features:
– Perfect for helicopters and any application that needs a rugged cased serial receiver
– Plug’n’play solder free RP3-H ExpressLRS receivers compatible with NEXUS Heli flight controller
– Optimized PCB design for better heat dissipation
– LNA for better receiver range
– PA for better telemetry range
– Antenna Diversity for improved signal stability and range
– Built-in a TCXO (temperature compensated crystal oscillator)
– Automatically detects voltage telemetry of external battery voltage or receiver battery/ESC BEC voltage
– Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications:
Brand: Radiomaster
Item: RP3-H ExpressLRS 2.4GHz Nano Receiver
Type: ISM
MCU: ESP8285
RF Chip: SX1281
Telemetry RF power: Max 100mW
Antenna: 150mm 2.4GHz Antenna x2
Frequency Range: 2.404 – 2.479 GHz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: DC 4.5 – 8.4V
Battery voltage detection range: DC 4.0 – 35V

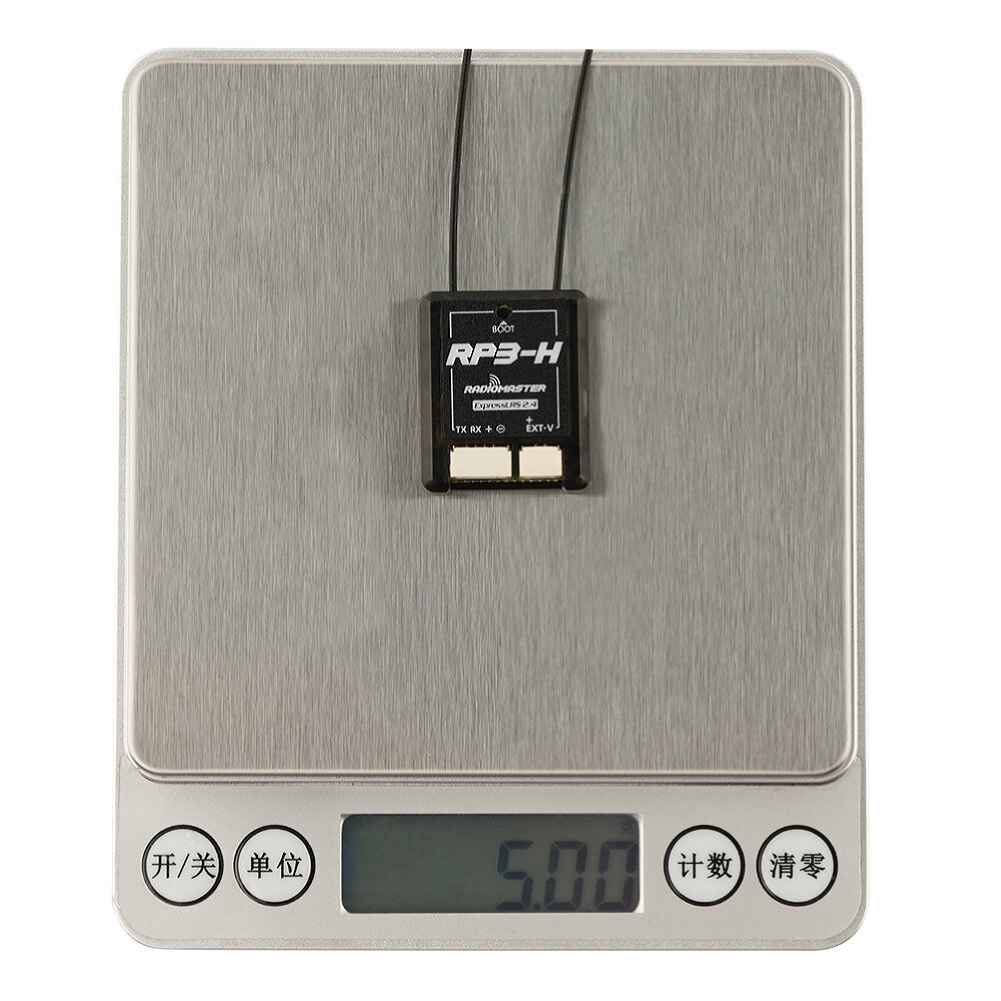

Weight: 5.1g (Including two antenna)
Dimension: 28mm*24mm*8mm
Firmware Version: ExpressLRS v3.3.1 pre-installed
FW Target: RadioMaster RP3-H Diversity 2400 RX
Bus interface: CRSF/S.Bus

Package Included:
1 x RP3-H ExpressLRS 2.4GHz Nano Receiver
2 x 150mm 2.4GHz Antenna (installed)
1 x JST-GH CRSF 4 wire Pigtail
1 x JST-GH 4 wire to JST-GH CRSF cable
1 x JST-GH 4 wire to single Servo pin (single dupont connectors)
1 x Voltage telemetry wire
1 x Quick start guide
