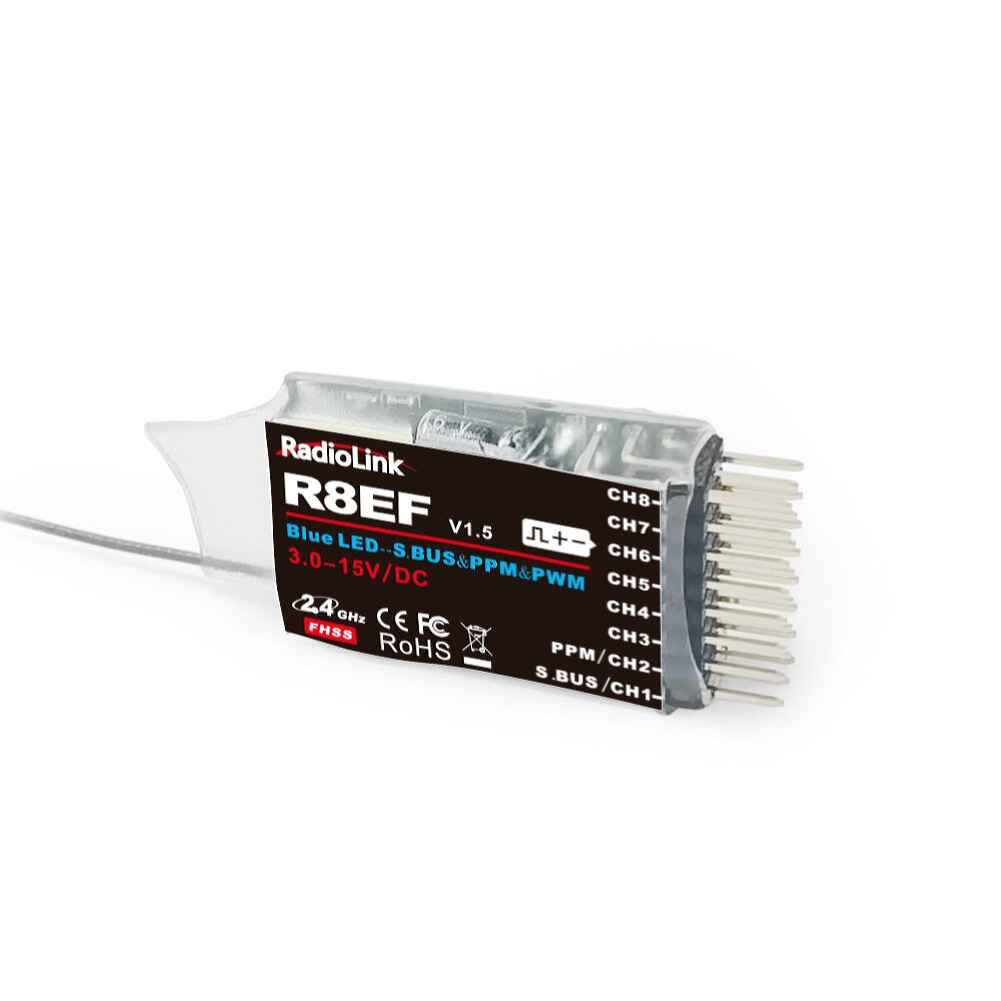

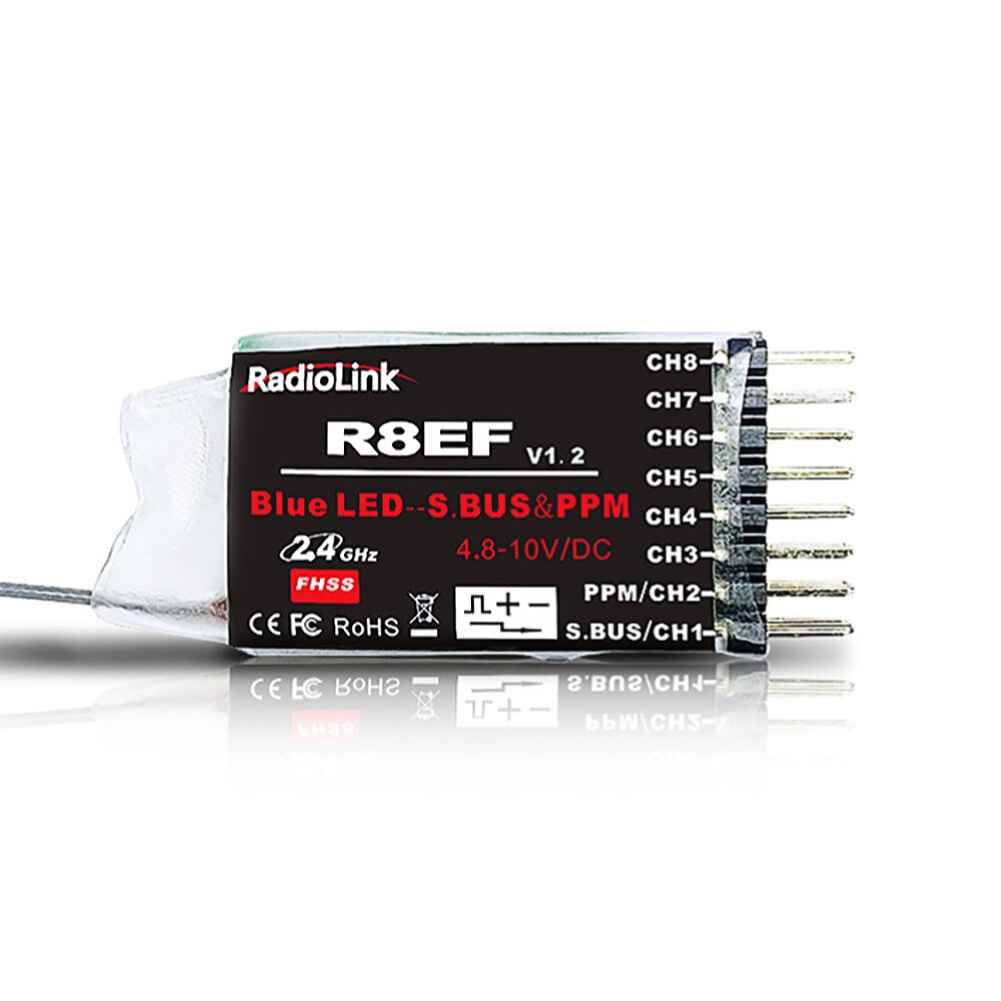

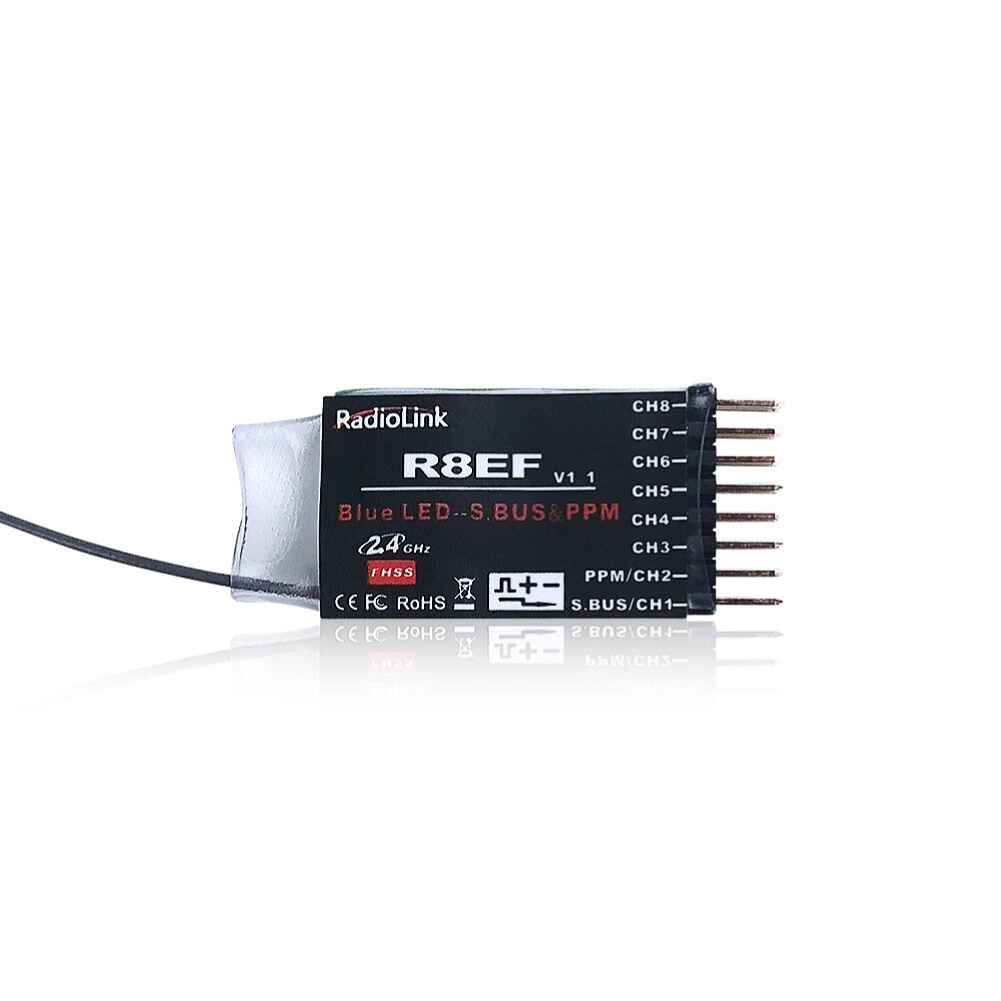

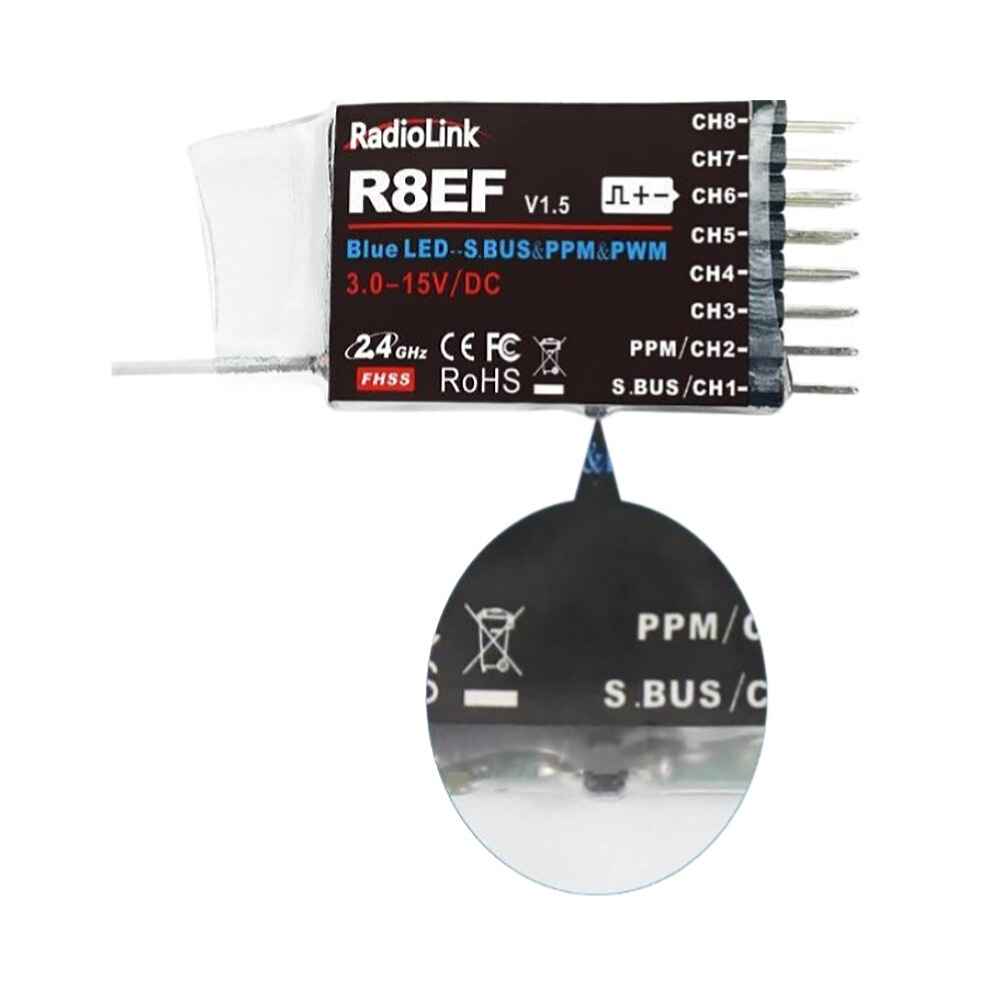

RadioLink R8EF 2.4GHz 8CH Receiver for T8FB T8S Transmitters, Long Distance PWM PPM SBUS, Compatible with RC Airplane Car Boat

Description

RadioLink R8EF 2.4GHz 8CH Long Distance PWM PPM SBUS RC Receiver for T8FB T8S RC Transmitter RC Airplane Car Boat

The RadioLink R8EF 2.4GHz 8-channel receiver is designed for RC enthusiasts seeking long-distance control for their models. With dimensions of 41.5 x 21.5 x 11.5mm and weighing just 14g, this compact receiver supports a working voltage range of 3V-15V and a current of 38-45mA at 5V input. It operates on the 2.4GHz ISM band using FHSS 67 channel pseudo-random frequency hopping, ensuring reliable communication over a control distance of up to 2000 meters in the air. Compatible with RadioLink transmitters such as T8FB, T8S, RC4GS, and RC6GS models, it outputs SBUS, PPM, and PWM signals, making it versatile for various RC applications. The receiver features easy signal switching and binding processes, ensuring seamless integration and operation with your RC devices.

RadioLink R8EF 2.4GHz 8CH Long Distance PWM PPM SBUS RC Receiver for T8FB T8S RC Transmitter RC Airplane Car Boat
Specification:
Brand: Radiolink
Product Name: R8EF
Size: 41.5*21.5*11.5mm
Weight: 14g
Antenna Length: 210mm
Number of channels: 8 channels
Supported models: car/boat/glider/fixed wing
Working voltage: 3V-15V
Working current: 38-45mA (input voltage 5V)
Frequency: 2.4GHz ISM band
Spread spectrum method: FHSS 67 channel pseudo-random frequency hopping
Control distance: 2000 meters in the air, the actual flight distance varies with the environment
Compatible remote controller: RC8X/T8FB (standard)/T8S/RC6GS V2/RC4GS V2/RC6GS/RC4GS
Applicable Transmitter Model
Radiolink R8EF 2.4G 8CH receiver, suitable for RadioLink 8CH remote controllers T8FB (standard), T8S, RC4GS V3, RC6GS V3, RC4GS V2 and RC6GS V3.
Signal Output Type
Supports simultaneous output of three signals: SBUS, PPM and PWM.
Signal Working Mode
1. PWM signal working mode
The receiver indicator light is red, and 8 channels of PWM signals are output.
2. S-BUS/PPM signal working mode
The receiver indicator light is blue (purple), channel 1 outputs S-BUS signal, channel 2 outputs PPM signal, and channels 3-8 output corresponding PWM signals, a total of 8 channels of signals are output.
Signal Switching
Short press the (ID SET) switch on the side of the receiver twice (within one second) to complete the switching of R8EF’s PWM signal and SBUS or PPM signal.
Binding
Each transmitter has an independent ID code. Before using the device, the receiver must be bound to the transmitter. After the binding is completed, the ID code is stored in the receiver and does not need to be bound again. When you purchase a new R8EF receiver, you must re-bind it, otherwise the receiver will not work properly.
1. Put the transmitter and receiver together, with a distance of less than one meter between them.
2. Turn on the transmitter power switch. The R8EF receiver will search for the nearest remote controller for pairing.
3. Press the (ID SET) switch on the side of the receiver for more than 1 second, and the LED light will flash, indicating that pairing has started.
4. When the indicator light stops flashing, pairing is complete.
5. Please make sure that your servo can be operated according to the transmitter.

Package Included:
1 x Radiolink R8EF Receiver
