JX PDI-1109MG 9g Metal Gear Core Motor Micro Digital Servo for 450 RC Helicopter, High-Speed, Precision Metal Gears

-13%

JX PDI-1109MG 9g Metal Gear Core Motor Micro Digital Servo for 450 RC Helicopter, High-Speed, Precision Metal Gears

Original price was: $19.98.Current price is: $17.38.

Optimized for 450 RC Helicopters
High-speed operation at 0.10 sec/60° (6V)
Strong stall torque of 2.5kg-cm (6V)
Precision metal gears for durability
Compact size: 23.2×12.0x25.5mm, lightweight at 10g

SKU: RC1996900 Category: RC Servos Tags: 450 RC helicopter servo, core motor digital servo, high-speed RC servo, JX servo PDI-1109MG, lightweight RC servo, metal gear micro servo, precision metal gears, RC helicopter digital servo Brand: JX

Description

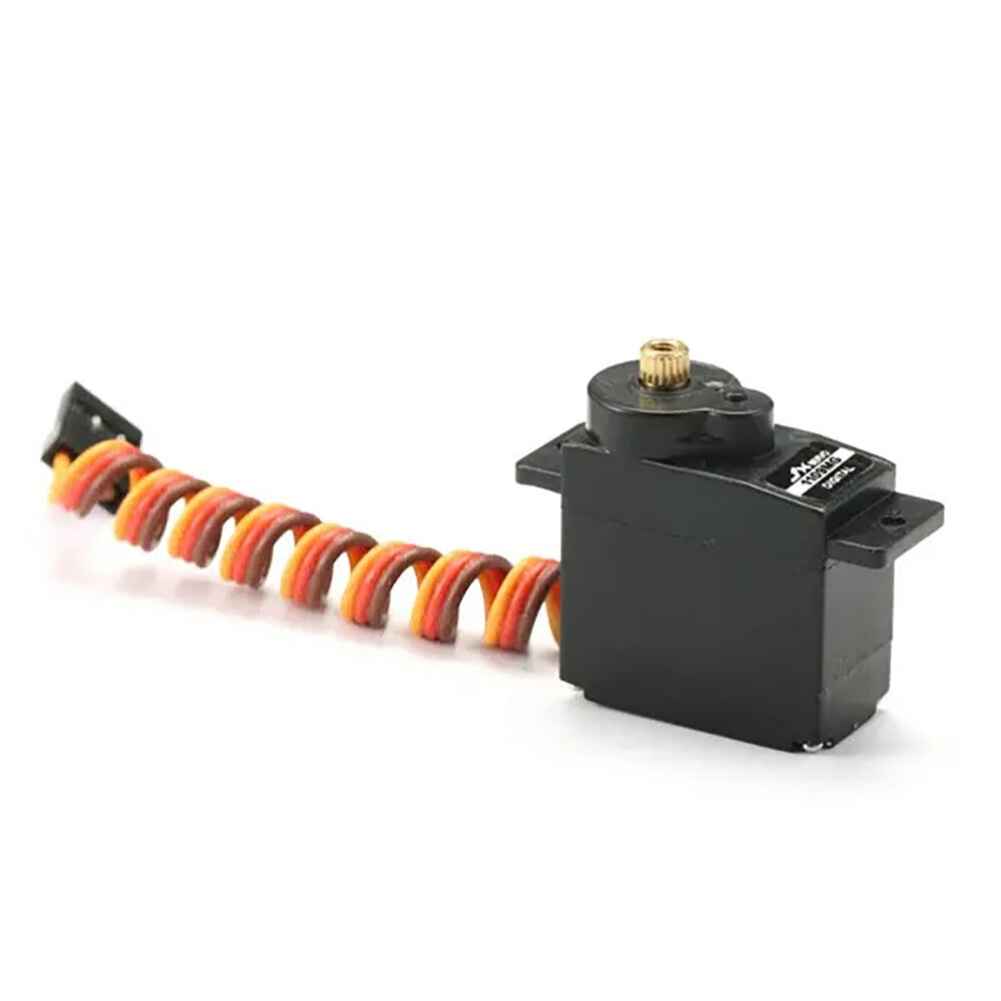

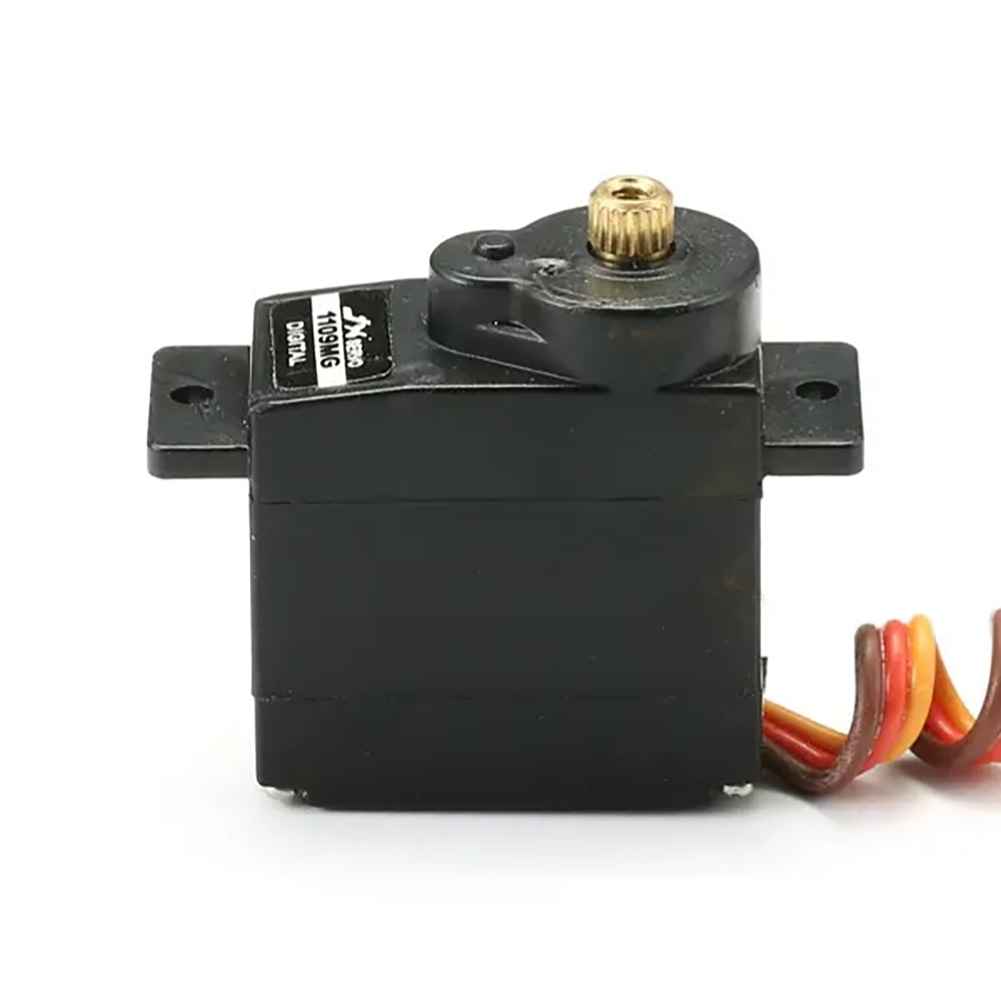

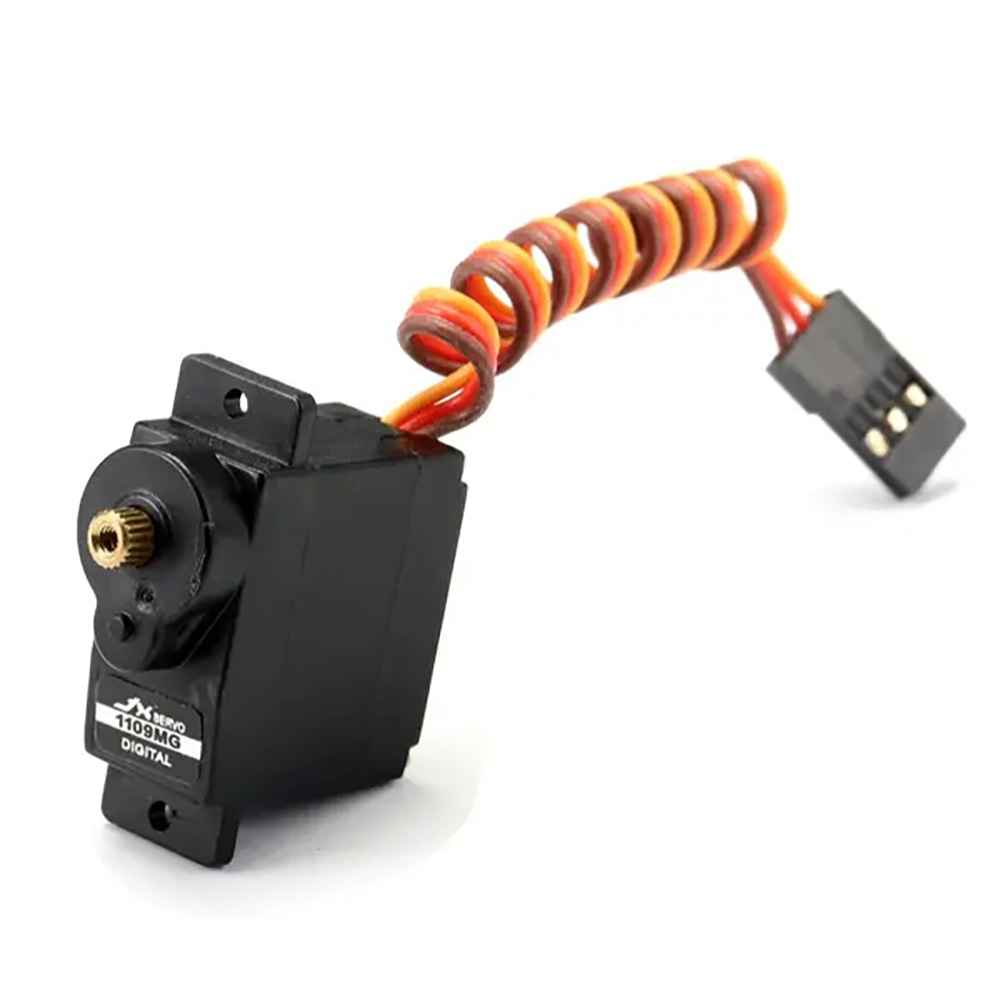

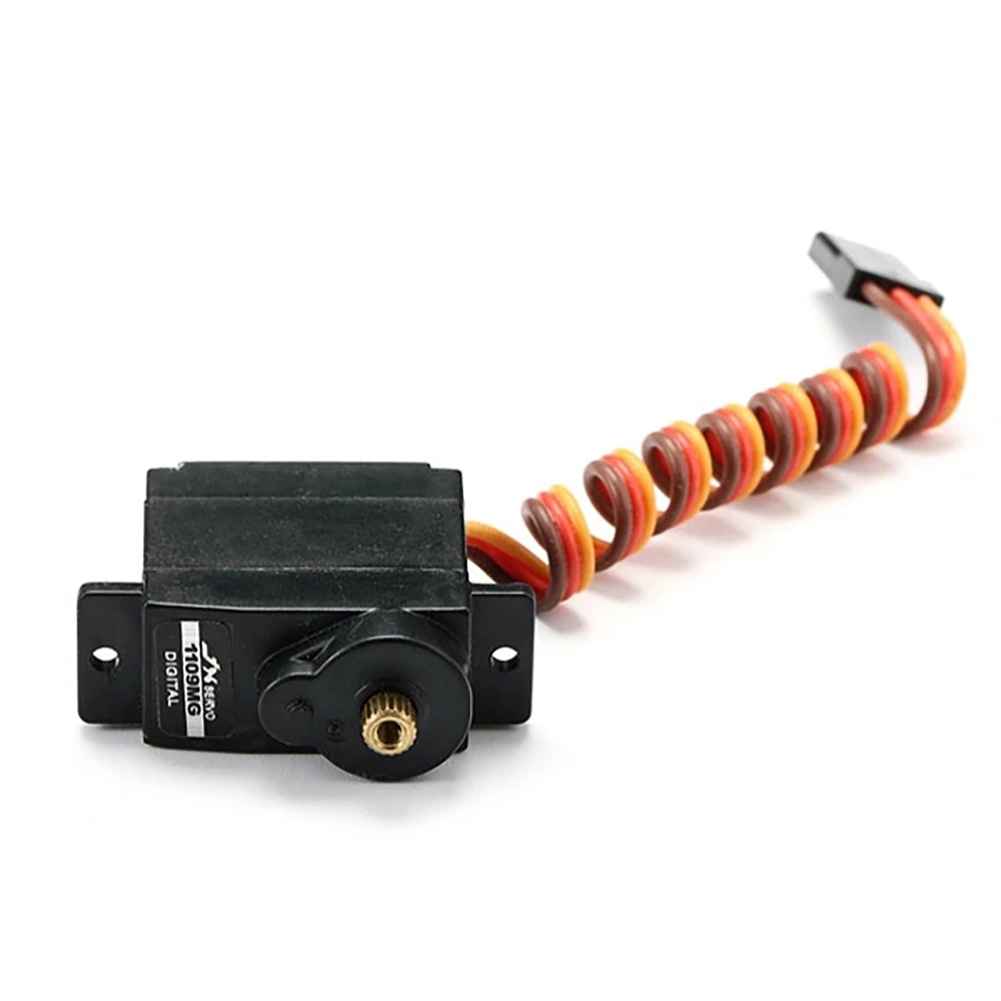

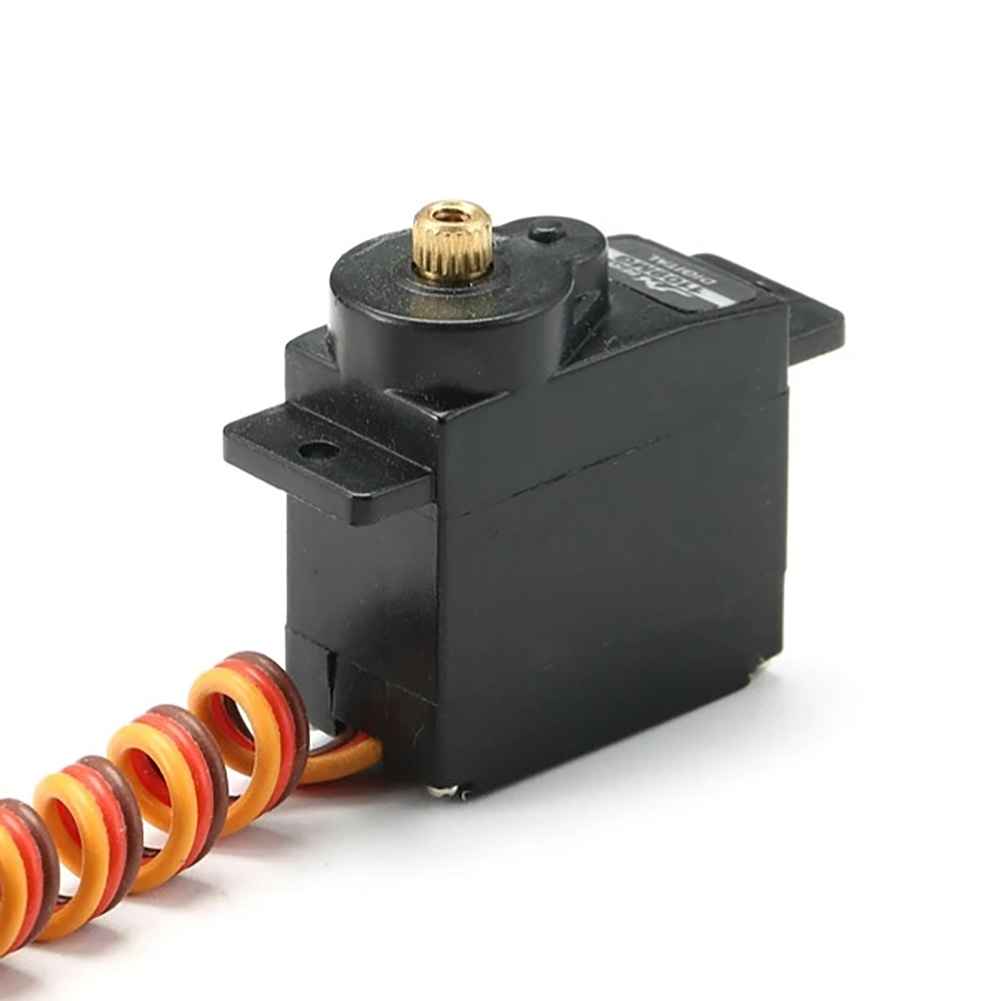

JX PDI-1109MG 9g Metal Gear Core Motor Micro Digital Servo for 450 RC Helicopter

The JX PDI-1109MG is a micro digital servo engineered for RC models, specifically 450 RC helicopters. Equipped with a core motor, it delivers remarkable speed and precision with operating speeds of 0.10 sec/60° at 6V. Its strong stall torque of up to 2.5kg-cm ensures powerful performance. The high-precision metal gears provide durability and accurate movements. Compact and lightweight, it measures 23.2×12.0x25.5mm and weighs only 10g, making it perfect for applications where size and weight are crucial. The servo operates efficiently on a DC voltage of 4.8 to 6.0 volts, with a connector wire length of 180mm for easy installation.

Specifications:
Brand:JX
Item:PDI-1109MG
Dead band: 1米s
Working frequence: 1520米s / 300hz
Motor: core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.12sec/60～
Operating Speed (6V): 0.10 sec/60～
Stall Torque (4.8V): 2.2kg.cm (30.8oz/in)
Stall Torque (6V): 2.5kg-cm (35.0oz/in)

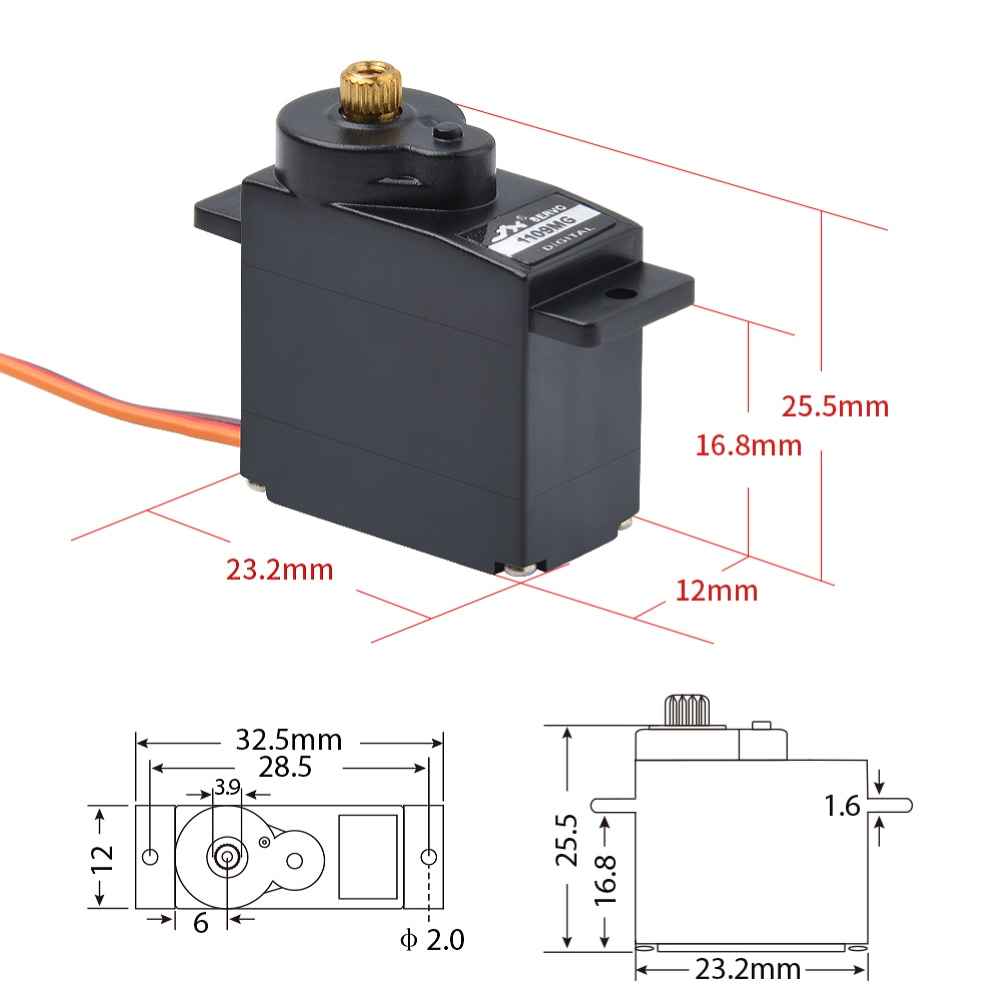

Dimensions: 23.2×12.0x25.5mm
Weight: 10.0g (0.35oz)

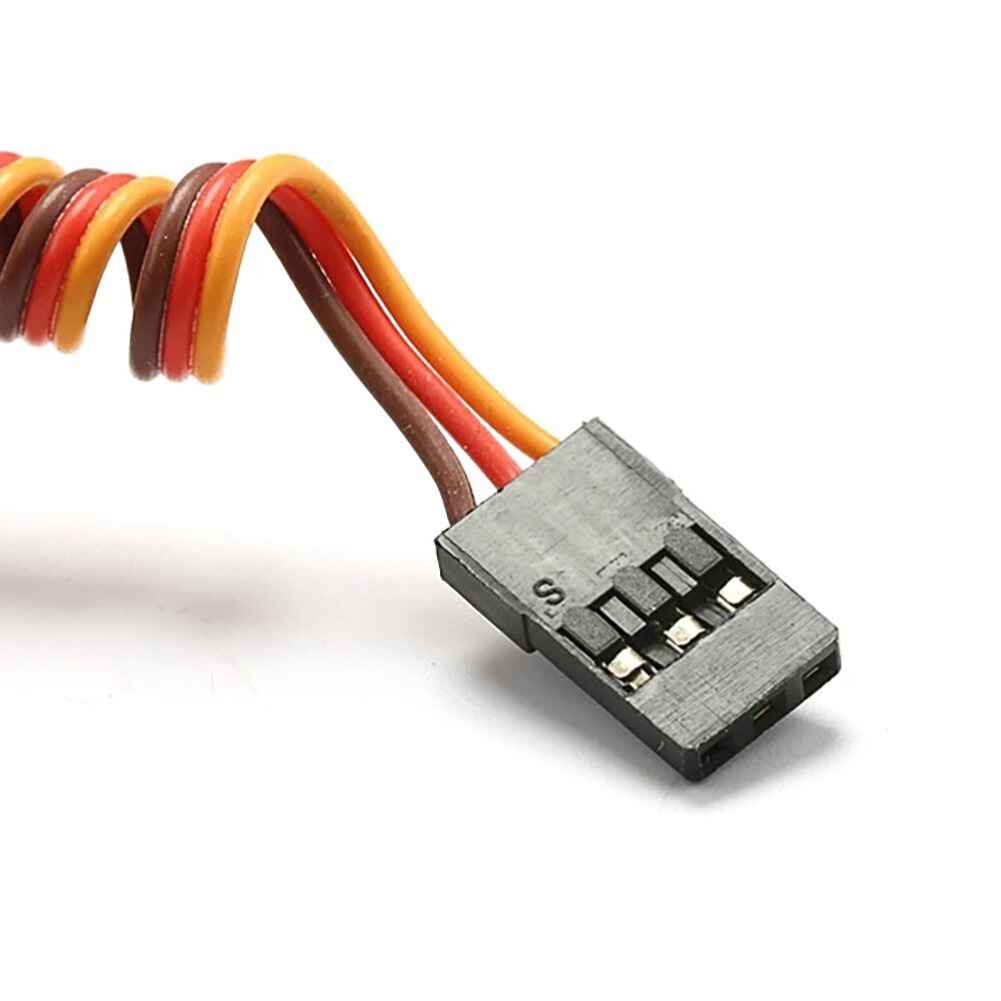

Connector Wire Length: JR 180 mm (7.08in)
Usage:for RC Models
Features:
Optimized for RC Models: Designed specifically for RC Models, the JX Servo PDI-1109MG offers a blend of power and precision.
High-Speed Operation: Achieve quicker responses with operating speeds of 0.10sec/60～ at 6V, making your RC models more agile and responsive.
Strong Stall Torque: The servo provides robust stall torques of up to 2.5kg-cm at 6V, which is remarkable for a servo of this size.
Precision Metal Gearing: Features high-precision metal gears that are durable and designed for exact movements and positioning.
Miniature & Lightweight: With dimensions of 23.2×12.0x25.5mm and a weight of just 10.0g, this mini digital servo is ideal for applications where size and weight are factors.
