Description
4PCS SPT Servo SPT5425LV 25KG 90 Large Torque Digital Metal Gear Servo For 1:8 1:10 RC Robot Car Boat

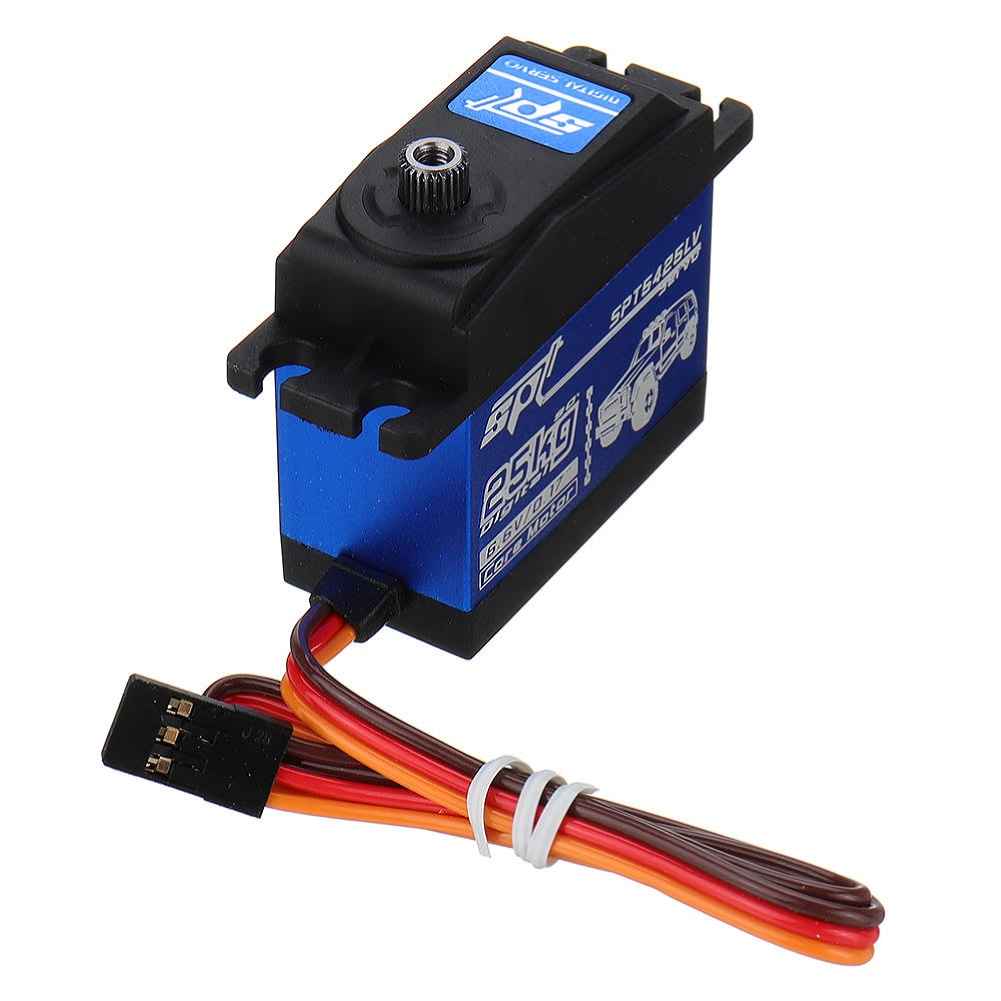

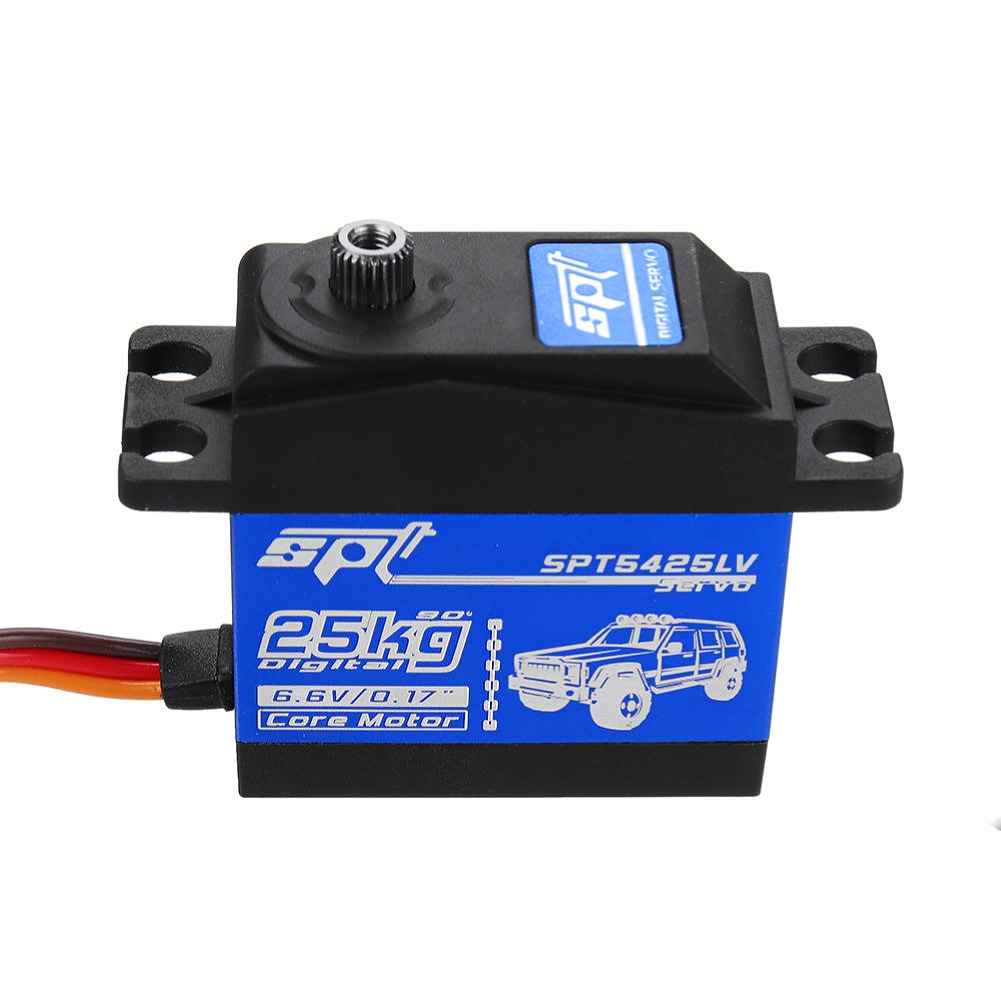

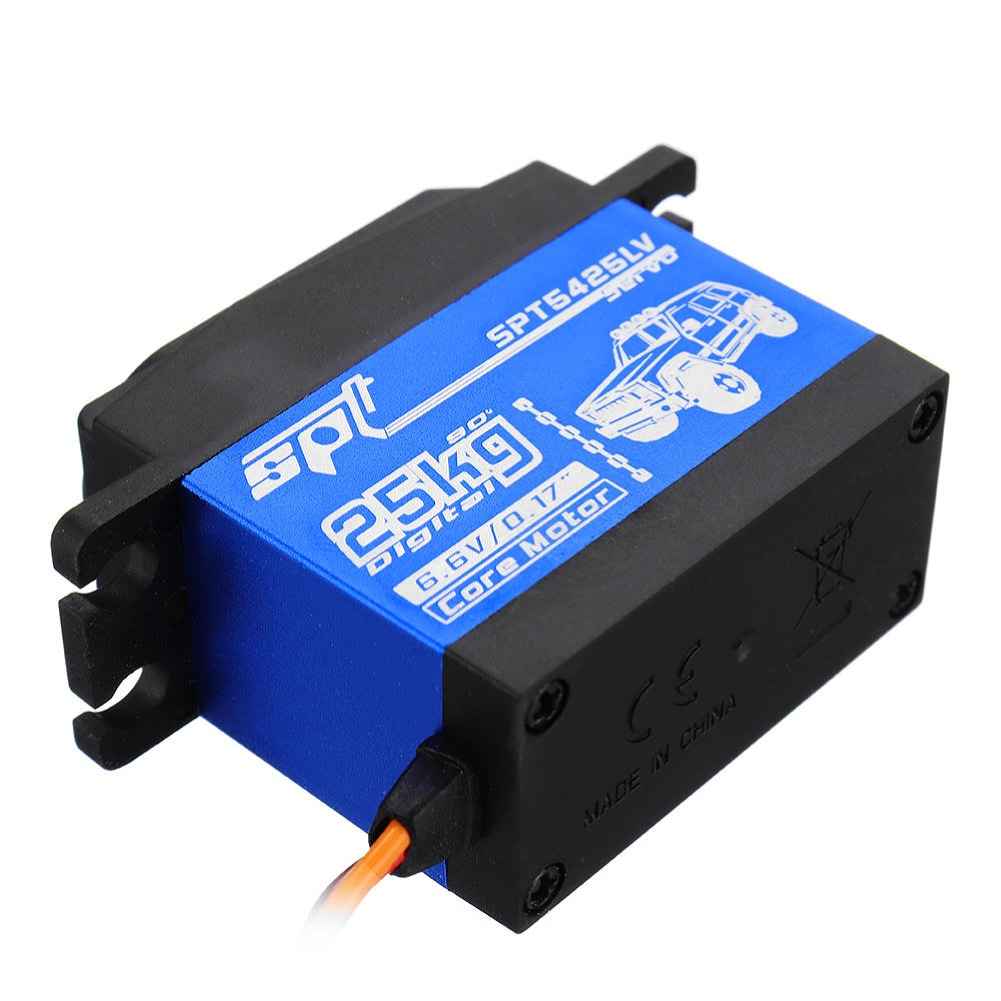

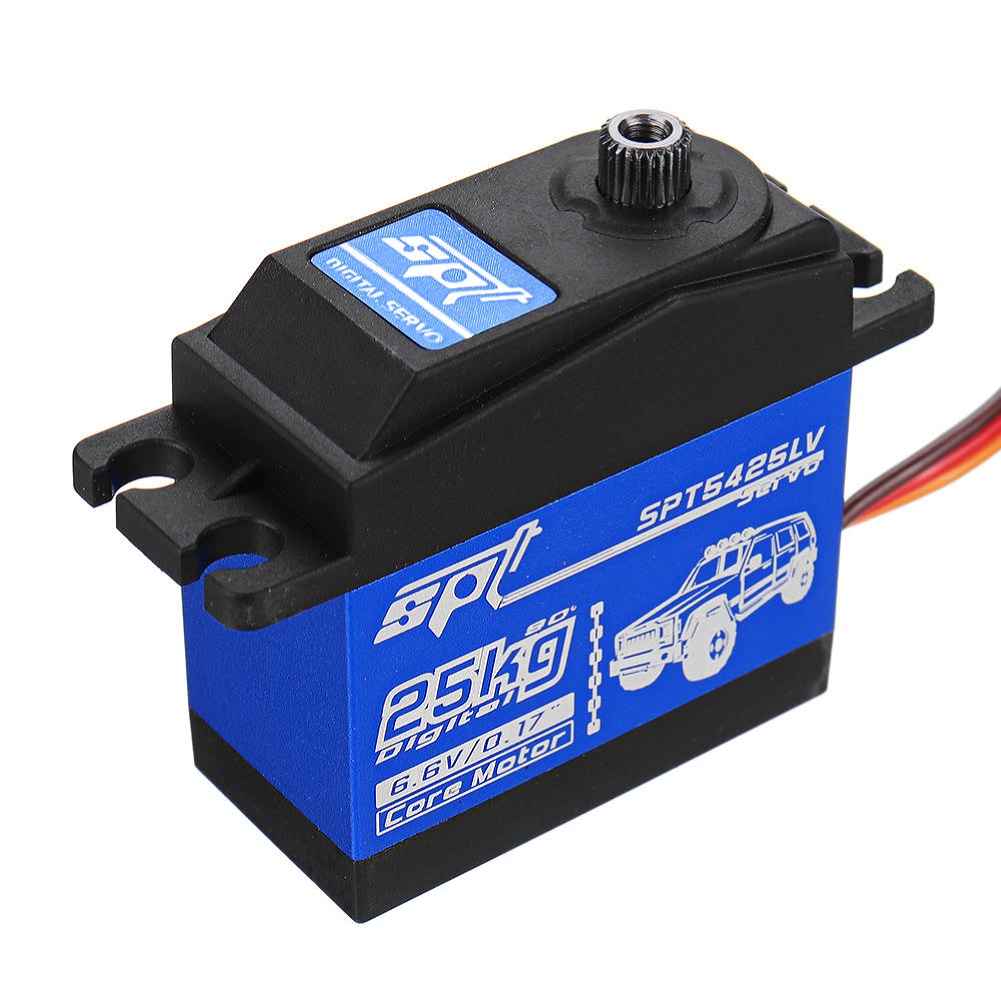

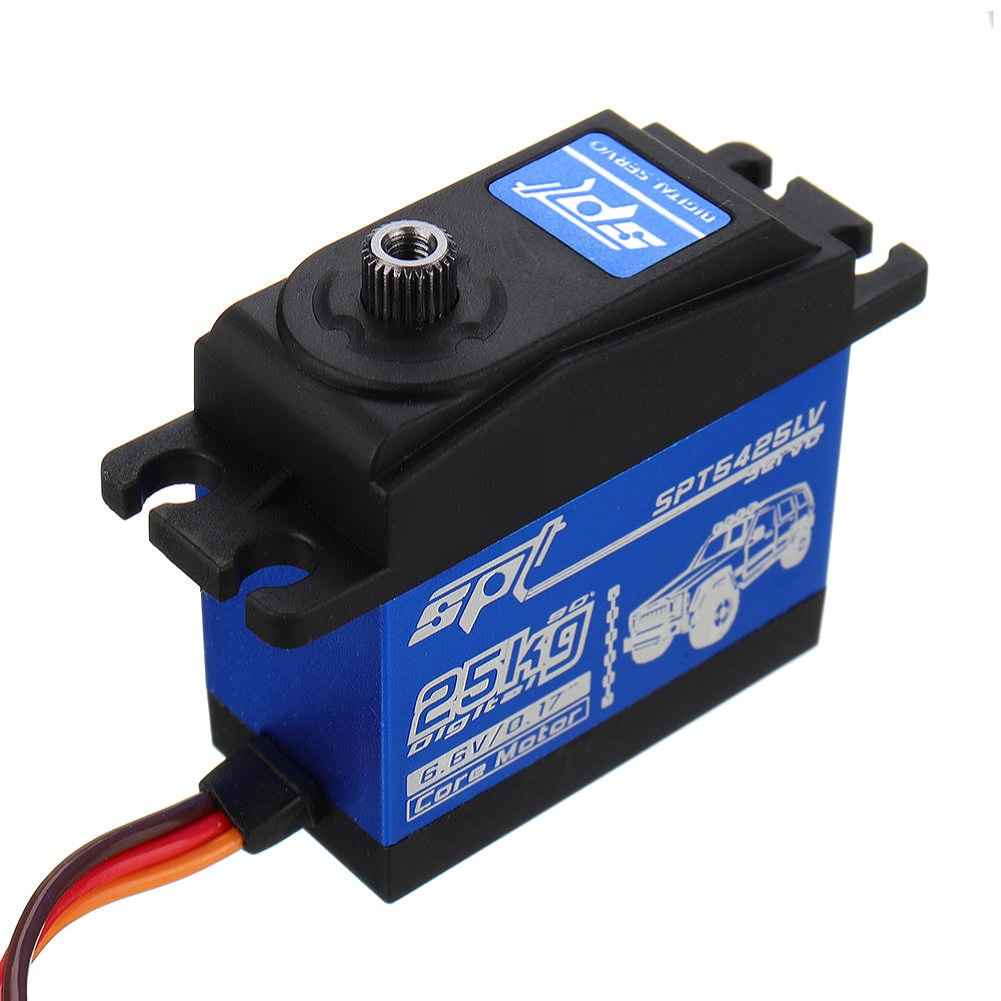

The SPT5425LV digital servo offers a robust solution for your RC robot, car, or boat needs. Designed with a powerful core motor, it delivers a stall torque of 24 kg.cm at 4.8V and 26 kg.cm at 6.0V. The servo operates at speeds of 0.22”/60° at 4.8V and 0.18”/60° at 6.0V, providing precise control. Featuring a 90-120° remote control angle and a dead band of 4μs, this servo ensures accuracy and reliability. With a compact size of 40.5X20X40.5mm and weighing approximately 57g per piece, it includes a JR 260 mm connector wire and 2BB bearings for smooth operation. Ideal for use in 1:8 and 1:10 scale models.
Description:
Product: SPT5425LV 25KG 90° Digital Servo
Dead Band: 4μs
Neutral Position:1500μs/330hz
Motor: Core motor
Remote Control Angle:90-120°±2°
Voltage Range: 4.8V-6.0V
Operating Speed(4.8V): 0.22”/60°
Operating Speed(6.0V): 0.18”/60°
Stall Torque(4.8V): 24 kg.cm
Stall Torque(6.0V): 26 kg.cm
Dimensions: 40.5X20X40.5mm
Weight: About 57g/pc

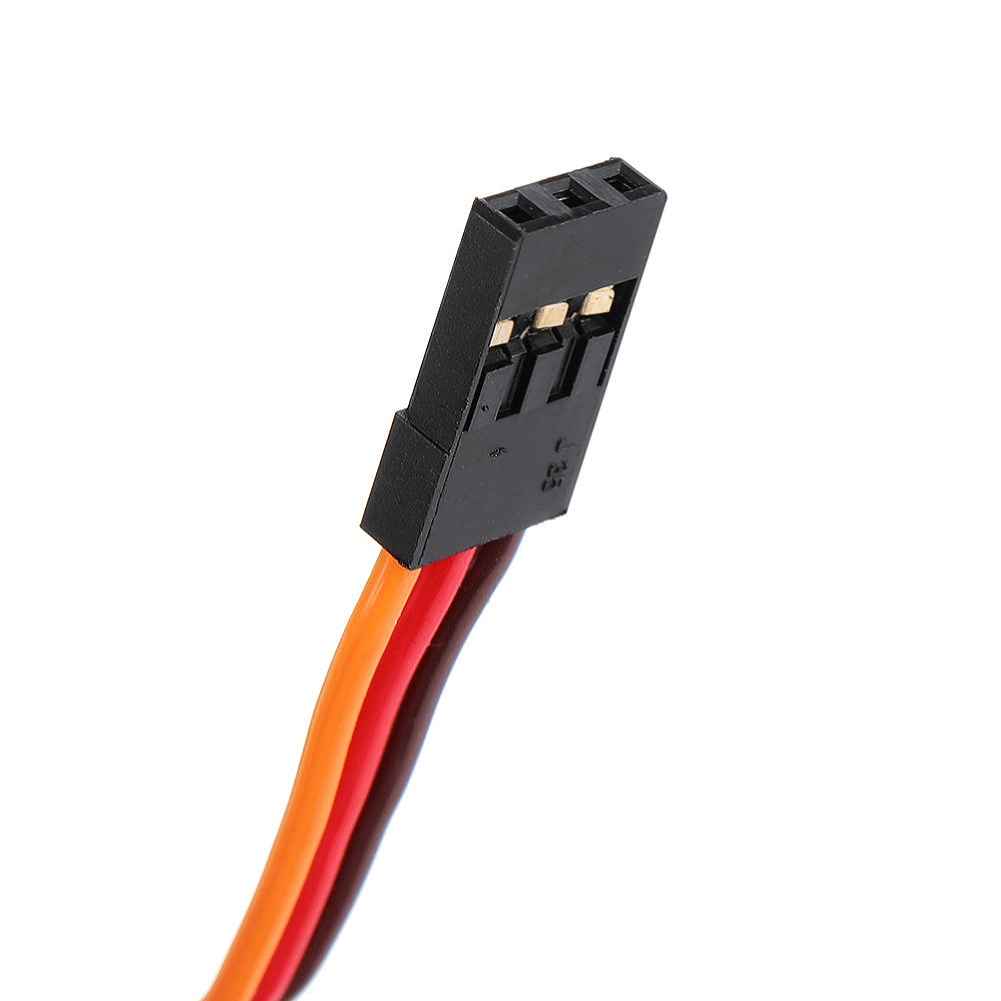

Connector Wire Length: JR 260 mm
Bearing: 2BB
Application: For 1:8 1:10 RC Robot Car RC Boat
Package:
4* SPT5425LV 25KG 90° Digital Servo
Package Included:
4 x SPT5425LV 25KG 90° Digital Servo
