Description

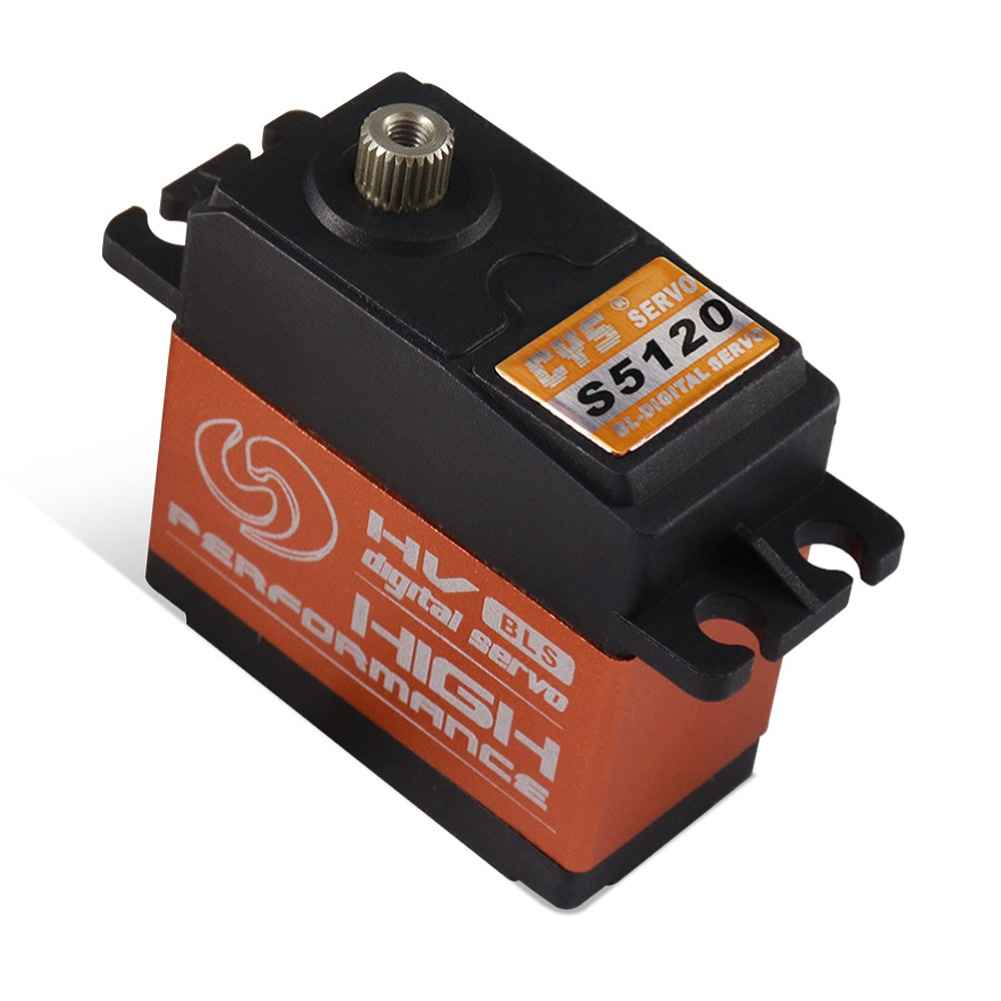

CYS-BLS5120 20kg Brushless Digital Servo for Helicopter Fixed Wing Car Model
The CYS-BLS5120 is a high-performance brushless digital servo designed for helicopters, fixed-wing aircraft, and car models. With a sleek orange design, this servo is compact, measuring 40 x 20 x 39 mm, and lightweight at approximately 64g. It delivers impressive torque, with 17 kg.cm at 6.0V and 20 kg.cm at 7.4V, ensuring reliable performance. The operating speed is swift, at 0.11 sec/60簞 at 6.0V and 0.09 sec/60簞 at 7.4V when unloaded. Built with titanium gears, it operates efficiently within a voltage range of 6.0V to 7.4V and can withstand temperatures from -10 to +50簞C.
Specification:
Item Number:CYS-BLS5120
Item Name:Servo
Color:Orange
Product Size:40*20*39MM
Product Weight:About 64g
Fit For
helicopter, fixed wing, car model
Torque (6.0V):17kg.cm
Torque (7.4V):20kg.cm
Operating Speed:(6.0V)0.11ec/60‵at no load | (7.4V) 0.09sec/60‵at no load
Operating Voltage:6.0~7.4Volts
Gear Type:Titanium
Operating Temperature:(-)10 to +50 degree C

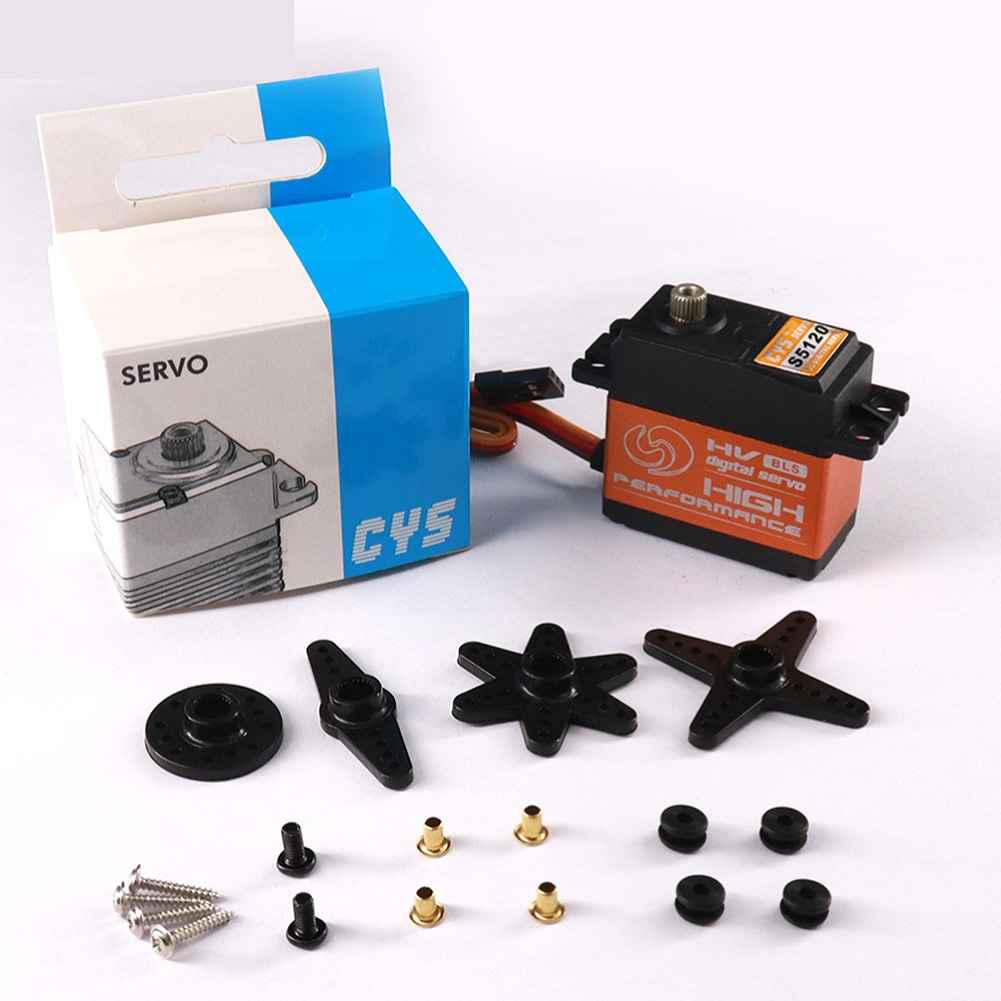

Package Included:
1 x CYS-BLS5120 Servo
