Description

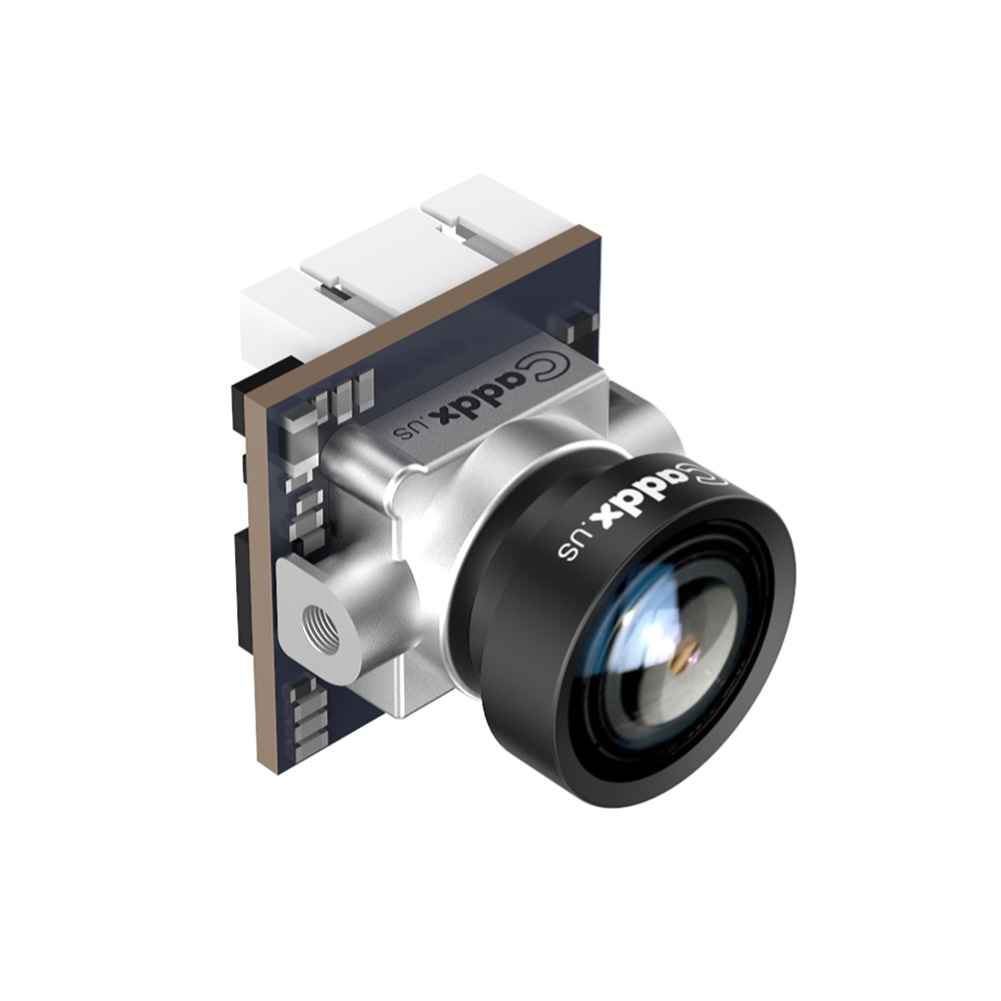

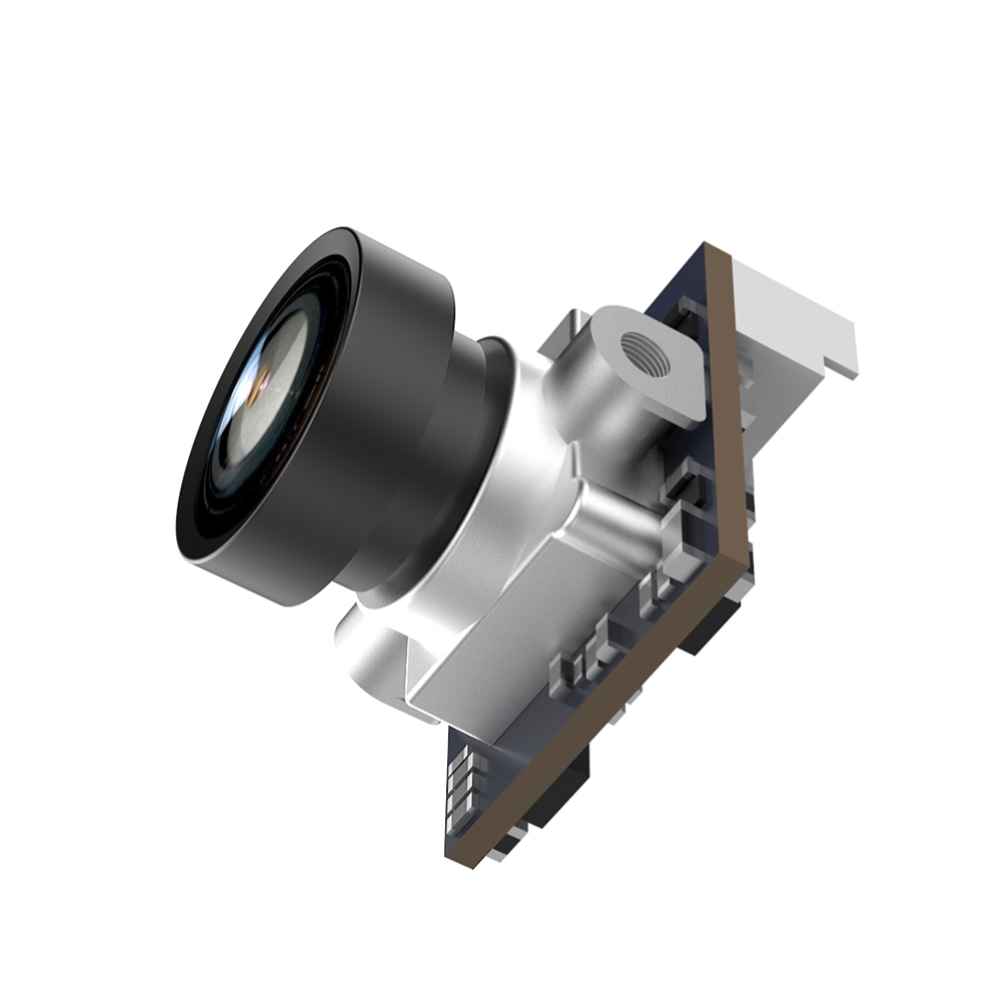

Caddx Ant 1.8mm 1200TVL 16:9/4:3 Global WDR with OSD 2g Ultra Light Nano FPV Camera for FPV Racing RC Drone
The Caddx Ant Ultra Light Nano FPV Camera is designed for FPV racing RC drones, offering high performance with its 1/3″ CMOS sensor. It features a 1200 TVL horizontal resolution and supports both NTSC and PAL TV systems. The camera provides versatile image options with 16:9 or 4:3 aspect ratios and excellent global WDR for dynamic lighting conditions. With a wide power input range of DC 3.7-18V, it is built to function in temperatures from -20～C to +60～C. The compact design, weighing just 2g, includes a 1.8mm lens and an internal synchronization system, making it a reliable choice for drone enthusiasts.
Specification:
Model: Caddx Ant
Image Sensor: 1/3′ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
MENU: Support
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20﹠~+60﹠
Work Humidity: 20%~80%
Weight: 2g (N.W.)
Packing List:
Camera x1
3pin FPV silicone cable x1
Warranty card x1
Expend bracket x1
Screws x 4
Package Included:
1 x Caddx Ant FPV Camera
1 x 3pin FPV silicone cable
1 x Warranty card
1 x Expend bracket
4 x Screws
