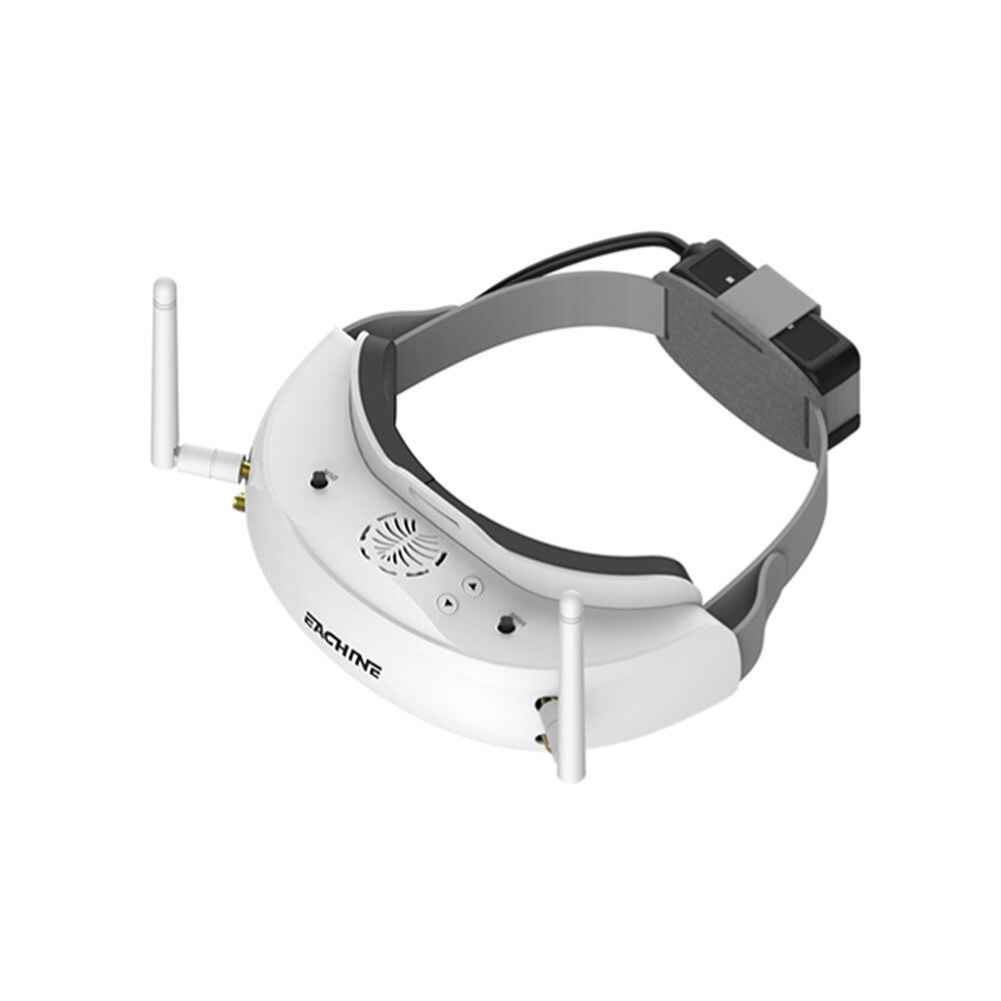

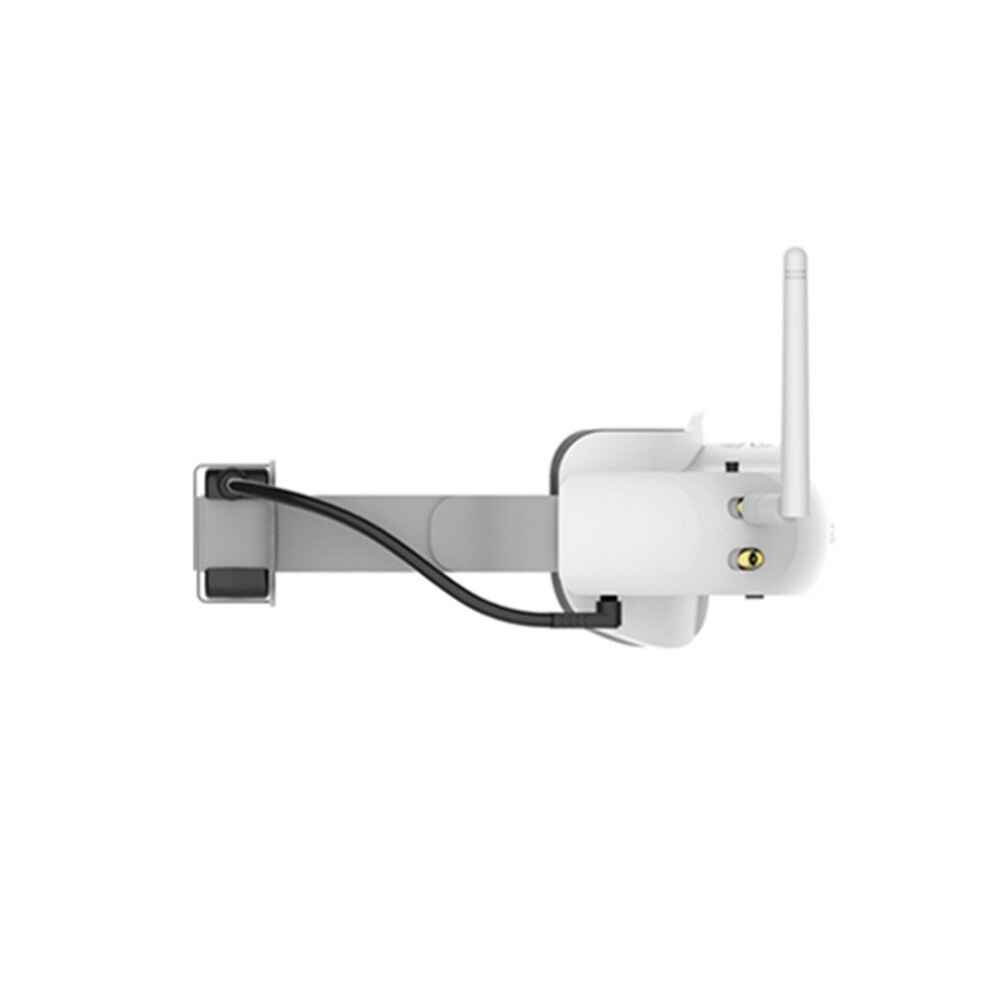

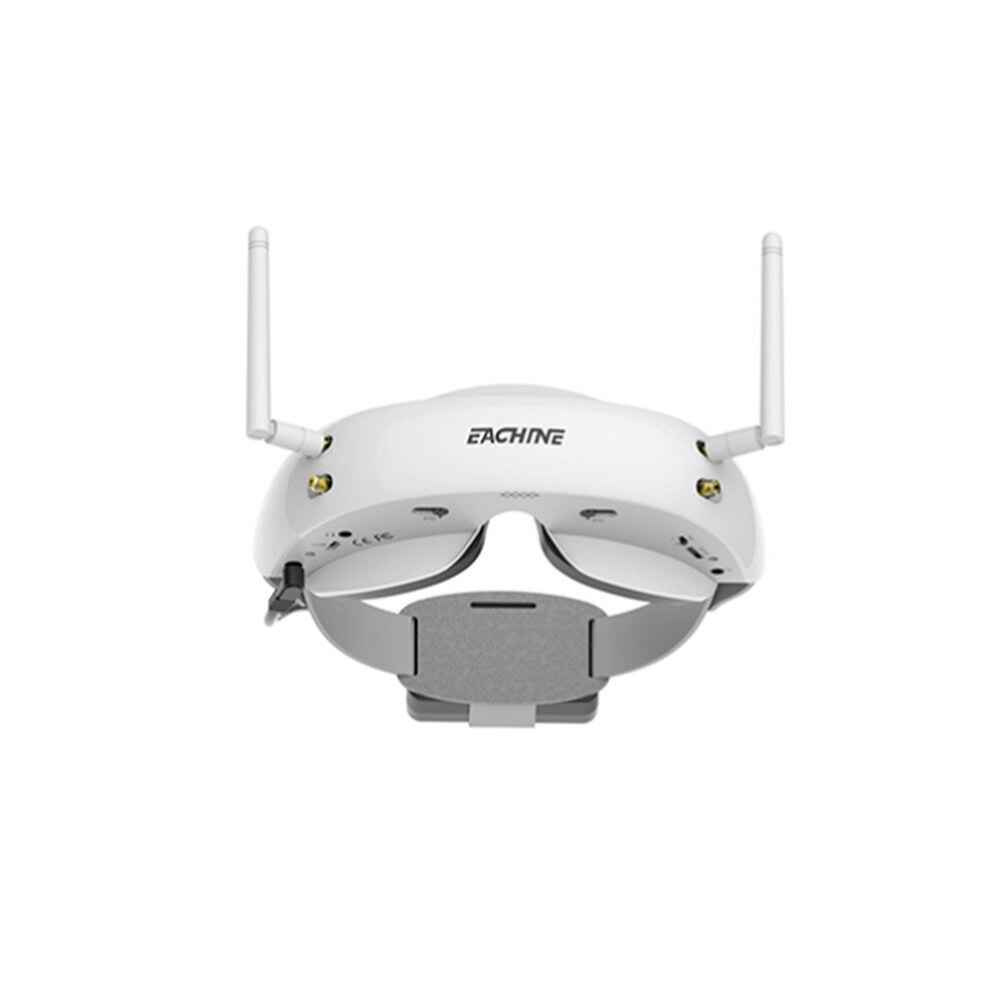

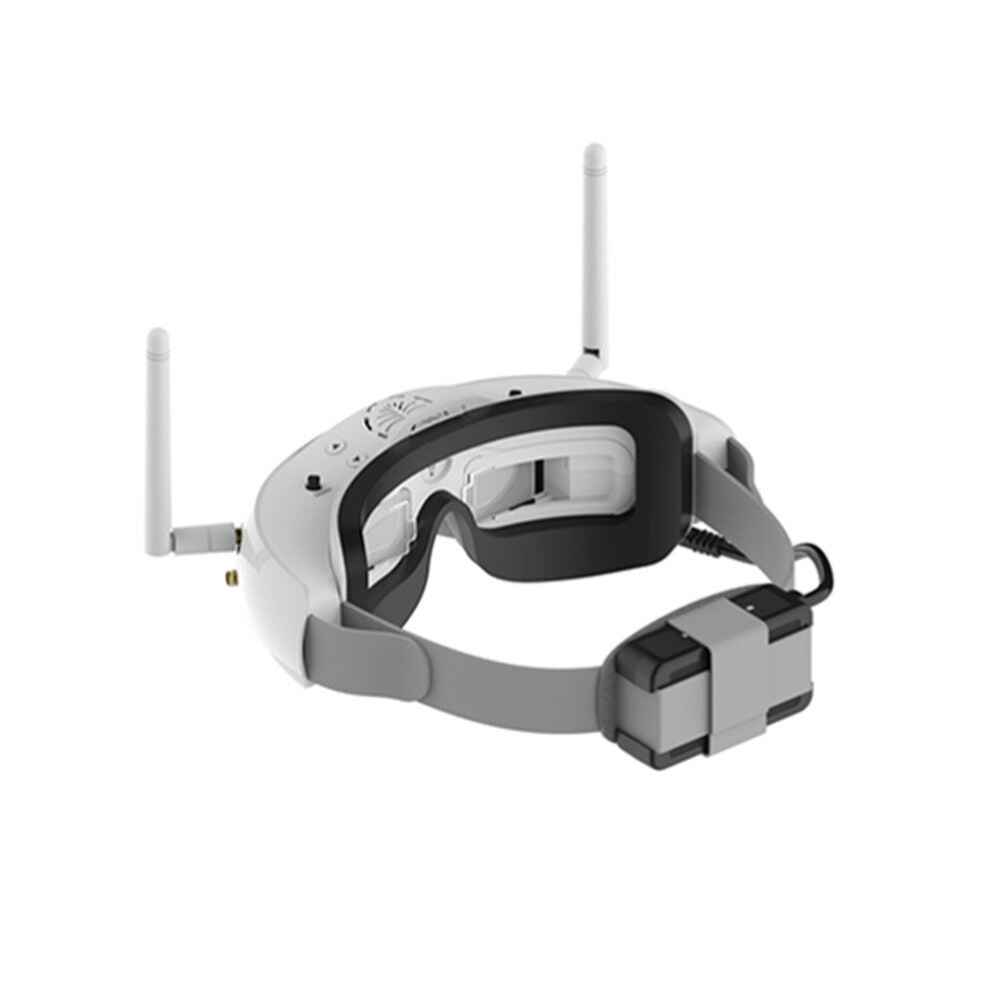

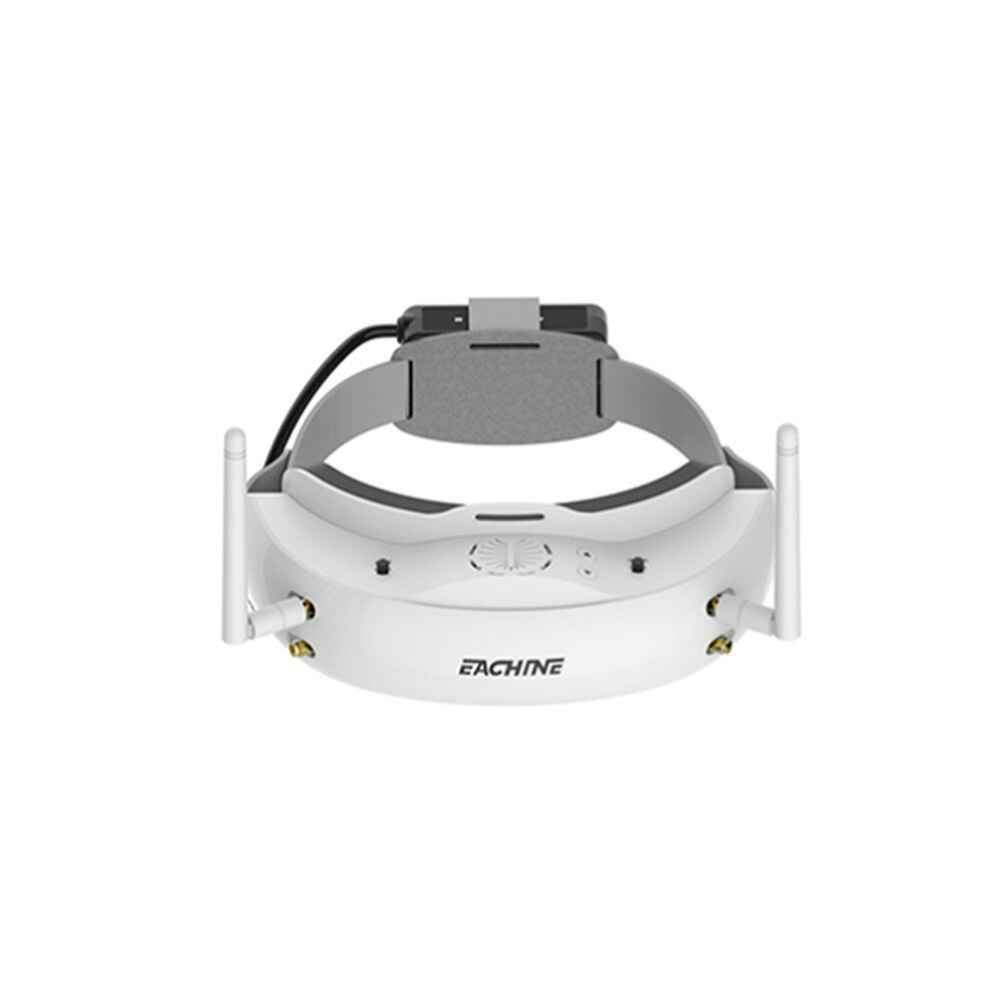

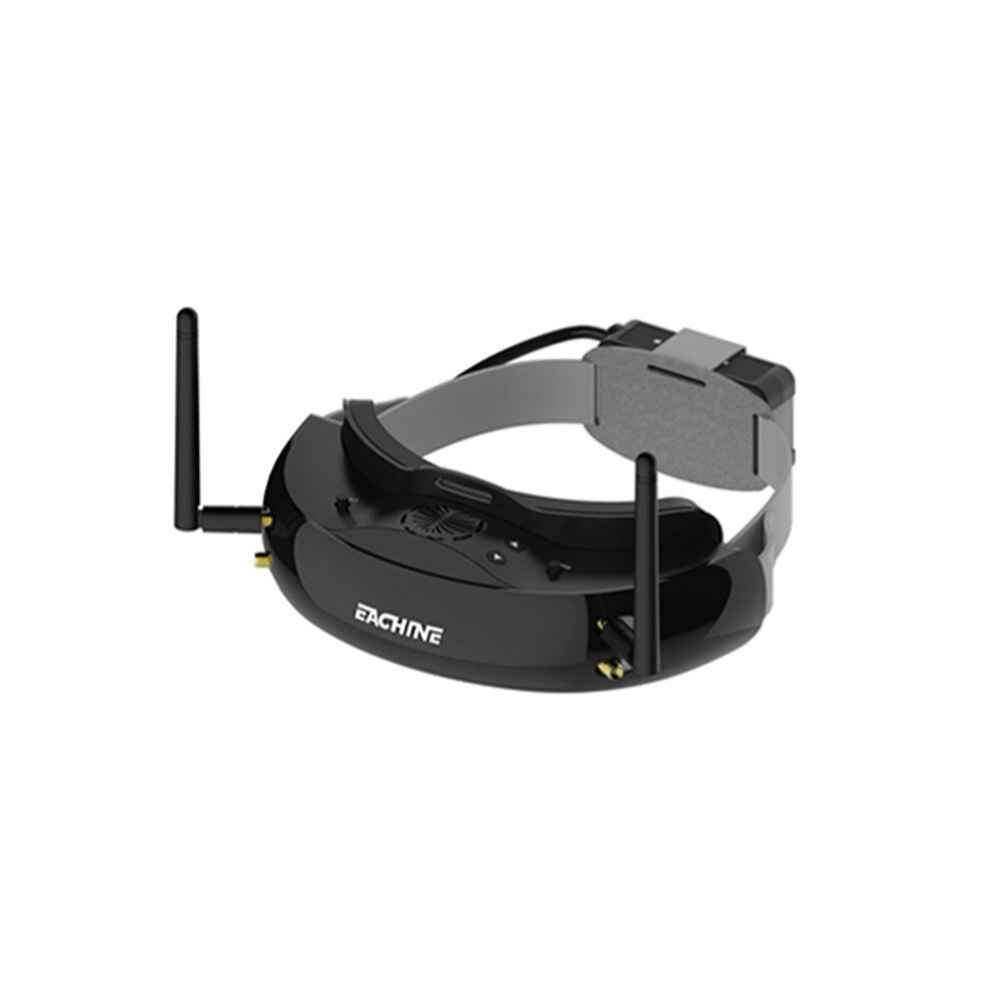

Eachine EV200D 1280*720 5.8G 72CH True Diversity FPV Goggles HD Port in 2D/3D Built-in DVR With 18650 Battery Case for RC Drone
The Eachine EV200D FPV Goggles offer an immersive flying experience with their high-resolution 1280×720 LCoS screens and a wide 42-degree field of view. Designed for both beginner and experienced FPV pilots, these goggles feature an adjustable IPD and focus, accommodating various vision needs. The dual true diversity receiver system ensures stable signal reception, while the built-in DVR allows for recording in H.264 format. With multiple input options, including miniHDMI and 3.5mm AV ports, and a built-in anti-fog fan, the EV200D is versatile and user-friendly. The goggles are easily upgradeable via SD card or USB, making them a reliable choice for FPV enthusiasts.
Note: From 5.25.2020.The battery will be changed to 18650 battery case In order to facilitate transport from CN. Thank you for your understanding!
Brand Story
Eachine is a leading brand in the FPV drone community, known for offering high-quality products at affordable prices. The EV200D is a follow-up to their budget-oriented EV100, designed to provide an immersive flying experience. Building on the success of its predecessor, the EV200D incorporates advanced features and improvements that cater to both beginners and experienced FPV pilots.
Eachine FPV Goggles Comparison: EV100 vs * EV200D vs EV300D
model
EV100
* EV200D
EV300D
Display Technology
Dual 0.5′ LCD
Dual 1.44′ LCD
Dual 2.0′ High-Brightness LCD
Field of View (FOV)
28‵
30‵
34‵
Receiver System
Dual Antennas
Dual-Antenna Diversity
Quad-Antenna True Diversity
Channel Support
40CH
48CH (incl. RaceBand)
48CH (incl. RaceBand)
DVR Functionality
With DVR
Basic Recording
720p Recording
IPD Adjustment
Mechanical Slider
Mechanical Slider
Mechanical Slider
Power Solution
2S 18650 (User Provided)
Built-in 1800mAh LiPo
Built-in 3000mAh LiPo
Weight
(without battery) 221g(with battery 57g and antenna 13g)
380g
450g
Best For
Budget Beginners
Intermediate Pilots
Advanced Enthusiasts
Features
– High-Resolution Display: Equipped with 1280沁720 LCoS screens, offering a native 16:9 aspect ratio that can be switched to 4:3. Default display is 16:9 – Wide Field of View: Features a 42‵ diagonal FOV, providing an expansive visual experience. – Adjustable IPD and Focus: IPD adjustable between 56-72mm, wide-ranging IPD and compatible with FatShark diopter lens (200/400/600 degrees selectable, diopter lens not included), accommodating various vision needs. – Dual True Diversity Receiver System: Supports two external RX modules, each with two SMA antenna connections, ensuring stable signal reception. – Built-in DVR: Records in H.264 format, with support for up to 64GB Micro-SD cards. – Multiple Input Options: Includes miniHDMI and 3.5mm AV input ports, as well as a 3.5mm headphone jack. Supported display mode: HD Port in 2D/3D; AV in 2D/3D – OSD Menu: Displays useful information such as RSSI signal strength, battery level, and DVR status. – Anti-Fog Fan: Built-in fan to prevent fogging during use. – Firmware Upgrade: Easily upgradeable via SD card or USB.
