FlyFishRC Osprey 5.8GHz RHCP Stubby Antenna for FPV Racing Drones, 40mm Ipex UFL Connector, Transparent Black

FlyFishRC Osprey 5.8GHz RHCP Stubby Antenna for FPV Racing Drones, 40mm Ipex UFL Connector, Transparent Black

Price range: 13.09$ through 26.79$

Optimized for FPV racing drones with 5.8GHz frequency
High gain of 2.82dBi for superior signal reception
RHCP polarization with 99% radiation efficiency
Compact 40mm length with Ipex/UFL connector
Lightweight design at only 2.1g

1 pc 2 Pcs 3 Pcs

Clear

SKU: RC1992060 Category: FPV Antennas Tags: 5.8GHz RHCP antenna, FlyfishRC Osprey antenna, FPV racing drone antenna, high gain drone antenna, Ipex UFL connector antenna, resilient RG141 coaxial cable, stubby antenna for drones, transparent black drone antenna Brand: FlyfishRC

Description

FlyFishRC Osprey 5.8Ghz 40mm Ipex UFL RHCP Stubby Antenna for FPV Racing RC Drone

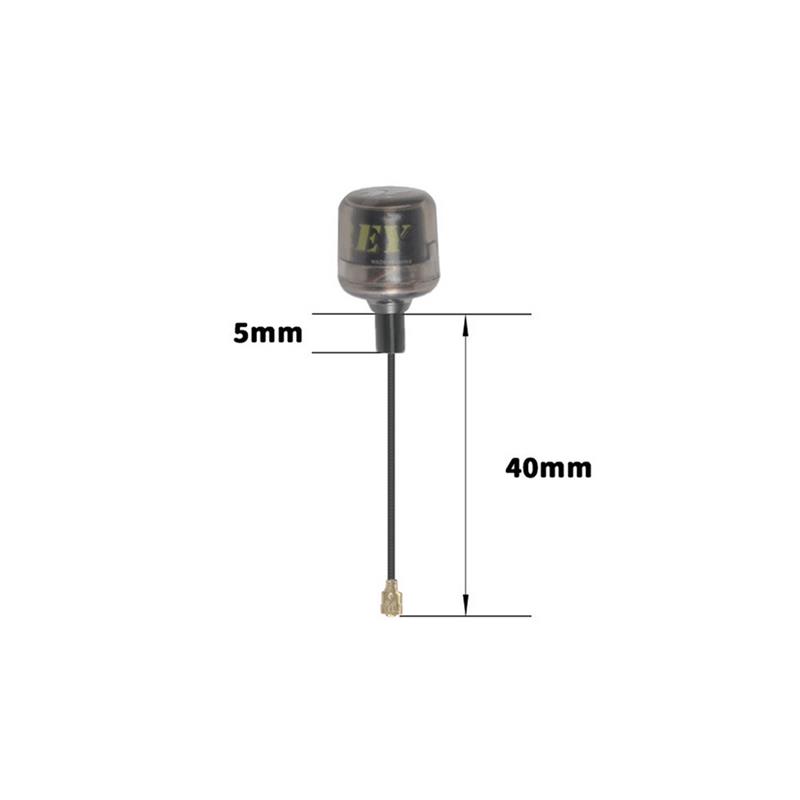

The FlyFishRC Osprey 5.8GHz Stubby Antenna is designed for FPV racing drones, offering exceptional performance with a gain of 2.82dBi and a V.S.W.R. of approximately 1.2:1. This RHCP polarized antenna ensures optimal signal reception with a high radiation efficiency of 99%. It features a compact design with a head diameter of 14.1mm and a height of 14mm, while the total length is 40mm. The robust RG141 coaxial cable enhances durability, and the Ipex/UFL connector provides easy installation. Weighing just 2.1g, this antenna is lightweight yet durable, making it an excellent choice for competitive drone racing.

Specificationsㄩ

Gain:

2.82dBi

Frequency:

5.8GHz

V.S.W.R:

≒1.2:1

Radiation Efficiency:

99%

Polarization:

RHCP

Connector:

Ipex/UFL

Dimensions(head):

14.1mm dia. X 14mm height.

Length:

40mm

Cable:

Resilient RG141 coax.

Colors:

Transparent Black

Weight:

2.1g

Includesㄩ
1x FlyFishRC 5.8Ghz ipex/UFL Stubby Antenna – RHCP 40mm

Package Included:
1 x FlyFishRC 5.8GHz Ipex/UFL Stubby Antenna – RHCP 40mm
