FlyFishRC Dual-Band 5.8Ghz/2.4Ghz UFL FPV Antenna for DJI O3/O4/O4 PRO AirUnit RC Drone, 40mm/95mm/145mm

145mm

Price range: 16.52$ through 58.50$

Dual-band 5.8Ghz/2.4Ghz frequency range

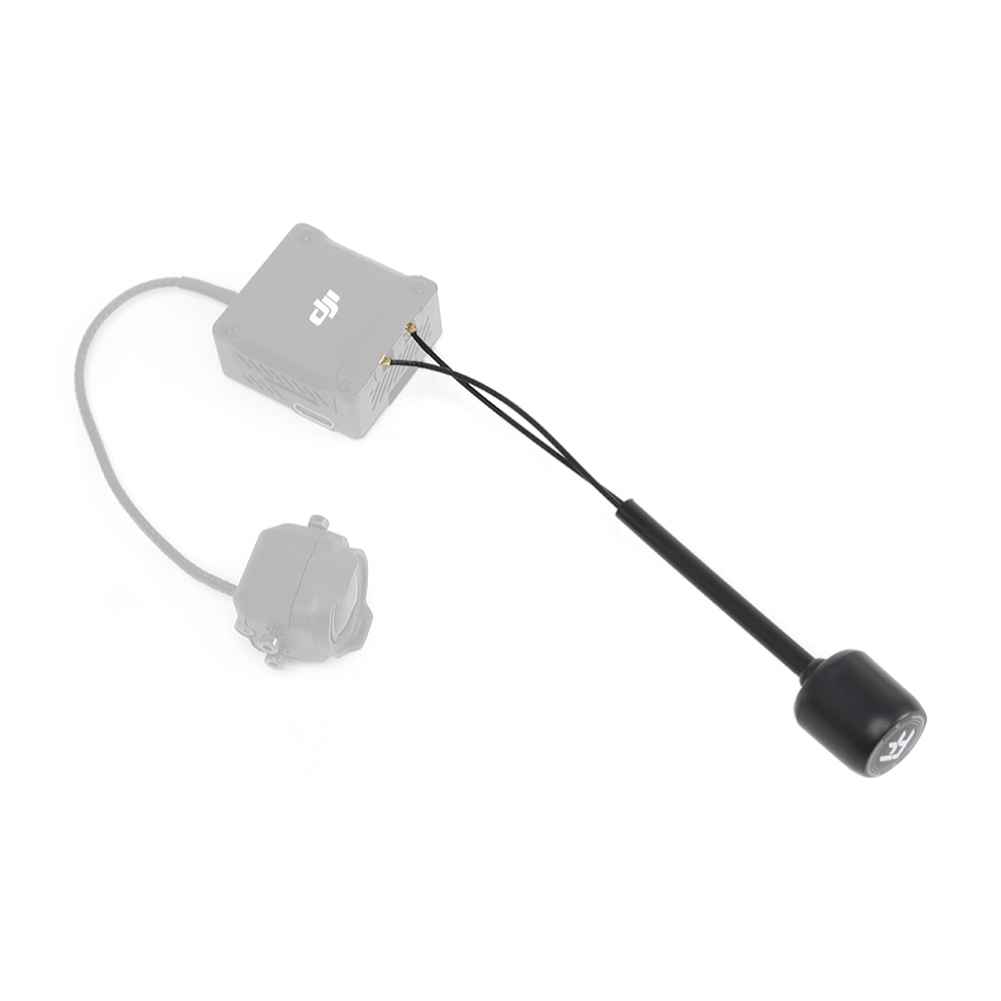

Compatible with DJI O3/O4/O4 PRO AirUnit
Linear polarization with 2.5dBi/3.8dBi gain
Lightweight design in 40mm, 95mm, and 145mm sizes
Includes IPEX 2 connector and RF1.13 cable

Length

145mm 40mm 95mm

1 pc 2 Pcs 3 Pcs

Color

Black Red

Clear

SKU: RC1992030 Category: FPV Antennas Tags: 5.8Ghz 2.4Ghz antenna, DJI O3 antenna, DJI O4 PRO accessory, dual-band FPV antenna, FlyFishRC antenna, lightweight drone antenna, RC drone antenna, UFL FPV antenna Brand: FlyfishRC

Description

FlyFishRC 40mm/95mm/145mm Dual-Band 5.8Ghz/2.4Ghz UFL FPV Antenna for DJI O3/O4/O4 PRO AirUnit RC Drone

The FlyFishRC Dual-Band UFL FPV Antenna is designed for optimal performance with DJI O3/O4/O4 PRO AirUnit RC Drones. Operating on frequencies between 2400-2500MHz and 5700-5900MHz, this antenna offers a gain of 2.5dBi and 3.8dBi, ensuring reliable signal strength. It features a linear polarization and an impedance of 50次, with a VSWR close to 1.6 for efficient transmission. The antenna comes with an IPEX 2 connector and an RF1.13 cable, available in a sleek black and red design. Weighing just 2.4g, 3.3g, and 3.9g for the 40mm, 95mm, and 145mm versions respectively, this lightweight antenna is ideal for enhancing your FPV system.

Specifications:

Frequency Rang:

2400-2500MHz/5700-5900MHz

Gain:

2.5dBi/3.8dBi

VSWR:

≒1.6

Polarization:

Linear

Impendance:

50次

Connector:

IPEX*2

Cable:

RF1.13

Color:

Black/Red

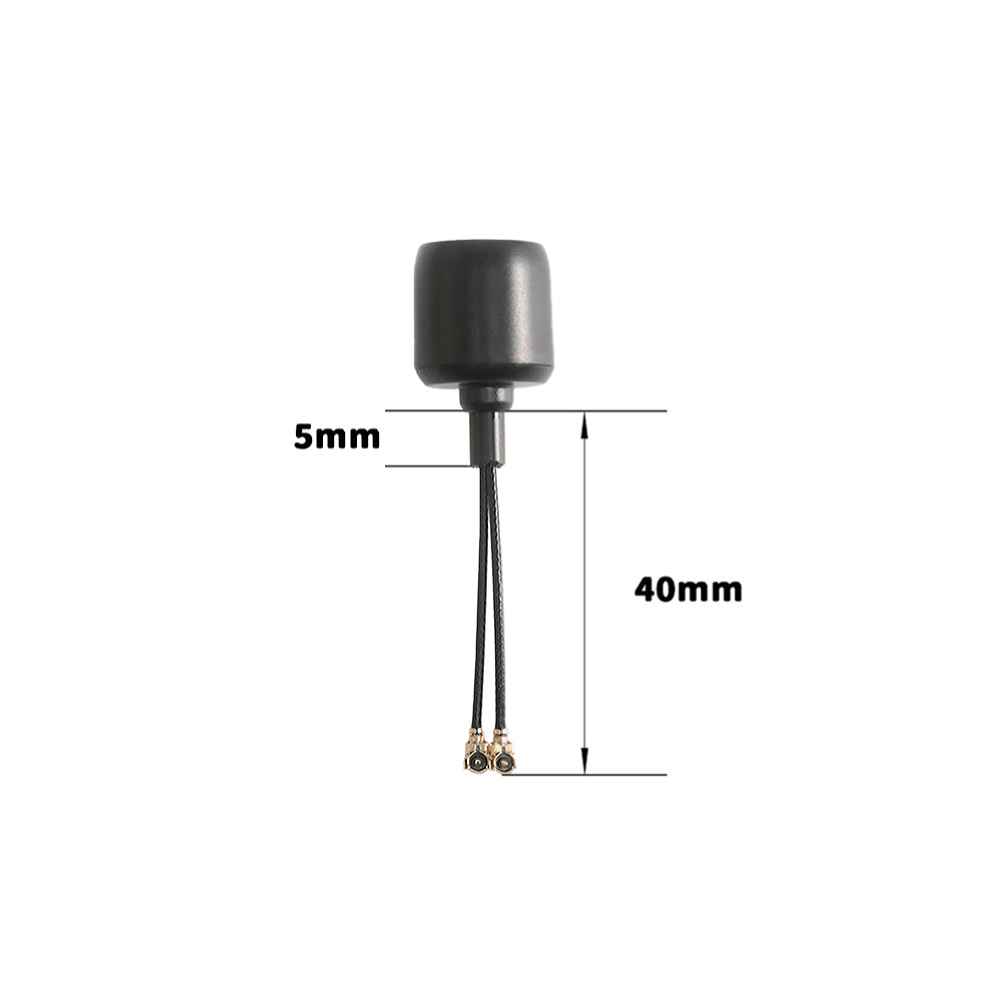

40mm Stubby Weight:

2.4g

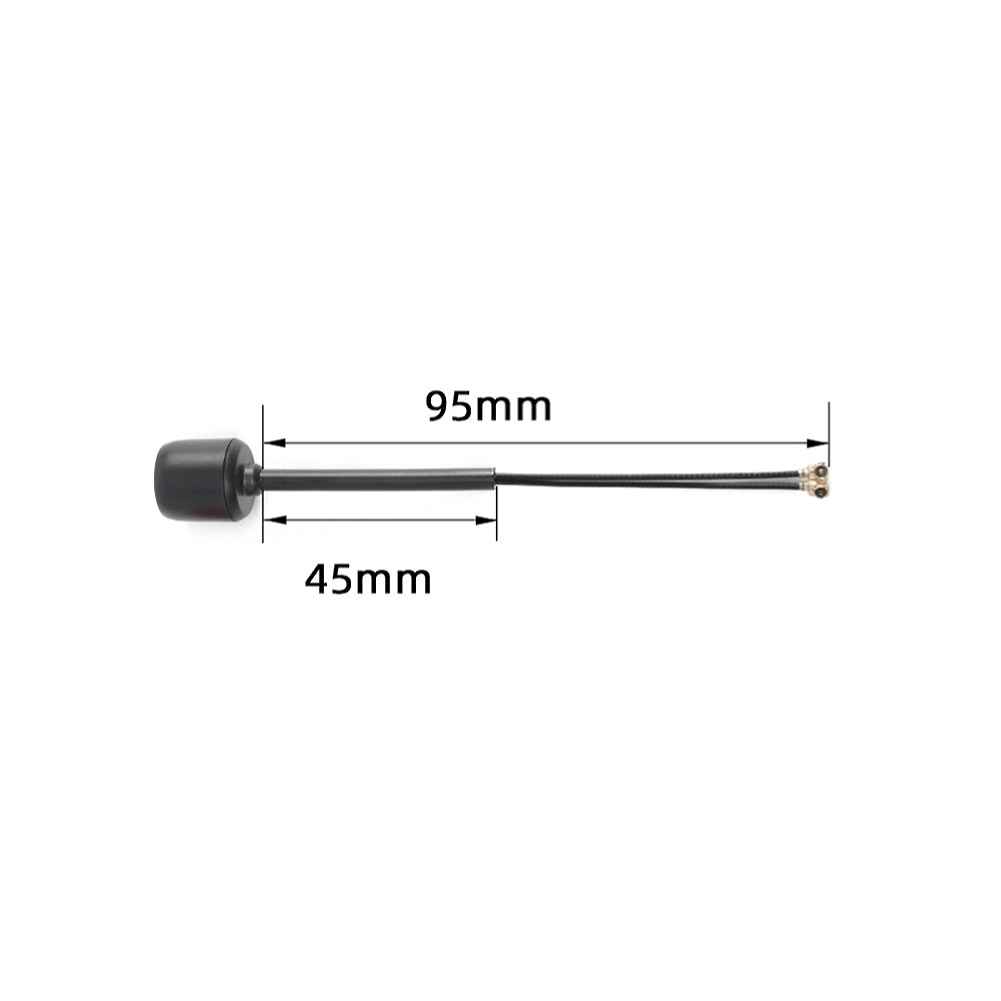

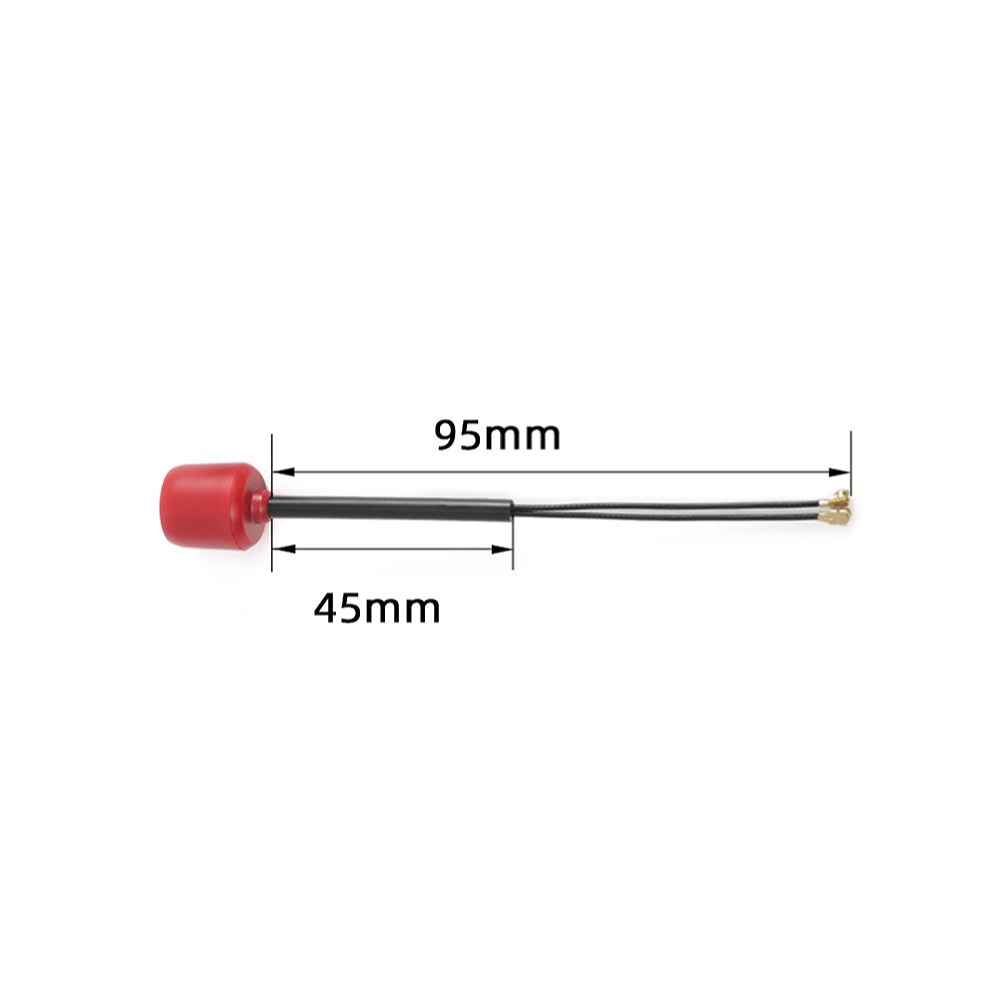

95mm Weight:

3.3g

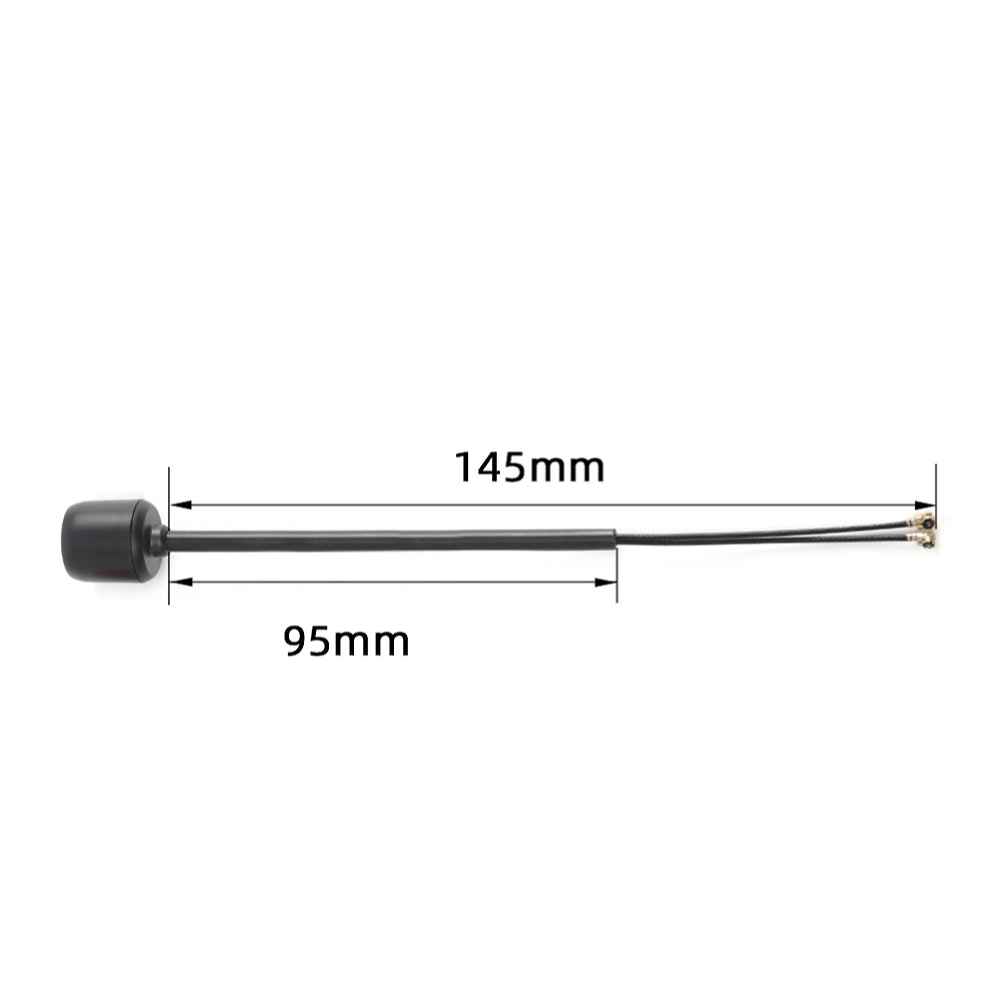

145mm Weight:

3.9g

Size:

朴16*17mm

Includes:
1x FlyFishRC Antenna for DJI O3/O4/O4 PRO AirUnit

Package Included:
1 x FlyFishRC Antenna for DJI O3/O4/O4 PRO AirUnit
