FlyFishRC Osprey 5.8GHz RHCP FPV Antenna, 90mm MMCX Connector, High Gain for RC Drones

Price range: $11.29 through $32.37

  • Lightweight and compact with 4-leaf construction
  • High gain of up to 2.8dBi and 99% radiation efficiency
  • Transparent casing for hybrid network compatibility
  • Impact-resistant polycarbonate housing
  • Gold-plated MMCX connector for reliable performance

Description

FlyFishRC Osprey 5.8Ghz 90mm MMCX FPV Antenna RHCP for RC Drone

The FlyFishRC Osprey 5.8GHz FPV Antenna is designed for RC drone enthusiasts seeking superior signal strength and clarity. Its lightweight, compact design features a unique 4-leaf construction with a transparent casing, optimized for hybrid networks. Despite its small size, the antenna offers a high gain of up to 2.8dBi and an impressive 99% radiation efficiency, outperforming most other antennas in its class. Engineered for optimal range and penetration, it supports the mainstream FPV 5.8GHz band with a frequency range of 5.6GHz-6.0GHz, ensuring a strong and clear signal. The antenna is encased in impact-resistant polycarbonate, protecting the internal elements, and features a gold-plated MMCX connector for reliable performance.

Features:
With its lightweight design, new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and is now available to FPV pilots at an incredibly attractive price.
The Osprey Antenna features a transparent casing, unique for hybrid network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.
Although the Osprey Antenna is both small and light, it does not sacrifice any performance with high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.
Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of a frequency you’re on, you are guaranteed to have a signal as clear and strong as it*s possible.
The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.
Specifications:
Gain: 2.82dBi
Frequency: 5.8GHz
V.S.W.R: ≒1.2:1
Radiation Efficiency: 99%
Polarization: RHCP
Connector:Gold plated MMCX

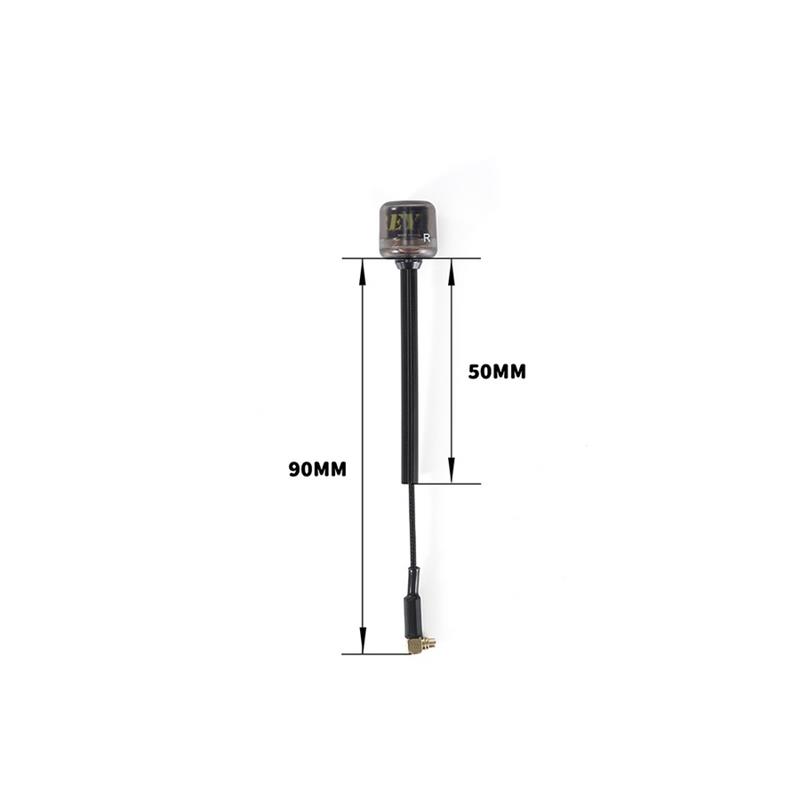

Dimensions(head): 14.1mm dia. X 14mm height.
Length: 104mm
Cable: Resilient RG141 coax.
Colors: Transparent Black

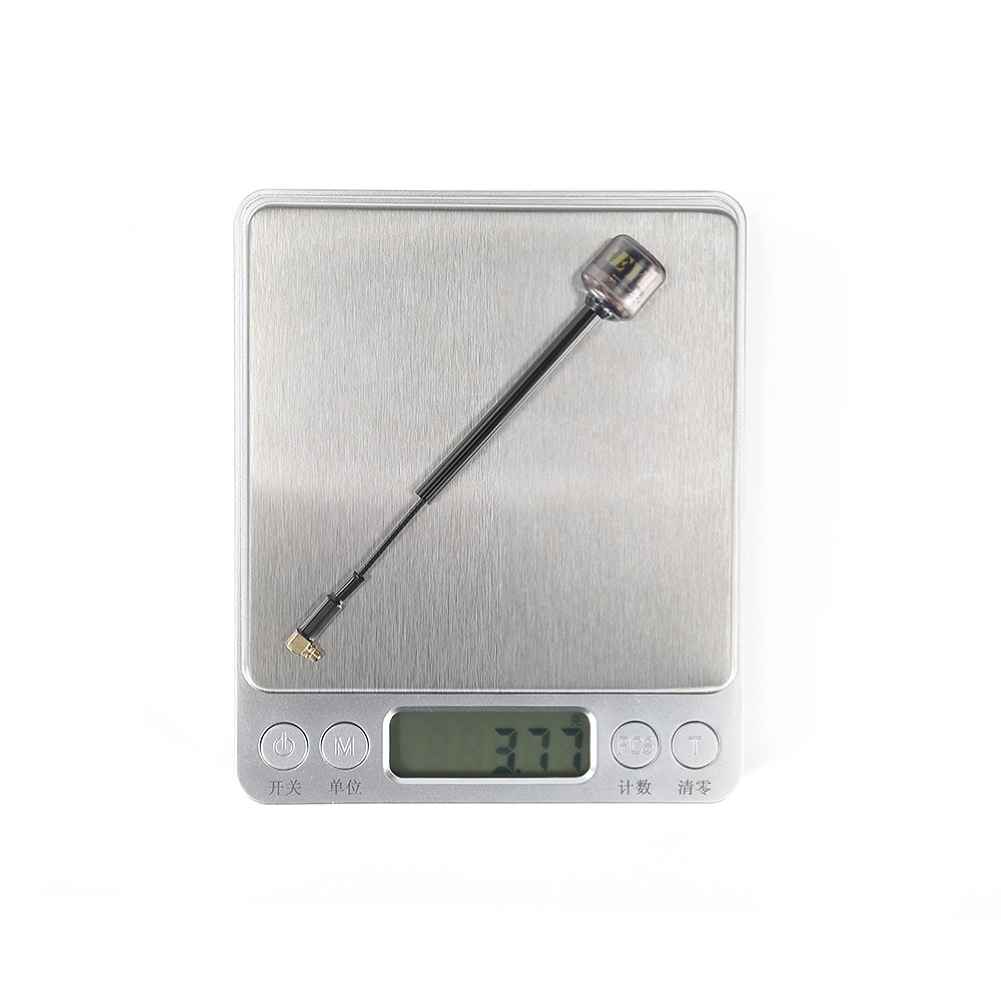

Weight: 3.77g

Package Included:
1 x FlyFishRC Osprey 5.8GHz SMA Antenna – MMCX 90mm

Recommended Category:
Toys & Games > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > RC Vehicle Parts > RC Vehicle Antennas

Additional information

Weight 0.005 kg
Pcs

1 pc, 2 Pcs, 3 Pcs, 4 Pcs
