Description

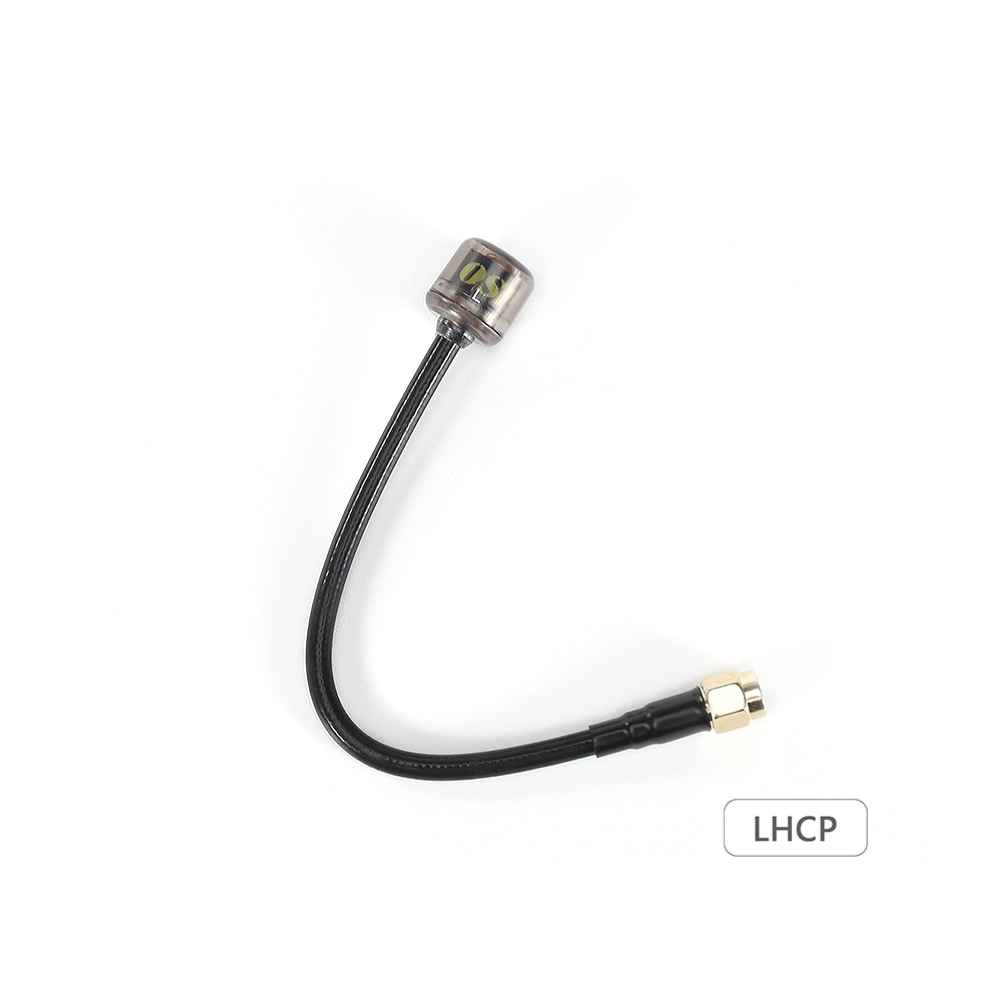

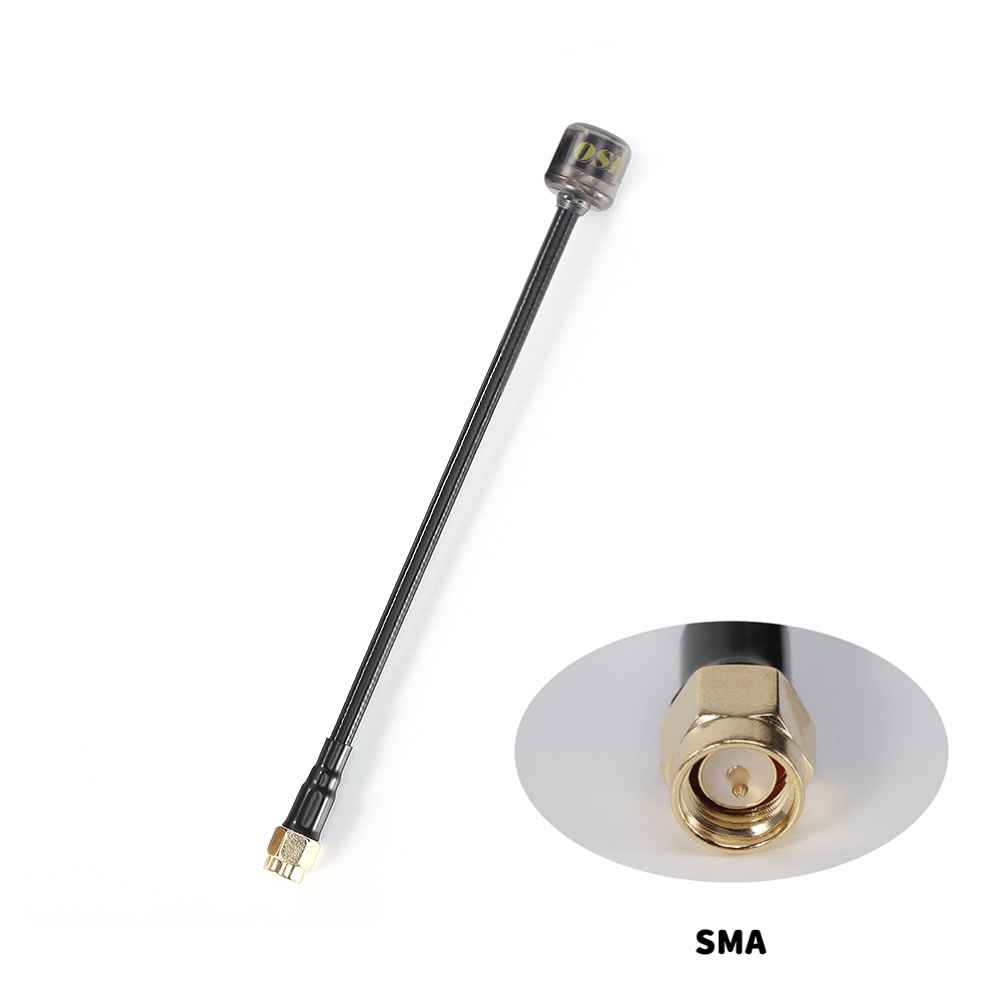

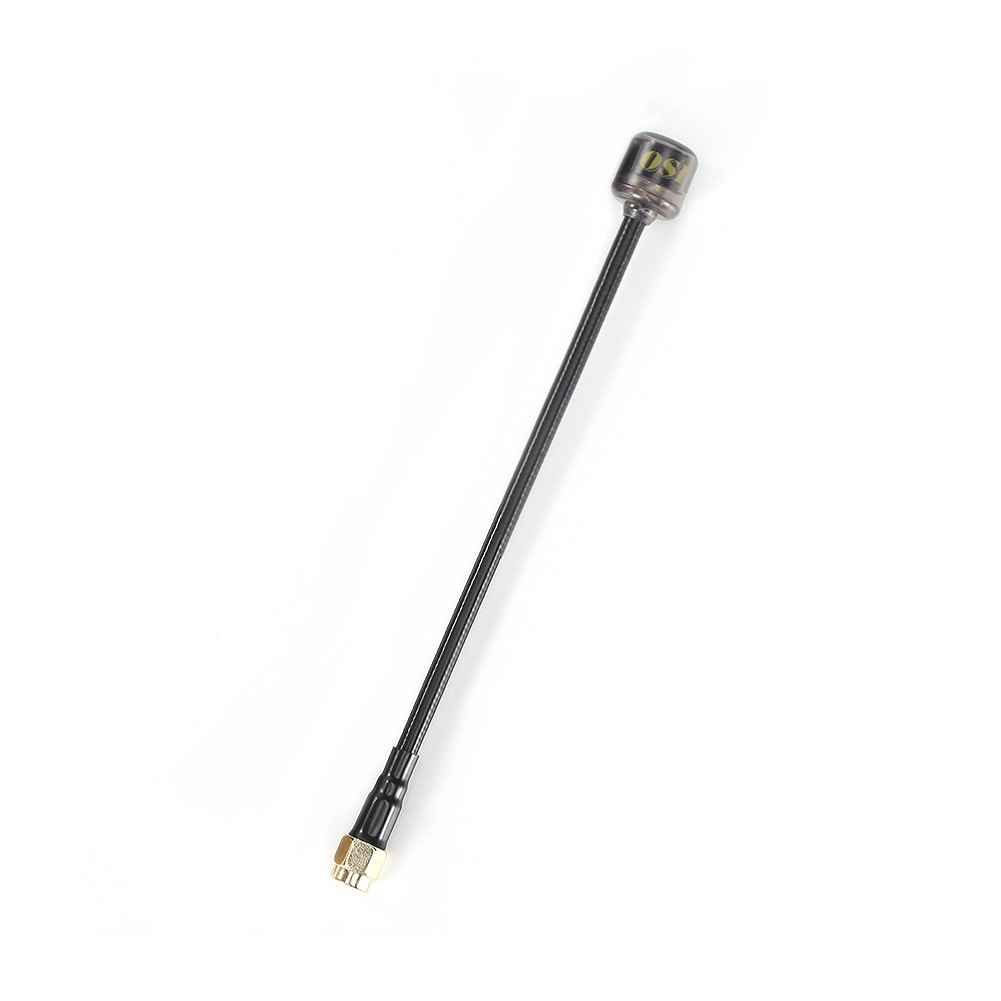

FlyfishRC Osprey 5.8Ghz 130mm SMA FPV Antenna LHCP for RC Drone
The FlyFishRC Osprey 5.8GHz SMA FPV Antenna is engineered for superior performance in RC drones. Its lightweight, 4-leaf design ensures excellent signal penetration and clarity. With a high gain of 2.82dBi and 99% radiation efficiency, this antenna outperforms most competitors. The transparent polycarbonate casing is impact-resistant and hermetically sealed, protecting the internal elements. Measuring 14.1mm in diameter and 14mm in height, it is compact yet powerful. The resilient RG141 coax cable and gold-plated SMA connector enhance durability. Covering the 5.6GHz-6.0GHz frequency range, it guarantees strong and clear signals across mainstream FPV bands.
Specifications:
Gain: 2.82dBi
Frequency: 5.8GHz
V.S.W.R: ≒1.2:1
Radiation Efficiency: 99%
Polarization: LHCP
Connector: Gold plated SMA
Dimensions(head): 14.1mm dia. X 14mm height.
Length: 130mm
Cable: Resilient RG141 coax.
Colors: Transparent Black
Weight:11.29g
Features:
With its lightweight design, new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and is now available to FPV pilots at an incredibly attractive price.
The Osprey Antenna features a transparent casing, unique hybrid network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.
Although the Osprey Antenna is both small and light, it does not sacrifice any performance with high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.
Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of a frequency you’re on, you are guaranteed to have a signal as clear and strong as it*s possible.
The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.
Package Included:
1 x FlyFishRC Osprey 5.8Ghz SMA Antenna – LHCP 130mm
