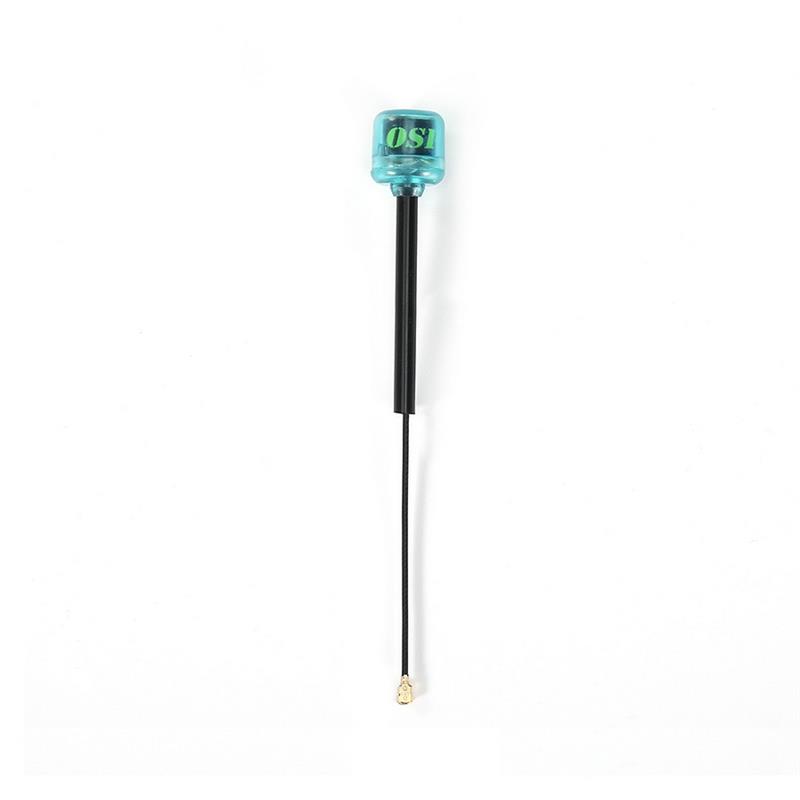

FlyFishRC Osprey 5.8Ghz 90mm Ipex/UFL FPV Antenna LHCP for RC Drone
The FlyFishRC Osprey 5.8GHz LHCP FPV Antenna is designed for superior performance in RC drones. Its lightweight, 4-leaf construction ensures excellent signal penetration and clarity. With a compact size of 14.1mm in diameter and 14mm in height, this antenna is smaller than most 5.8GHz CP antennas. Despite its size, it offers high gain up to 2.8dBi and 99% radiation efficiency, outperforming many others in its class. The antenna features a unique transparent casing made from impact-resistant polycarbonate, protecting the internal elements. Covering a frequency range from 5.6GHz to 6.0GHz, it provides consistent and strong signals. The sophisticated engineering ensures a near-perfect circular shape, enhancing range and penetration.
Features:
With its lightweight design, new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and s now available to FPV pilots at an incredibly attractive price.
The Osprey Antenna features a transparent casing, unique for hybrid network, and s smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.
Although the Osprey Antenna is both small and light, it does not sacrifice any performance with high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better rang and penetration.
Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency rang. Regardless of a frequency you’re on, you are guaranteed to have a signal as clear and strong as it＊s possible.
The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna element inside.
Specifications:
Gain: 2.82dBi
Frequency: 5.8GHz
V.S.W.R: ≒1.2:1
Radiation Efficiency: 99%
Polarization: LHCP
Connector: UFL(ipex 1)
Dimensions(head): 14.1mm dia. X 14mm height.
Length: 104mm
Cable: Protection tube RG1.13 coax.
Weight: 2.8g
Package Included:
1 x FlyFishRC Osprey 5.8GHz ipex/UFL FPV Antenna – LHCP 90mm
