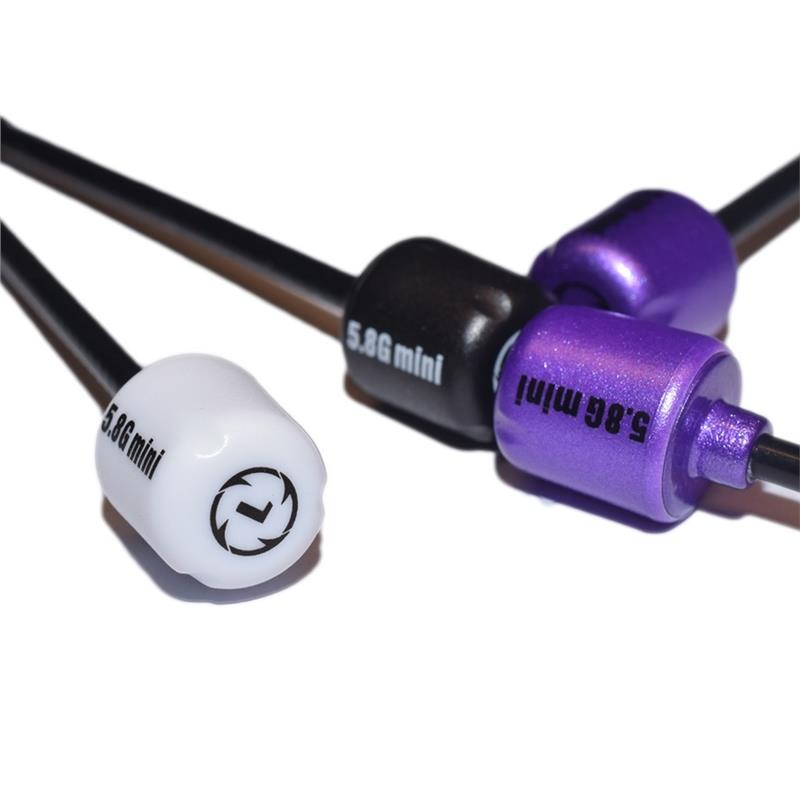

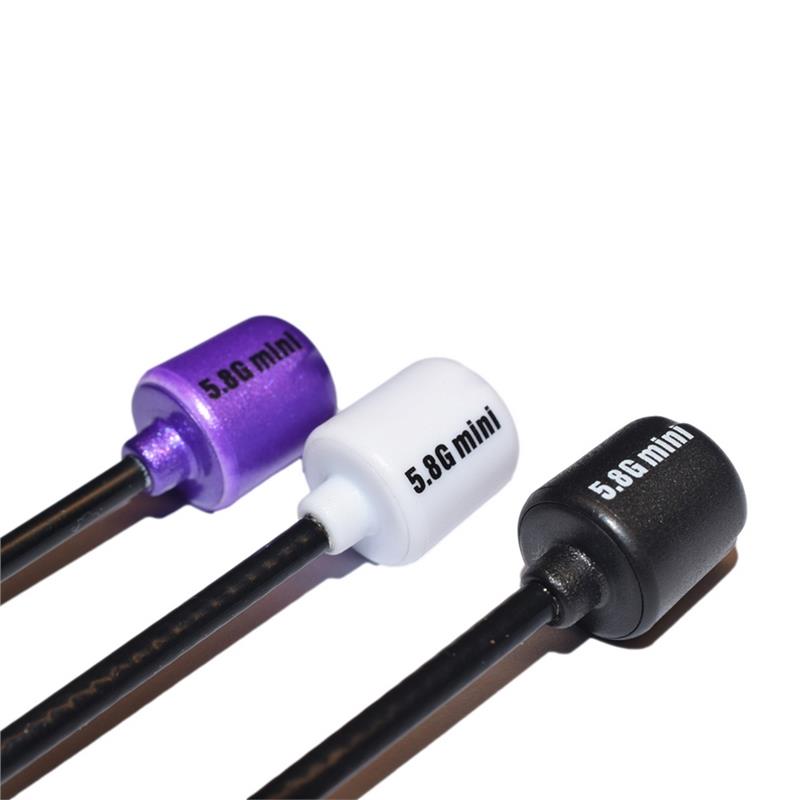

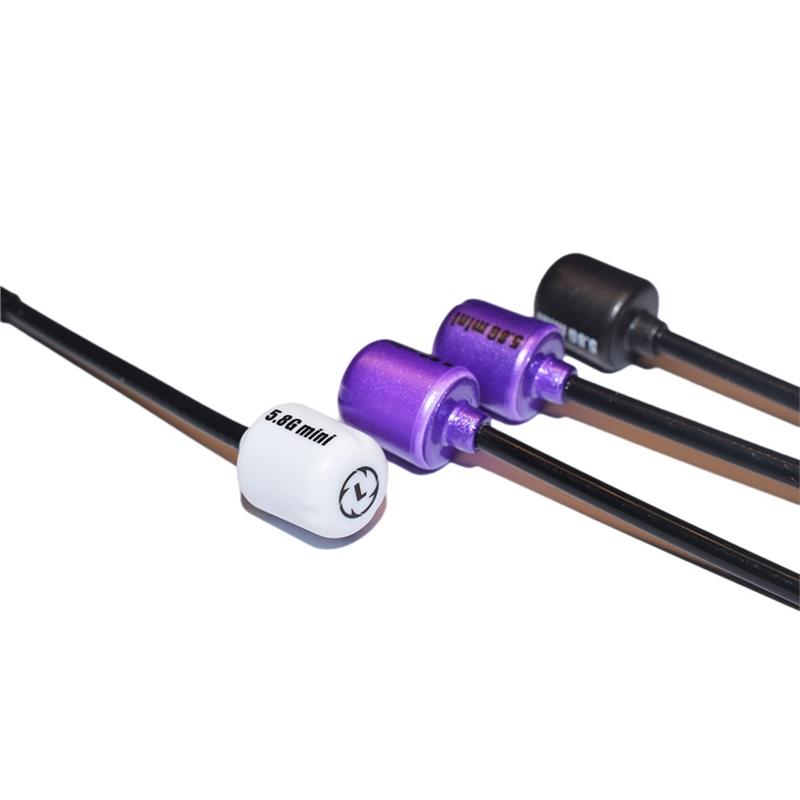

2PCS AuroraRC MINI105 5.8GHz 2.5DBi Omni FPV Antenna LHCP SMA/RP-SMA/MMCX/UFL for RC Drone Airplane
Specifications:
Brand Name: AuroraRC
Item Name: MINI105
Shell Material: Imported PC + ABS
Weight: 1.4g/2.6g/4.6g
Antenna Length: 80mm
Frequency: 5.8 GHz
Gain: 2.5 Dbi
Bandwidth: 500 MHz (5.5-6.0 GHz)
Matching: VSWR < 1.2 (at center frequency)
Axial ratio: <3db
Center Frequency: 5750MHz
Radiation Efficiency: 98%
Polarization: LHCP
Color: Purple,Black,White (Optional)

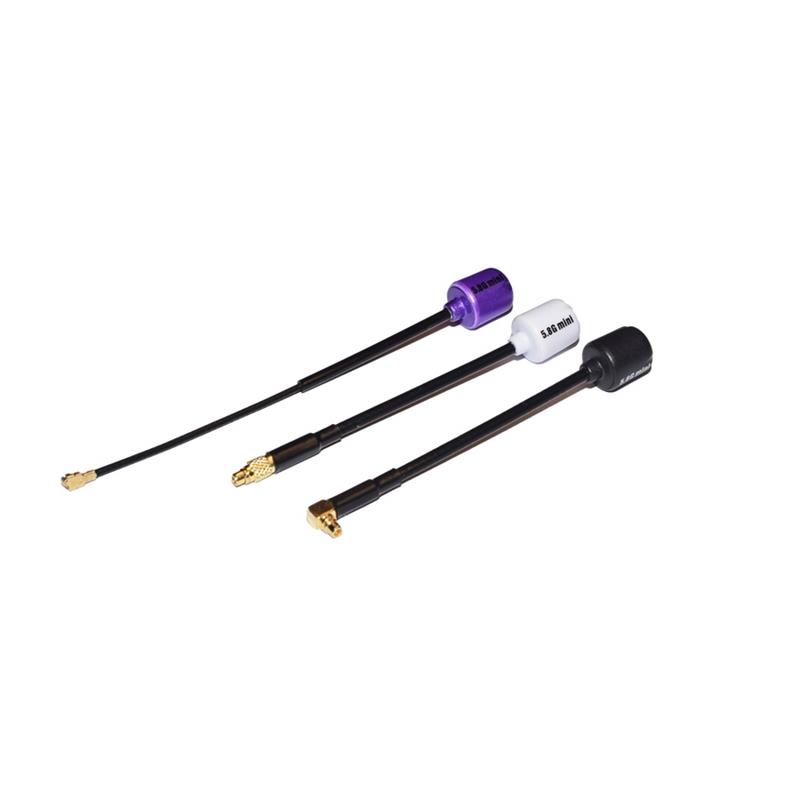

Connector: SMA,RP-SMA,Straight MMCX,MMCX-L,UFL (Optional)
Features:
– Body adopt imported PC+ABS material, can withstand high strength impact.
– Root reinforcement design 360?? protection.
– Low feeder loss,easy to install,can be bent at any angle and maintain.
– Double-jacket semi-rigid cable for heavy impact resistance.
RHCP Version, Click Here
Package Included:
2x AuroraRC MINI105 5.8G 2.5DBi Omni Antenn A
Additional information
Weight | 0.01 kg |
---|---|
Model: No selection | MMCX, MMCX-L |
Color: No selection | Black, White |
