FlyFishRC Osprey 5.8GHz 150mm SMA/RP-SMA Antenna LHCP/RHCP for FPV Racing Drones

Out Of Stock

RHCP for FPV Racing Drones

Price range: $11.79 through $37.69

Lightweight 4-leaf construction for superior signal clarity
Compact design with 14.1mm diameter and 14mm height
High gain of up to 2.8dBi and 99% radiation efficiency
Impact-resistant polycarbonate casing
Frequency range of 5.6GHz to 6.0GHz for consistent signals

Color

Clear

SKU: RC1987644 Category: FPV Antennas Tags: 5.8GHz FPV antenna, FlyfishRC Osprey antenna, FPV racing drone antenna, high gain FPV antenna, impact-resistant FPV antenna, lightweight drone antenna, RHCP LHCP antenna, SMA RP-SMA antenna Brand: FlyfishRC

Description

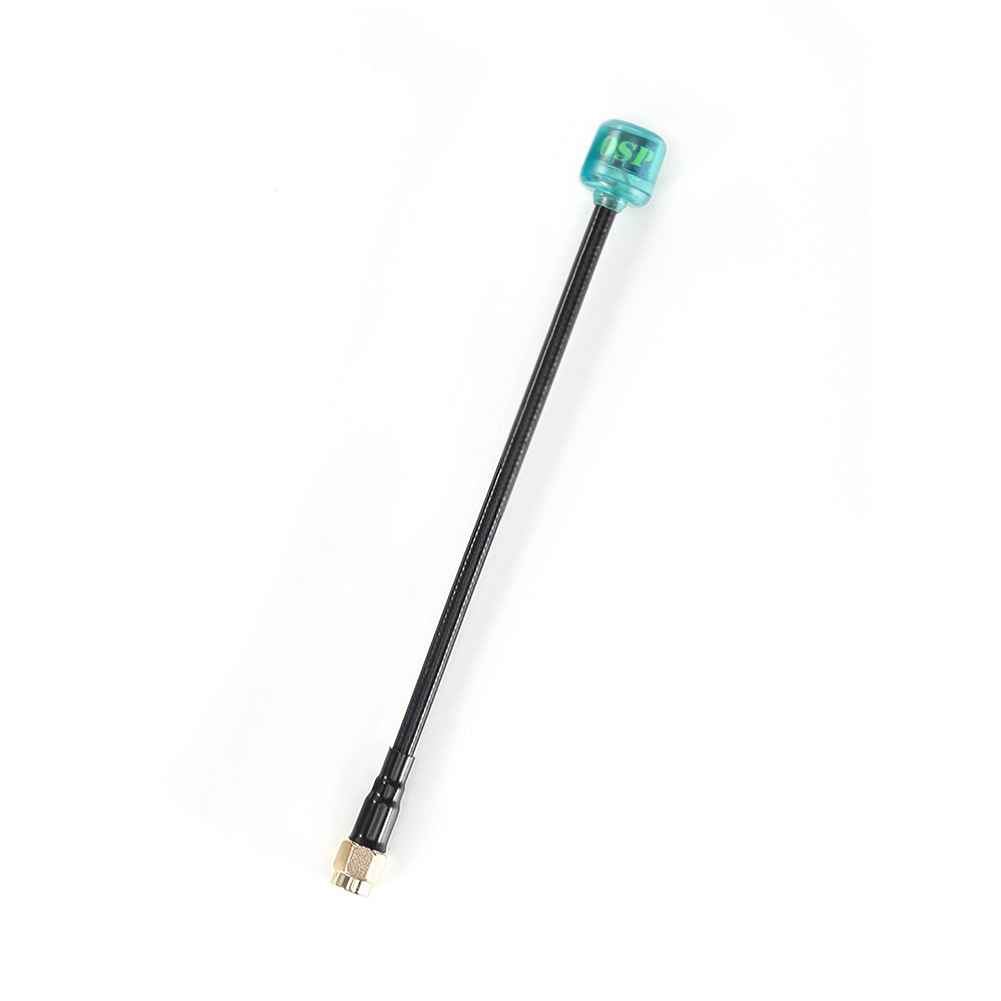

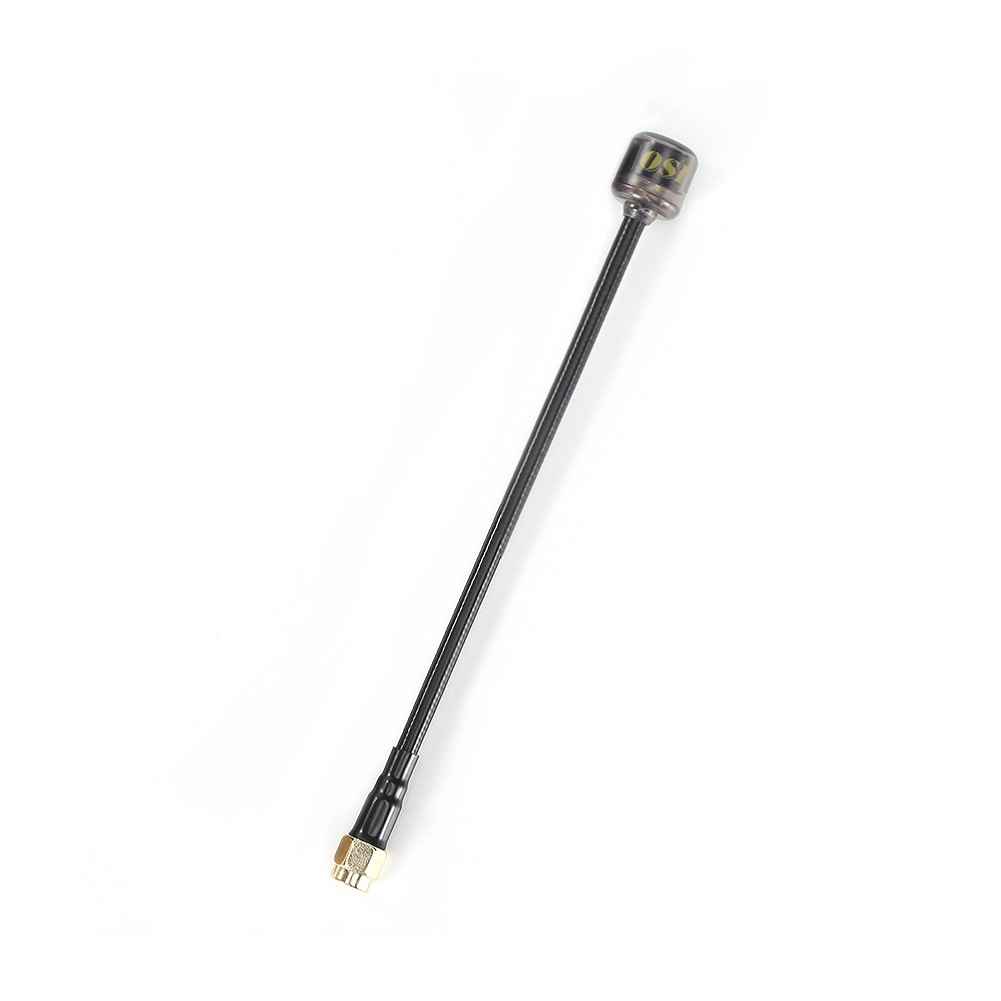

FlyFishRC Osprey 5.8Ghz 150mm SMA/RP-SMA Antenna LHCP/RHCP for FPV Racing RC Drone

The FlyFishRC Osprey Antenna is designed for FPV racing drones, featuring a lightweight, 4-leaf construction that ensures superior signal penetration and clarity. Its compact size, with a head diameter of 14.1mm and height of 14mm, offers high performance without compromising on gain, achieving up to 2.8dBi and 99% radiation efficiency. The antenna’s transparent casing is made from impact-resistant polycarbonate, providing durability and protection for the internal elements. With a frequency range of 5.6GHz to 6.0GHz, it covers the mainstream FPV 5.8GHz band, ensuring consistent, strong signals. The Osprey Antenna also includes a gold-plated SMA connector and a resilient RG141 coax cable, available in transparent black or cyan.

Features:
With its lightweight design, new 4-leaf construction, the FlyFishRC Osprey Antenna offers superb penetration, signal strength and clarity, and is now available to FPV pilots at an incredibly attractive price.
The Osprey Antenna features a transparent casing, unique for hybrid network, and is smaller than other 5.8GHz CP antennas, Dimensions(head): 14.1mm diameter. X 14mm height.
Although the Osprey Antenna is both small and light, it does not sacrifice any performance with high gain of up to 2.8dBi and 99% radiation efficiency. Moreover, it outperforms most other antennas in all categories. Sophisticated engineering gives this antenna a near-perfect circular shape for better range and penetration.
Its bandwidth covers the mainstream FPV 5.8GHz band with a 5.6GHz-6.0GHz frequency range. Regardless of a frequency you’re on, you are guaranteed to have a signal as clear and strong as it＊s possible.
The Osprey Antenna casing is made of impact-resistant polycarbonate material that is hermetically sealed to protect the antenna elements inside.
Specifications:

Gain:

2.82dBi

Frequency:

5.8GHz

V.S.W.R:

≒1.2:1

Radiation Efficiency:

99%

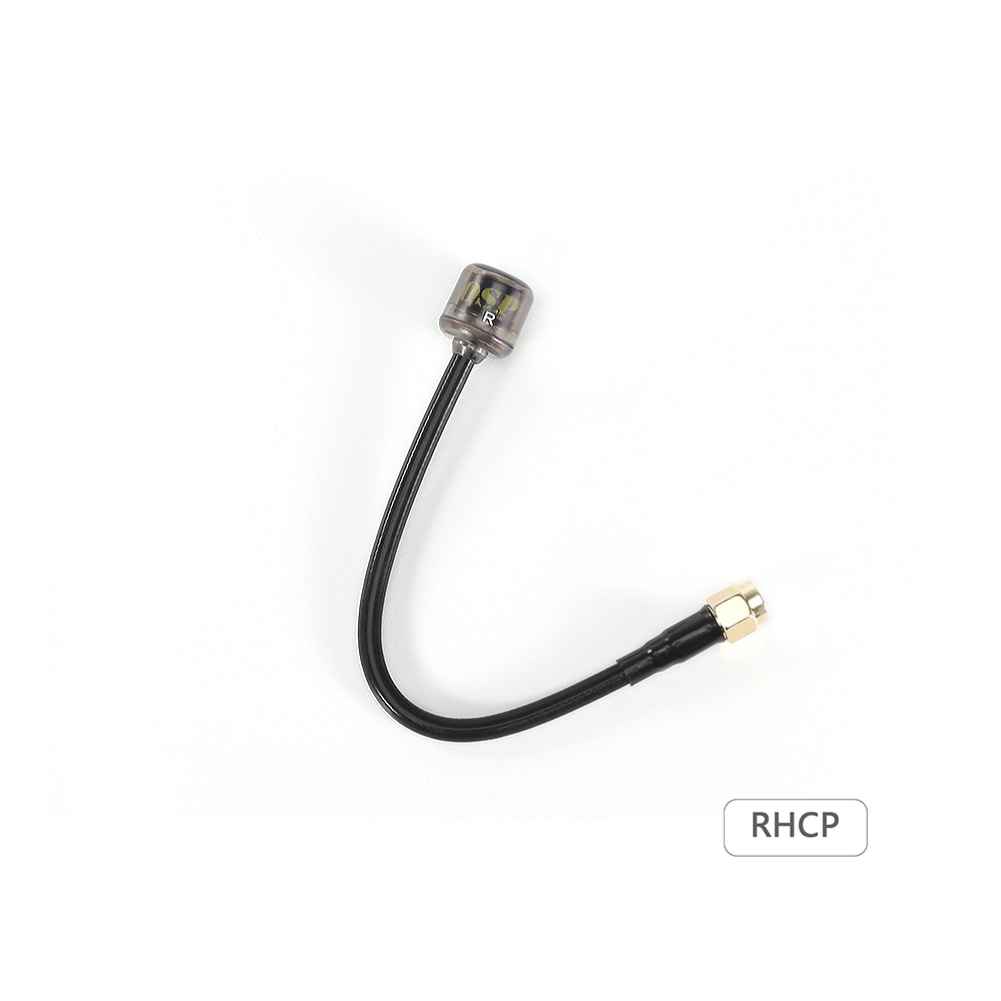

Polarization:

RHCP

Connector:

Gold plated SMA

Dimensions(head):

14.1mm dia. X 14mm height.

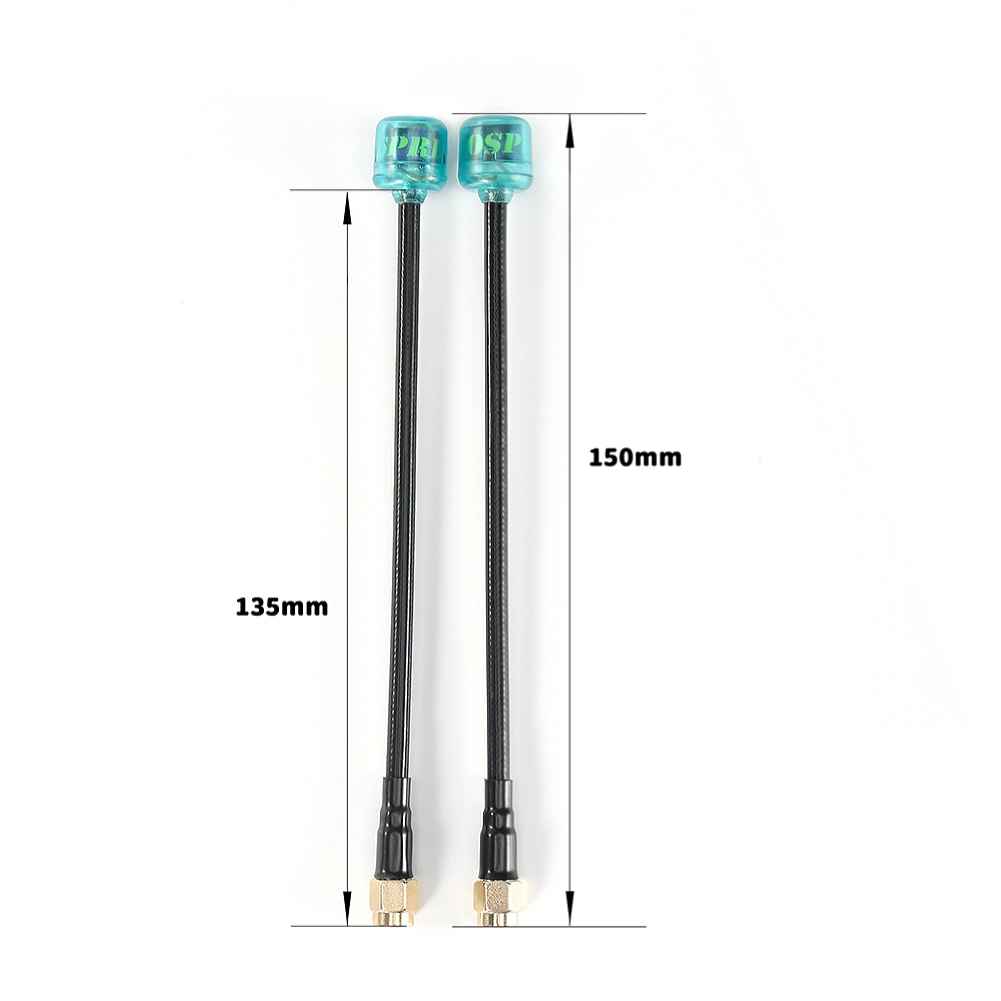

Length:

150mm

Cable:

Resilient RG141 coax.

Colors:

Transparent Black/Cyan (Optional)

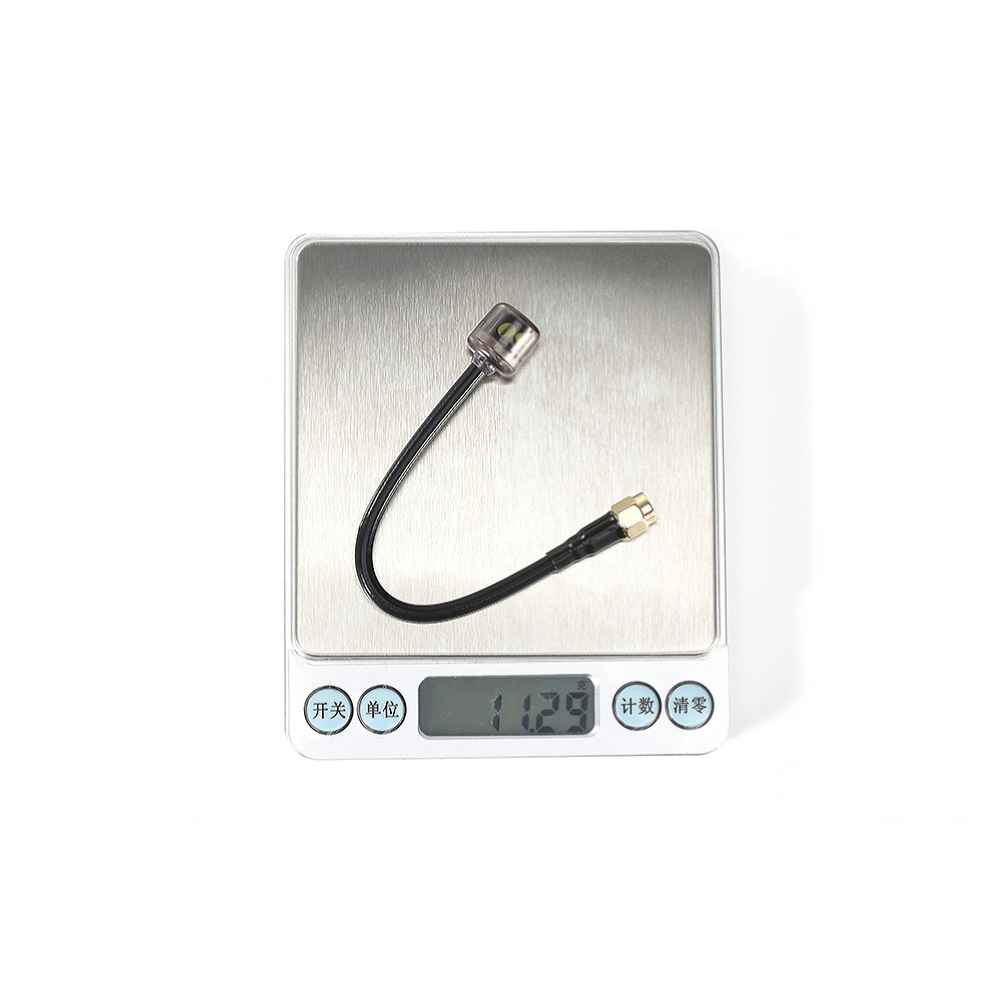

Weight:

11.29g

Package Included:
1 x FlyFishRC Osprey 5.8Ghz SMA Antenna – RHCP 150mm
