RadioMaster Boxer Max 2.4GHz ELRS RC Transmitter with AG01 Hall Gimbals, EdgeTX System for FPV Racing Drones, RC Airplanes, and Helicopters

Description

RadioMaster Boxer Max Radio Controller 2.4GHz ELRS RC Transmitter M2 EDGETX Open System for FPV Racing Drone Quad RC Airplane Helicopter

The RadioMaster Boxer Max Radio Controller is a 2.4GHz ELRS RC Transmitter designed for FPV racing drones, RC airplanes, and helicopters. It features a carbon fiber pattern case, AG01 hall gimbals, and CNC buttons and roller, ensuring a premium feel. The adjustable CNC metal folding handle and upgraded leather grips enhance comfort, while the included RadioMaster neck strap adds convenience. With a built-in cooling fan, internal ELRS module, and preinstalled EdgeTX firmware, this controller offers a superior user experience. It supports up to 16 channels and is compatible with JR, FrSKY, and Crossfire modules.

RadioMaster Boxer Max Radio Controller 2.4GHz ELRS RC Transmitter M2 EDGETX Open System for FPV Racing Drone Quad RC Airplane Helicopter
The Boxer Max Radio comes with a carbon fiber pattern case with AG01 hall gimbalsand CNC buttons and roller as standard. An adjustable length CNC metal folding handle, upgraded leather grips and included bonus RadioMaster neck strap to provide a comfortable user experience. Enjoy the superior performance with the Boxer Max Radio!
Description:
Brand: RadioMaster
Item: BOXER Max RadioColor: Black/Red/GoldSize: 235*178*77mmWeight: 532.5gFrequency: 2.400GHz-2.480GHzInternal RF: ELRS 2.4GHzSupported protocols: Module dependentCooling fan: Built in (ELRS version)Voltage Range: 6.6-8.4V DCRadio Firmware: EdgeTX (Transmitter) / ELRS (RF module)Channels: Max 16 channels (Receiver dependent)Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)Display: 128*64 Monochrome LCD displayGimbal: AG01 CNC Hall GimbalExternal module: JR / FrSKY / for Crossfire compatibleUpgrade Method: USB / SD card & EdgeTX Companion PC softwareBONUS: Radiomaster neck strap and CNC adjustable stand
Features:
Optional 3 colors – Black/Red/GoldAG01 hall gimbals installedCarbon fiber pattern caseCNC buttons and roller as standardAdjustable length CNC metal folding standUpgraded black leather gripsAvailable with built-in ExpressLRS RF modulesFeaturing a powerful STM32F407VGT6 with 1MB Flash and 192KB RAMPreinstalled EdgeTX firmwareInternal ELRS module capable of 1,000Hz refresh rateAdjustable ELRS RF outputQC3.0 fast charging support 2.0A MAXCompact design with excellent ergonomicsNew low-profile latching SE switch and momentary SF switchOversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)Standard JR module compartmentInternal module cooling fan built in (ELRS version)RadioMaster standardized button layoutVersatile 6-position switch for flight mode accessAdjustable and Removable T-shape AntennaIndustry first fabric handle for improved portabilityChangeable, ergonomic gripsRedesigned SD card slot with new and improved 512mb pre-loaded SD card includedExternal module power slots in battery coverRadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move.
EdgeTX Operating System and ExpressLRS RF system pre-installedPreinstalled with EdgeTX and ExpressLRS, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.
Note: Battery is not included.

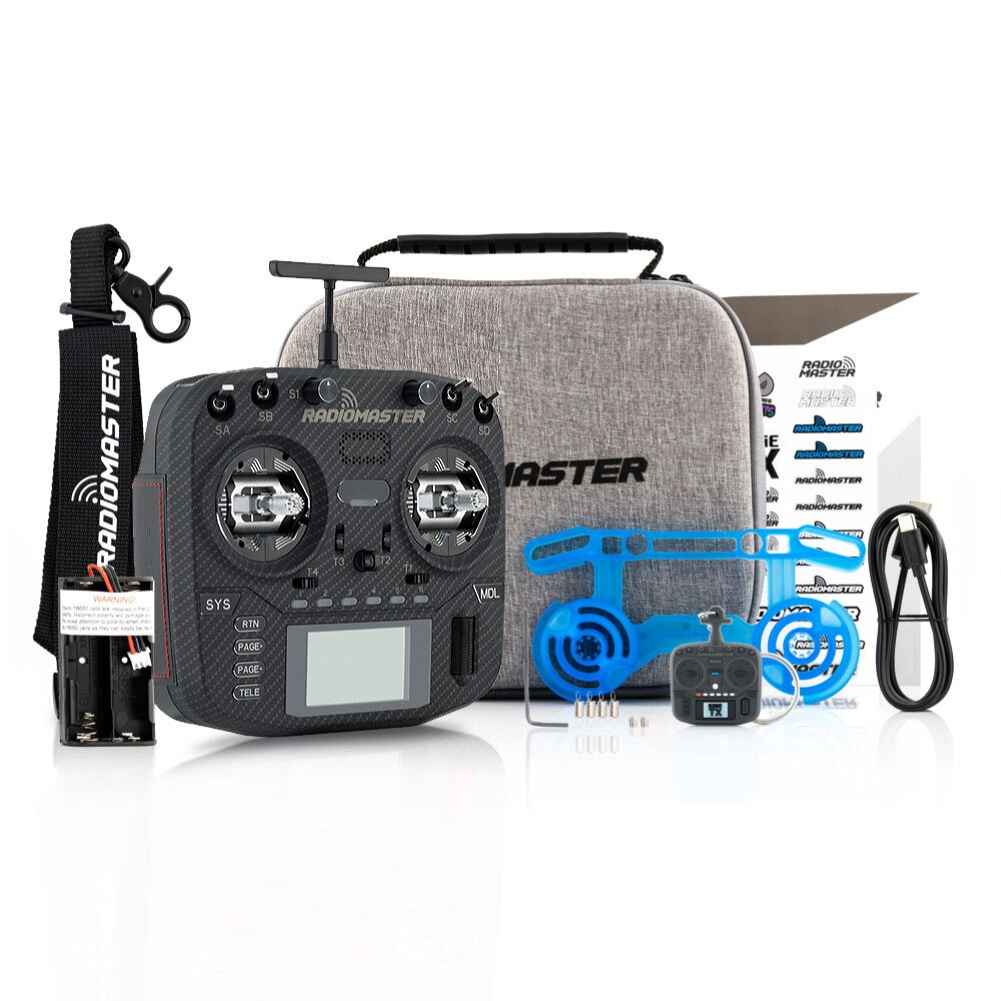

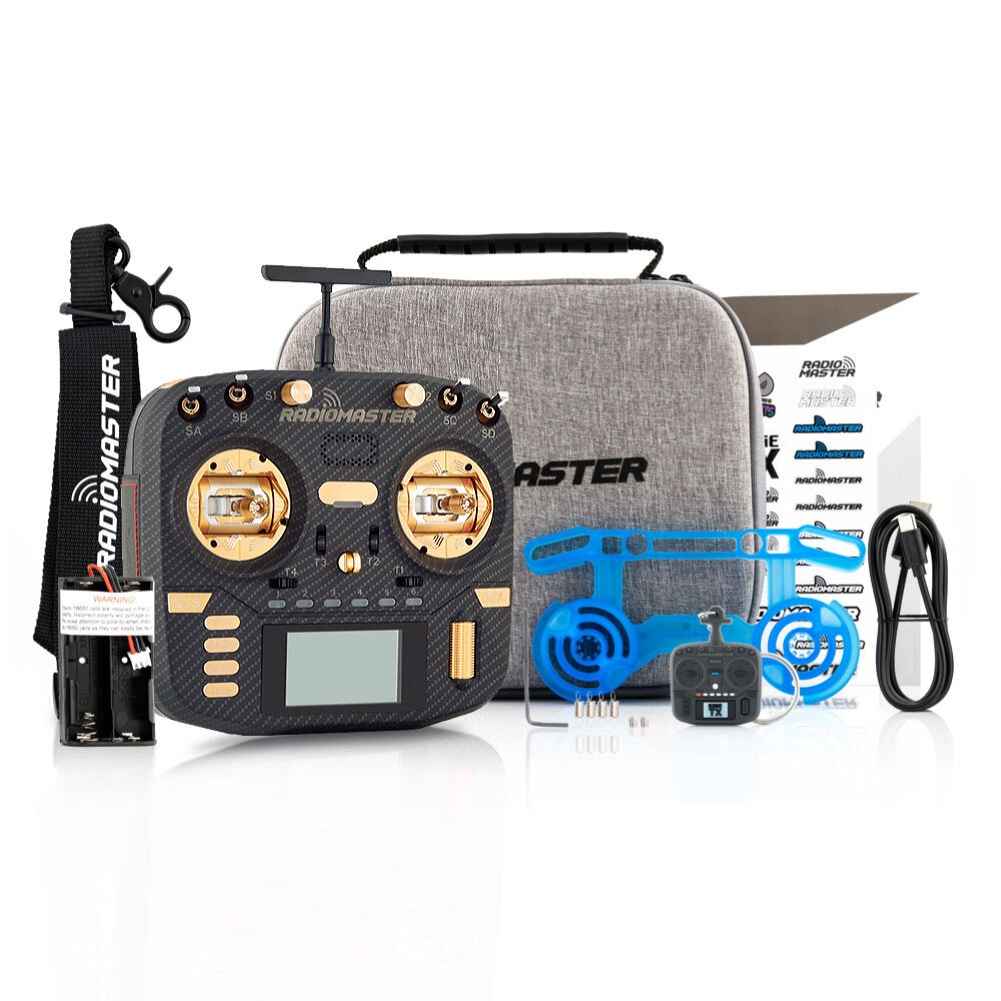

Package Included:
1 x BOXER Max Radio
1 x Signature Carry Case
1 x T Antenna
1 x USB-C Cable
1 x Gimbal Protector
1 x 1.5mm Allen Key
2 x M4 4 Screws
4 x Low Tension Springs
1 x Stickers
1 x Manual
1 x 18650 Battery tray (Batteries not included)
1 x RadioMaster Neck Strap
1 x Boxer KeyChain
1 x Screen Protector
