JINJIEAN A19S Starlight CMOS 1500TVL FPV Camera, 2.1mm/2.3mm Lens, PAL/NTSC, for RC Drones

Price range: 30.40$ through 30.96$

1/1.8″ Starlight CMOS Sensor for high-quality images
1500TVL resolution with 2.1mm/2.3mm lens options
Supports PAL/NTSC with adjustable OSD
Minimum illumination of 0.0001Lux for low-light conditions
Compact design, perfect for RC drones

SKU: RC2008811 Category: FPV System Tags: 1500TVL drone camera, adjustable OSD FPV, compact drone camera, JINJIEAN A19S camera, low-light FPV camera, PAL NTSC FPV camera, RC drone camera lens, starlight CMOS FPV camera Brand: JINJIEAN

Description

JINJIEAN A19S 1/1.8 Starlight CMOS 1500TVL FPV Camera 2.1mm/2.3mm PAL/NTSC For RC Drone

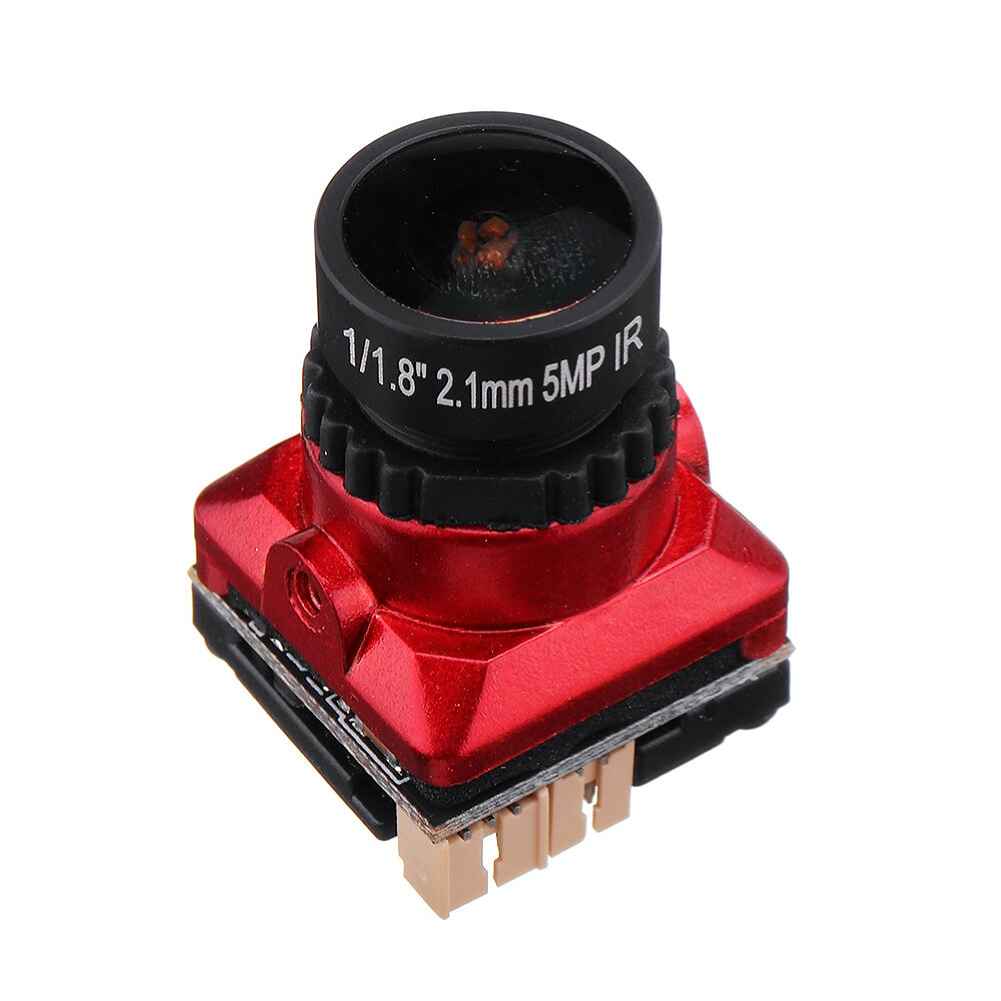

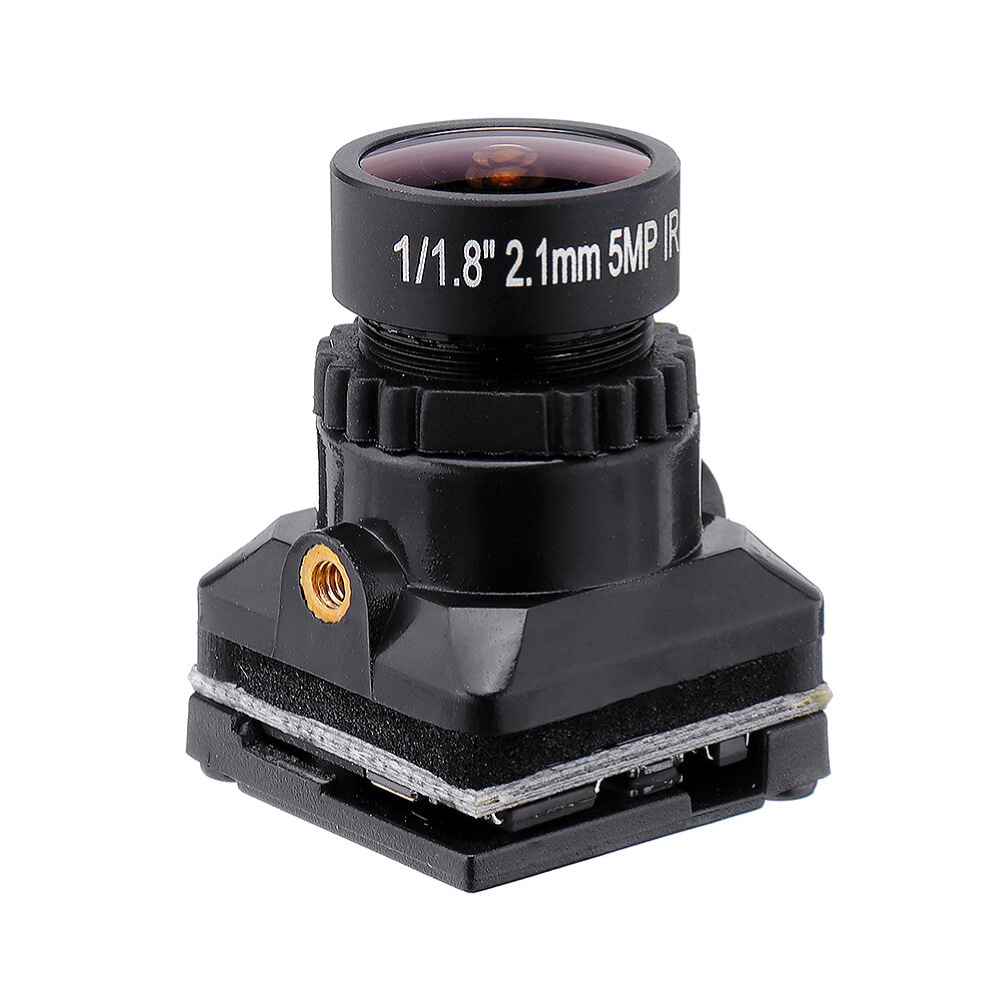

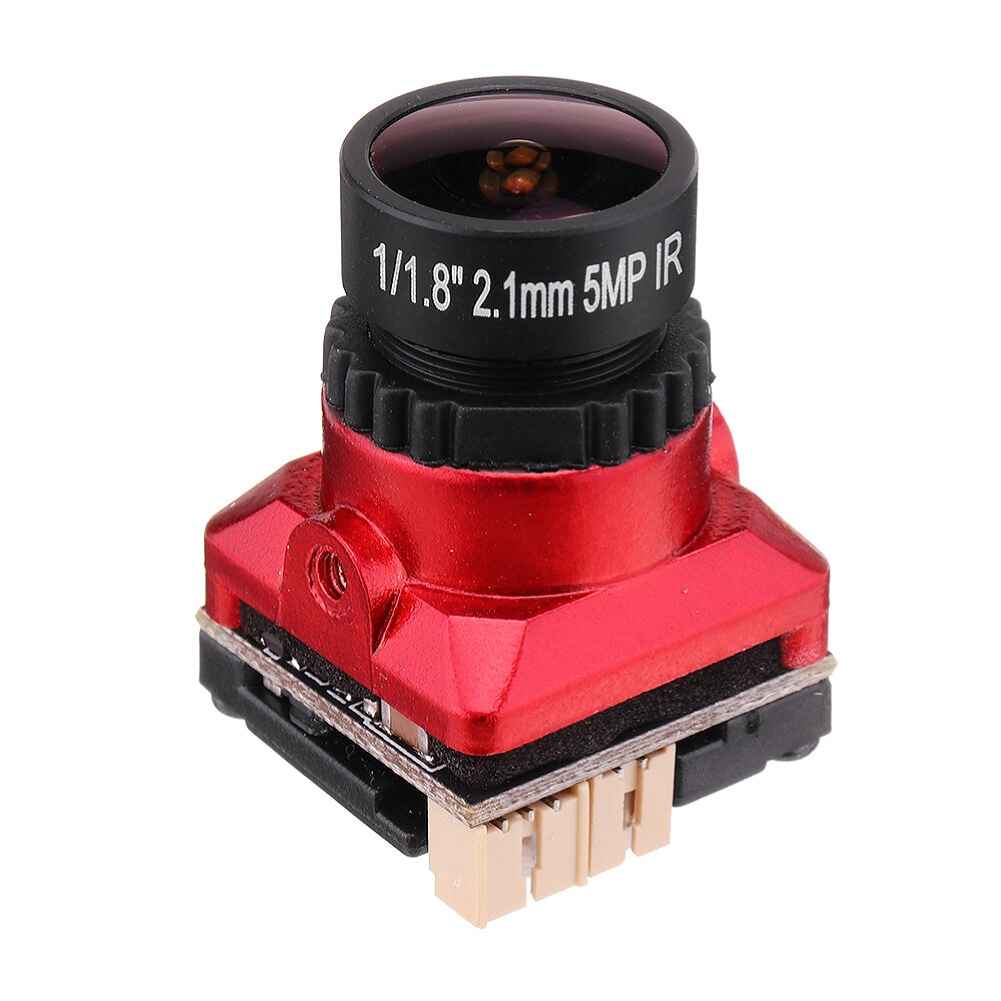

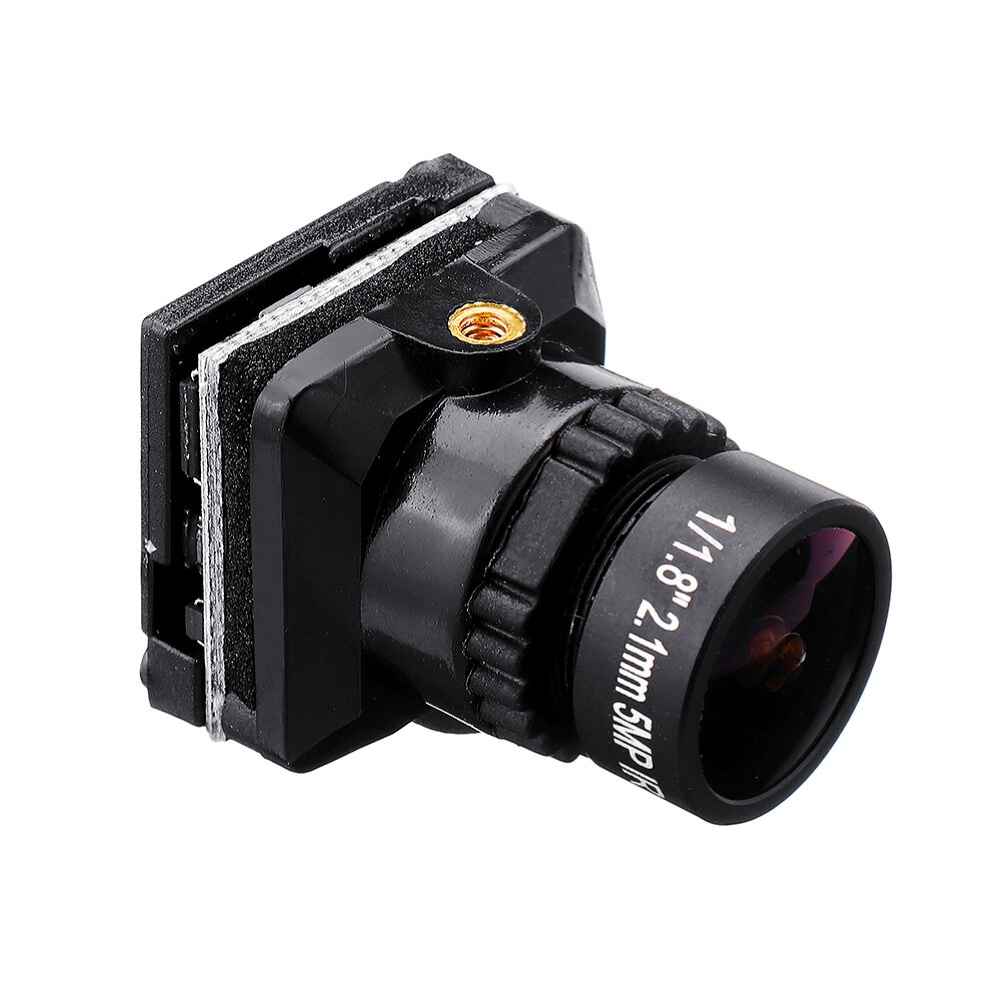

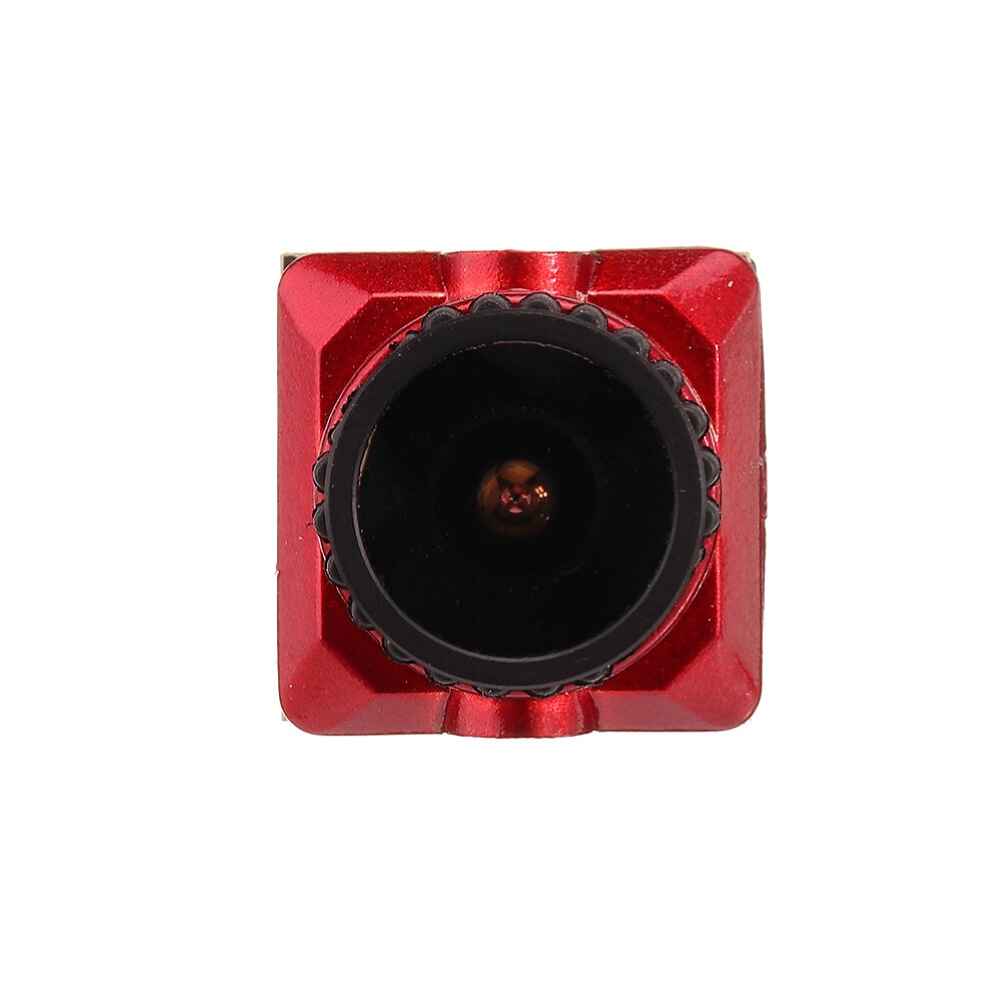

The JINJIEAN A19S FPV Camera is equipped with a 1/1.8″ starlight level CMOS sensor, offering superior image quality at 1500TVL resolution. Available in red and black, this camera features a choice of 2.1mm or 2.3mm lens options. It supports both PAL and NTSC signal systems with an internal adjustable OSD. The camera boasts a minimum illumination of 0.0001Lux and includes D-WDR and 3DNR for optimal performance in various lighting conditions. With automatic tracking white balance and versatile day/night modes, it ensures clear images whether in color or black and white. Powered by DC 5V-30V, it is compact and lightweight, making it an ideal choice for RC drones.

Specifications:

Model:

MINI A19S FPV cameras

Lmage Sensor:

1/1.8′ Starlight level sensor

Color:

Red/Black

Horizotal Resoulution:

CMOS 1500TVL/CCD 800TVL

Lens:

2.1mm/2.3mm

Signal System:

PAL/NTSC (OSD Internal djustable)

S/N Ratio:

>60Db(AGC OFF)

Electronic Shutter Speed:

PAL: 1/50-100.000, NTSC:1/60-100,000 Auto Gain Control(AGC): LOW/MIDDLE/HIGH

Back light compensation(BLC):

YES

Min lllumination:

0.0001Lux/1.2F

WDR:

D-WDR

DNR:

3DNR

Day/Night:

Auto/Color/B*W

Power:

DC 5V-30V

Net weight:

8.g

Dimensions:

19mm*19mm*19mm

OSD

Exposure:

Brightness/Exposure Mode/Gain

White Balance:

Automatic tracking white balance

Day and Night Mode:

Internal automatic/color mode/black and white mode

Video :

Contrast/sharpness/saturation/digital noise/video format (N/P)/digital wide dynamc

language:

Chinese/English/German/Italian/Russian

Restor the Factory :

OK

Save the Exit:

OK

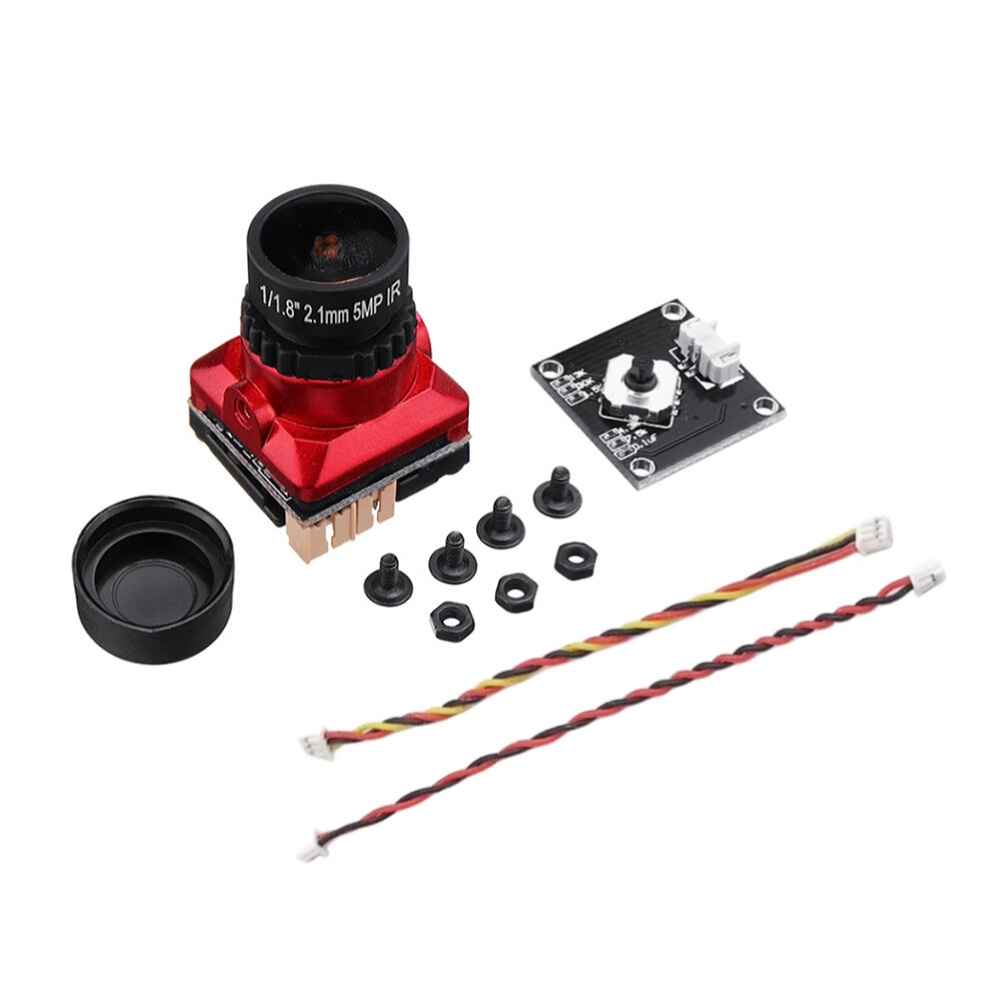

Package Included:
1 x MINI A19S FPV Camera

Recommended Category:
Toys & Games > Hobbies > Remote & App Controlled Vehicles & Parts > RC Vehicle Parts > FPV System

Additional information

Weight	0.008 kg
Color	Black, Red
