Description

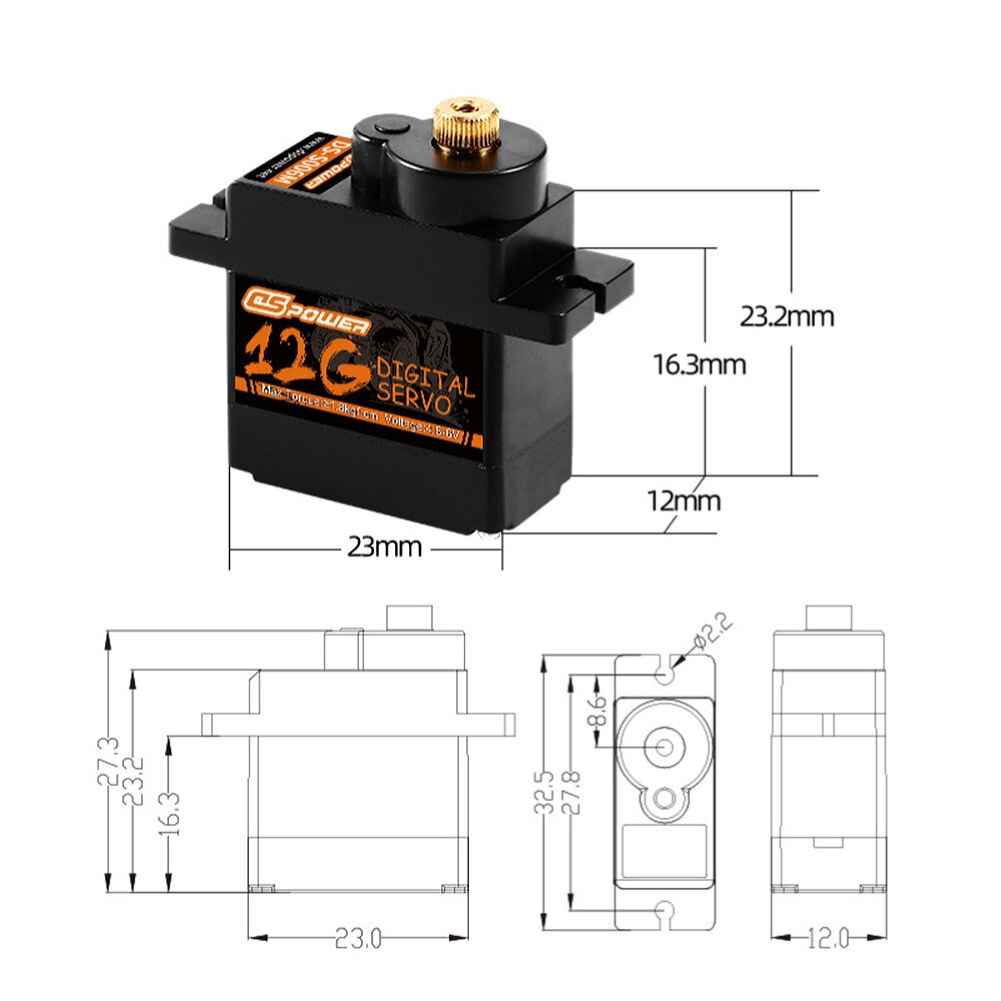

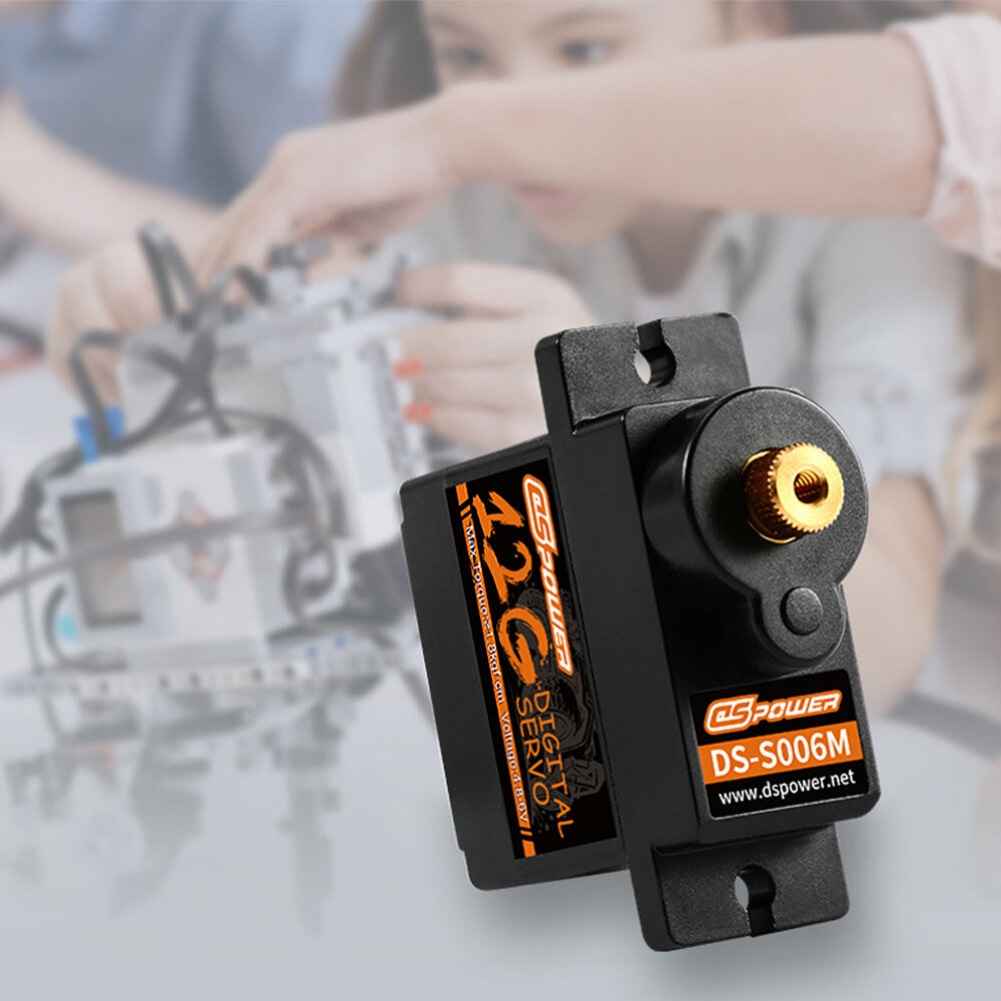

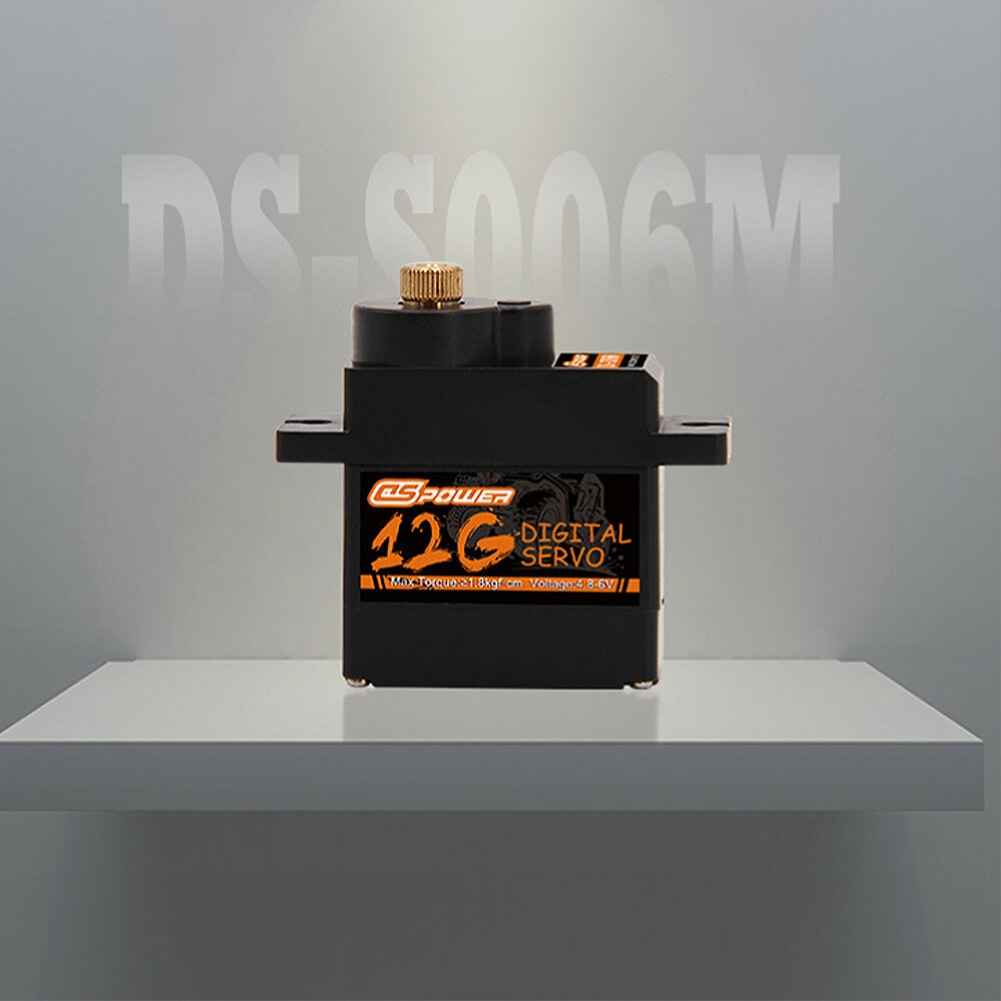

DS-S006M 12G High Torque Digital Servo Copper Gears Adjustment RC Model Robot Drone Accessories
The DS-S006M 12G High Torque Digital Servo is designed for RC model robots and drones, offering reliable performance with a high torque of 2.4kgf儮?m. It operates on a voltage range of 4.8-6V DC and features a static current of approximately 20mA and a stall current of about 1.1A. The servo rotates counterclockwise with a no-load speed of 0.14 sec/60 and has an operating travel angle of 180 degrees. It includes a PWM communication interface and a 250mm wire length for easy connectivity. The servo’s output shaft is 40T/??.85mm, ensuring compatibility with a variety of models. Weighing just 14g, this servo is a lightweight yet powerful choice for your RC projects.
Specification:
Model: DS-S006M
Operating Voltage: 4.8-6V DC
Static Current: 沌20mA
Stall Current: 沌1.1A
Stall Torque: √2.4kgf宛cm
Rotating Direction: CCW (500汪2500譙s)
No-load Speed: 0.14 sec/60‵
Pulse Width Range: 500~2500譙s
Operating Travel Angle: 180‵
Return Angle Deviation: 沌1‵
Weight: 14g
Communication Interface: PWM
Wire Length: 250mm
Output Shaft: 40T/?4.85mm
Plug: JR2.54

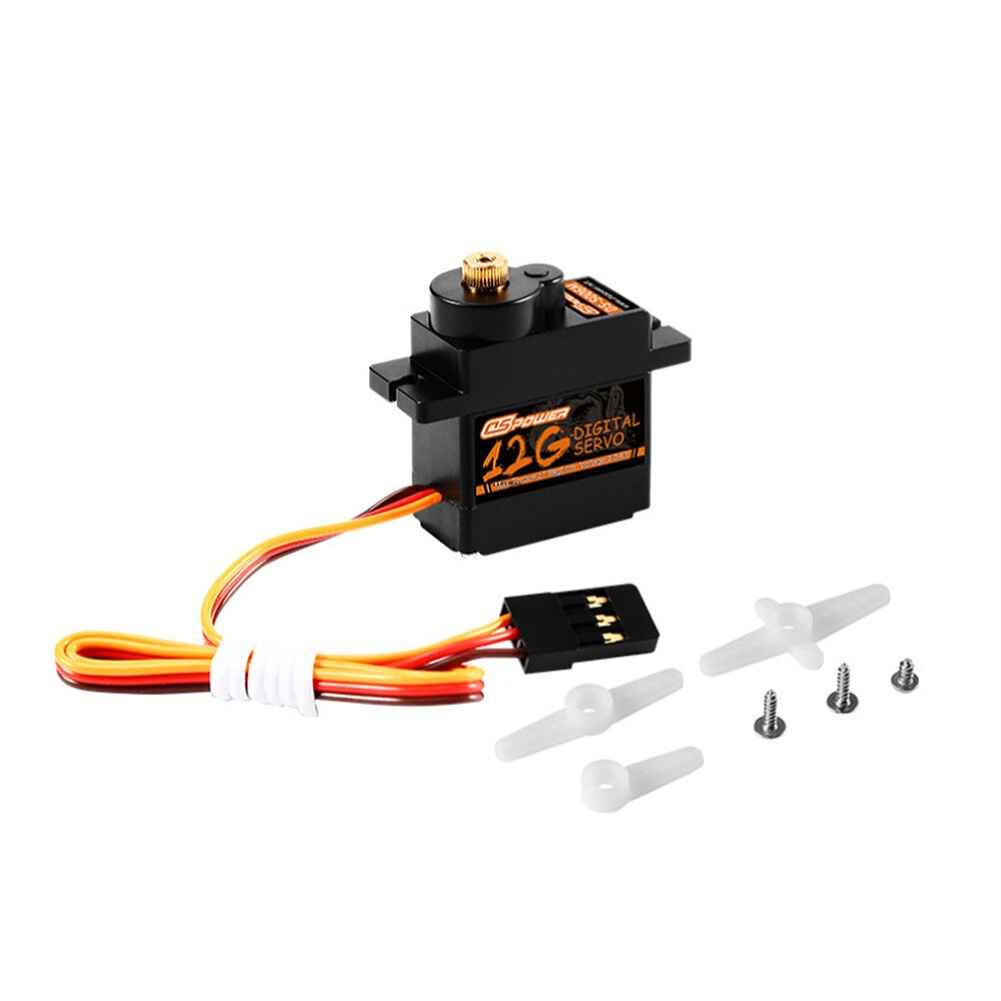

Package Included:
1 x RC Servo
