Description
FLYSKY PL18 Ultra Paladin 18CH Radio Remote Controller 3.5-inch IPS Touch Screen Compatible with AFHDS 3 Protocol Receiver for RC Car Boat Airplane Aircraft Models
The FLYSKY PL18 Ultra Paladin is a sophisticated 18-channel radio remote controller designed for RC enthusiasts. It features a high-resolution 3.5-inch IPS touch screen that ensures clear visibility even in bright sunlight, thanks to its automatic brightness adjustment. The controller operates on the AFHDS 3 protocol and is compatible with a wide range of receivers for RC cars, boats, and aircraft models. With hall-adjustable joysticks and a lifespan of over 100,000 operations, it provides precise control and sensitive feedback. The FlyskyOS system with EdgeTX cooperation offers customizable menus for easy navigation, while the ergonomic design ensures comfort during extended use.
Specification:
Brand: FLYSKY
Product Model: PL18 Ultra Paladin
Color: Black
Number of Channels: 18
Number of Bands: 171
RF: 2402.15MMHz-2479.85MMHz
Maximum Power: < 20 dBm (e.i.r.p.) 侈EU佩
RF Protocol: AFHDS 3
Channel Resolution: 4096
Input Power : 1S (3.6V)*8700mAh

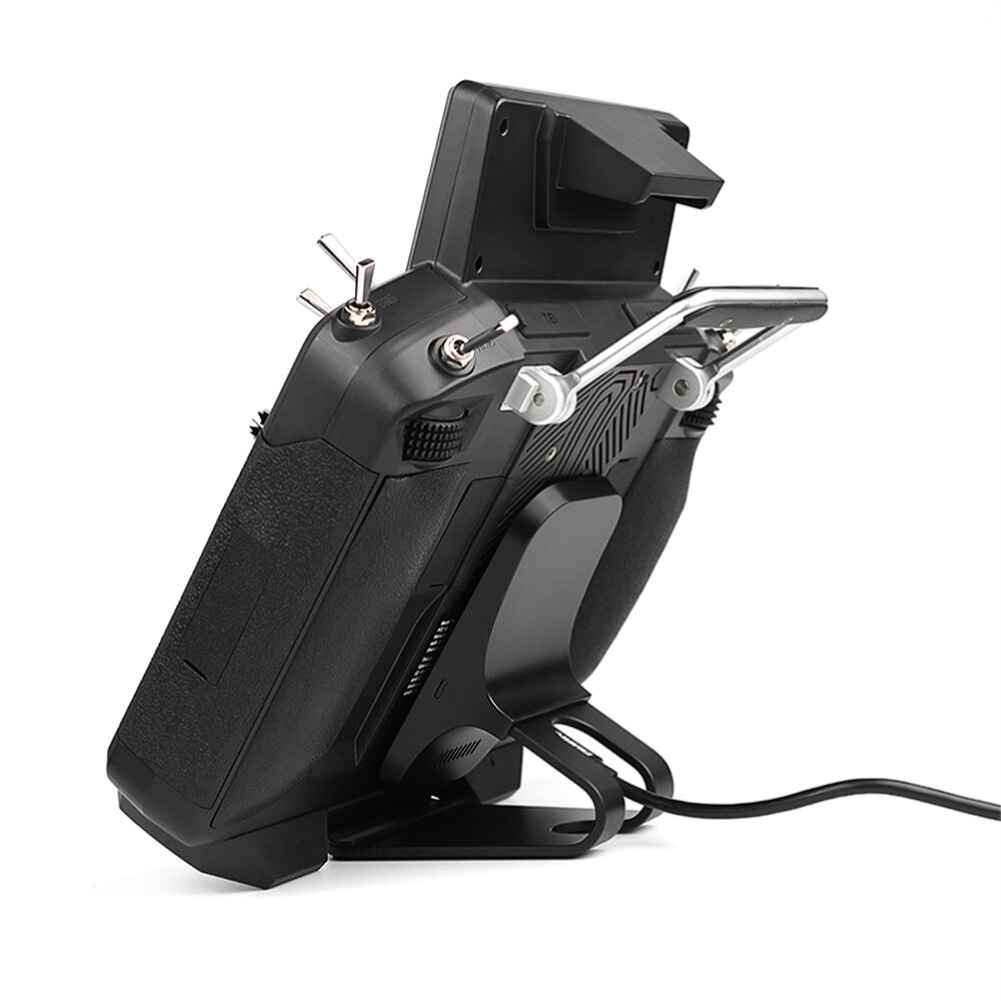

Charging Jack: USB Type-C/Wireless charging
Low Voltage Alarm: Yes
Antenna: Two built-in antennas (FPC antenna)
Display: 320*480 resolution IPS touch color screen
Language : Chinese or English
Simulator: USB Simulator
Data Connector: USB Type-C, TEI expansion connector, DSC 3.5mm trainer Jack (PPM), SD card slot
Operating Temperature: -10﹠~ +60﹠
Charging Temperature: 0~45﹠
Humidity Range: 20% ~ 95%
Firmware Update: Supported
Weight: 1005g
Dimensions (length x width x height): 212.5*86.7*191 mm
Certification: SRRC, CE, FCC ID: 2A2UNPL18ULTRA
Compatible Receivers: Receiver with AFHDS 3 protocol, such as FTr12B, FTr8B, Tr8B, FTr10, FTr16S, FTr4, INr6-HS and TMr for RC air models, FGr8B, FGr4B, FGr12B, FGr4P, FGr4S, FGr4 and GMr for RC cars, FBr12 for RC boats, etc.
Model Type: Airplanes, gliders,helicopters, multicomputers, cars, boats or robots
Features:

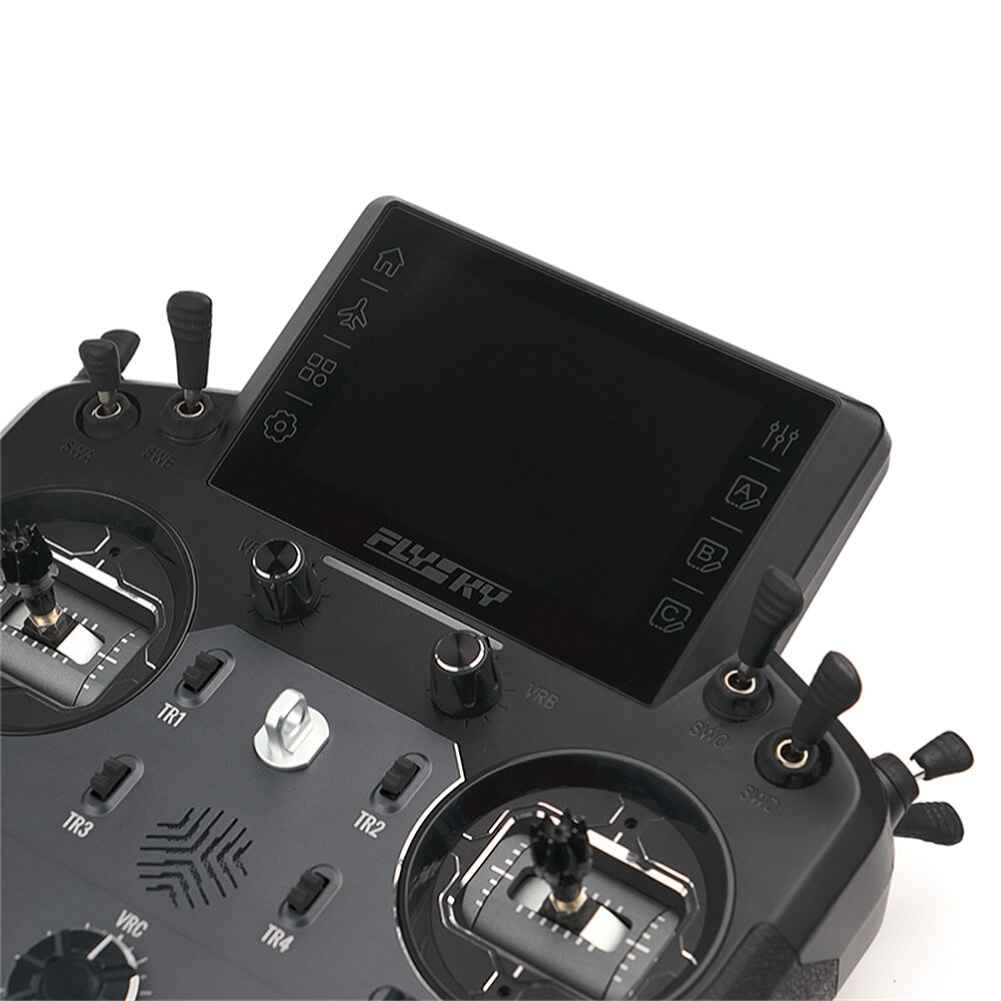

– High Resolution Screen: Equipped with a 3.5-inch IPS touch screen offering 320×480 resolution, ensures readability in intense sunlight using automatic brightness adjustment.
– Precise Control: Features hall-adjustable joysticks with over 100,000 operational lifespan and mechanical stroke range of 38‵-54‵, ideal for sensitive feedback and advanced handling.
– Advanced UI: FlyskyOS system with EdgeTX cooperation for easy learning, delivering customizable menu adjustments and seamless navigation.
– Data Recording: Record key metrics like travel speed and channel feedback for comprehensive analysis and performance optimization.
– Enhanced Grip Design: Optimized ergonomic grip and sloped shoulder design for stable one-handed operation, improving comfort during prolonged use.
– Broad Compatibility: Supports multiple receiver types like FTr12B and GSr models, and diverse RF pairing modes for airplanes, RC cars, boats, and multicomputers.

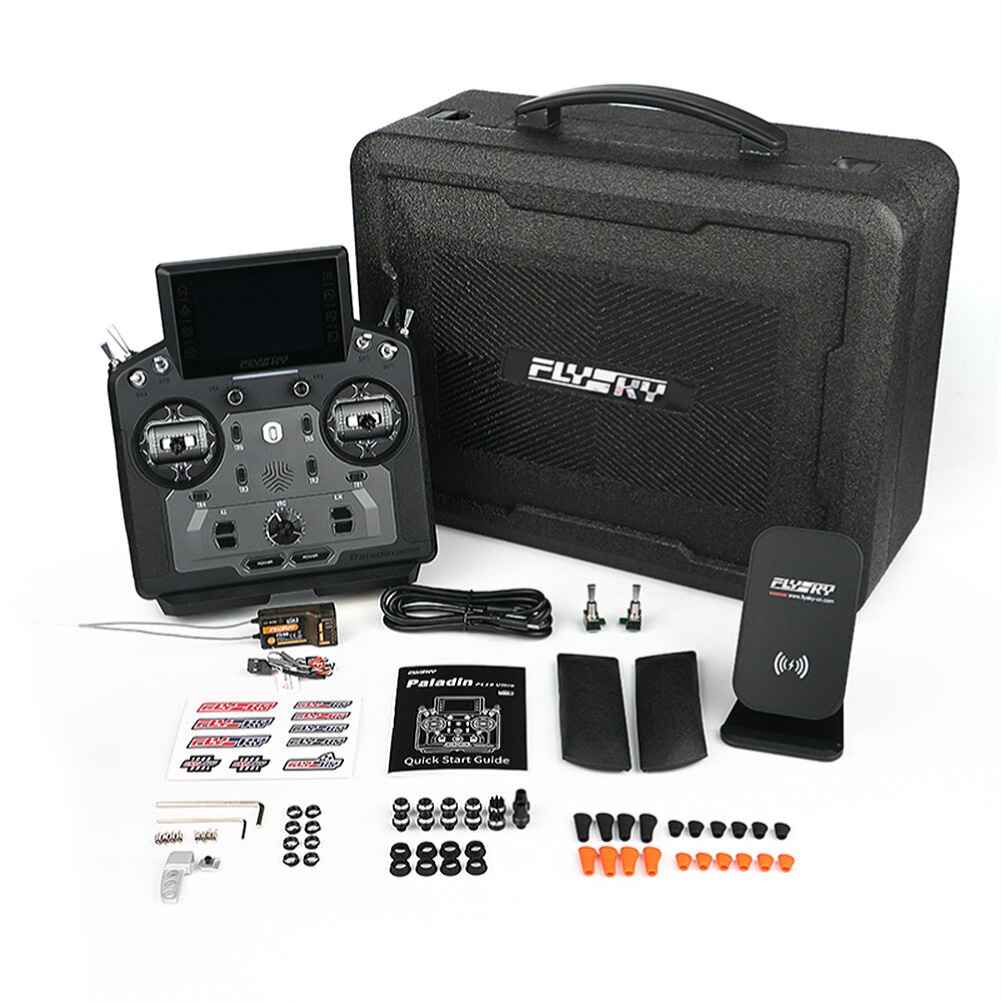

Package Included:
1 x FLYSKY PL18 Ultra Paladin 18CH Radio
