Description
BAYCK 2.4G Dual Core TCXO RX ELRS ExpressLRS Receiver with Dual T Type Antenna Support Wifi Upgrade for Long Rang Racing Drone

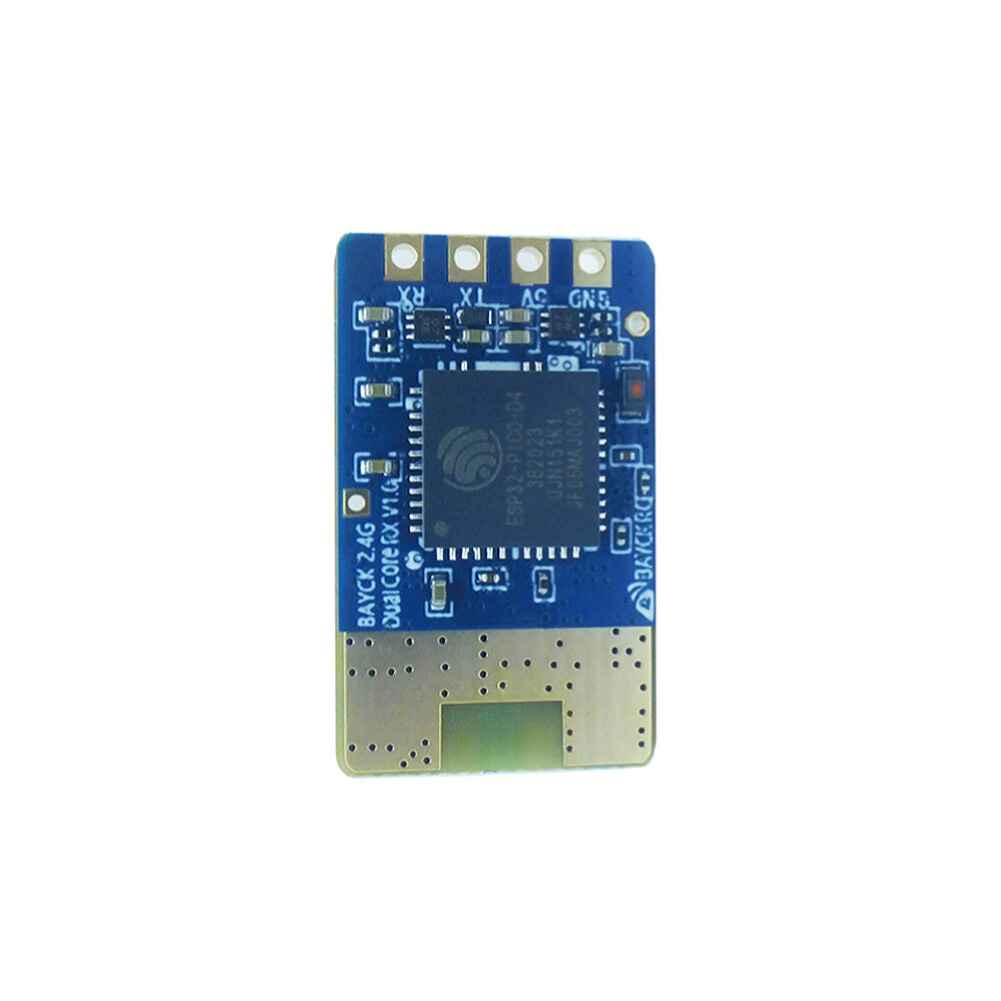

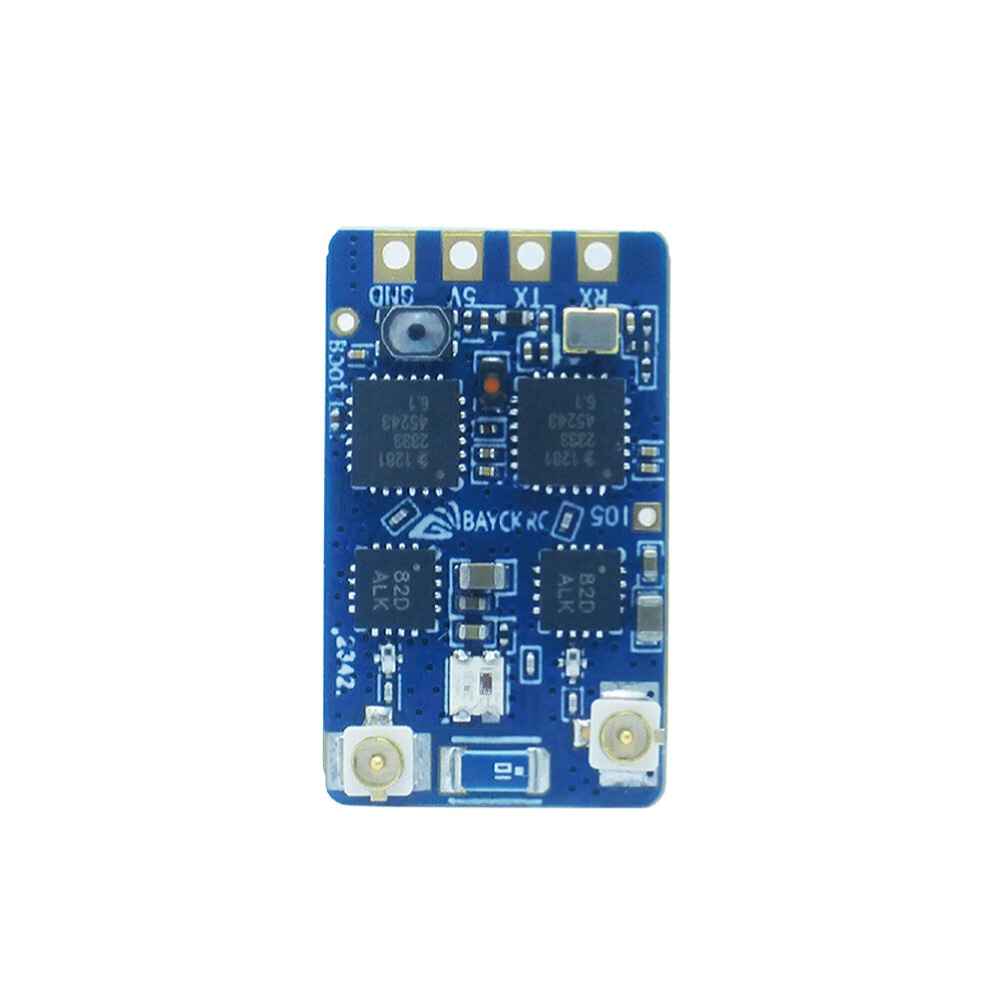

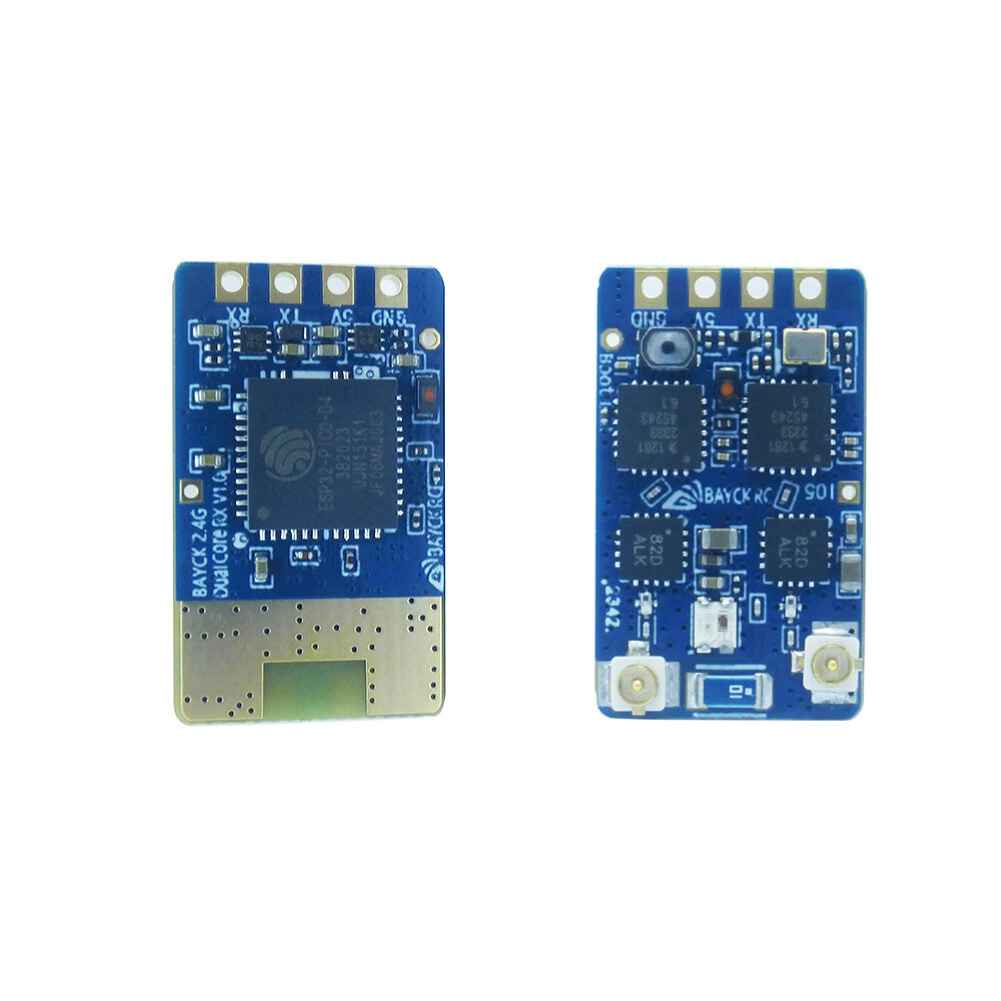

The BAYCK 2.4G Dual Core TCXO RX ExpressLRS Receiver is designed for long-range racing drones, featuring dual T type antennas for enhanced signal reception. Operating at 2.4GHz, this receiver integrates an ESP32 and SX1281 chip with TCXO for precise frequency stability. It supports WiFi upgrades, ensuring easy updates and enhanced performance. The compact design, weighing just 1.6g, and dimensions of 13mm by 22mm, make it ideal for lightweight drone builds. It requires an input power of 3.6-5.5V and includes IPEX1 connectors. Note that the RX of the flight control end must connect to the TX of the receiver and vice versa.
Specification:
Brand: BAYCK
Model: 2.4G Dual Core RX
Name: ExpressLRS ReceiverRF Fre: 2.4GhzIC: ESP32+2*SX1281+TCXOTX Power: 2*100mWColor: BlueConnector: 2*IPEX1Input Power: 3.6-5.5VWeigh: 1.6g (receiver only)Size: 13mm*22mm
Note:
The RX of the flight control end must be connected to the TX of the receiver; The TX at the flight control end must be connected to the RX of the receiver.

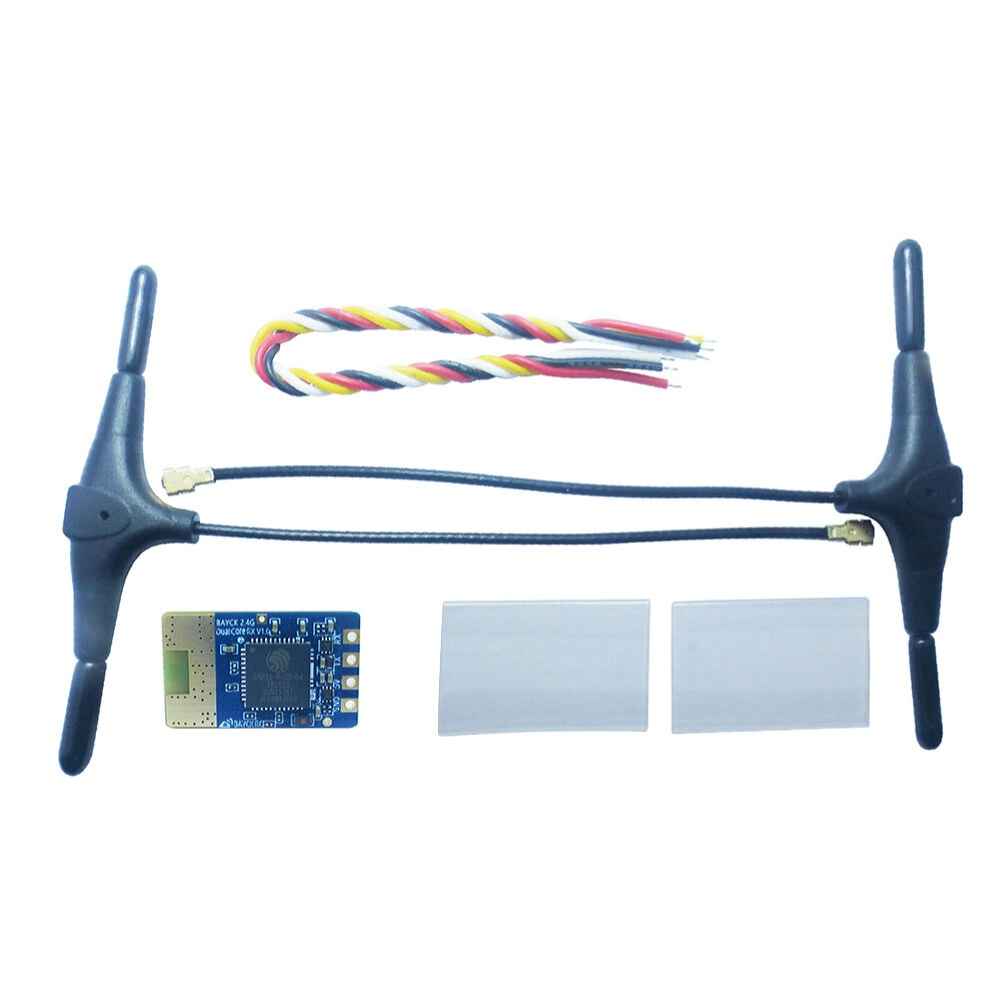

Package Included:
1 x BAYCK 2.4GHz Dual Core RX
2 x Heat shrink tubing
4 x 30awg silicone wire (1 black, 1 red, 1 white, 1 yellow)

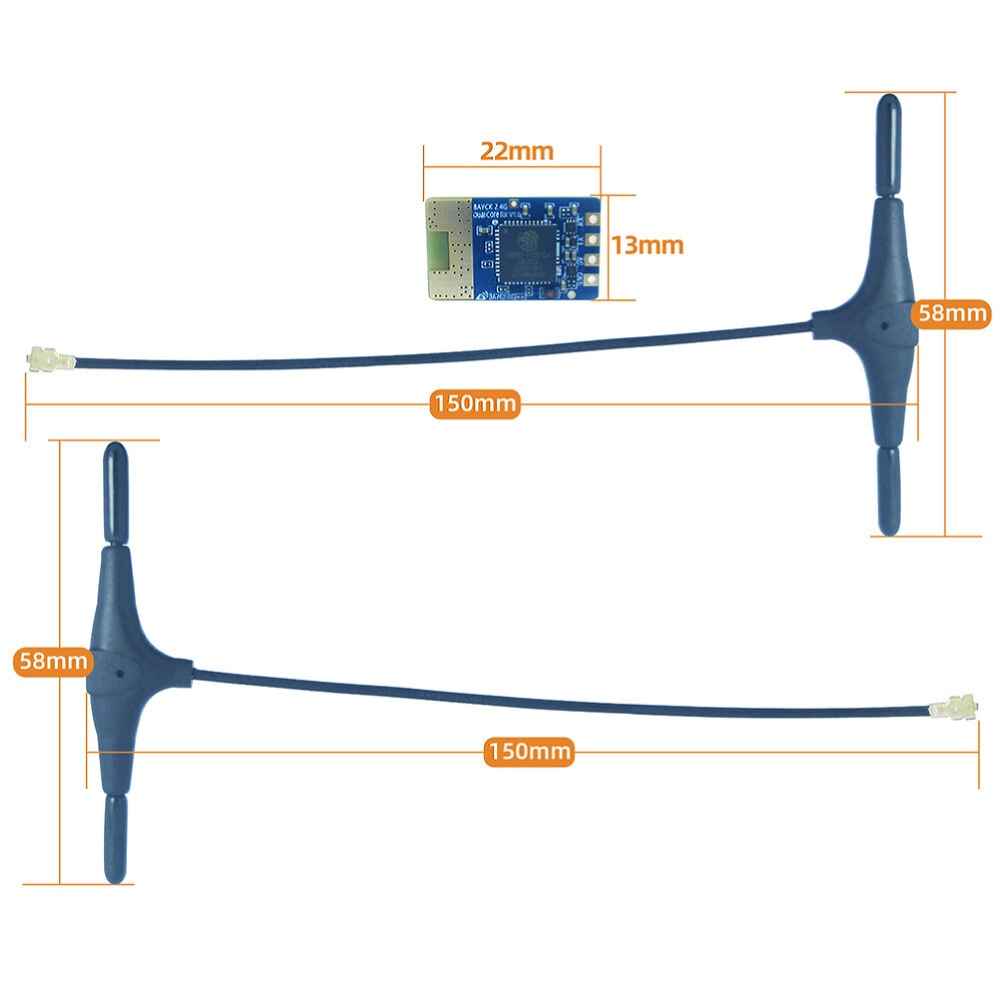

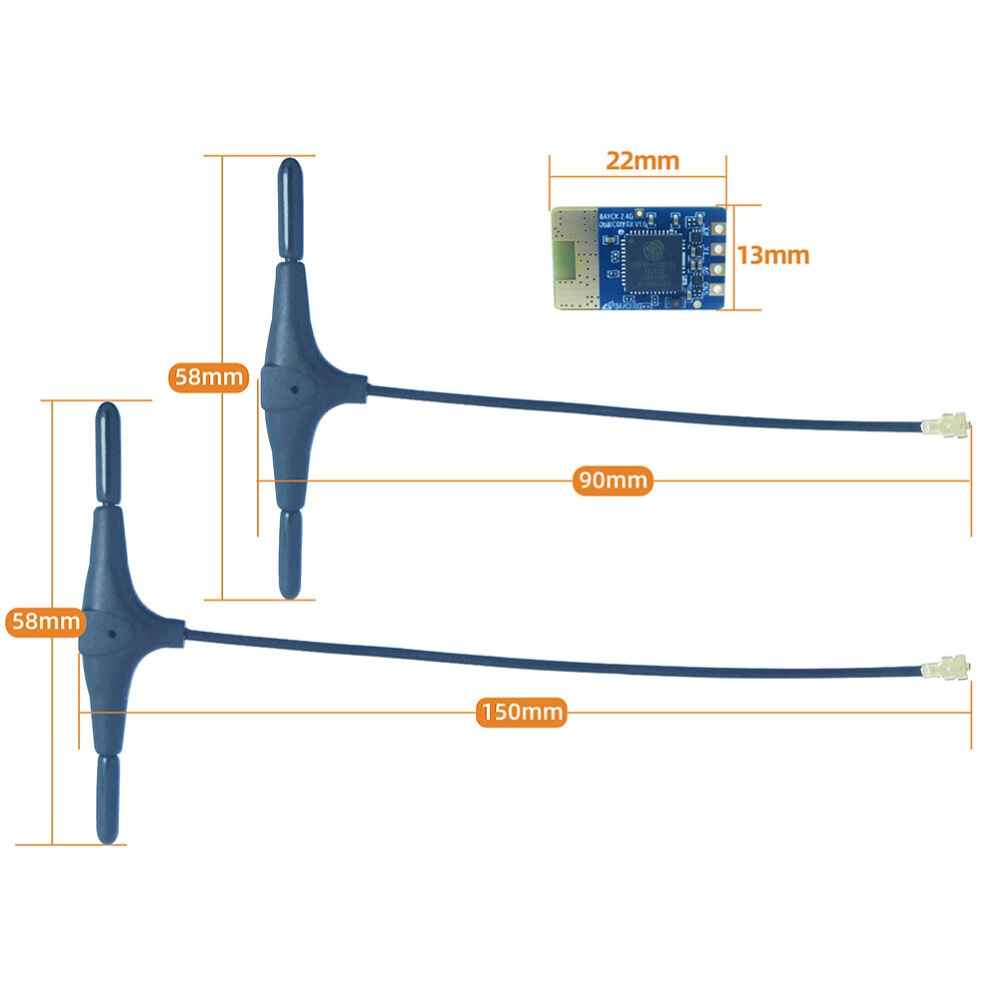

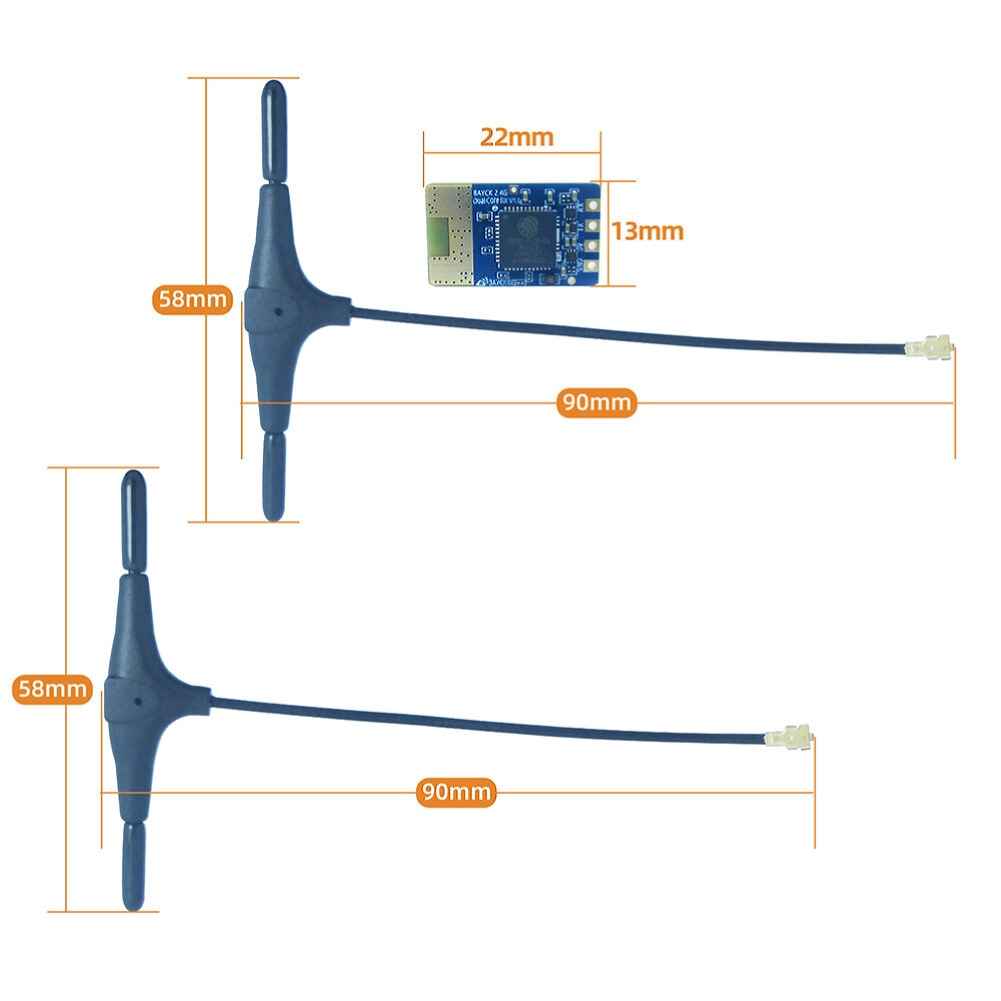

2 x T receiving antenna (150mm 2, 90mm 2, or 150mm 1 + 90mm 1)
