Description

Walksnail Avatar HD Goggles L 5.8GHz Digital 1920*1080 4.5Inch HD Display FPV Goggles Support Head Tracker Compatible with Walksnail Digital VTX

Experience immersive FPV adventures with the Walksnail Avatar HD Goggles L. Featuring a 1920×1080 resolution on a 4.5-inch HD display, these goggles provide crystal-clear visuals. Integrated head tracking with a nine-axis gyro module enhances your experience by controlling camera pan and tilt in real-time. The goggles support H.265 encoding for 1080P/60FPS video quality and have a PPM signal output for seamless integration with radio controllers. With a built-in Micro SD card slot, you can easily record your flights. The high-performance directional antenna ensures stable signal transmission for long-distance flights. Compatible with all Walksnail VTX models and supporting 2-6S voltage input, these goggles offer flexibility and convenience for FPV enthusiasts.

CADDXFPV GM1/GM2/GM3 Gimbal Head Tracking Functionality Link: Go>>

Specificaton:
Model: Avatar HD Goggles L
Communication Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

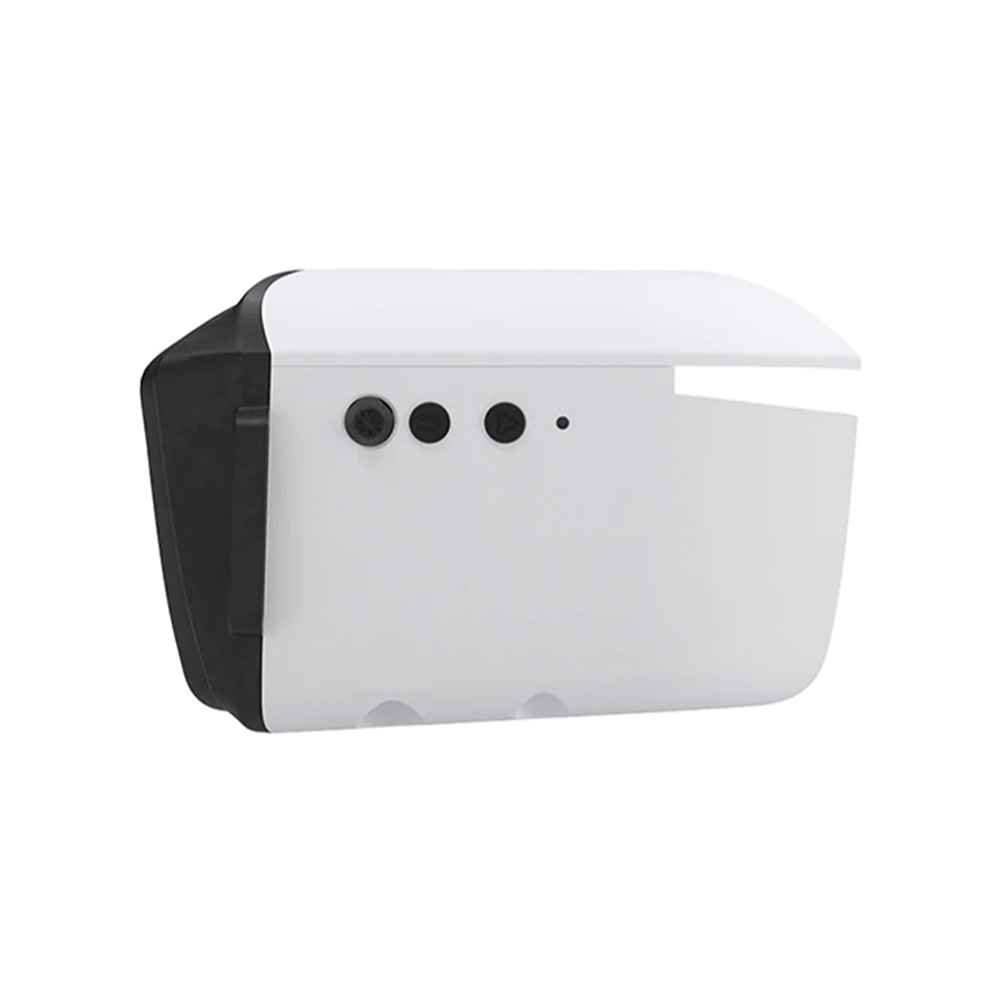

I/O Interface: 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot,
Gyro: Nine-axis gyroscope
Transmission Resolution: 1080p60fps, 720p60fps
Code Rate: Max 50 Mbps
Min. Latency: Average 32ms
Average Gain: 4.9dBi
Polarization: LHCP
Transmission Distance: ’4km
Channel: 8
Screen Resolution: 1920*1080/60Hz
Screen Material: LCD
Screen Size: 4.5 Inch
Power Input: 6V-25.2V(2S-6S)
SD card: Support 256G
Net weight: 350呼10g
System: Avatar HD System
Bullet Points:
The goggles are equipped with an in-house developed full-stack image transmission head tracking system. The head tracking sensor, employing a nine-axis gyro module, is integrated into the goggles to capture the pilot’s head movements. Paired with a gimbal, it sends signals via the image transmission system to control the camera’s pan and tilt, providing pilots with a cockpit-like sensation.
The Avatar HD system adopts industry-leading H.265 encoding technology, delivering 1080P/60FPS FPV video quality for an immersive and responsive experience.
It also supports PPM signal output to Radio Controllers via the Goggles L’s 3.5mm headphone TX connector, which in turn outputs to the drone.

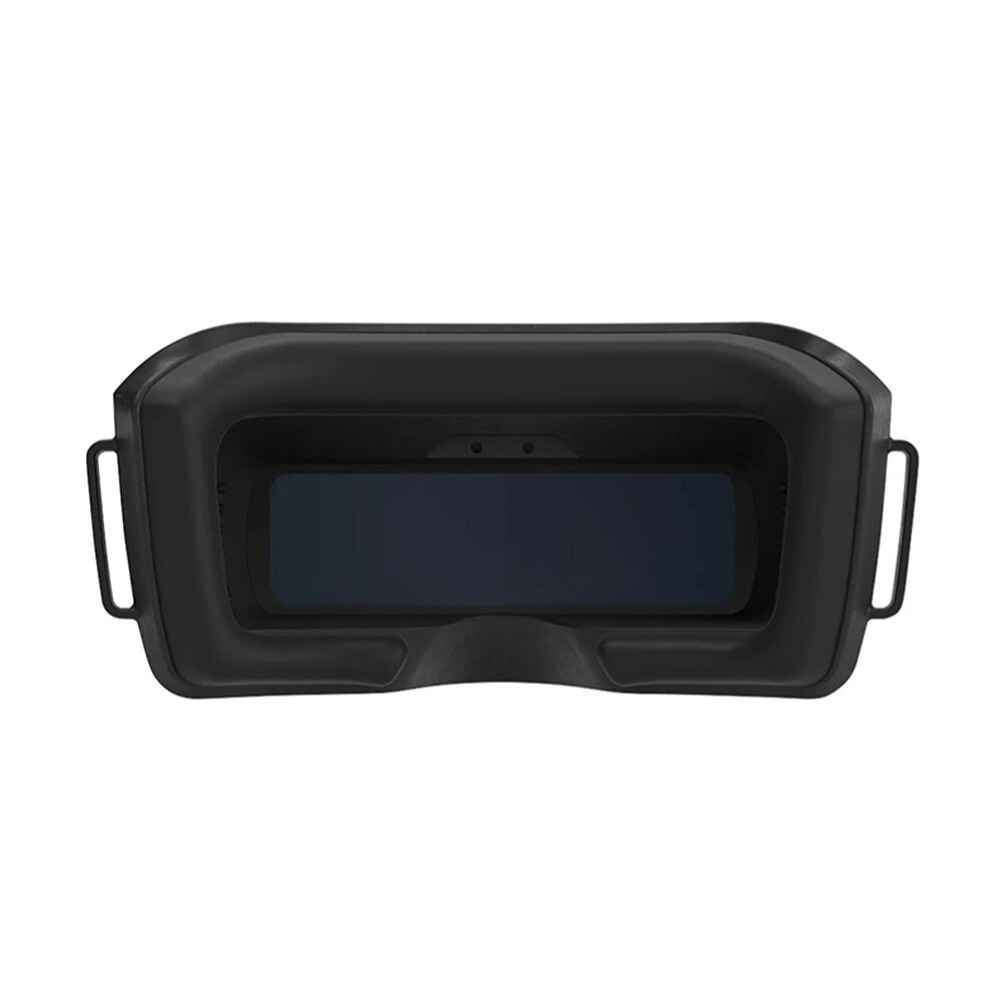

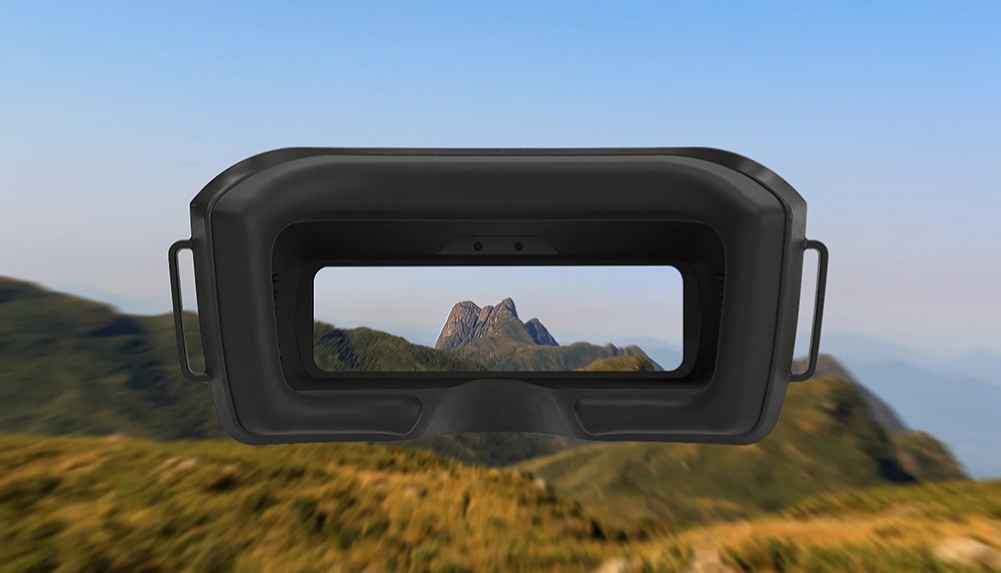

Employing cutting-edge optical design, the goggles offer distortion-free and high-resolution imaging at 1920X1080, coupled with a 4.5-inch HD display for clarity and eye protection.

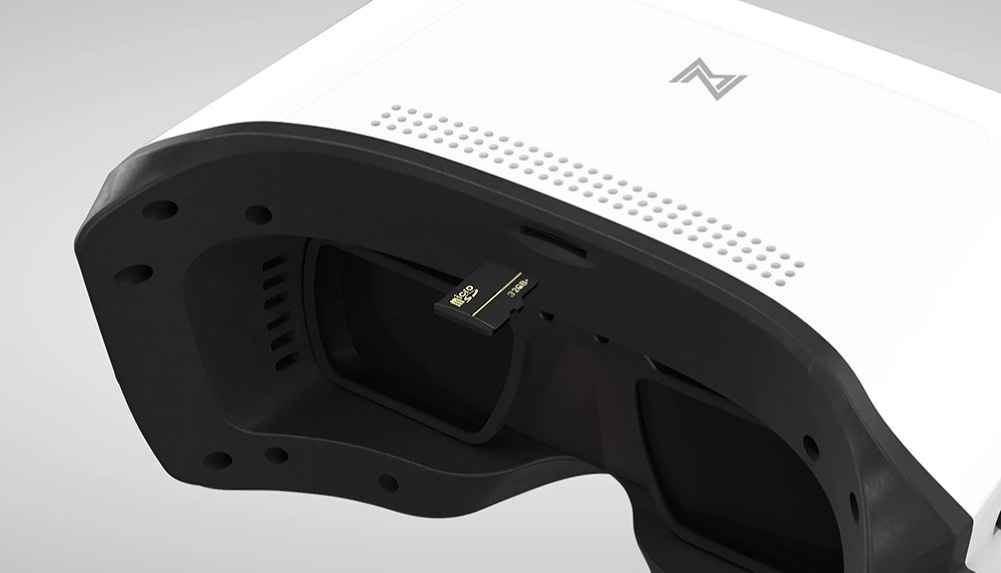

With a built-in Micro SD card slot, users can easily record their flights with just one touch, capturing every exhilarating moment.

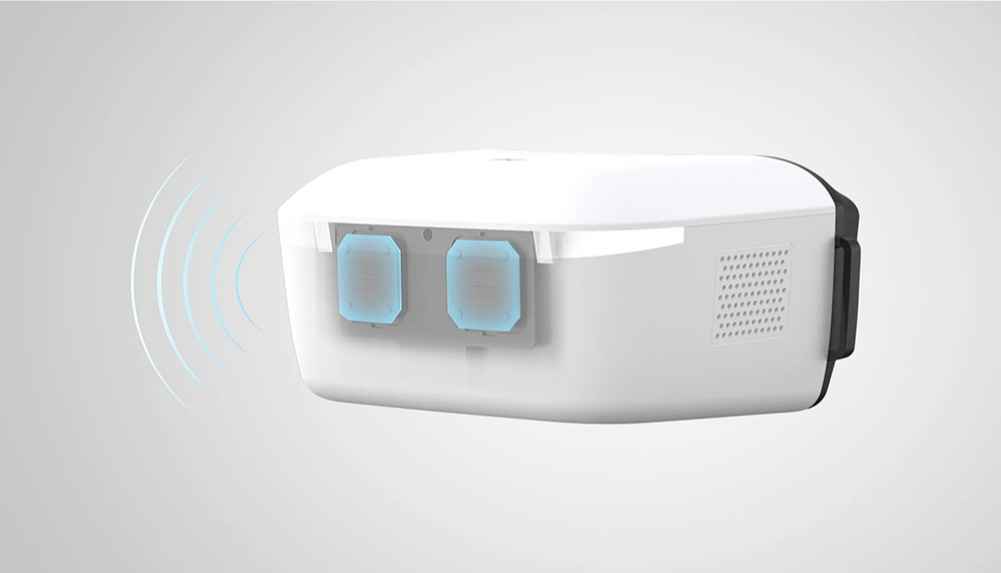

Featuring a high-performance directional antenna with a gain of up to 4.9 dBi, the goggles ensure stable signal transmission, enabling longer flight distances.
Compatible with 2-6S voltage input, the goggles are compatible with all drone batteries, providing users with greater flexibility.

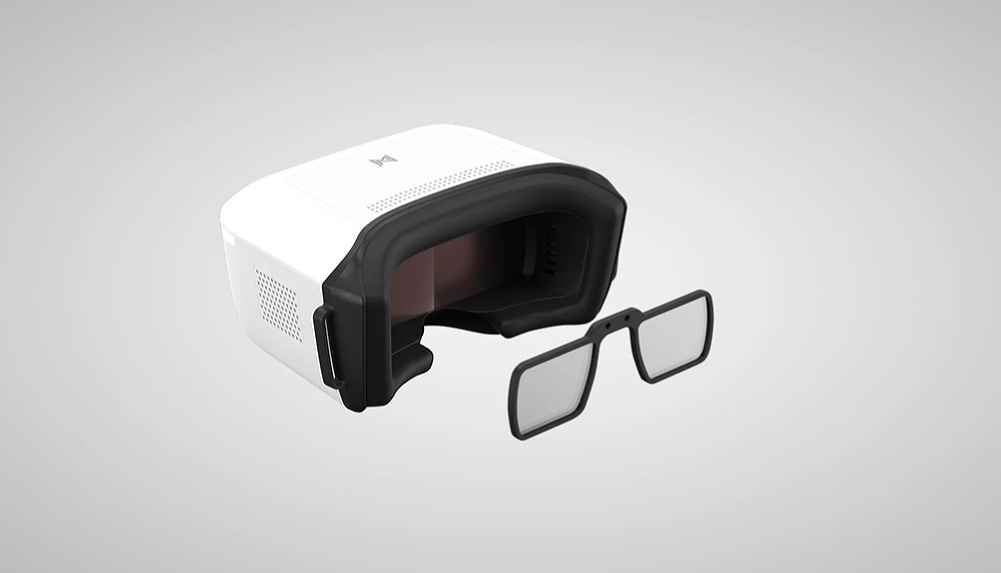

The detachable lens design supports various vision needs, allowing for the installation of nearsighted, farsighted, or blue light-blocking lenses to meet individual preferences.

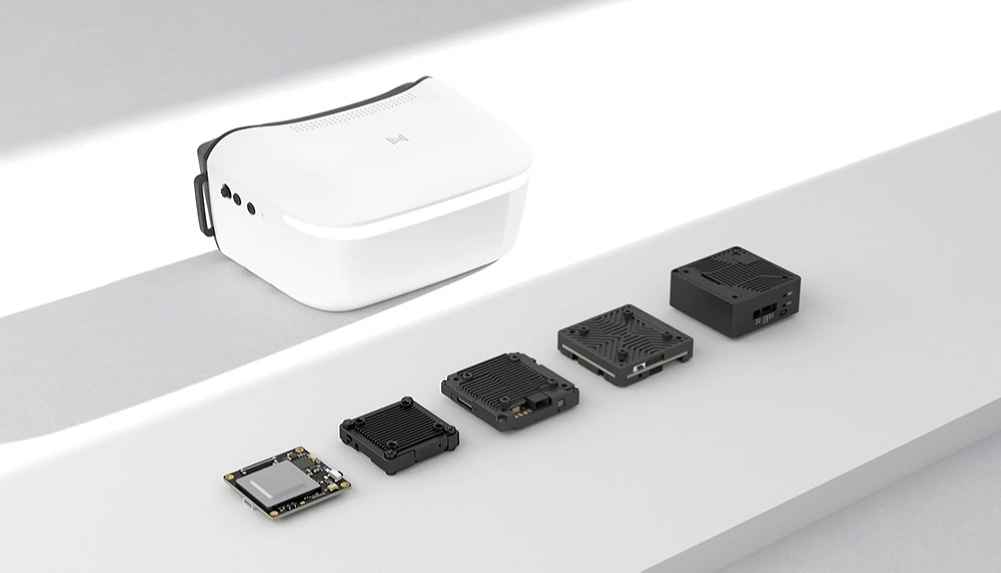

Compatibility with all current Walksnail VTX models ensures stability and the ability to fly when you want to, in both indoor and outdoor environments.

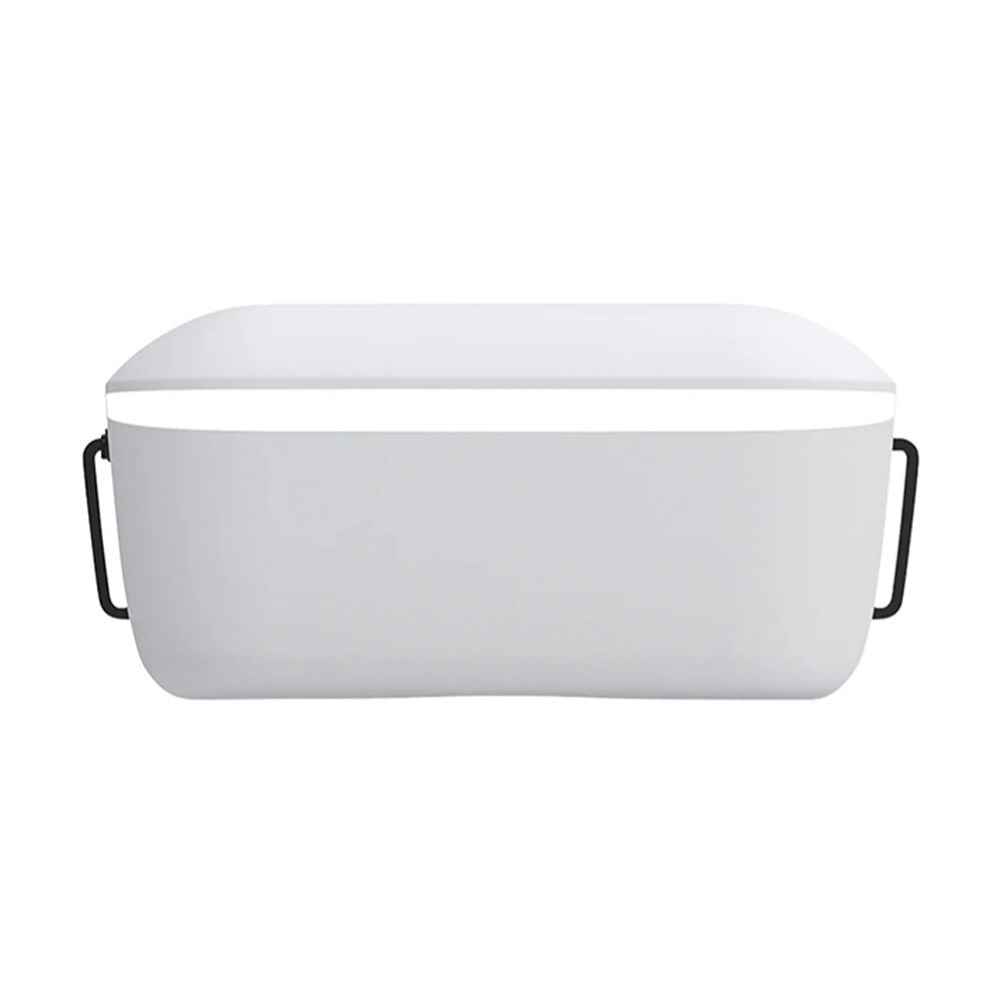

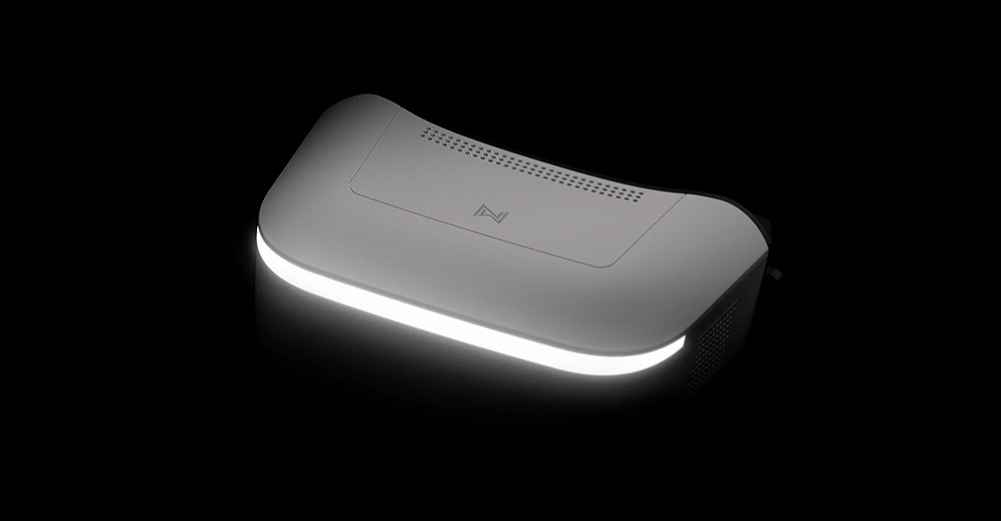

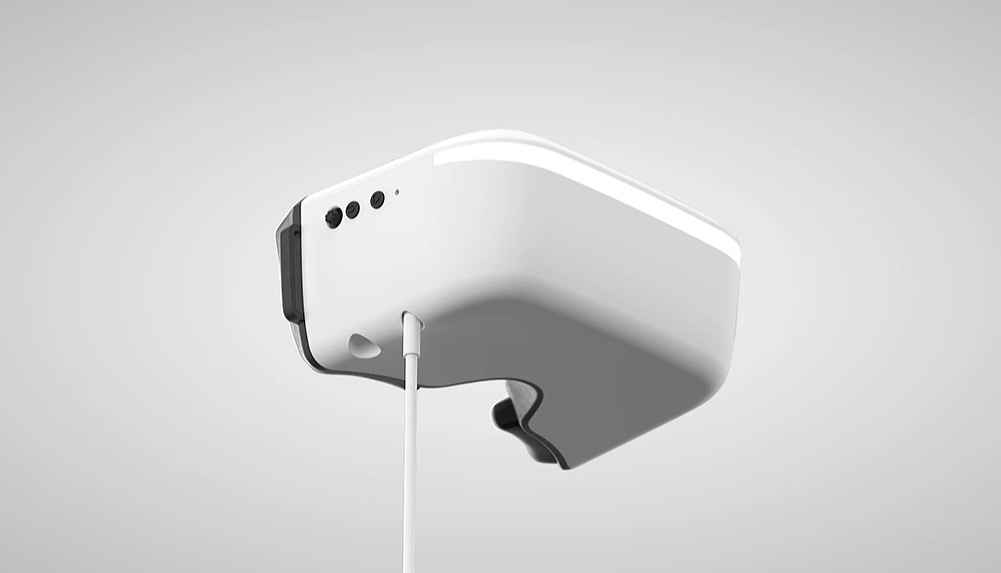

The front cover has an added light-up feature with a cool light bar design to add a technological touch to your gear.

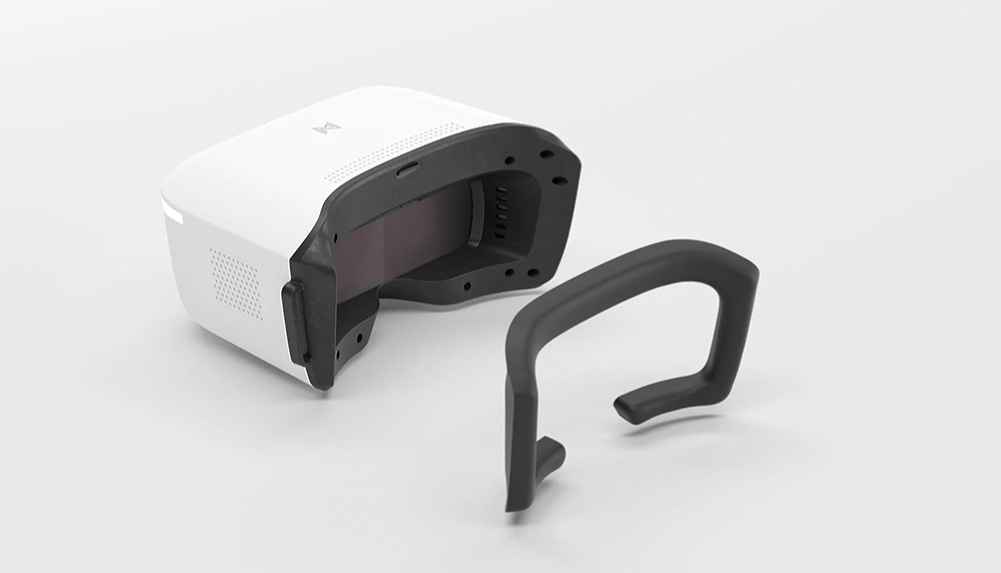

Utilizing premium polyurethane foam, the goggles’ face mask ensures softness and comfort, while reducing light leakage for an enhanced wearing experience.
The Goggles L is suitable for RC cars, FPV drones, and fixed-wing. With the most competitive cost, Goggles L allows you to experience true digital HD FPV visuals, bringing clarity and immersion to your FPV adventures.

Package Included:
1 x Goggle
1 x Straight DC5.5-XT60 Power Cord
1 x Storage Bag
1 x Lens Cleaning Cloth
