Eachine EV800 5-Inch 800×480 FPV Goggles with 5.8G 40CH Raceband, Auto-Searching, Built-In Battery

Description

Eachine EV800 5 Inches 800×480 FPV Goggles 5.8G 40CH Raceband Auto-Searching Build In Battery

The Eachine EV800 FPV goggles offer a 5-inch 800×480 resolution display with high brightness, perfect for outdoor FPV racing. Featuring a built-in 5.8G 40CH Raceband receiver, these goggles deliver seamless video reception. Designed with comfort in mind, they include a face sponge and adjustable head strap. The goggles are equipped with a built-in 3.7V/2000mAh battery providing up to 3.5 hours of usage. The separable design allows the screen to be used independently as a monitor. The device supports a wide range of recharging voltages, including power banks and 2S/3S batteries for extended use. Its ergonomic design and lightweight build ensure a comfortable fit for any racing enthusiast.

Note: The goggles upgraded version with the face sponge and AV IN function. The Headphone jack was changed to 3.5mm. The total weigh reduction of 26g.

Specification

Brand name

Eachine

Item No.

EV800

Screen

Size:

5.0 inch

Resolution:

800*480 (No blur after enlarge by the lens)

Brightness:

600cd/m2 with special high brightness backlight LED for outdoor FPV

View Angle:

140/120 degree(Horizontal/Vertical)

Lens

3x boost of the video to acquire intense feel-in-there video;92% transparent rate no distort of light;

Battery and recharge

– Built-in 3.7V/2000mAh battery;- Each battery circle offer around 3.5hr working time;- 5-12V wide recharging voltag rang, typical recharging voltag is 5V- Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time

Receiver

Build in 5.8G 40CH Raceband receive

Frequency Table

Frequency Band A

5865

5845

5825

5805

5785

5765

5745

5725

Frequency Band B

5733

5752

5771

5790

5809

5828

5847

5866

Frequency Band E

5705

5685

5665

5645

5885

5905

5925

5945

Frequency Band F

5740

5760

5780

5800

5820

5840

5860

5880

Frequency Band R

5658

5695

5732

5769

5806

5843

5880

5917

Body

Dimension:

180*145*82mm

Weight:

349g with 3.5hr 2000mAh battery

Belt:

three-ways adjustable belt

Feature:

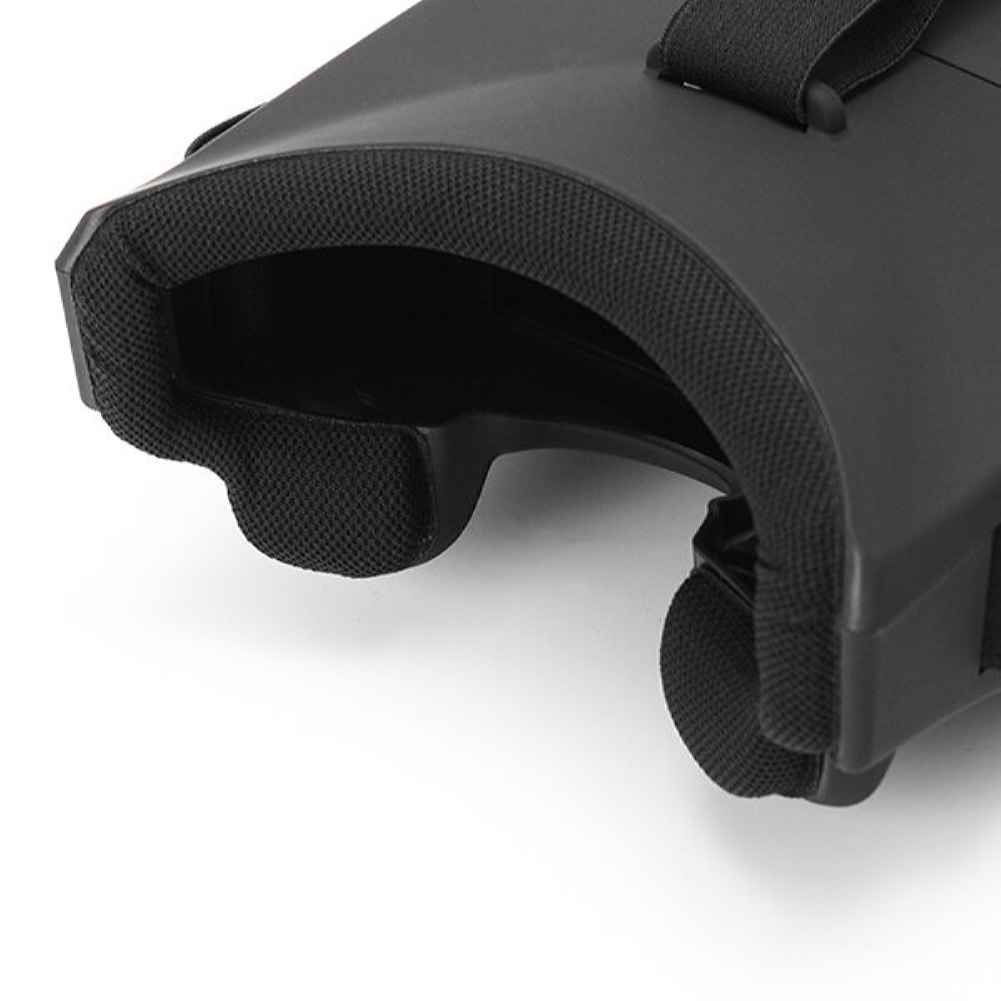

– With comfortable face sponge and AV IN function;
– Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
– HD high brightness 5 inch LCD specially tuned for FPV racing;
– Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
– Come with advanced auto-searching function ad show you the working frequency on screen;
– Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time;
– Wide rang re-charge voltag 5-12V, power banks or 2S/3S batteries can be used as back up power sour, to prolong the working time;
– Ergonomic design fit your faces;
– Super-wide visible angle up to 82 degree;
– 92% transparent lens adopted, no distort, no blur on the adage of screen;
– Light weight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
– 5 inch 800*480px HD high brightness LCD

Eachine EV800D vs EV800DM vs EV800 藩 FPV Goggles Comparison

Display Type

5.8′ IPS LCD (1280沁720 HD)

5.8′ TN LCD (800沁480 SD)

5.8′ TN LCD (800*480px HD )

Resolution

720p @ 60Hz

480p @ 30Hz

480p

DVR Recording

H.264, 720p/60fps

MJPEG, 480p/30fps

Basic DVR (Low Quality)

Receiver

Dual-Diversity (RX5808 Module)

Single Antenna

Single Antenna

Channels

48CH (Incl. RaceBand)

40CH (No RaceBand)

40CH (No RaceBand)

Battery

Built-in 1800mAh LiPo

Built-in 1800mAh LiPo

Built-in 1200mAh LiPo

Head Strap

Detachable (Modular Design)

Detachable

Fixed

Weight

362g without antenna

320g without antenna

349g

Best For

Enthusiasts/Racing

Beginners/Budget Users

Entry-Level Option:
Lightweight and affordable for beginners.

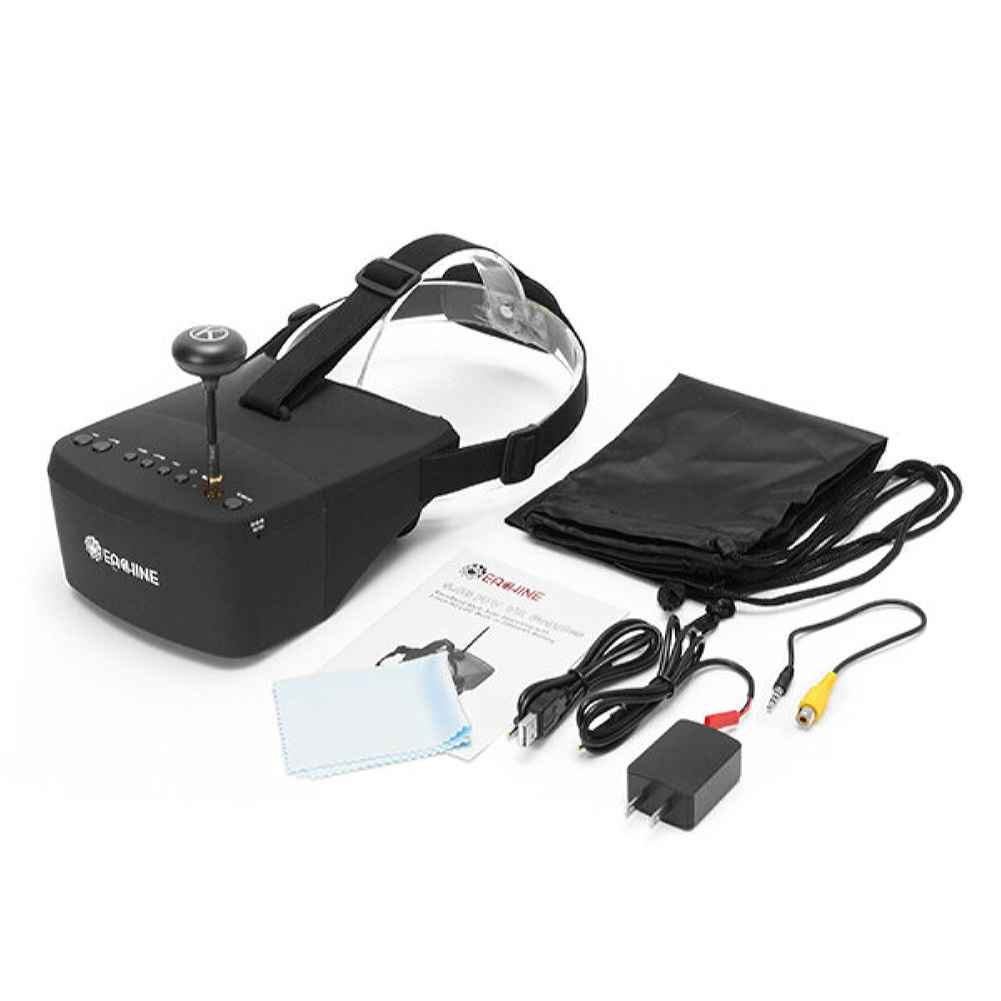

Package Included:
1 x EV800 FPV VR Goggles (Built-in 3.7V/2000mAh battery)
1 x Antenna
1 x USB Charger Cable
1 x Battery Charger Cable
1 x AV IN Cable
1 x User Manual
1 x Clean Cloth
1 x Bag
