Eachine EV800DM 5.8G 40CH FPV Goggles with HD DVR, 3-Inch 900×600 LCD, Built-in 2000mAh Battery, Varifocal Design

Description

Eachine EV800DM Varifocal 5.8G 40CH Diversity FPV Goggles with HD DVR 3 Inch 900*600 Video Headset Build in 2000mAh Battery

The Eachine EV800DM FPV Goggles offer an immersive experience with a 3-inch HD LCD screen boasting a resolution of 900×600. Designed for FPV racing, these goggles feature a varifocal lens with a 20mm adjustable focal length, accommodating users with different eyesight. The built-in super HD DVR records at 720x576px, ensuring no frame loss when using a C10 speed card. Equipped with a 2000mAh battery, these goggles provide up to 2.2 hours of use per charge. The diversity function and RaceBand 40CH auto-searching enhance signal reception, while the ergonomic design ensures comfort for all users, including those wearing glasses.

EV800D vs EV800DM Comparison

EV800D

EV800DM

Weight

362g without antenna

320g without antenna

DVR

720*576px

720*576px

Diversity

Yes

Yes

Varifocal

NO

20mm focal length adjustable;
Multi-stop points design for vertical individual user adjust;
For more users with different eyesight

Screen size

5.0 inch

3.0 inch

Screen resolution

800*480

900*600

Ratio

16:9, 4:3

4:3

Separable Design

Removable screen, can be used as a monitor.

NO

Support Tripod

Yes, with 1/4 inch screw hole

NO

Glasses Fit

NO

Fit for wear with 140mm*40mm glasses;

Battery

7.4V/1200mAh or 3.7V/2000mAh

3.7V/2000mAh

Features:- Built-in with super HD DVR up to 720*576px resolution- Diversity RaceBand 40ch Auto-Searching – Two system (Display/rec0rd duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 speed card to ensure the full frame rec0rding)- Work friendly with player-OSD, no block on the important flying OSD information;- Focal length adjustable design;Room for eyeglasses- HD high brightness 3 inch LCD specially tuned for FPV racing;- Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand;- Advanced auto-searching function and the working frequency show on screen;- Built-in 3.7V 2000mAh battery, each full charge offer 2.2 hours working time;- Wide rang re-charge voltag 5-18V;- Accept 2S or 3S batteries as back-up power source, to prolong the working time;- Nice ergonomic design and fit different faces;- Super-wide visible angle up to 82 degree;- 92% transparent lens adopted, no distort, no blur on the edge of screen;- Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game;- 3 Inch 900*600px HD high brightness LCD
Description :

Brand Name :

EACHINE

Item Name :

EV800DM

English Manual券

Click here

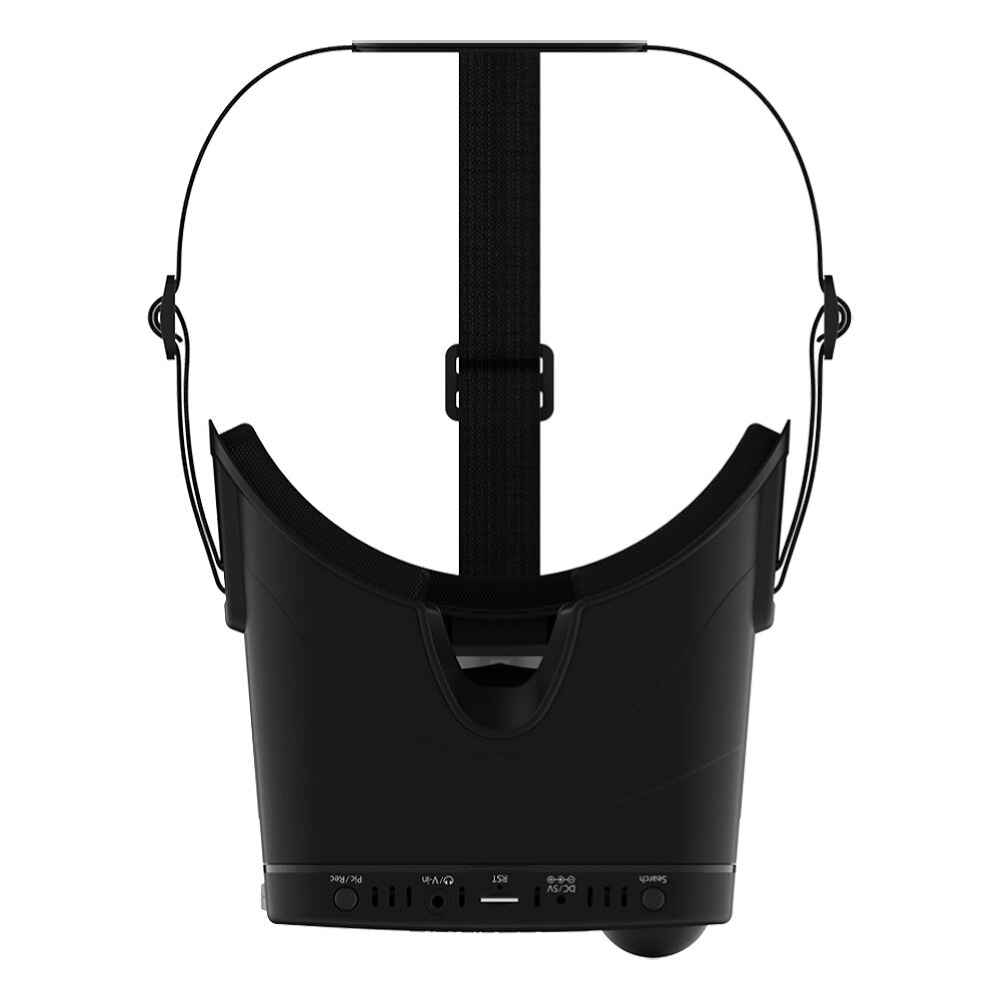

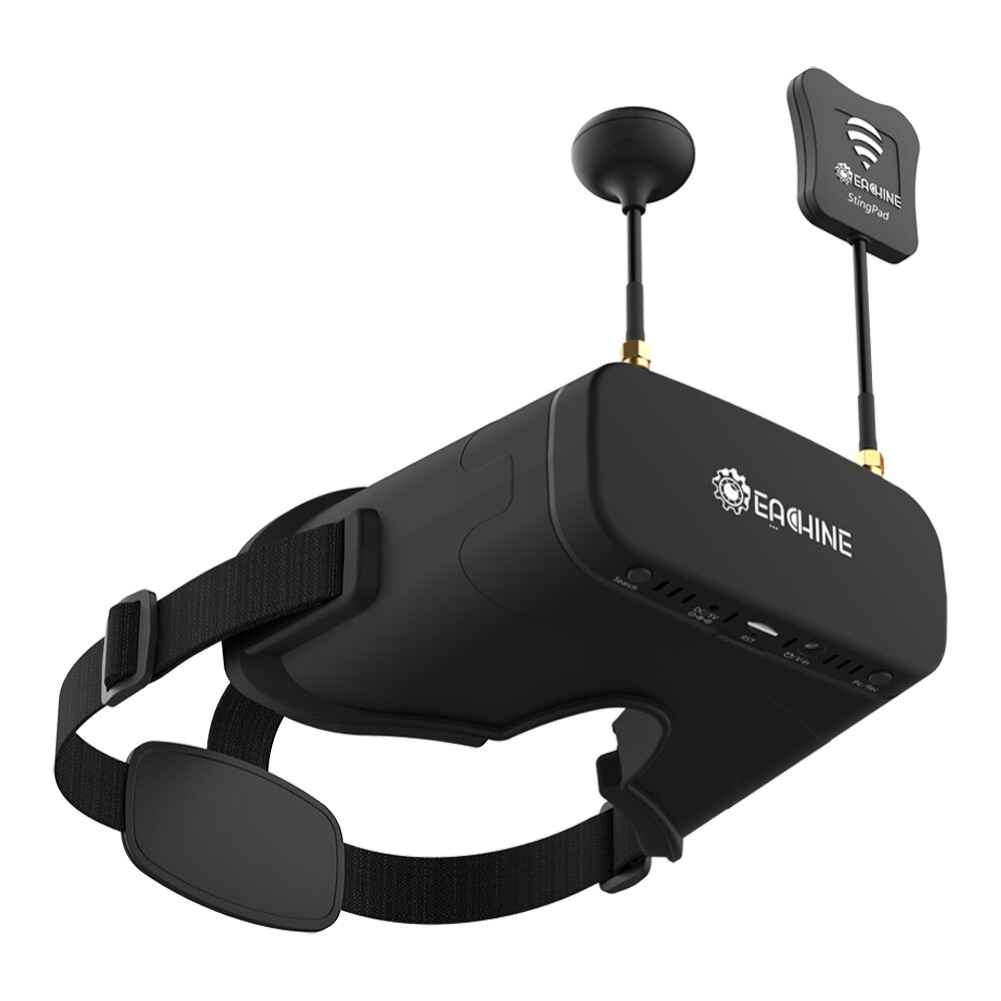

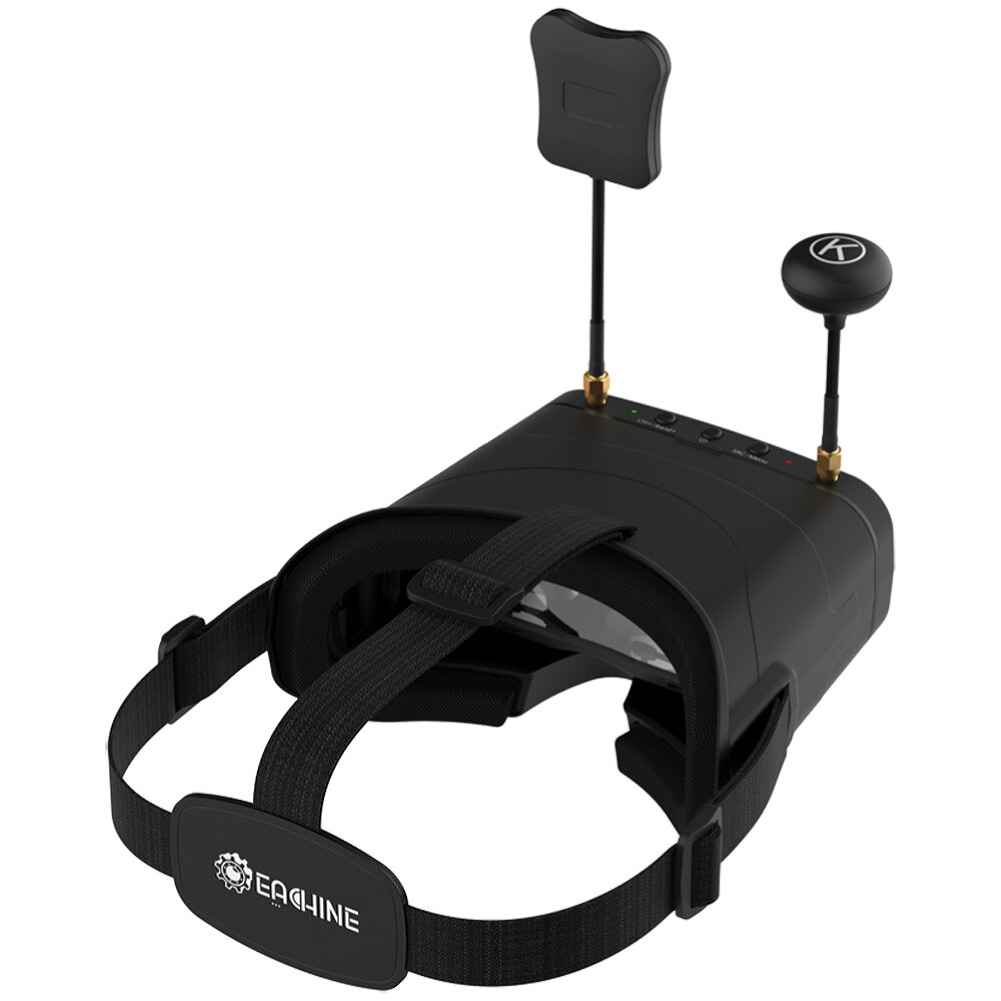

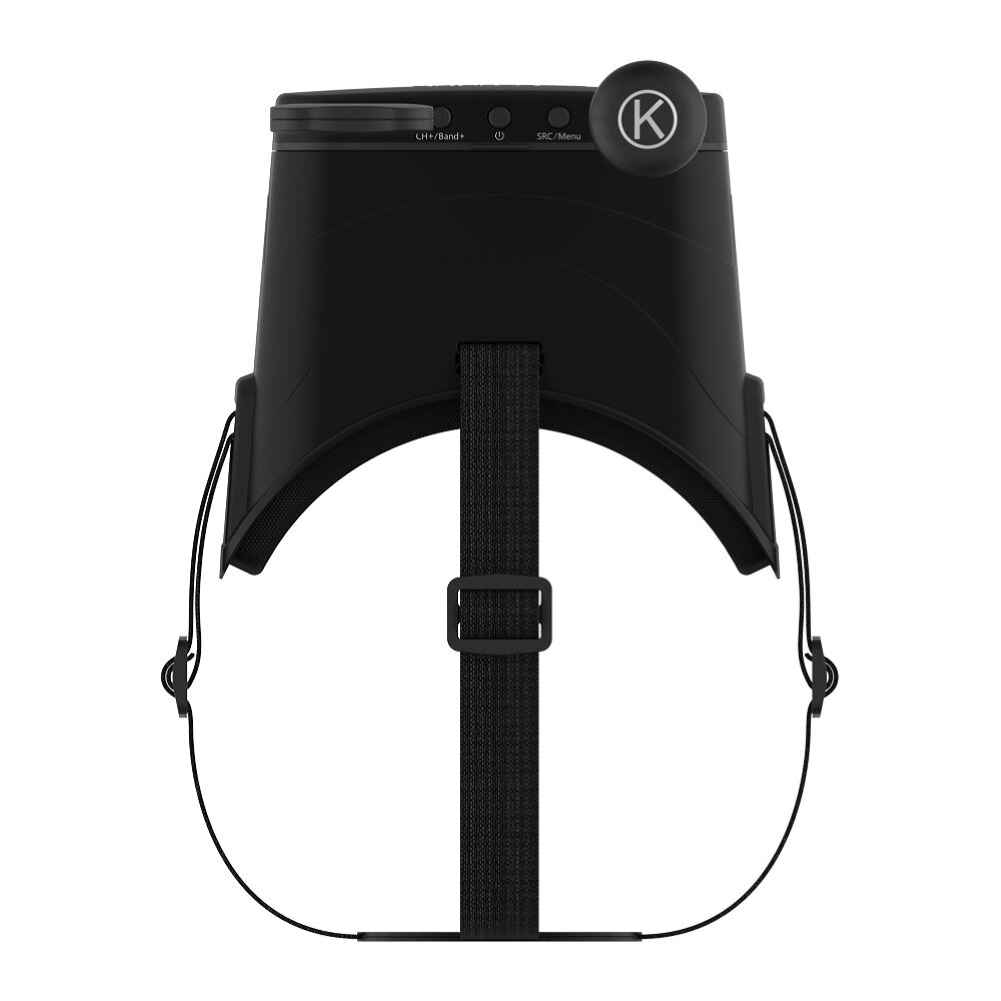

Appearance

Dimension: 150*170*80mmWeight: 320g without antennaBelt : three-way adjustable belt

Specification

Build in DVRrec0rd up to 720*576px full frame rate video, no frame lost (C10 card required)Riplay in MENURequire C10 card to rec0rd full frame rate

Diversity

– 90dB Super sensitiveness in 2pcs RX5808 PRO modulesGreat performance when two types (Linear and Omni) antennas are used

Display

Screen size: 3.0 inchScreen resolution: 900*600(No blur after enlarge by the lens)Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPVRatio : 4:3View Angle: 140/120 degree(Horizontal/Vertical)

Lens

3x boost of the video to acquire intense feel-in-there video;92% transparent rate distort if light;

Varifocal

20mm focal length adjustable;Multi stop points design for vertical individual user adjust;For more users with different eyesight

Glasses Fit

Fit for wear with glasses;Glasses Fit Size; 140mm*40mm;Focal length need to be reset when wear glasses

Battery

Built-in 3.7V/2000mAh battery;Each battery circle offer around 2.2hr working time;5-20V wide rang recharging voltag rang, typical recharging with 5V/2ACharger : 5V, 2A, DC 2.5mm2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

Frequencies (5.8GHz, with RaceBand)

CH

CH 1

CH 2

CH 3

CH 4

CH 5

CH 6

CH 7

CH 8

GROUP

A or FR1

5865 MHZ

5845 MHZ

5825 MHZ

5805 MHZ

5785 MHZ

5765 MHZ

5745 MHZ

5725 MHZ

B or FR2

5733 MHZ

5752 MHZ

5771 MHZ

5790 MHZ

5809 MHZ

5828 MHZ

5847 MHZ

5866 MHZ

C or FR3

5705 MHZ

5685 MHZ

5665 MHZ

5645 MHZ

5885 MHZ

5905 MHZ

5925 MHZ

5945 MHZ

D or FR4

5740 MHZ

5760 MHZ

5780 MHZ

5800 MHZ

5820 MHZ

5840 MHZ

5860 MHZ

5880 MHZ

R or FR5

5658 MHZ

5695 MHZ

5732 MHZ

5769 MHZ

5806 MHZ

5843 MHZ

5880 MHZ

5917 MHZ

Recommanded Parts
EV800DM FPV VTX : 5.8Ghz VTX Click Here
EV800DM Small Camera : Click Here
EV800DM Spare Battery Box : Click Here
EV800DM 3.7V 2000mAh Battery, click here
EV800DM Optical Lens, Click here.
EV800DM DC 12V 2A Charger AC Adatper US Plug, Click here.
EV800DM 3S to DC2.5/ JST to DC2.5 Plug Connector Adapter LiPo Battery Charging Connection Cable, Click here.

Package Included:
1 x EV800DM 40CH 5.8G Varifocal FPV Diversity Goggles with DVR

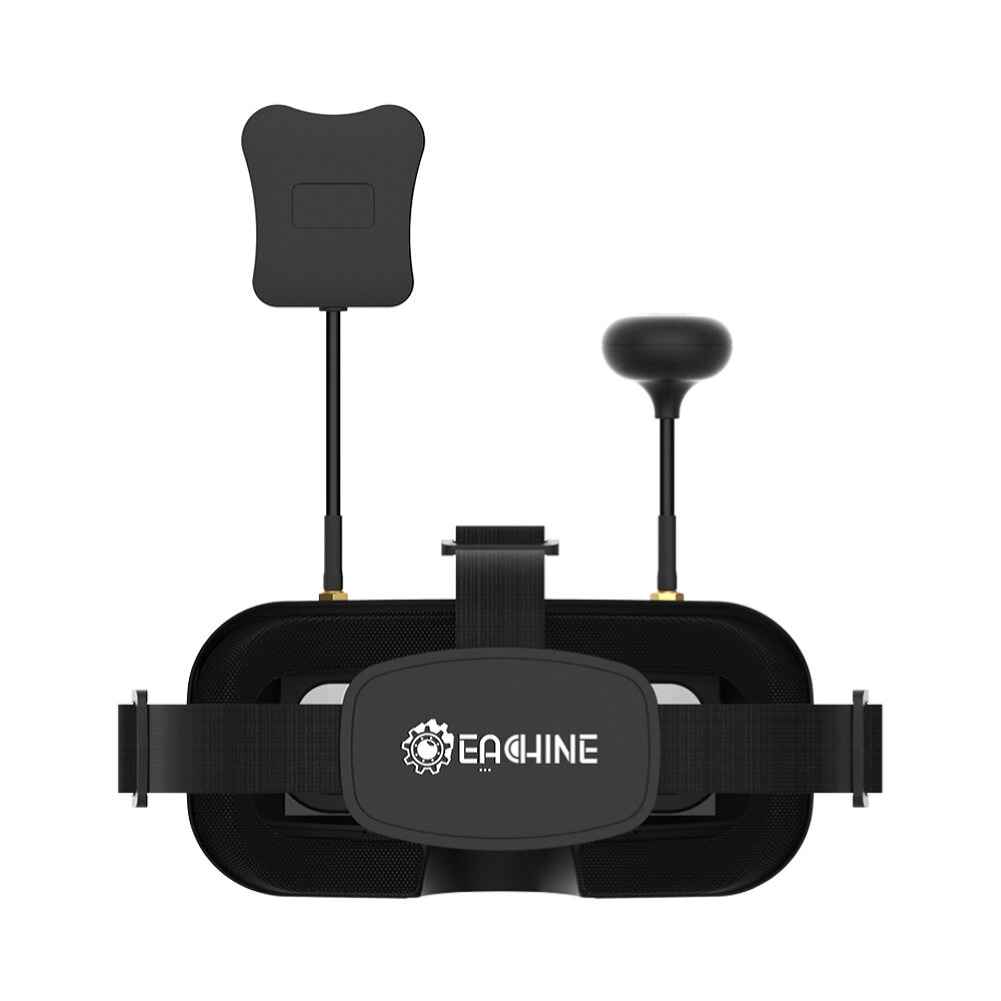

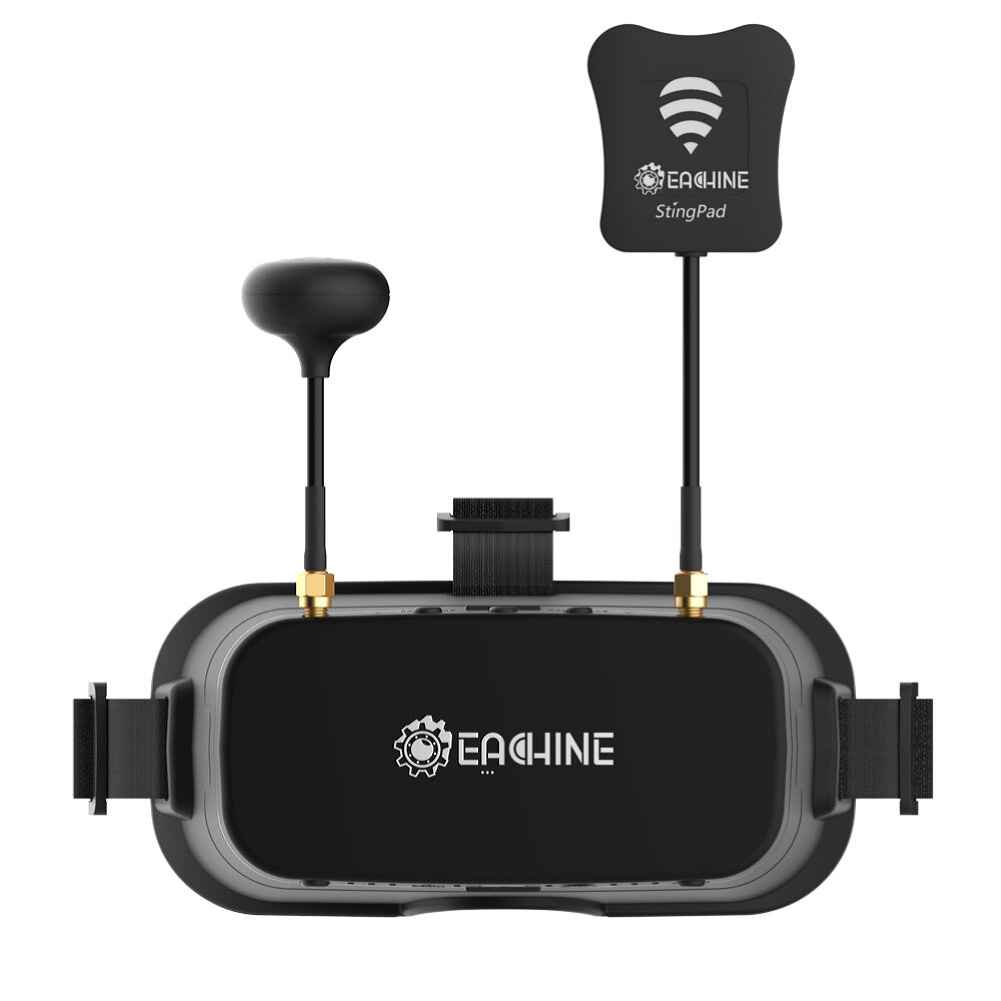

1 x Clover Antenna
1 x Panel Antenna
1 x Battery Charger
1 x USB Power Charging Cable
1 x AV In/Out Cable
1 x User Manual
