Description

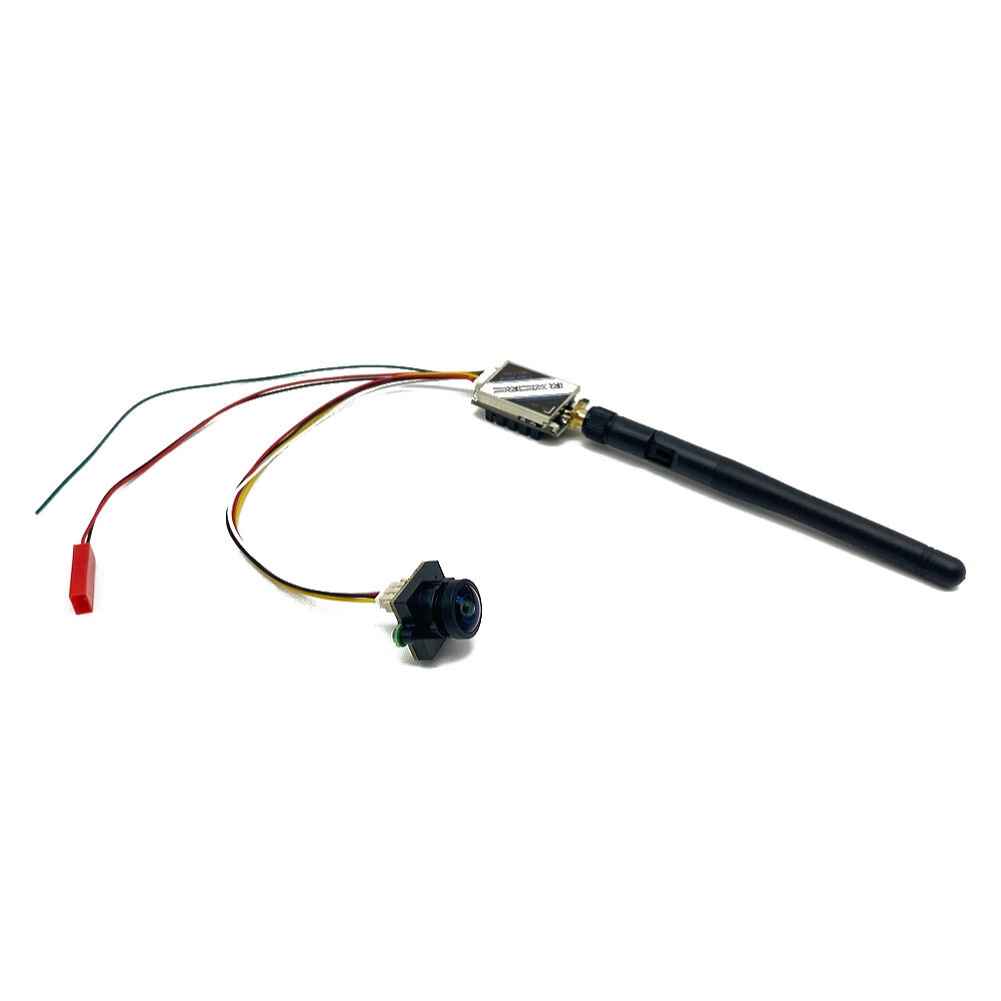

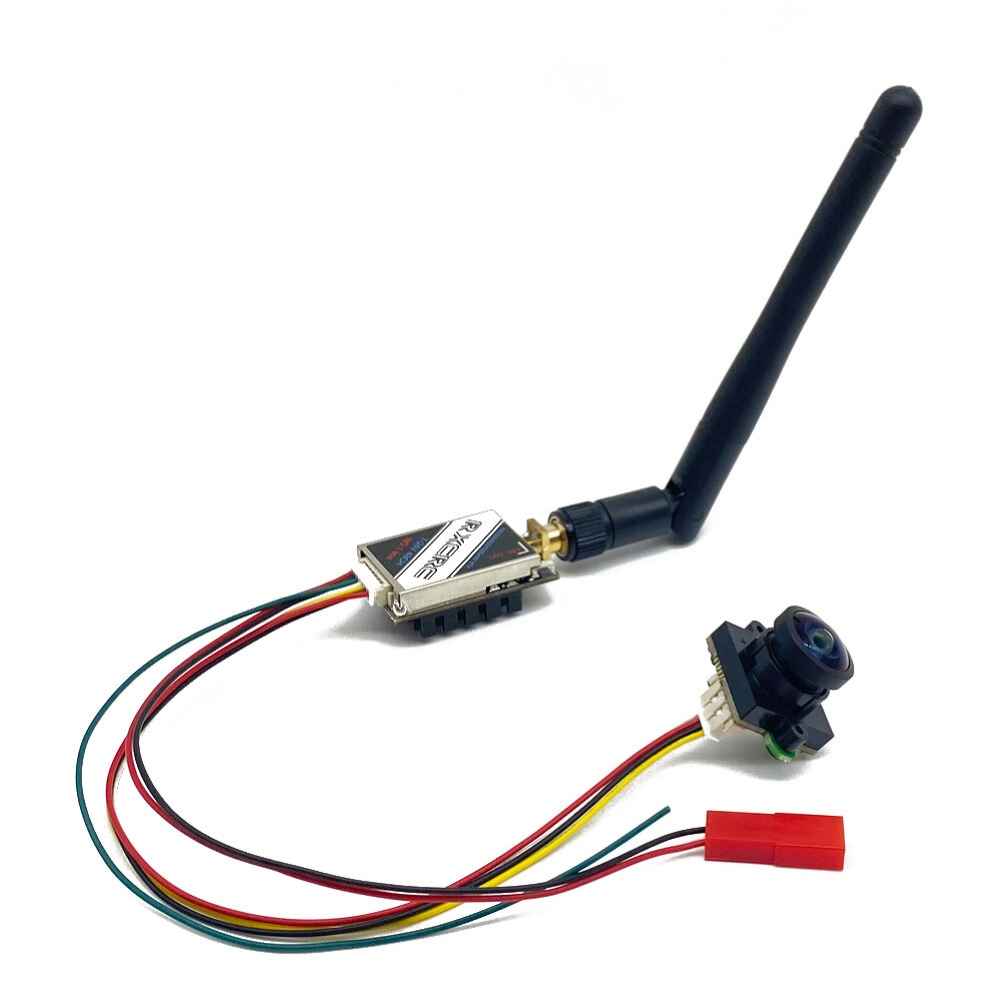

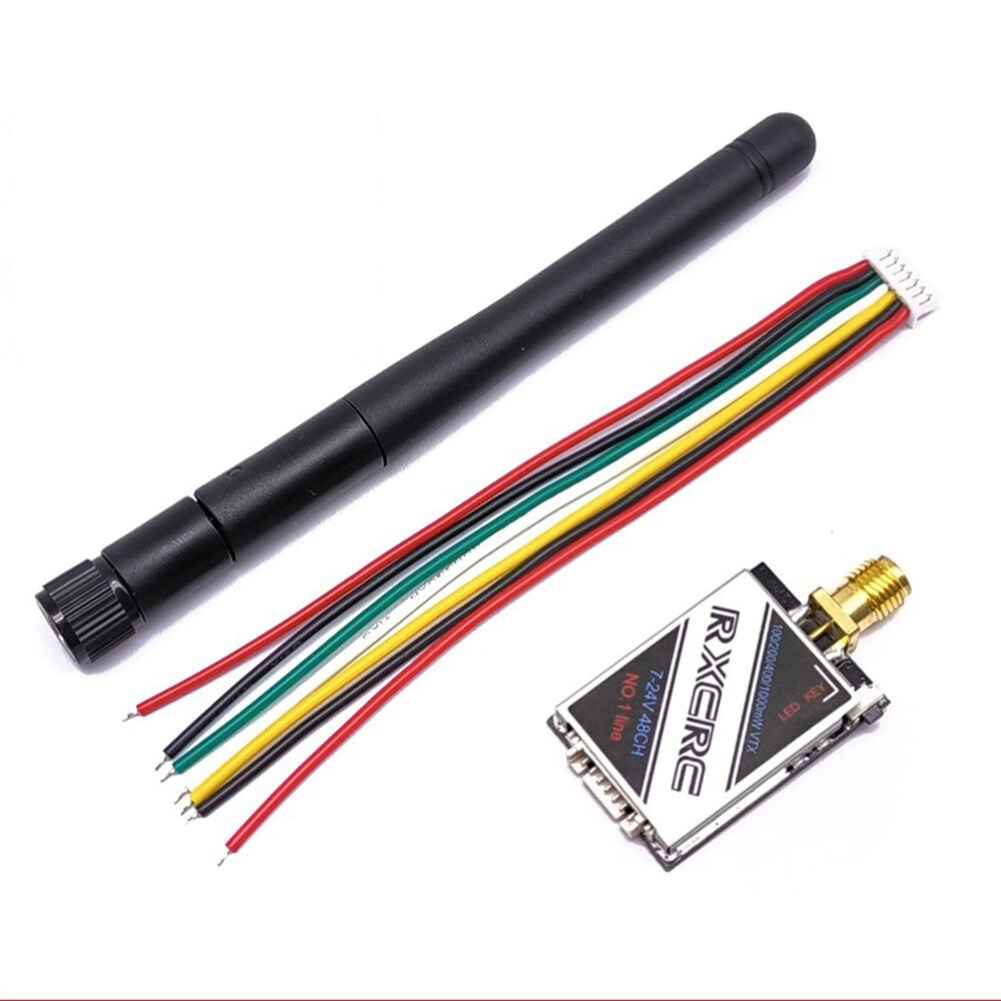

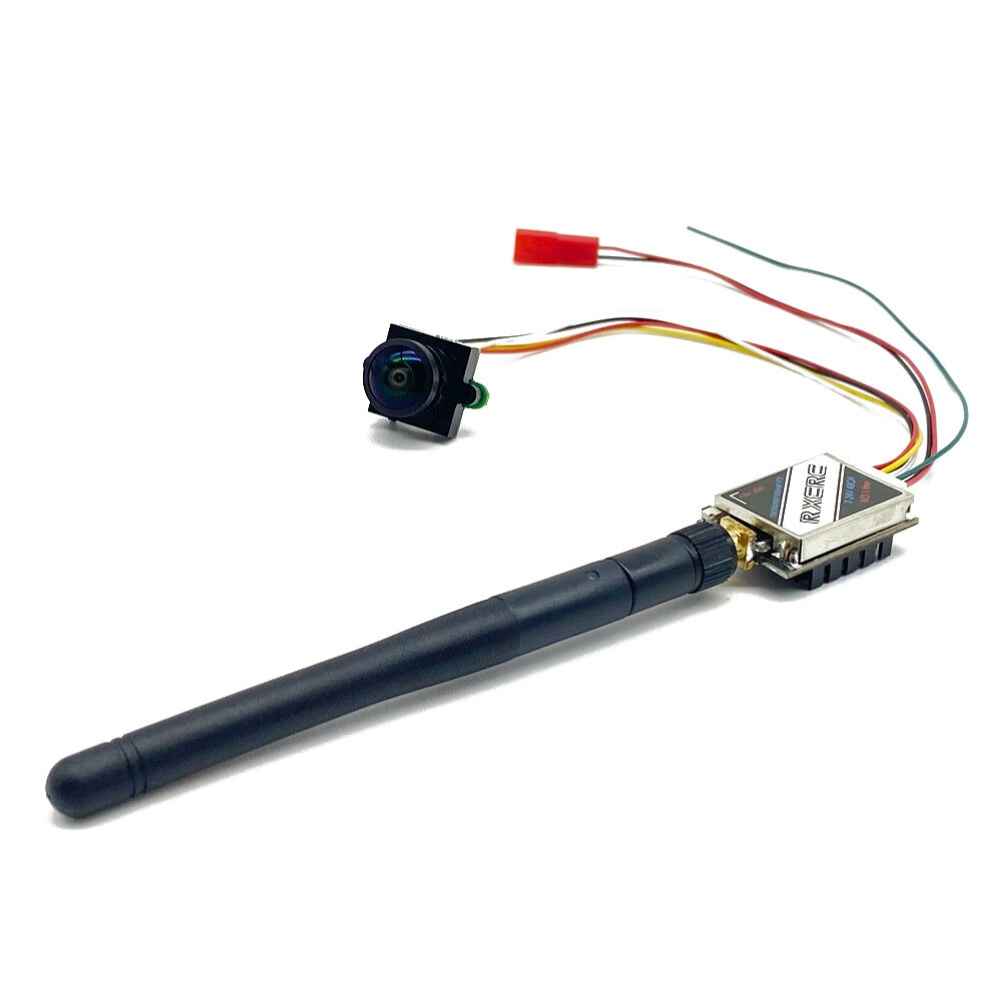

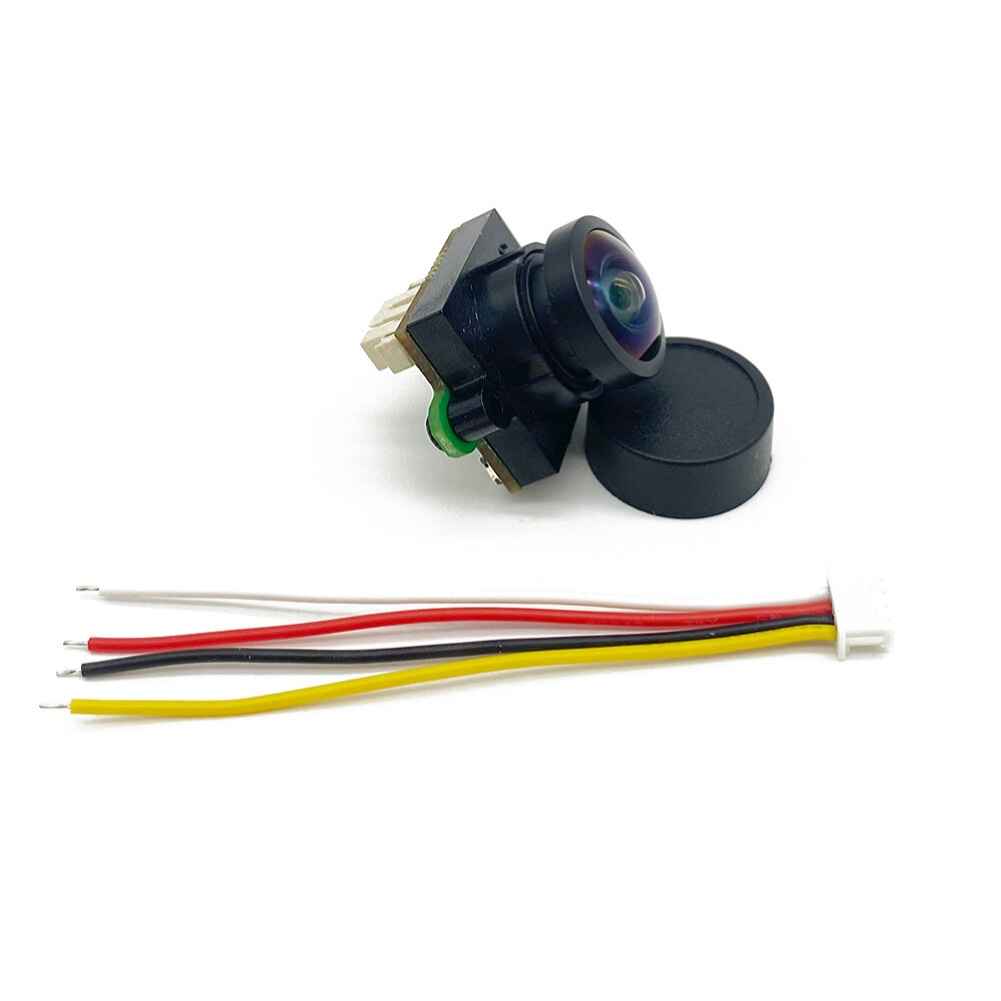

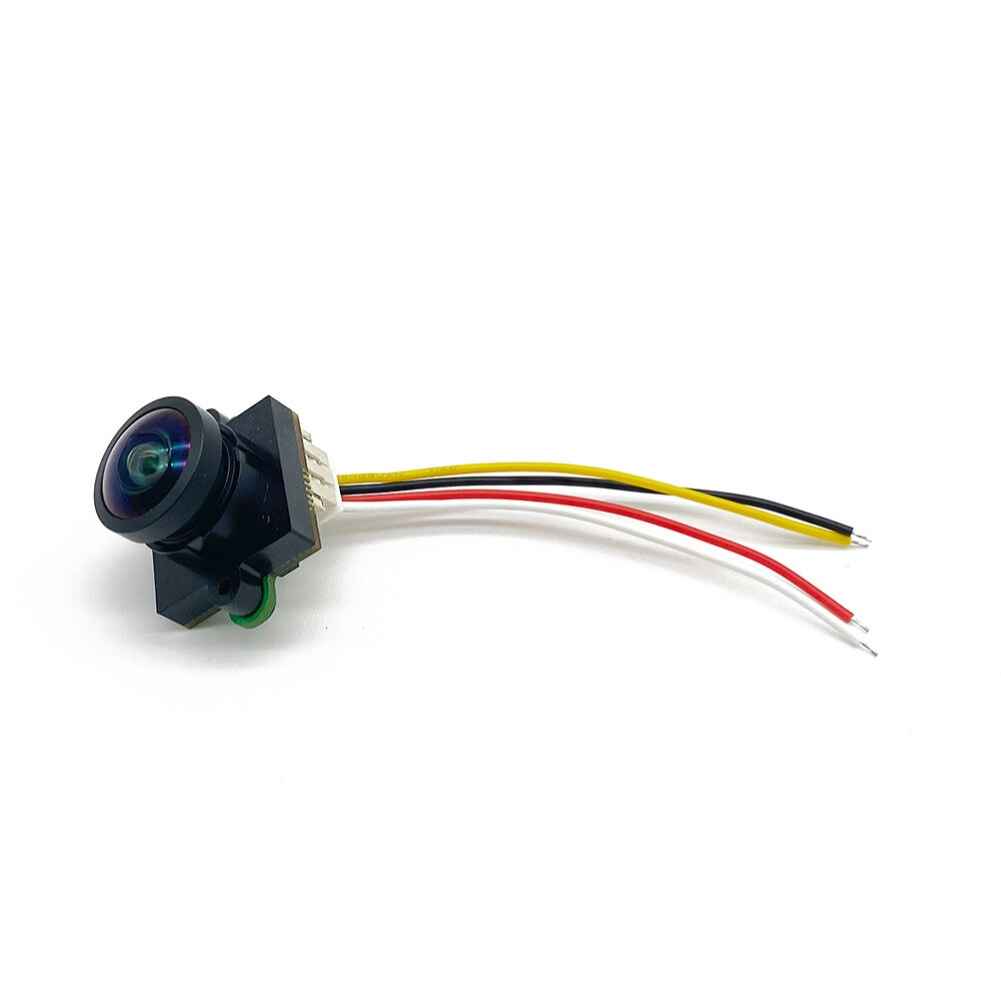

EWRF 5.8Ghz 48CH 100/200/400/1000mW Adjustable FPV Transmitter with Starlight CMOS 1000TVL Camera for RC FPV Racing Drone Airplane
The EWRF 5.8Ghz 48CH FPV Transmitter is a versatile choice for RC FPV racing drones and airplanes. It features an adjustable power output of 100/200/400/1000mW, offering flexibility in transmission strength. The integrated Starlight CMOS 1000TVL camera provides exceptional image clarity, even in low-light conditions, thanks to its advanced lens technology. With a wide-angle view of 180 degrees, it captures expansive aerial shots. The device supports both PAL and NTSC video formats and includes a built-in silicon microphone for detailed audio capture. Its ultra-light design and wide voltage input range from 3V to 17V make it compatible with various drone setups.
Specifications:
Electrical Performance:
Working Voltage: 3.0-17.0V
Working Current: 75mA (5V)
Video Output: CVBS PAL/NTSC
Audio Output: Analog
Lens Parameters:
Lens Diameter: 14mm
Focal Length: 2.0
Perspective: Diagonal 182, Horizontal 156, Vertical 90
Sound Characteristics:
Sensitivity: -42
Signal to Noise Ratio: 58
Audio Range: 13Hz?10kHz
Features:
Equipped with a built-in silicon microphone, capturing every sound detail during flights.
Broad 180-degree angle of view, ensuring panoramic aerial shots.
Advanced low-light lens technology ensures brighter and clearer images under dim conditions.
Flexibility in video format settings with support for both PAL and NTSC.

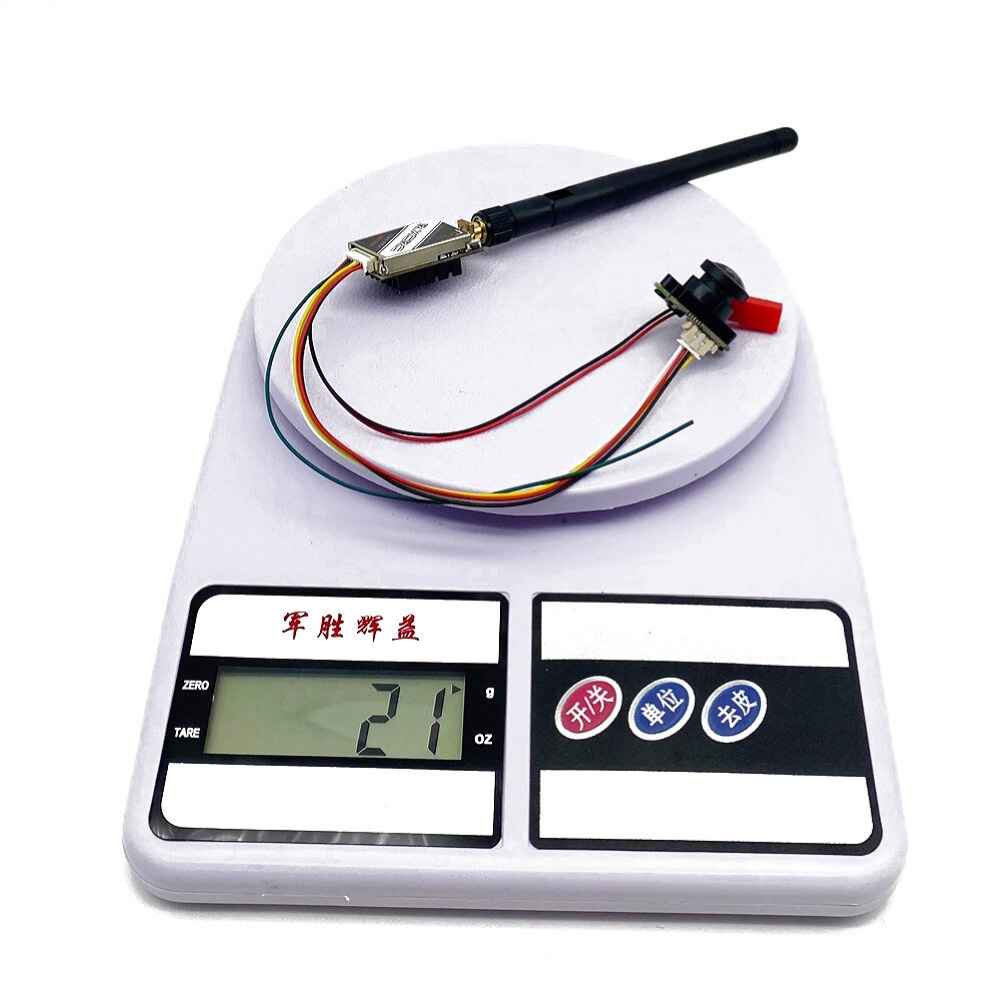

Ultra-light design coupled with a wide voltage input range of 3V to 17V, making it suitable for diverse drone setups.
Package Included:
1 set x FPV VTX Camera
