5.8G 48CH 4W Adjustable FPV Transmitter VTX with CMOS 1000TVL Camera, Analog Image Transmission for FPV Drones, 2-6S Compatible

Description

5.8G 48CH 4W Adjustable 2-6S FPV Transmitter VTX CMOS 1000TVL FPV Camera Analog Image Transmission Set Support IRC for FPV Drones

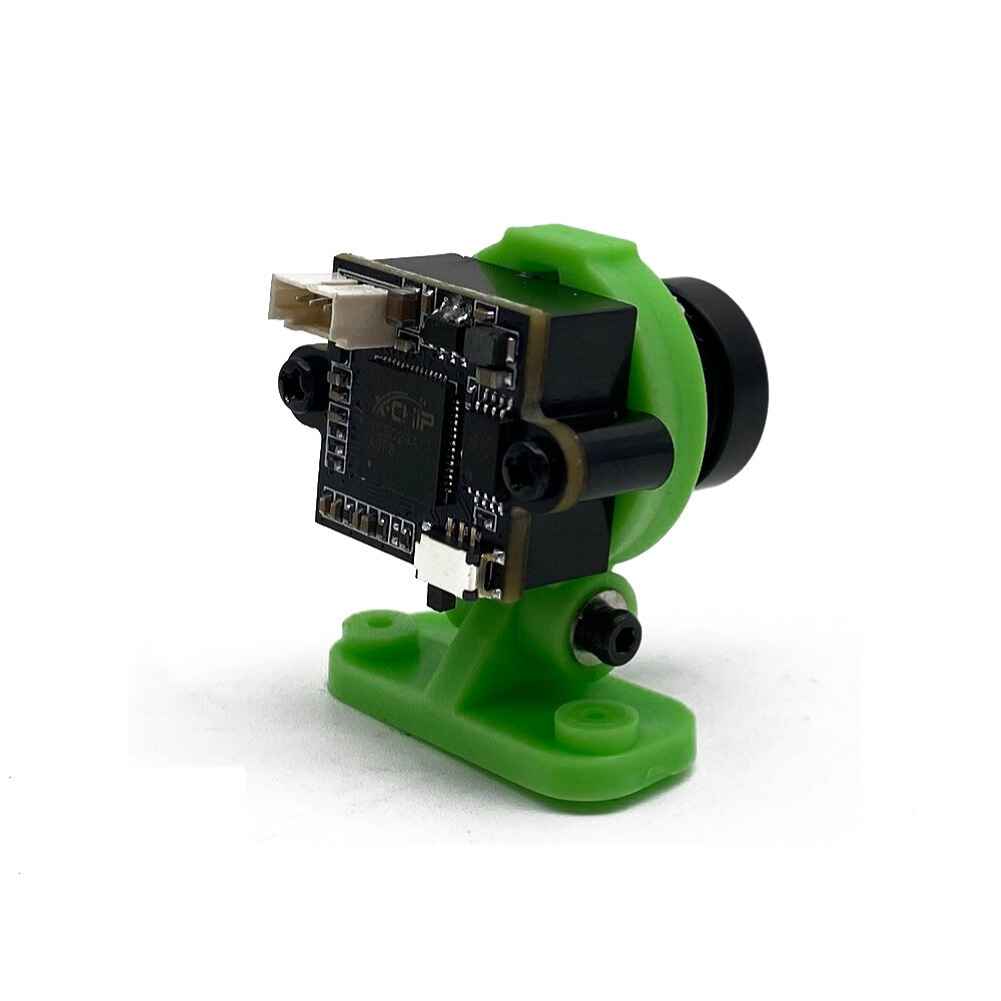

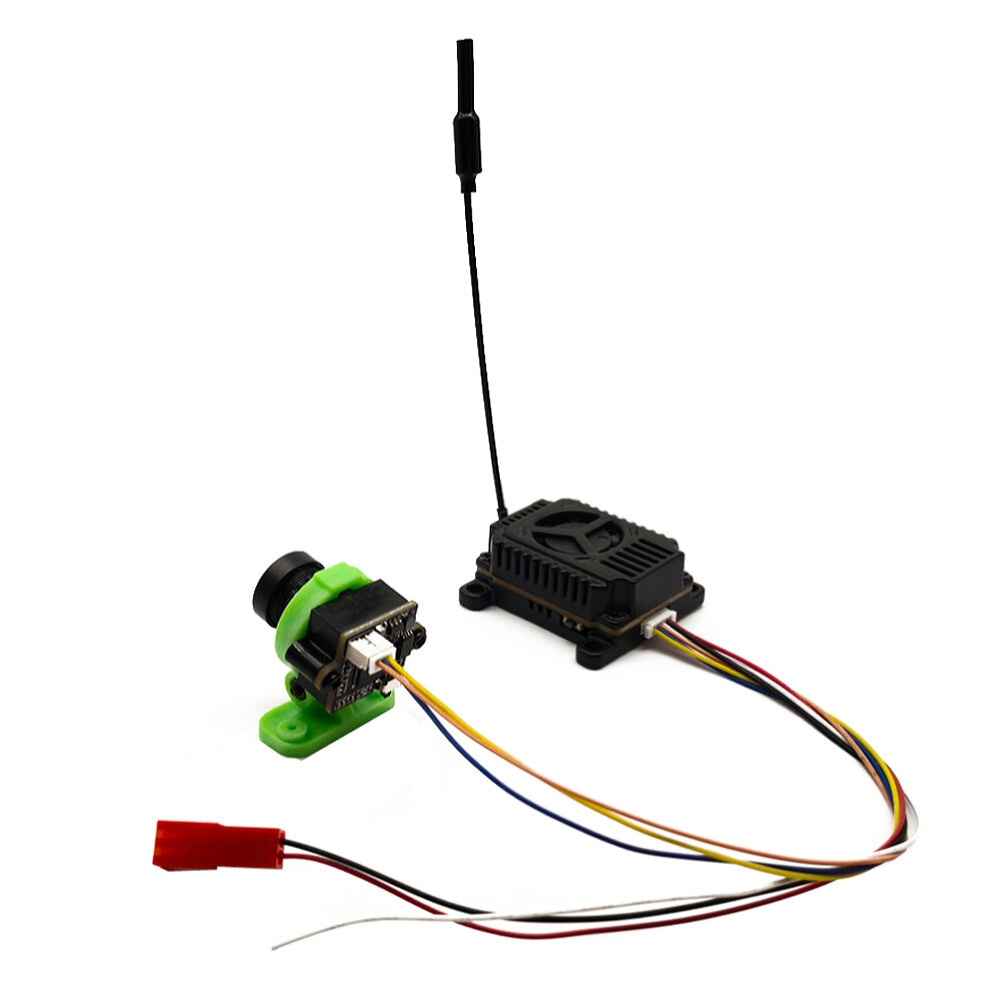

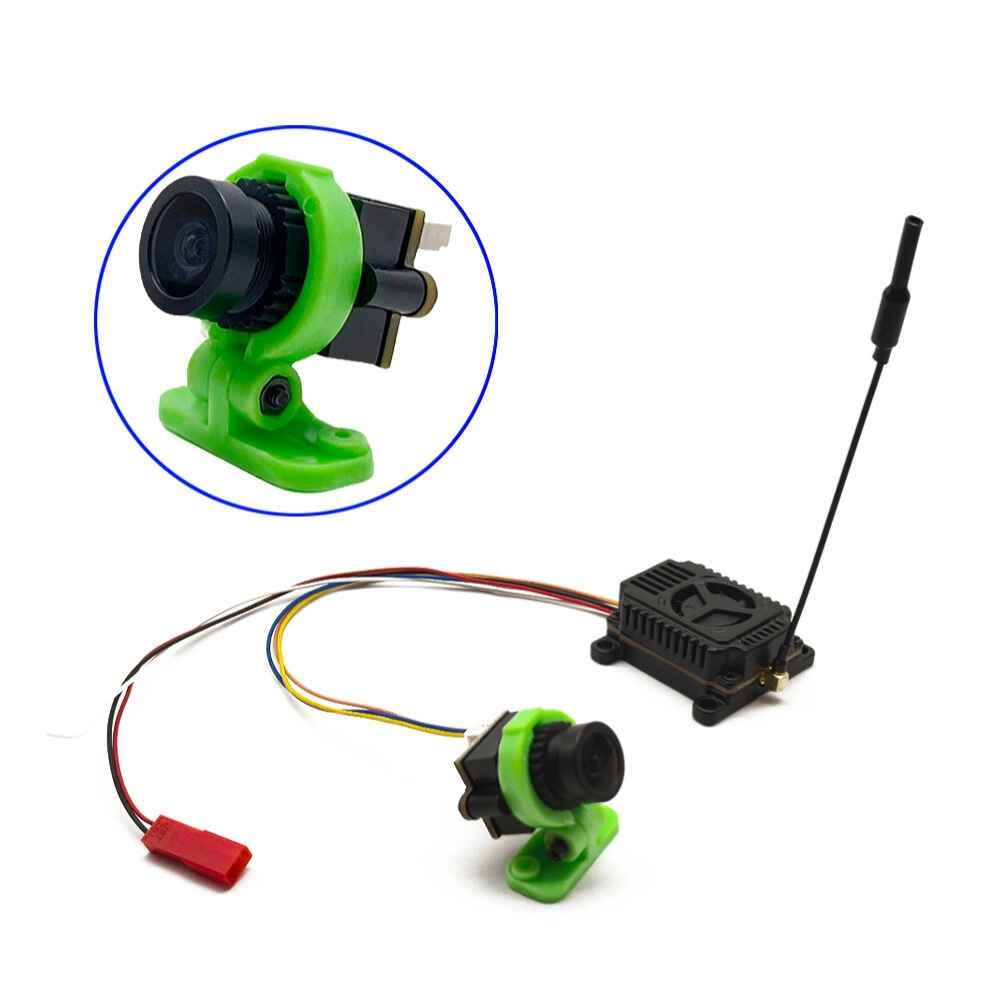

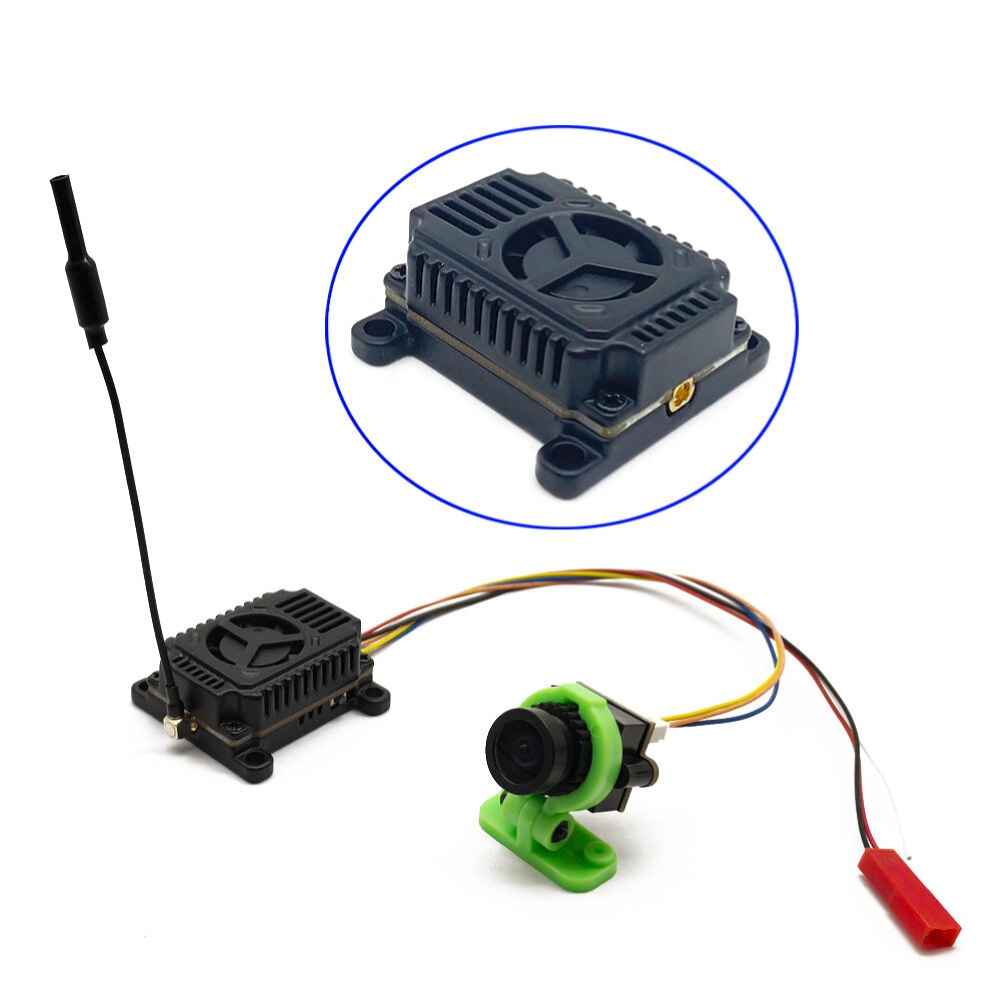

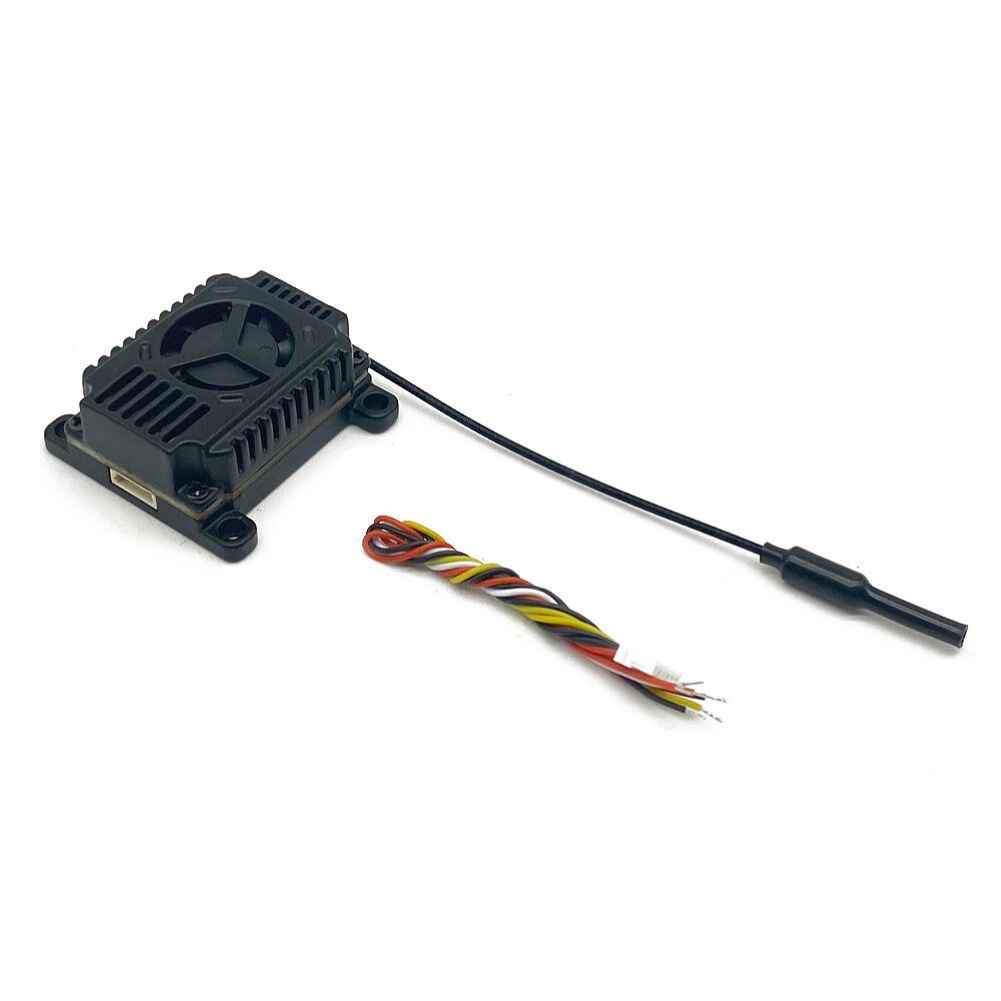

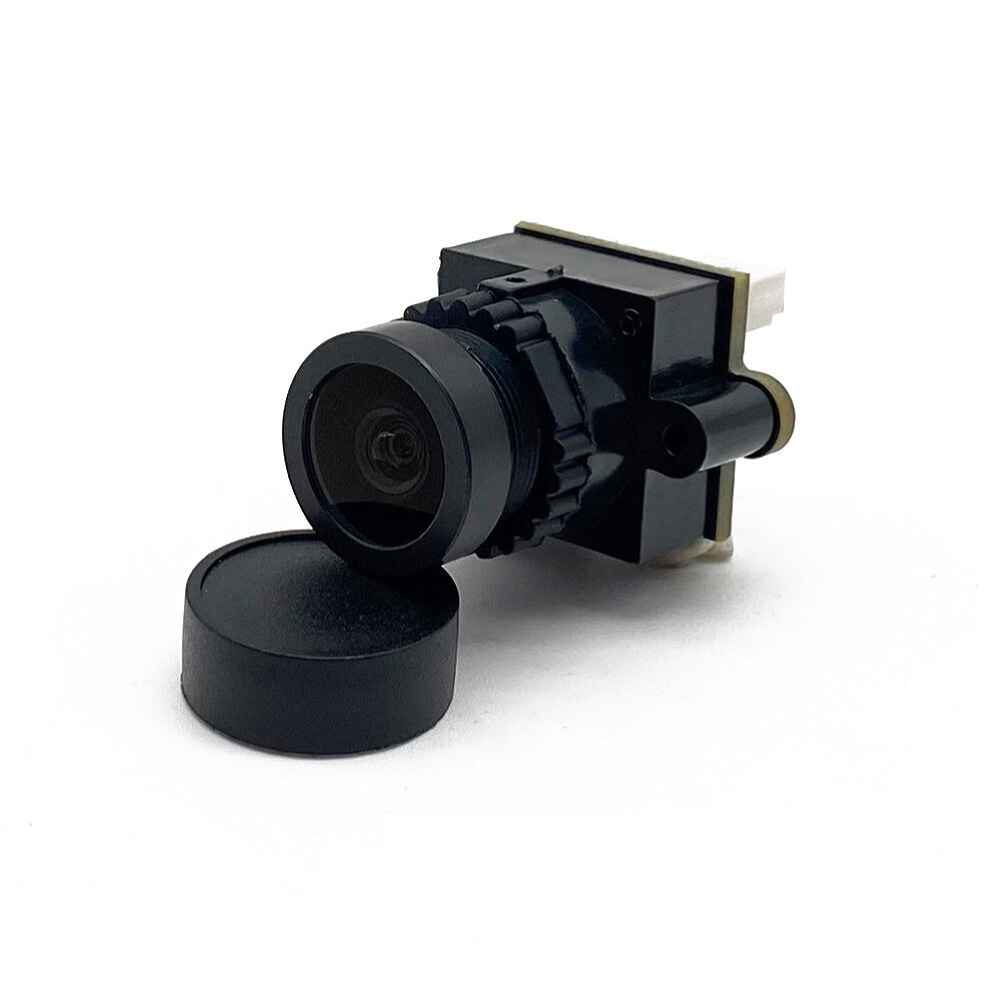

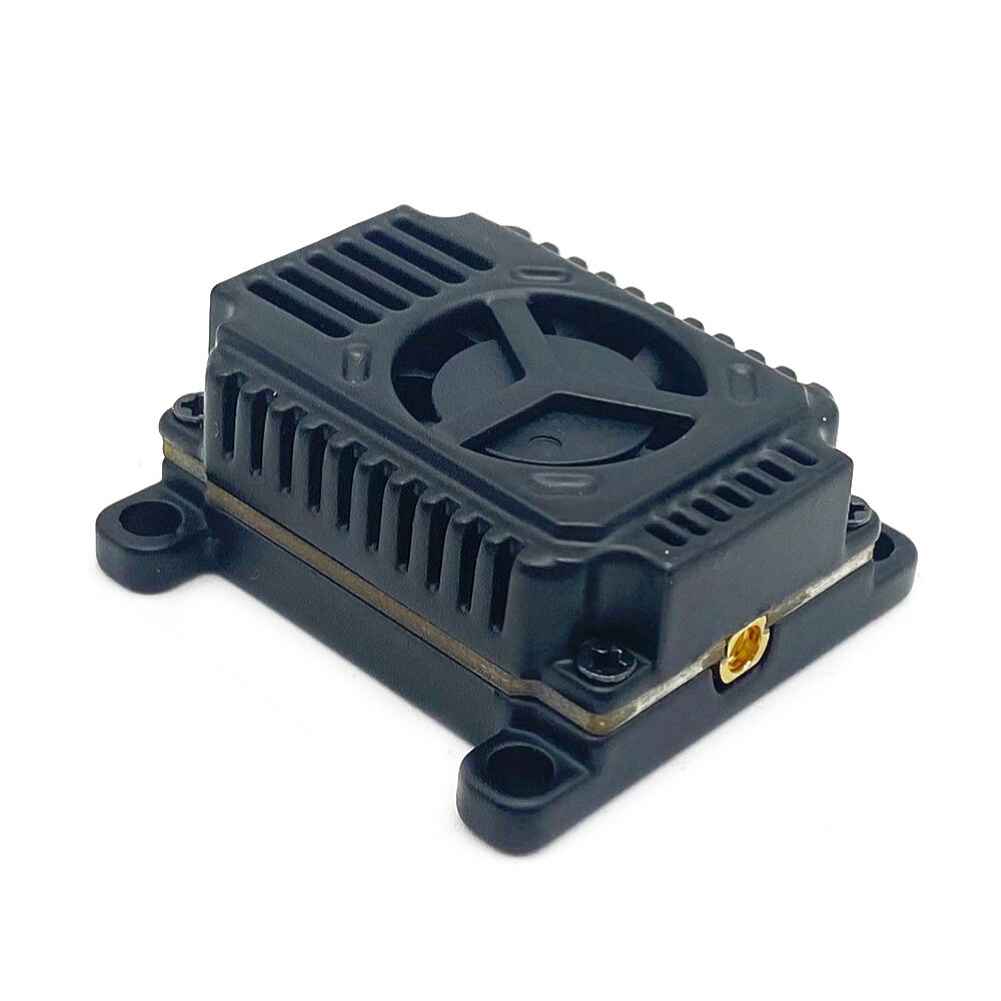

This 5.8G 48CH 4W FPV Transmitter and CMOS 1000TVL Camera set is designed for FPV drone enthusiasts seeking high-quality analog image transmission. The adjustable power output ranges from 25mW to 4000mW, providing flexibility for various flight conditions and distances. Equipped with a 1000TVL CMOS camera, it ensures clear and sharp real-time video. The system supports a wide voltage input of 7-28V DC, making it compatible with 2-6S power setups. Its compact and lightweight design, weighing only 33g, minimizes impact on drone performance while offering easy installation. The camera’s wide field of view, 100-degree horizontal and 70-degree vertical, delivers comprehensive visual coverage.

Specification:

Model:

5.8G 4W VTX CMOS 1000TVL Camera

Frequency:

5.8GHz

Power Output:

25mW, 400mW, 1000mW, 2000mW, 4000mW

Camera:

1200TVL CMOS

FOV:

H:100 V:70

Voltage Input:

7-28V DC

Weight:

33g (VTX module 22g, CMOS camera 11g)

Features:
1. Adjustable Power Output: Provides power levels of 25mW, 400mW, 1000mW, 2000mW, and 4000mW, allowing customization for various flight distances and conditions.2. High Definition CMOS Camera: Equipped with a 1000TVL CMOS camera for clear and sharp real-time video transmission, enhancing FPV experience.3. Broad Voltage Support: Compatible with 2-6S power setups, offering versatility in power supply options for different drones and models.4. Wide Field of View: Features a 100-degree horizontal and 70-degree vertical field of view, delivering comprehensive visual coverage.5. Compact and Lightweight Design: Weighs approximately 33g, ensuring minimal impact on drone weight and easy installation.

Package Included:
1 x 5.8G 4W VTX CMOS 1000TVL Camera
