PandaRC NANO25 25mW 40CH IPEX Micro VTX, 5V FPV Transmitter with OSD Parameter Adjustment for Micro FPV Racing Drones

Sale!

PandaRC NANO25 25mW 40CH IPEX Micro VTX, 5V FPV Transmitter with OSD Parameter Adjustment for Micro FPV Racing Drones

Original price was: 31.62$.Current price is: 24.19$.

Ultra-compact size for micro FPV racing drones
25mW output power with 5V input voltage
Supports 40CH frequency with IPEX interface
OSD parameter adjustment for easy control
Compatible with NTSC and PAL video standards

SKU: RC2033654 Category: FPV System Tags: 25mW FPV VTX, 40CH FPV system, 5V FPV transmitter, IPEX micro VTX, micro FPV racing drones, OSD parameter adjustment, PandaRC NANO25, ultra-small FPV transmitter Brand: PandaRC

Description

Ultra-small Size PandaRC NANO25 25mW 40CH IPEX Micro VTX 5V FPV Transmitter Support OSD Parameter Adjustment Image Transmission for Micro FPV Racing Drones

The PandaRC NANO25 is an ultra-compact FPV transmitter designed for micro FPV racing drones. With an output power of 25mW and operating on a 5V input, this transmitter offers reliable image transmission across 40 channels. It features an IPEX interface and supports OSD parameter adjustments for seamless integration and control. The NANO25 is lightweight, weighing less than 0.5g, and its compact dimensions of 10mm x 10mm x 2.5mm make it an ideal choice for micro drone setups. The video standard is automatically compatible with NTSC and PAL formats, ensuring versatile use.

Specification:

Brand:

PandaRC

Product name:

NANO25

Output power:

25mW

Input voltage:

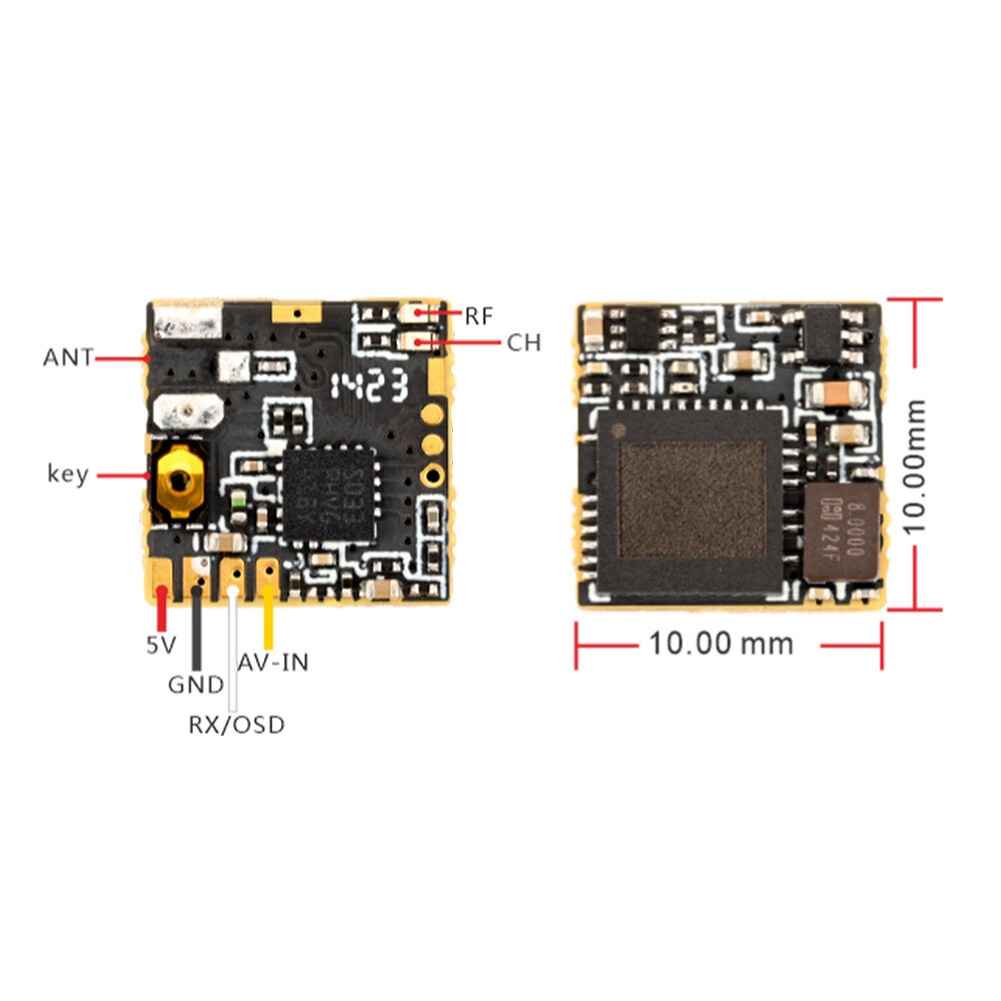

Interface Type

IPEX

Parameter adjustment mode:

key /OSD

Working current:

25mw/180ma@5V

Output frequency:

40CH

Antenna interface:

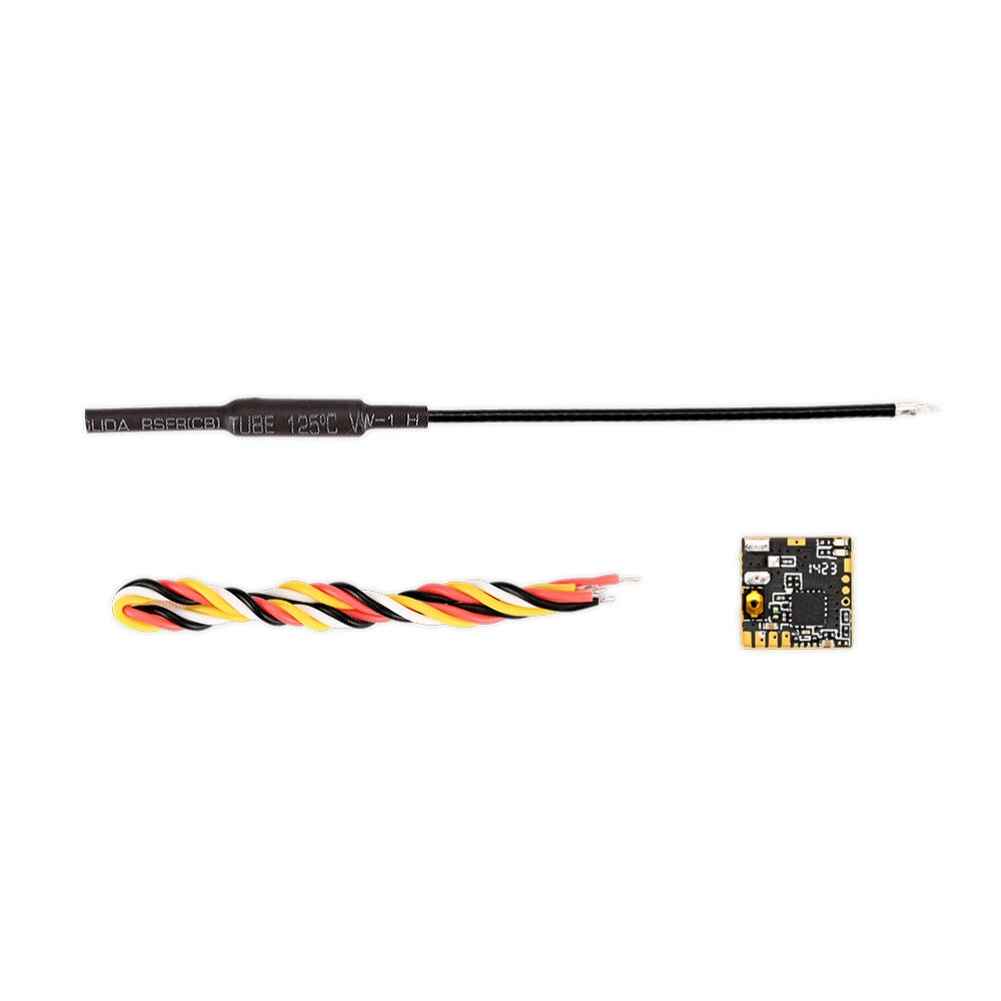

Welded/ The antenna and power cables are welded by default

Video standard:

NTSC/PAL auto

Weight:

< 0.5g

Dimensions:

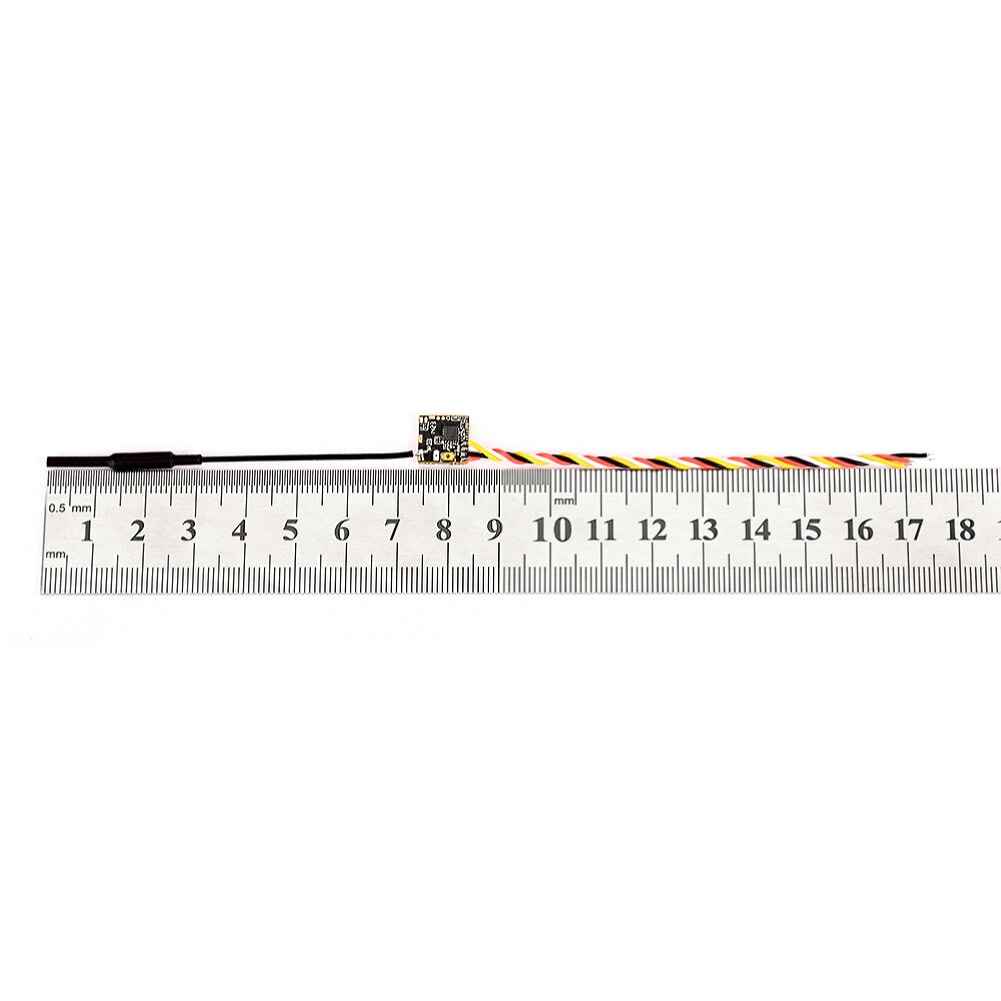

10mm*10mm*2.5mm

Package Included:
1 x NANO25 VTX
