PandaRC VT5804-BAT PRO 2.8W FPV Transmitter, 64CH 6-36V, OSD Adjustment, High Power Output for FPV Racing Drones

Description

PandaRC BAT PRO 2.8W 64CH 4.9G 5.8G 6G VTX 6-36V FPV Transmitter Support OSD Adjustment Image Transmission for FPV Racing Drones

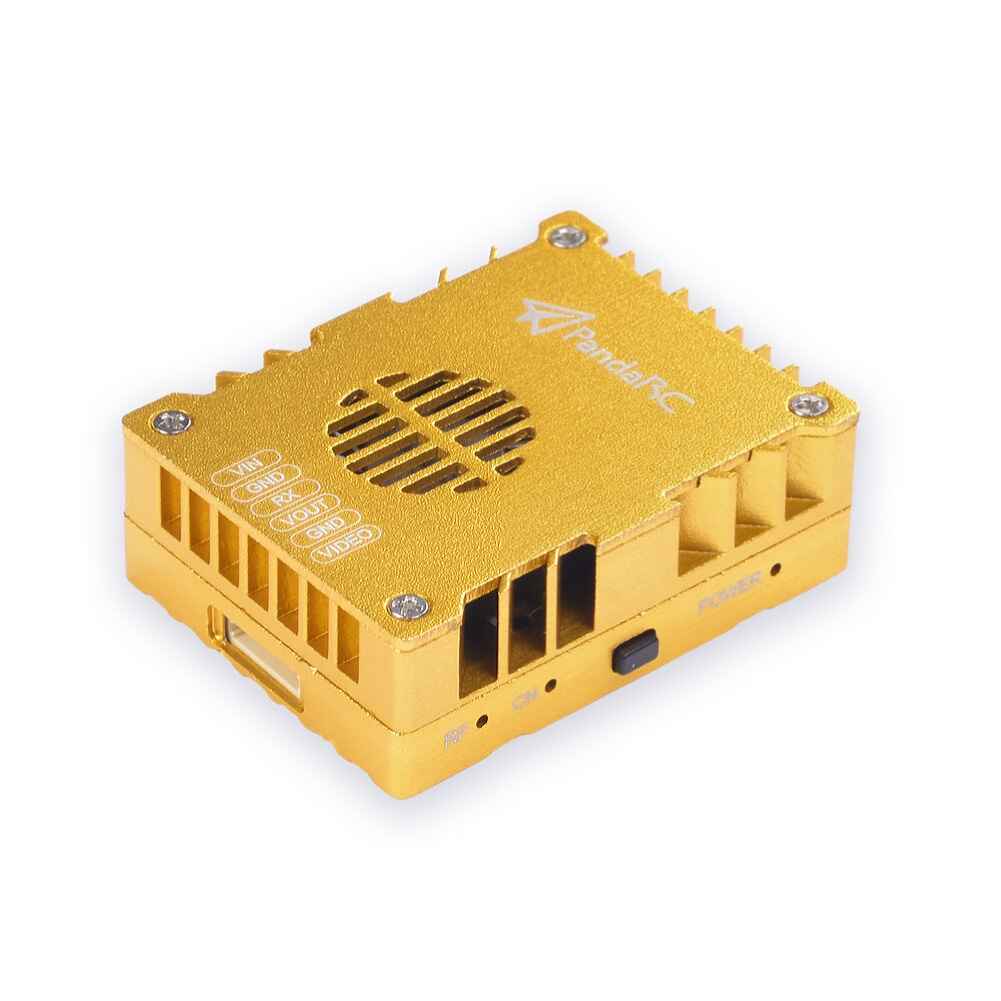

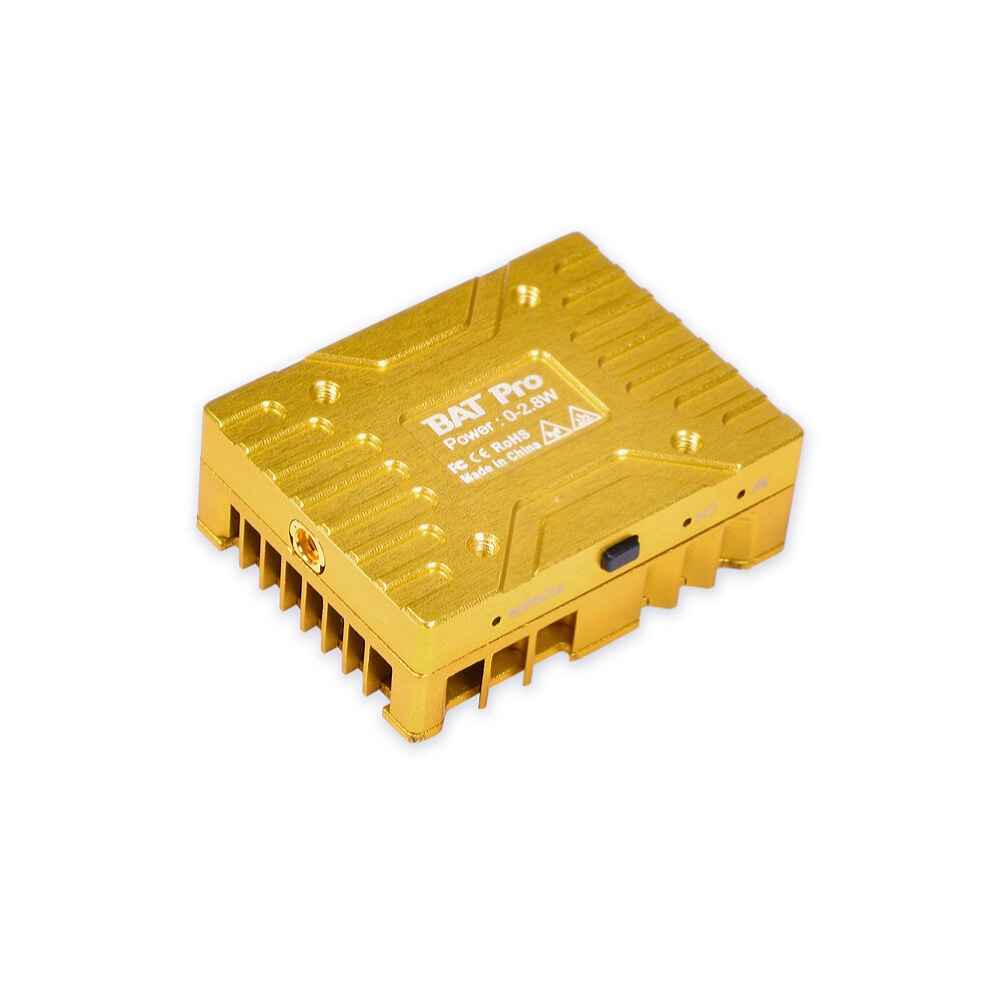

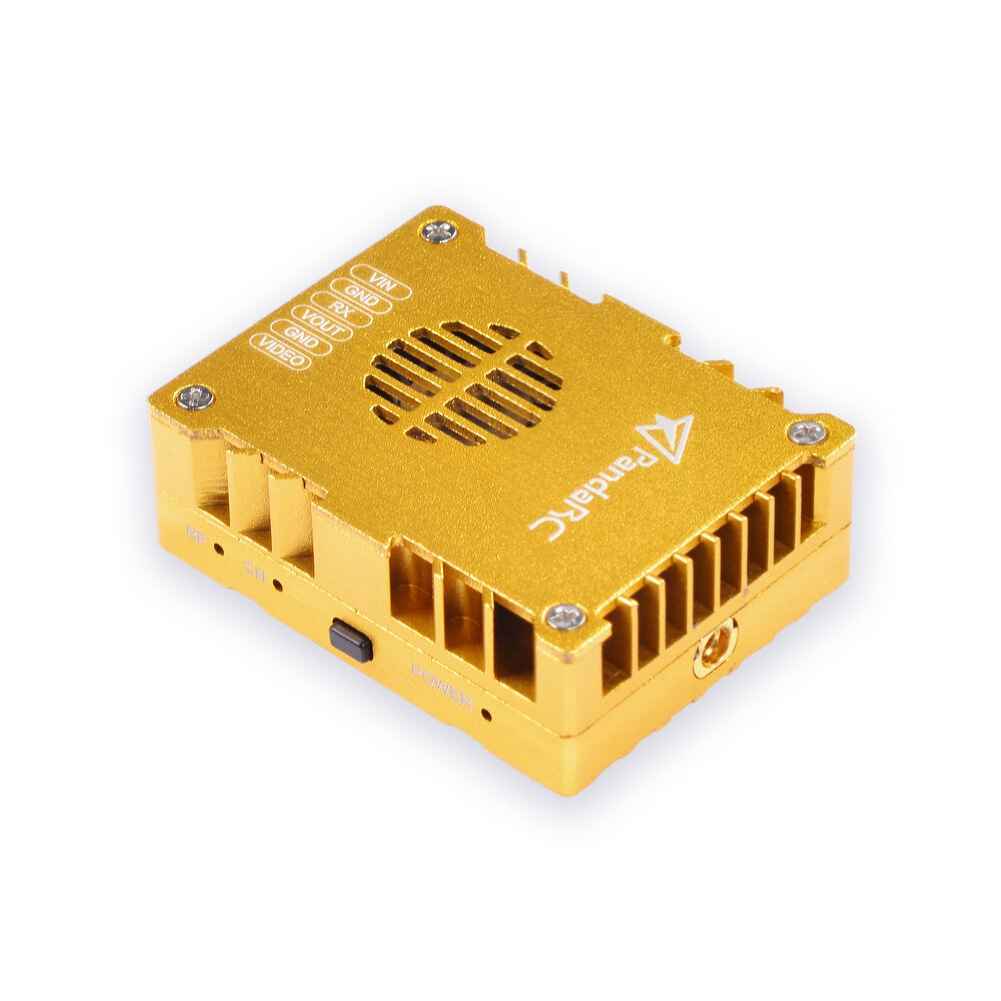

The PandaRC VT5804-BAT PRO is a high-performance FPV transmitter designed for racing drones. It features adjustable power output ranging from 25mW to 2800mW, ensuring a reliable video signal even over long distances. With support for 64 channels, pilots can easily switch frequencies to avoid interference, enhancing the flying experience. The transmitter operates on a versatile voltage input of 6-36V, making it compatible with various battery setups. Weighing just 20 grams, it minimizes impact on drone flight performance while providing high-quality video streaming. User-friendly operation is achieved through intuitive buttons and OSD parameter tuning, simplifying on-the-fly adjustments.

Specification:

Brand:

PandaRC

Product Name:

VT5804-BAT PRO

Output Power:

0-25-800-1600-2500-2800mW

Input Voltage:

6-36V

Operating Current:

<650ma@12V, 1600mW; <900ma@12V, 2800mW

Antenna Interface:

MMCX

Video Format:

NTSC/PAL automatic detection

Parameter Tuning:

Buttons/OSD

Output Frequency:

64CH(A-B-E-F-R-X-L-S)

Mounting Holes:

20*20mm

Weight:

20g (without antenna and power cord)

Dimensions:

Length 38mm * Width 29mm * Height 13mm

Features:
1. High Power Output: With adjustable power levels from 25mW to 2800mW, the VT5804-BAT PRO allows you to select the optimal transmission strength, ensuring reliable video signal even over long distances for your FPV flights.
2. Versatile Voltage Input: The transmitter supports a wide voltage range of 6-36V, making it compatible with a variety of battery setups, offering flexibility and convenience for pilots in different settings.
3. Multi-Channel Selection: Featuring 64 channels (A-B-E-F-R-X-L-S), pilot can easily switch frequencies to avoid interference with other pilots, enhancing the overall flying experience in crowded areas.
4. Lightweight Design: Weighing just 20 grams (without antenna and power cord), the VT5804-BAT PRO minimizes impact on your droneㄙs flight performance while providing high-quality video streaming capabilities.
5. User-Friendly Operation: Equipped with intuitive buttons and OSD parameter tuning, it simplifies adjustments on-the-fly, making it suitable for both beginners and experienced pilots seeking quick access to settings.

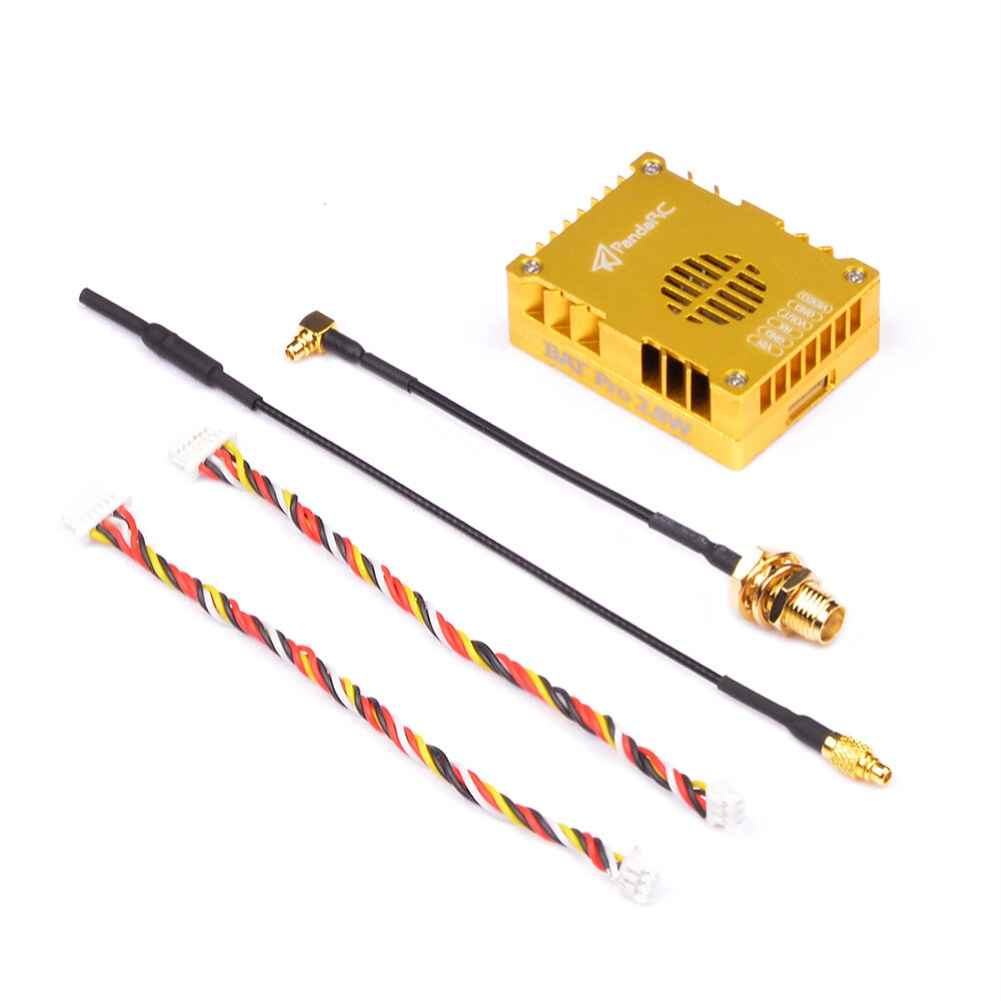

Package Included:
1 x VT5804-BAT PRO 1 x MMCX Antenna 1 x SMA to MMCX Adapter 2 x Input Cables
