Description

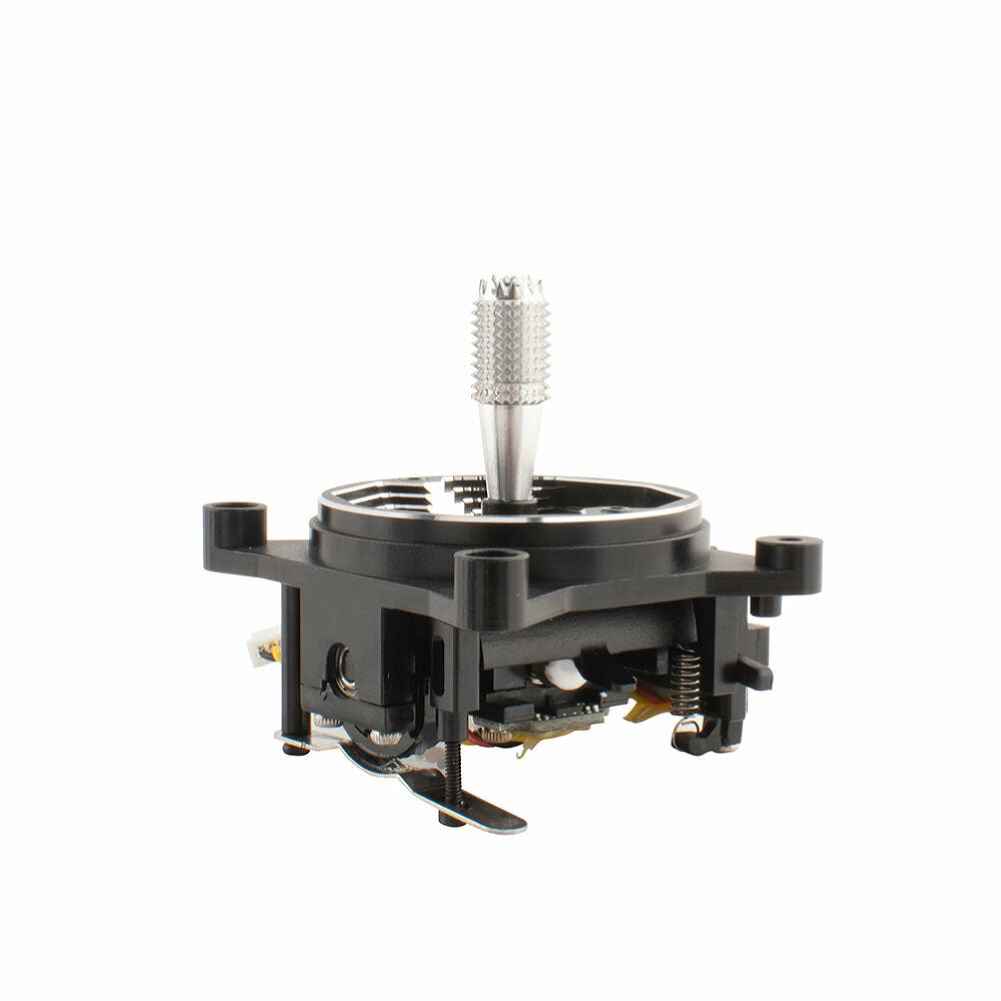

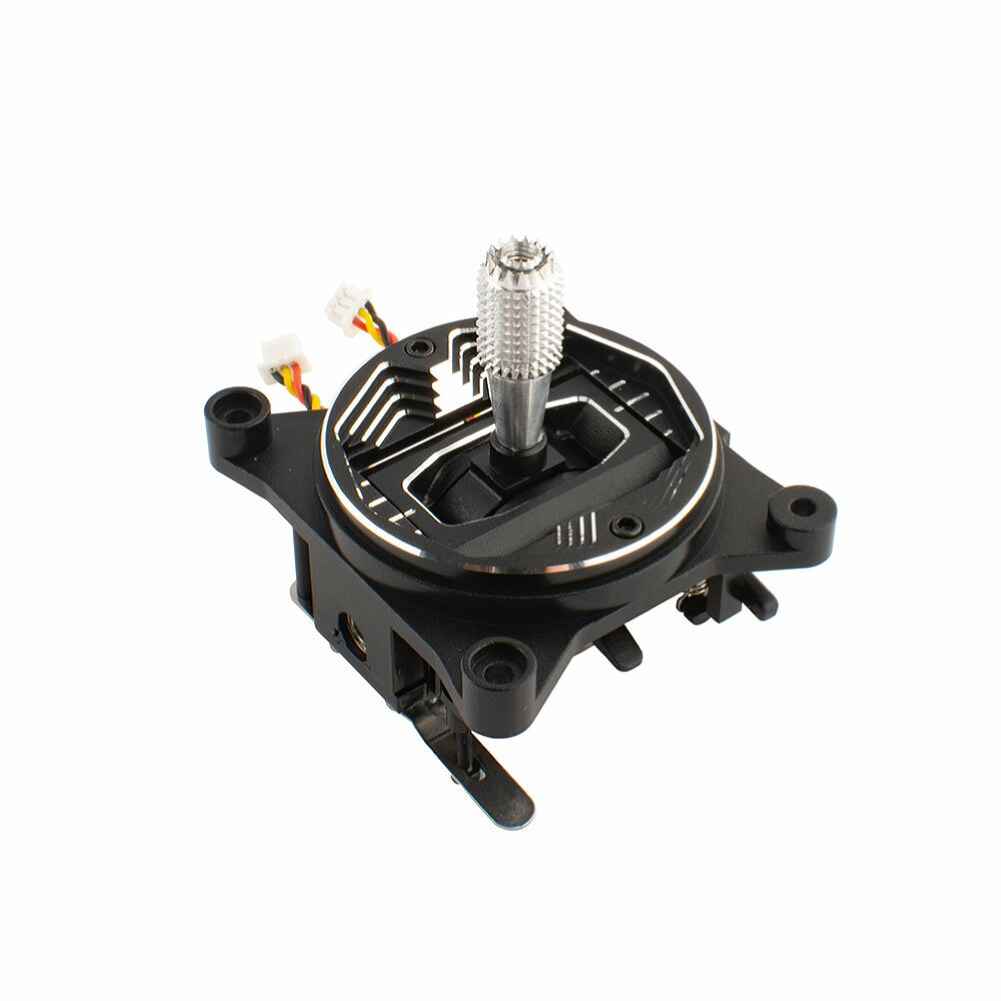

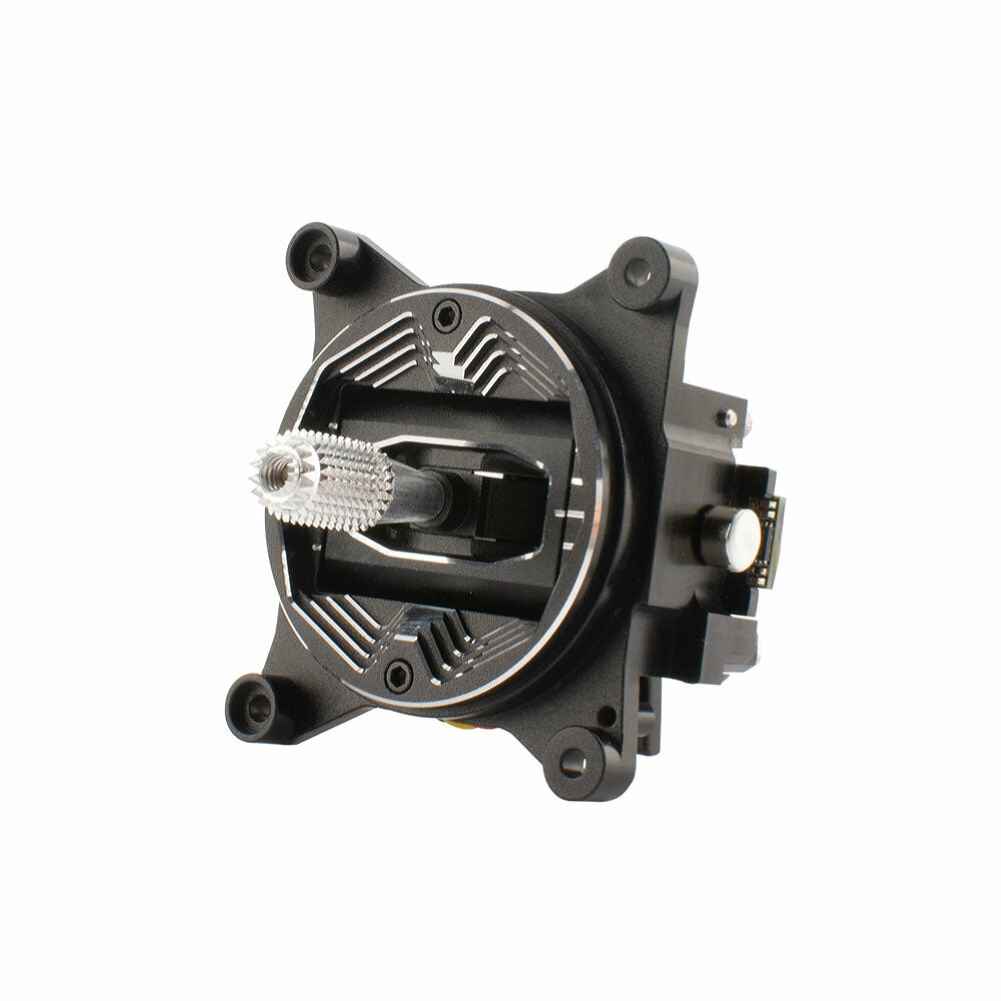

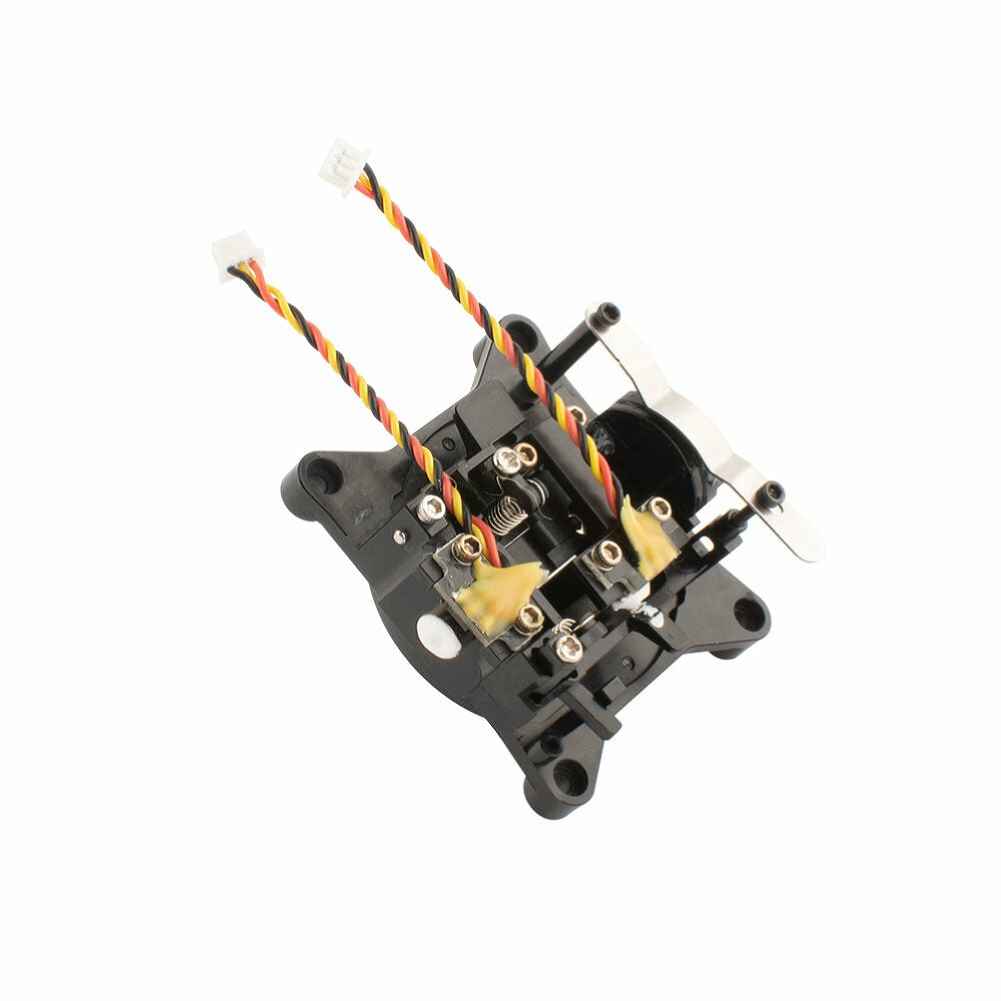

RadioMaster AG01 MINI CNC Hall Gimbal for TX12 / Zorro Radio Transmitter Remote Controller
The RadioMaster AG01 Mini CNC Hall Gimbal is expertly crafted for the RadioMaster Zorro and TX12 transmitters, offering exceptional precision and control. Constructed from aviation-grade aluminum, this gimbal features non-contact hall sensors for accurate control inputs and precise centering. The pre-installed Sticky360 Mini Gimbal Sticks and quad precision bearings ensure an unparalleled stick feel. With adjustable vertical travel angles ranging from 38簞 to 54簞, self-centering adjustment, and customizable tension, this gimbal is designed to enhance your compact radio experience. Please note that the AG01 MINI gimbals are scheduled to ship in mid-May.
Introduction:
The long-awaited AG01 Mini is finally here! Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel.
From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!
Please note: AG01 MINI gimbals are expected to ship in mid May.
Key Features:
– Made with CNC processed aviation grade aluminum.
– Sticky360 Mini Gimbal Sticks as standard.
– Non contact hall sensors for accurate control inputs and precise centering.
– Quad precision bearings for unparalleled stick feel.
– Adjustable vertical travel angle (Min. 38‵, Max. 54‵).
– Custom designed for RadioMaster Zorro , TX12.
Specification:
Name: AG01 Mini CNC Hall Gimbal
Sensor type: Hall Sensor
Working voltage: DC 3.3V
Linearity: Real-time (No delay)
Adjustable vertical travel range: 38‵?54‵
Self-centering adjustment: Yes
Easy mode adjustment
Adjustable tension & ratchet: Yes
Quad bearing: Yes
Temperature range: -20‵C-85‵C
Size: 49*42*48mm
Weight: 42g(呼0.3g)

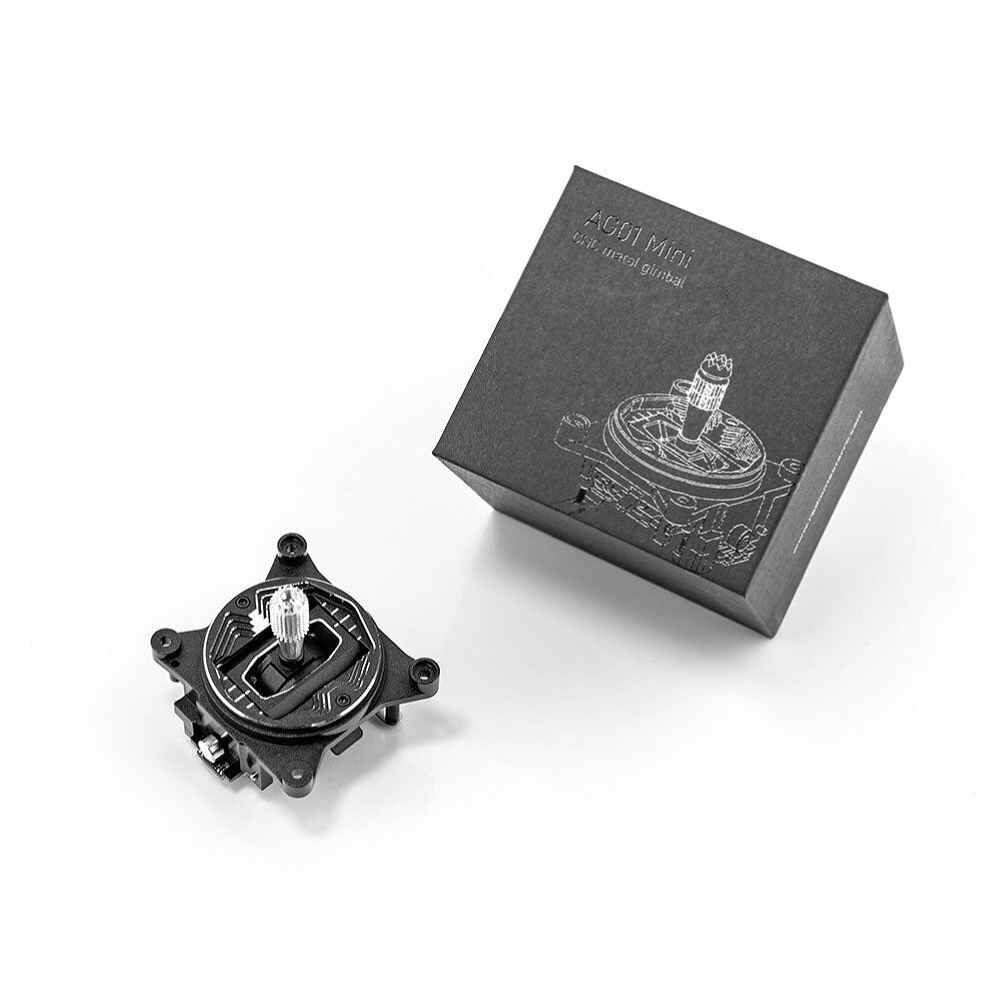

Package Included:
1 x AG01 Mini Hall CNC Gimbal (Version 1)
1 x Hex tool
4 x Installation screw
1 x Spare normal tension spring
1 x Throttle tension screw
OR
2 x AG01 Mini Hall CNC Gimbal (Version 2)
2 x Hex tool
8 x Installation screw
2 x Spare normal tension spring
2 x Throttle tension screw
