RUSHFPV 3.3GHz 8CH FPV Receiver & Transmitter with DVR, High-Gain 15.8dBi Antenna for RC Drone

Description

RUSHFPV 3.3GHz 8CH FPV Receiver FPV Transmitter VTX &FPV Receiver VRC with DVR High-Gain Directional 15.8dBi Antenna for RC Drone

The RUSHFPV 3.3GHz FPV Receiver and Transmitter is engineered for ultimate performance and reliability in RC drone applications. Featuring a sophisticated digital PLL circuit and chip-level integration, it ensures stable, drift-free operation with exceptional sensitivity up to -95dBm across all channels. It supports both CVBS NTSC/PAL video input and output, with frequency bands ranging from 3170-3470MHz across 16 channels. The optional built-in DVR records at 30fps, while the high-gain directional antenna offers a 15.8dBi gain with a narrow beamwidth of 29 degrees. The rugged aluminum alloy housing provides durability, complemented by a digital display and user-friendly controls. This system is thoroughly quality controlled, ensuring reliability.

The RUSHFPV 3.3GHz Video Receiver is designed for uncompromising performance and reliability. This state-of-the-art receiver features a customized digital PLL circuit and chip-level integration, ensuring no frequency driftt and exceptional sensitivity up to -95dBm across all channels.
Specifications:

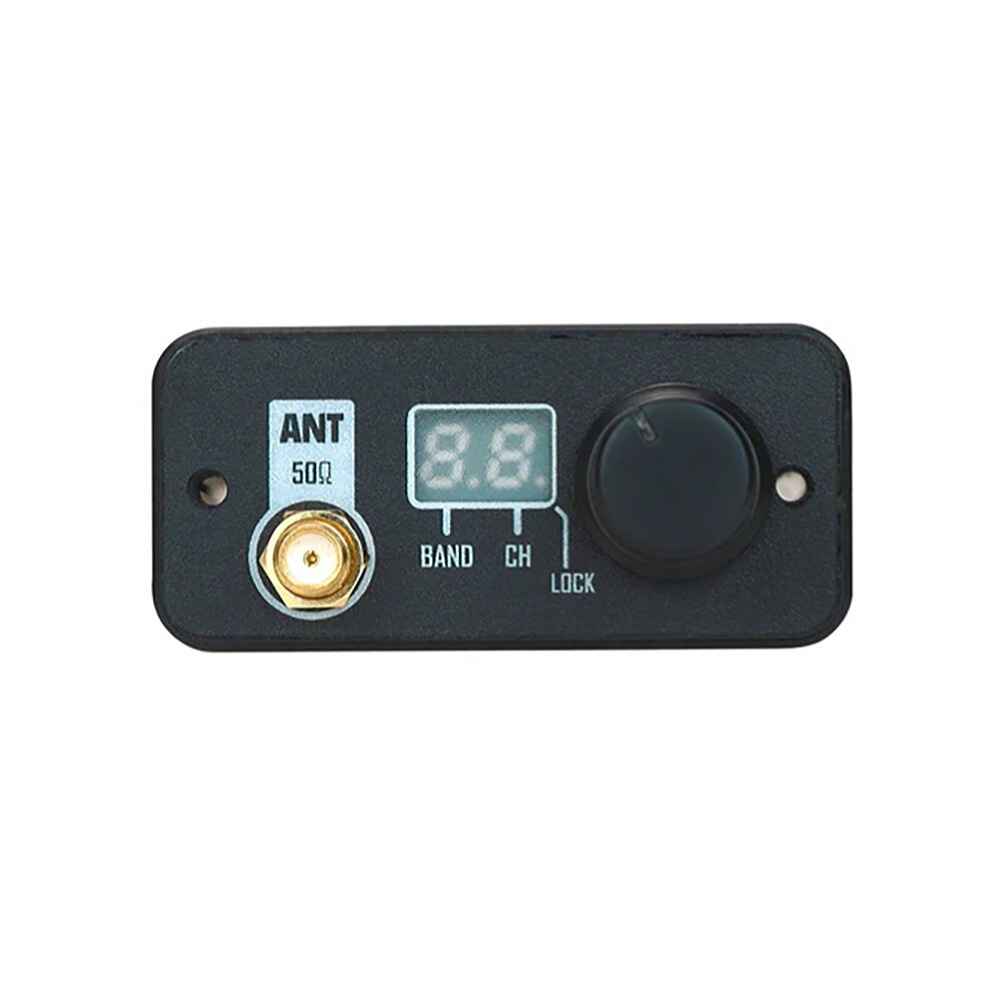

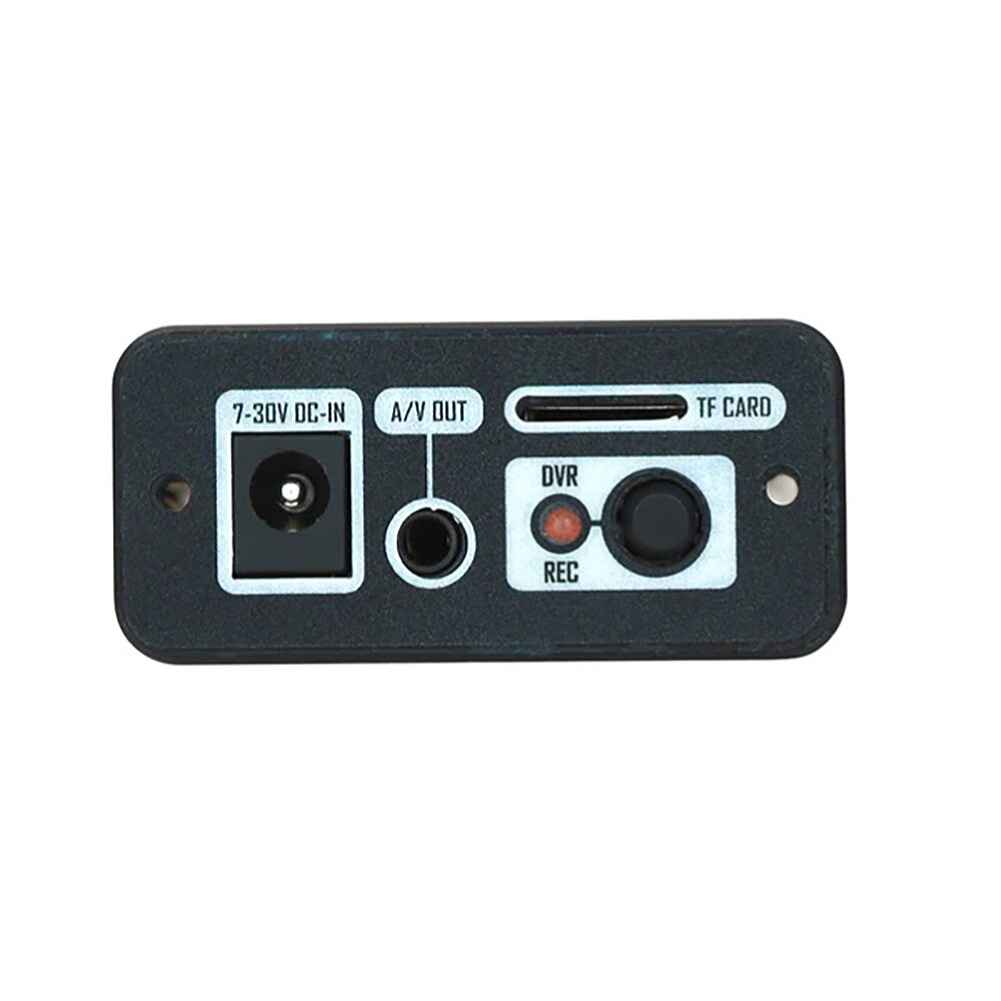

VRX Module:

Video Output:

CVBS NTSC/PAL

Frequency:

BAND-A 3330-3470MHz (8 channels),
BAND-B 3170-3310MHz (8 channels)佾

Sensitivity:

<-95dBm

DVR:

CVBS 30fps (Optional)

DC Input:

7-30V

Connector:

SMA

Dimensions:

58x27x101mm

Weight:

103g

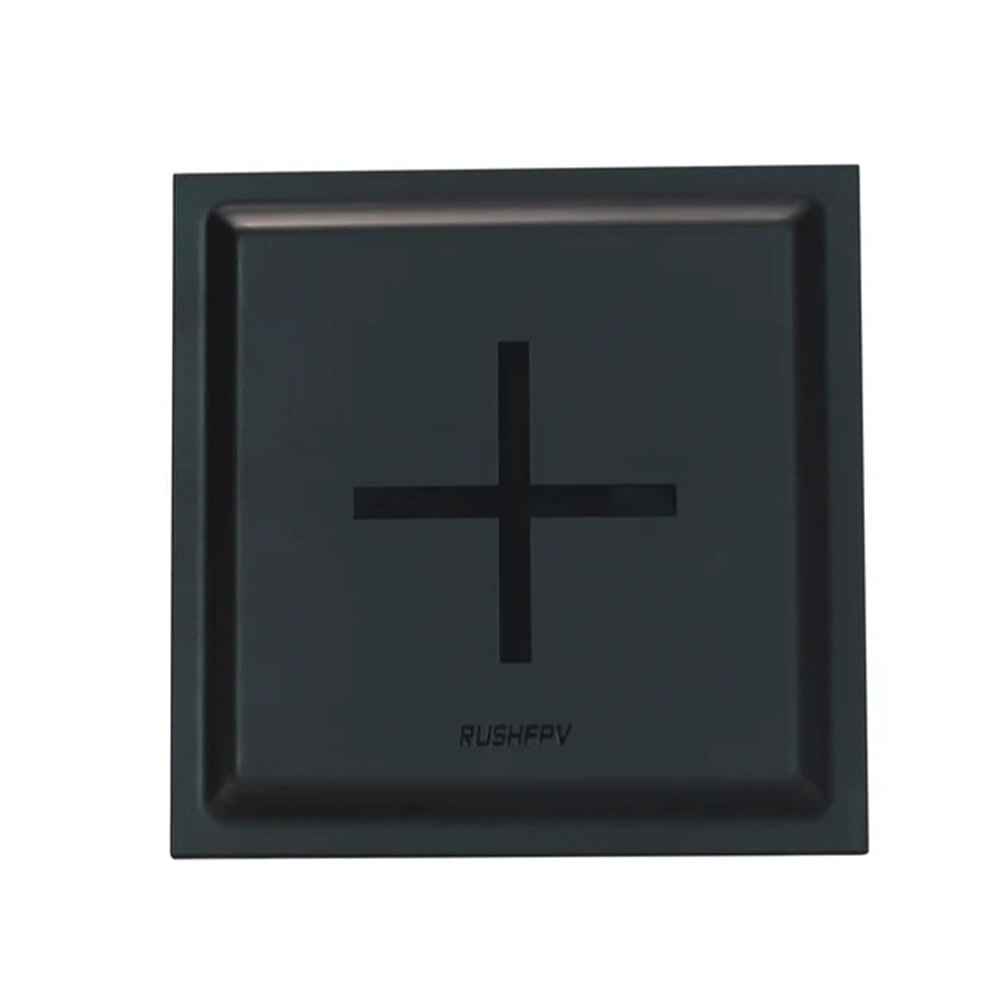

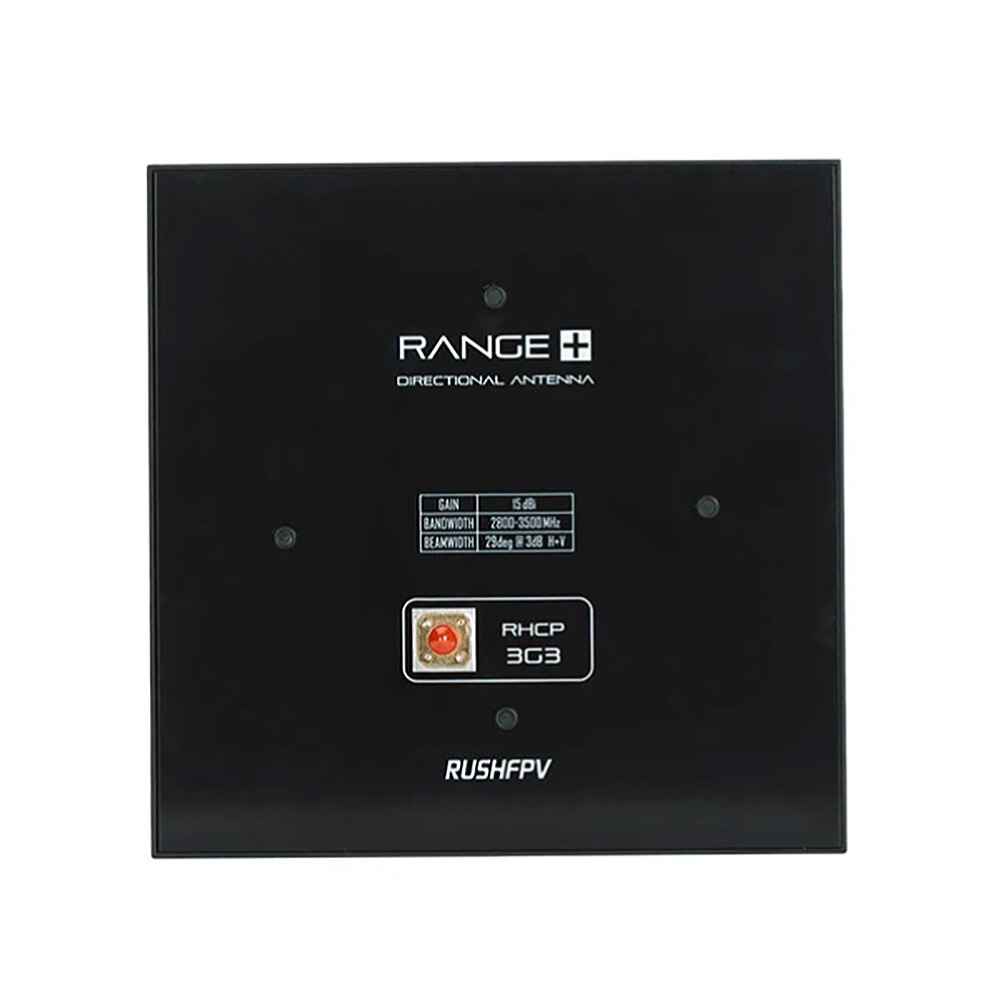

Directional Antenna:

Polarization:

LHCP/RHCP

Bandwidth:

3150-3500 MHz

Beamwidth:

29 degrees @3dB H+V

Gain:

15.8 dBi

V.S.W.R:

<1.3

Cable:

RG178 (Adapter Cable)

Connector:

SMA

Dimensions:

174x174x16mm

Weight:

196g

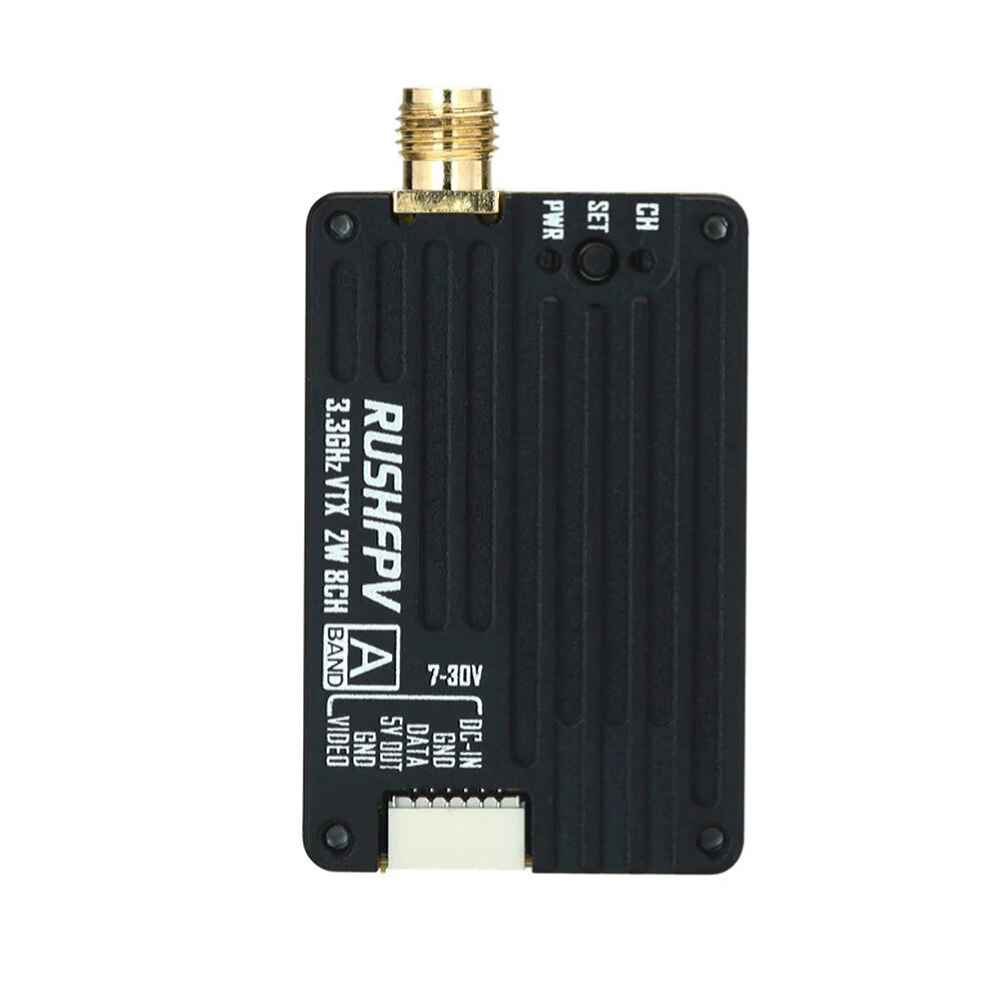

VTX Specifications:

Video Input:

CVBS NTSC/PAL

Frequency:

BAND-A: 3330-3470MHz (8 channels)
BAND-B: 3170-3310MHz (8 channels)

RF Power:

>2W

Protocol:

IRC Tramp

DC Input:

7-30V

Connector:

SMA

Dimensions:

40.5 x 26 x 8.5 mm

Weight:

16.5g

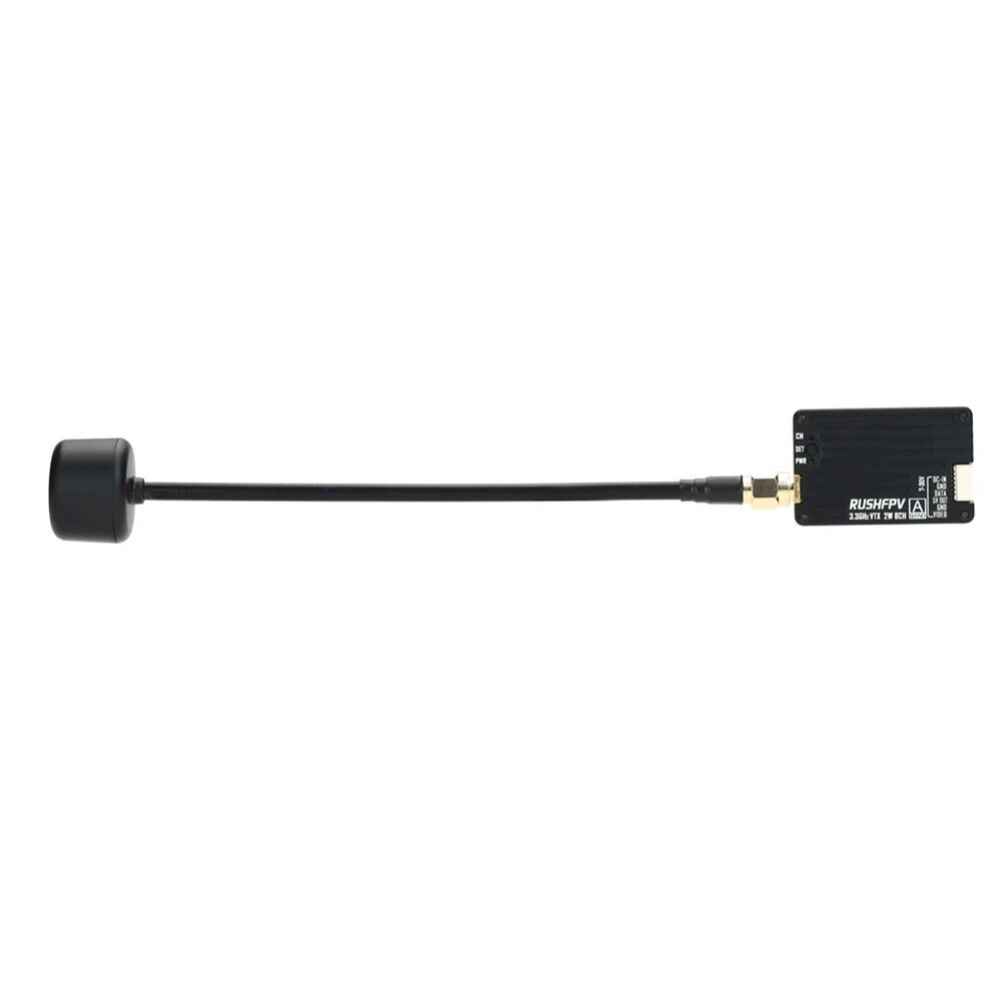

VTX Antenna Specifications:

Polarization:

RHCP

Bandwidth:

A-Band: 3330-3470MHz
B-Band: 3170-3310MHz

Gain:

2dBi

V.S.W.R:

<1.5

Cable:

RG402 HeavyDutyy

Connector:

SMA

Dimensions:

23.6 x 165 mm

Weight:

13g

Key Features:
1.Customized Digital PLL Circuit: Achieve stable, driftfree performance with our high-integration chip design.
2.Optional Built-in DVR Module: Recordd your flights effortlessly with the optional CVBS 30fps DVR.
3.Rugged Aluminum Alloyy Housing: Tough construction with digital display and easy-to-use knob.
4.High-Gain Directional Antenna: The multi-unit antenna provides a narrow beam angle and an impressive 15.8 dBi gain.
5.Complete Quality Control: Thorough QC for all VRX and antenna production ensures top-notch reliability.

Package Included:
1 x 3.3GHz Video Receiver
1 x 15.8 dBi Patch Receiving Antenna
1 x 3.3G 2W Video Transmitter
1 x Circular Polarized Antenna
