GEPRC MATEN 5.8G 2.5W VTX PRO FPV Transmitter with Microphone, Adjustable Power, IRC Tramp Protocol, MMCX for RC Drone

Original price was: 129.34$.Current price is: 112.53$.

  • Five adjustable power levels up to 2500mW for long-range flights
  • Durable aluminum alloy CNC shell with active fan cooling
  • IRC Tramp protocol for easy OSD parameter adjustments
  • Wide voltage input support from 7V to 36V
  • Built-in microphone for real-time drone sound transmission

Description

GEPRC MATEN 5.8G 48CH Pit/25mW/200mW/600mW/1600mW/2500mW 2.5W VTX PRO Built-in Microphone MMCX FPV Transmitter for RC Drone Long Rang

The GEPRC MATEN 5.8G 2.5W VTX PRO is a high-performance FPV transmitter designed for RC drones. It features five adjustable power levels, reaching up to 2500mW, ensuring stable signal transmission and excellent penetration. The robust aluminum alloy CNC shell aids in heat dissipation, while the active fan cooling system enhances impact resistance and thermal management. Supporting the IRC Tramp protocol, it allows easy parameter adjustments via OSD. The built-in microphone provides real-time audio transmission, and it accommodates a wide voltage input range of 7-36V. With temperature control protection, it prevents overheating. The transmitter supports two mounting hole positions: 20x20mm and 30.5×30.5mm.

Summary:
The MATEN 5.8G 2.5W VTX PRO high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 5 adjustable power levels and a maximu power of up to 2500mW. The transmission signal is very stable and the penetration ability is excellent.
MATEN 5.8G 2.5W VTX PRO uses high-strength aluminum alloyy CNC shell to assist heat dissipation. The unique appearance design and active fan cooling provide stronger impact resistance and better heat dissipation performance. It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters. The built-in microphone can transmit the sound of the FPV drone in real time.
It has a wide voltag input of 7-36V and temperature control protection function to prevent overheating and burning. Supports two installation hole positions: 20*20mm and 30.5*30.5mm.
Feature:
-Five levels of adjustable power, up to 2500mW, suitable for long distance flightt.
-Selected high strength aluminum alloyy CNC shell, auxiliary heat dissipation.
-The built-in micr turbofan actively dissipates heat.
-Wide voltag input, Supports 7V-36V Voltag input.

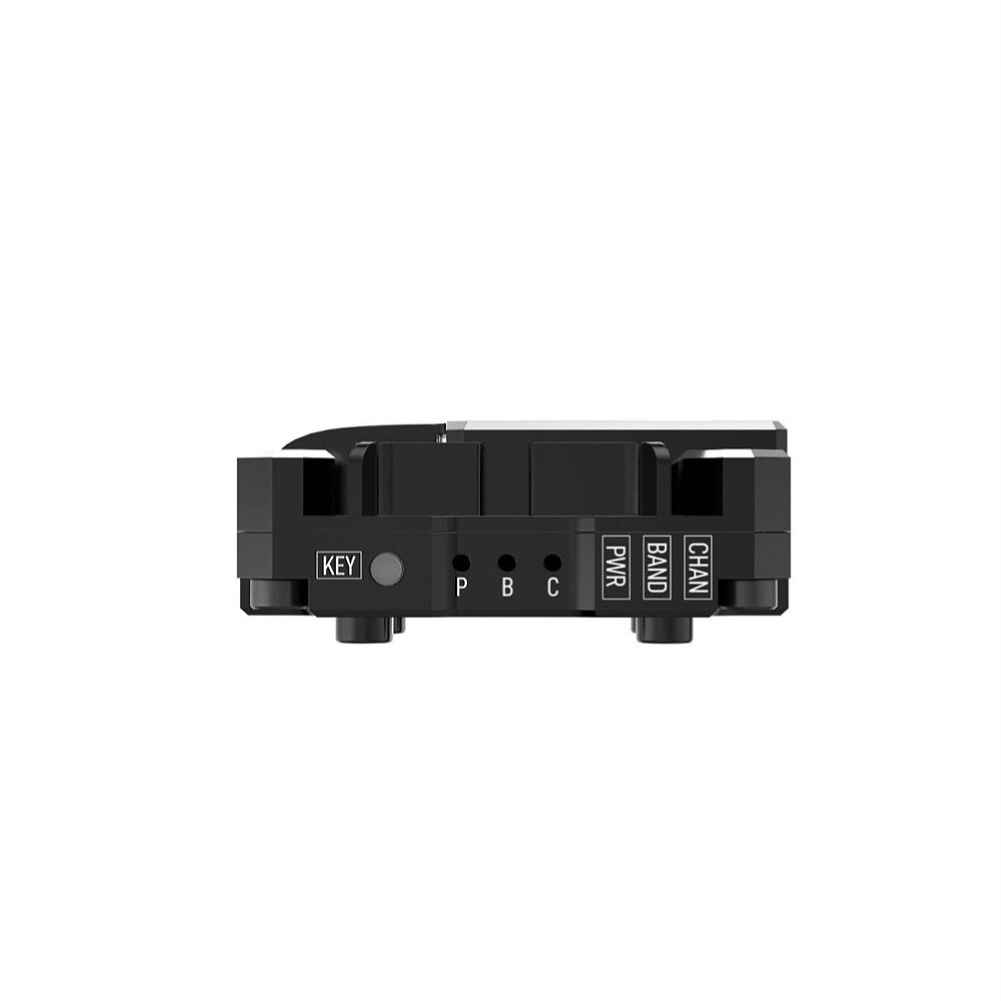

-One function buttons, three indicator lights, easy to control.
-VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
-Temperature control protection function that can prevent high temperature burning.
-VTX built in microphone, Real-time transmission of Droneㄙs sounds.
-Support 20* 20mm and 30.5*30.5mm installation hole position.
Specifications:

Model:

GEPRC MATEN 5.8G 2.5W VTX PRO

Output Power:

25mW/200mW/600mW/1600mW/2500mW/Pit mode

Frequency:

5.8G

Channel:

48CH

Input Voltag:

DC7-36V侈2-8S Battery佩

Output Voltag:

5V@600mA

Protocol:

IRC Tramp

Antenna Interface:

MMCX

Cable Interface:

SH1.0 6pin

Video Format:

PAL/NTSC

Microphone:

Built in Microphone

Size:

36.3沁36.3沁12.6mm

Mounting Hole:

20x20mm(M2)宜30.5沁30.5mm(M2)

Weight:

17g

Notes:
1. Install Antenna before use.
2. To prevent overheating, provide constant airflow and a well ventilated environment. Install a cooling fan if operating in confined conditions.
3. The 5V Output is for a Camera/ Cooling Fan use only! Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.
Includes:
1 x MATEN 5.8G 2.5W VTX PRO
1 x MMCX Copper tube antenna
1 x MMCX to SMA侈Internal foramen佩connector
1 x sh1.0 6P Connecting cable
6 x M2*5 screw
4 x M2*12 screw

Package Included:
1 x MATEN 5.8G 2.5W VTX PRO
1 x MMCX Copper tube antenna
1 x MMCX to SMA (Internal foramen) connector
1 x SH1.0 6P Connecting cable
6 x M2 5 screw
4 x M2 12 screw
