HEQ G-Port 3-Axis Gimbal for DJI O3 AirUnit and WalkSnail CADDX, Supports Sbus, PWM, Mavlink, FPV Racing Drone and RC Airplane Compatible

Description

HEQ Gimbal G-port Compatible with DJI O3 AirUnit/ WalkSnail CADDX Support Sbus Pwm Mavlink for RC Airplane Fixed-Wing FPV Racing Drone

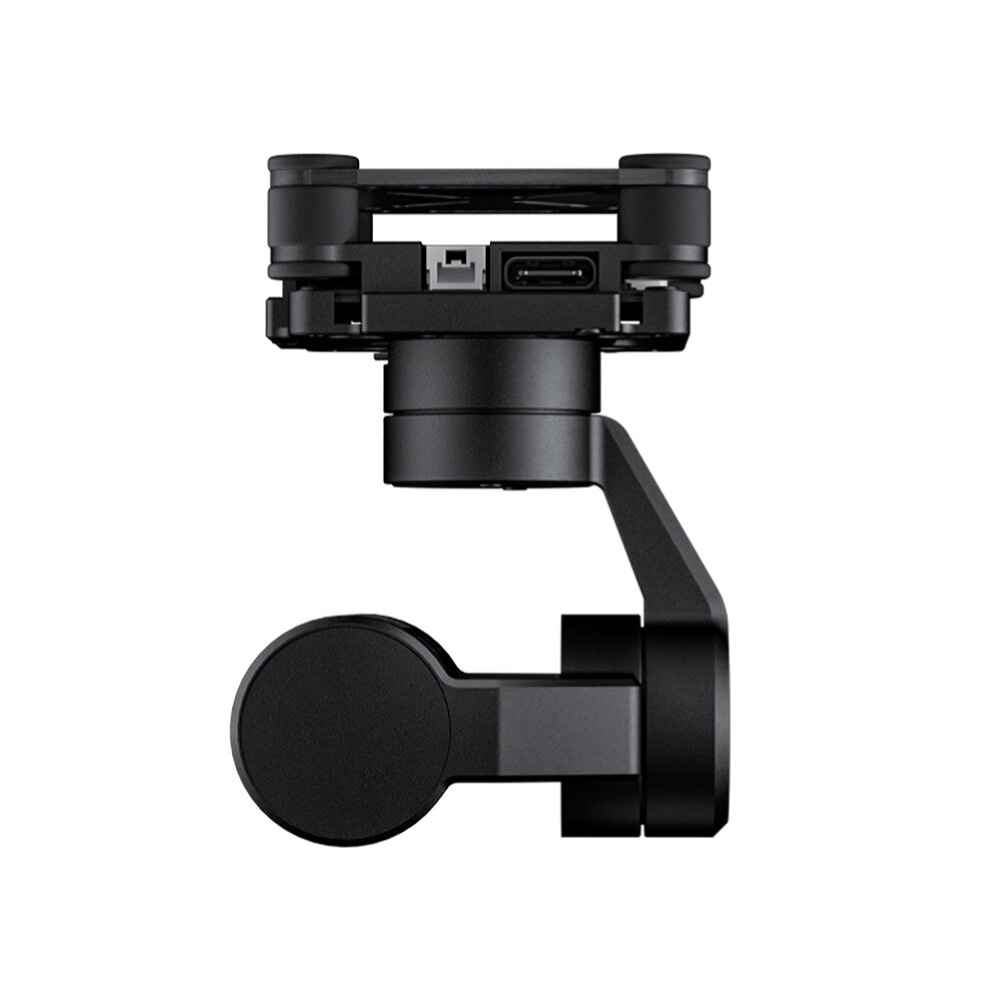

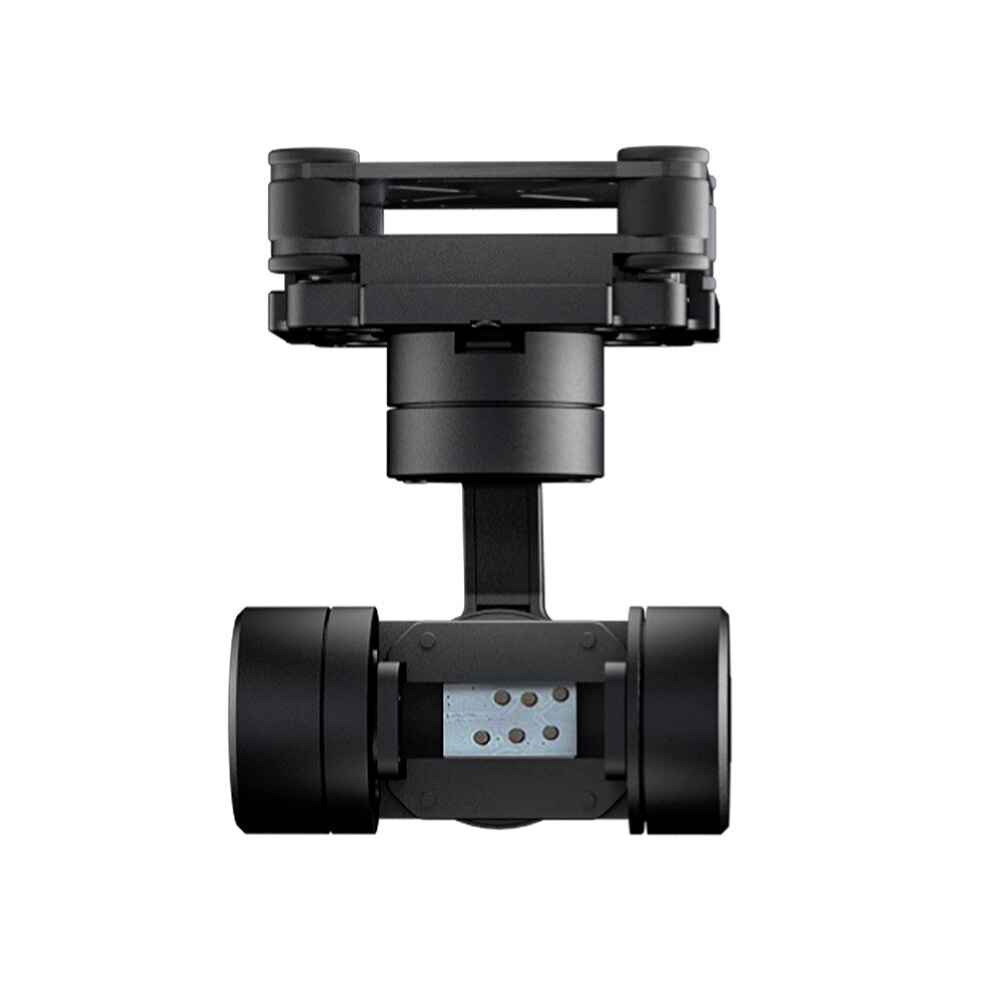

The HEQ G-Port is a specialized 3-axis gimbal designed for FPV enthusiasts and fixed-wing drone hobbyists. Known for its high stability, it supports both upright and inverted installations, making it adaptable to various flight platforms. Compatible with DJI O3 and CADDX cameras, it offers three input modes: mavlink, sbus, and pwm. This allows users to easily assemble their personalized gimbal camera setup. Note that the gimbal cannot simultaneously support both the DJI O3 Unit and Caddx camera. Please verify compatibility before purchasing. The gimbal features mechanical axes with specific pitch, yaw, and roll angles, and operates on a 12-18V supply. It weighs 67g and measures 48.5x49x67.5 mm.

Product Introduction:
– G-port is a 3-axls gimbal component developed by HEQ for FPV enthusiasts and fixed-wing drone hobbyists.
– G-port boasts high stability and supports both upright and inverted installations.
– It is compatible with DJI 03 or CADDX, supports three inputs: mavlink, sbus, and pwm.
– It is adaptable to various flight platforms.This allows users to quickly assemble their personalized gimbal camera.
Tips:This gimbal cannot support DJI 03 Unit and Caddx camera at the same time. Please contact us to determine which model needs to be adapted before purchasing.
Specifications:

Axess:

Mechanical three-axls

Gimbal Angles:

Pitch:-135‵ to 45‵
Yaw: -135‵ to 135‵
Roll: -45‵ to 45‵

Supported Control Modes:

sbus宜pwm宜mavlink

Supported Camera Types:

DJI O3/ CADDX

Supply voltag:

12-18V

Dimensions:

48.5x49x67.5 mm

Weight:

67g

If you need to know more about gimbal head tracking for DJI O4/ O4 Pro, please click Here to learn more.
Firmware Version 202506 Update Details:
Resolved the issue where the gimbal would freeze when the control was limited to the left/right in lock-head mode.
Corrected the inversion of control direction when the camera is mounted in an upward position under lock-head mode.
Fixed the gimbal jittering that occurred at certain positions during directional control.
Rectified the sudden return-to-center issue during gimbal operation.
Firmware Download Instructions:
The latest firmware is now available for download on HEQ official website: HEQ AVTech Download Center.
Navigate to the download path: HEQ AVTech Download Center 汪 Micro Cloud Cameras 汪 G-Port 3-Axis Gimbal Assembly, and select the most recent firmware for download.
Please review the update notes carefully and follow the provided guidelines to ensure a smooth update process. Should you encounter1 any issues during the update, please don’t hesitate to reach out to our technical support team for assistance.

Package Included:
1 x G-Port 3-Axis Gimbal Component
