1.2GHz 1.3GHz 1.6W 8CH FPV Transmitter and Receiver Module Set for Long Range FPV Racing Drone

Price range: 40.77$ through 67.41$

  • 1.6W output power for long-range transmission up to 5km
  • 8-channel frequency options from 1080MHz to 1360MHz
  • Supports NTSC/PAL video formats
  • Low-frequency signal with strong anti-interference
  • Digital tube indicator for easy adjustments

Description

1.2GHz 1.3GHz 1.6W 8CH VTX-1G3SE FPV Transmitter VRX-1G3-V2 FPV Receiver Module Set for FPV Drone 5KM Long Range Voyage FPV Racing Drone

This 1.2GHz 1.6W FPV transmitter and receiver module set is designed for FPV racing drones, offering a robust long-range image transmission up to 5km. With an output power of 1.6W and 8-channel frequency options ranging from 1080MHz to 1360MHz, it ensures a stable and clear video signal. The system operates efficiently with an input voltage of DC10-12V and a rated current of 12V/330mA@1.6W. It supports both NTSC and PAL video formats and features a digital tube indicator for easy parameter adjustments. The low-frequency signal provides excellent diffraction ability and strong anti-interference, making it suitable for various complex environments.

Specification:

Model:

1.2G 1.6W image transmission

Output power:

1.6W

Transmission distance (no interference at the beach):

5km

Input voltage:

DC10-12V

Rated current:

12V/330mA@1.6W

Video format:

NTSC/PAL

Output frequency point:

8CH (1080MHz1120MHz1160MHz 1200MHz 1240MHz 1280MHz 1320MHz 1360MHz)

Parameter adjustment method:

button

Indicator light:

digital tube (4/5/6/7/8/9/A/B)

Microphone:

None

Image transmission protocol:

None

Antenna interface:

SMA

Working environment temperature:

-20﹠-60﹠

Installation hole position:

none

Product size:

77沁25沁8mm

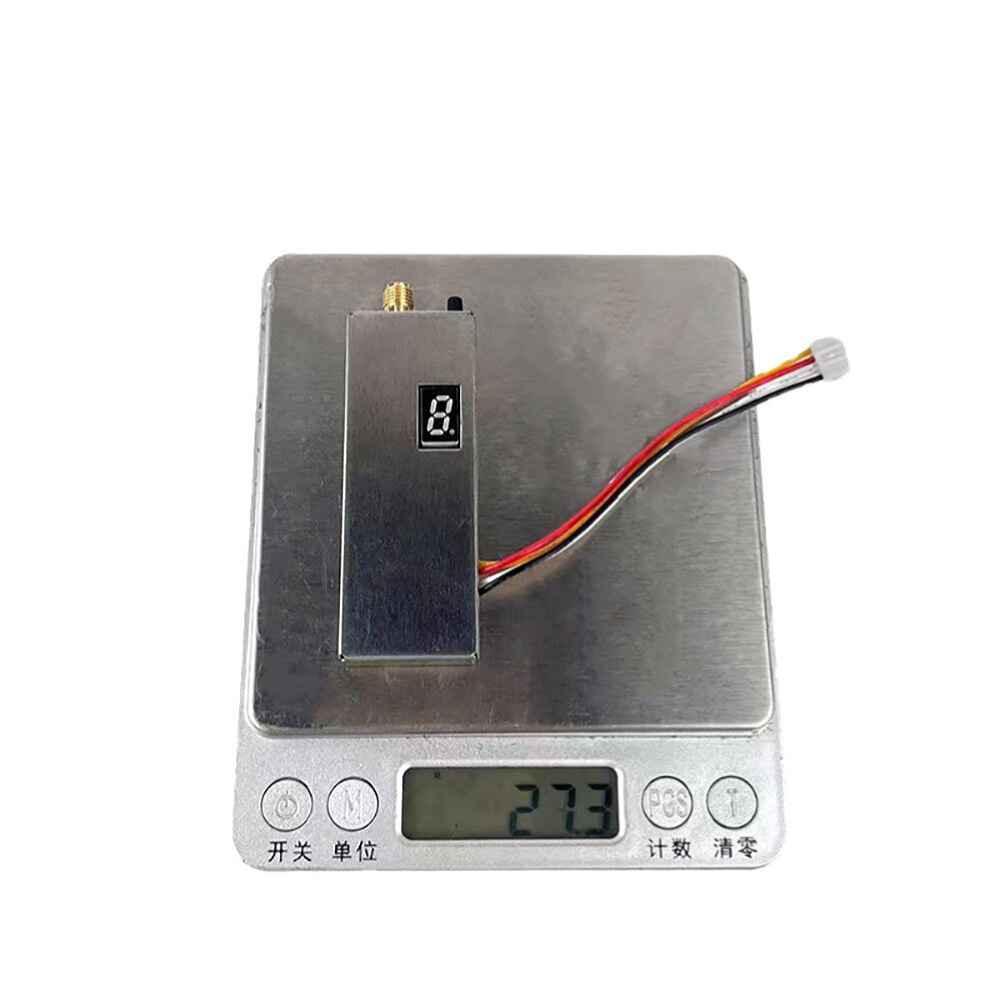

Product weight (excluding antenna):

27.3呼2g

Packing size:

150沁200mm

Features:
– Compared with the 5.8G carrier frequency band, 1.2G1.6W image transmission is a low-frequency signal with excellent diffraction ability, stronger anti-interference and penetration!
– The wireless receiving image is clearer and more stable, the transmission distance is longer, and it is more suitable for various complex actual environments.
– When using a 5dB omnidirectional antenna, it can transmit more than 5km in an open area. If an external high-gain directional antenna is connected, the distance can reach 10km.

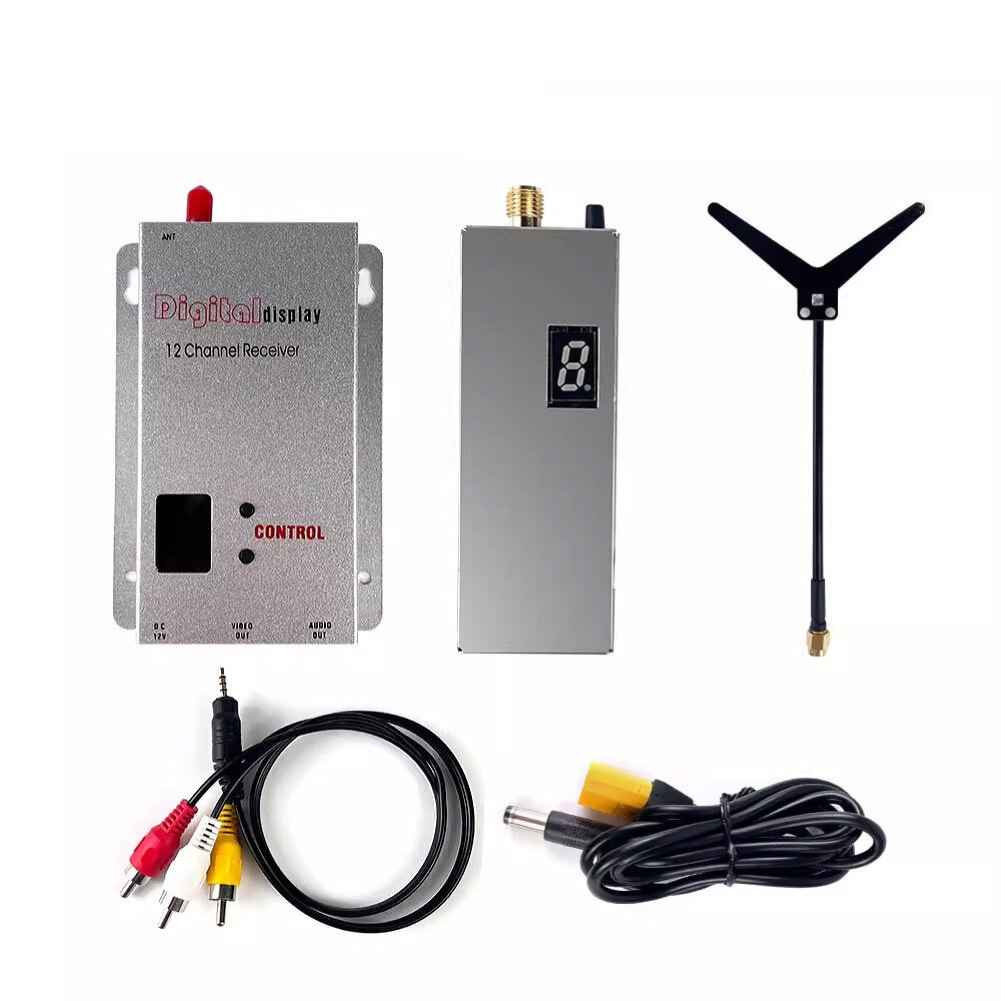

Package Included:
1 x Transmitter (without antenna)
OR
1 x Receiver (without antenna)
OR
1 x Transmitter
1 x Receiver

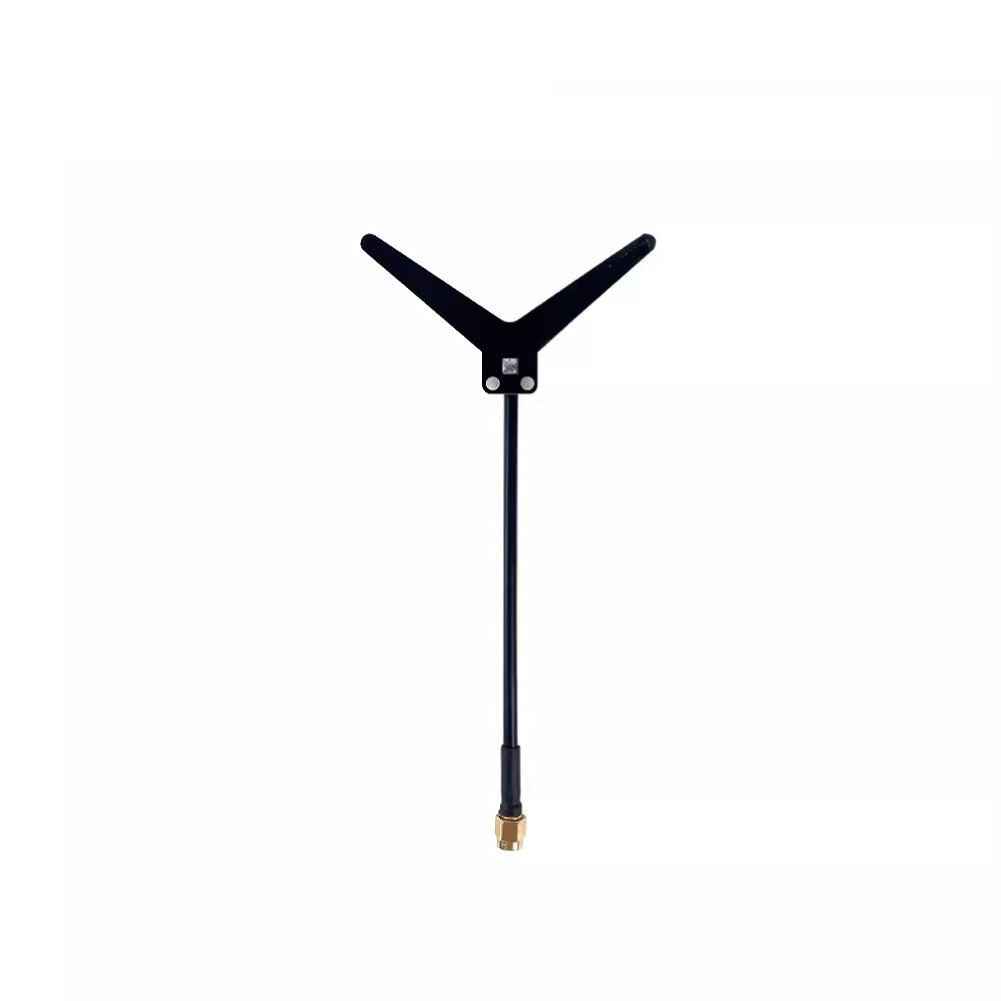

1 x Antenna
2 x Cables

Recommended Category:
Toys & Hobbies > Remote & App Controlled Vehicles & Parts > RC Vehicle Parts > Remote & App Controlled Vehicle Parts

Additional information

Weight0.3 kg
Version

VRX receiver set, VTX transmitter set, VTX+Receiver
